DEMO_DRNL - Widening of filters in the DRNL

Description

This script displays three auditory spectrograms generated using the DRNL. The input signal is the same, just presented at three different levels. The purpose is to visualize the broading of the auditory filters at higher input levels.

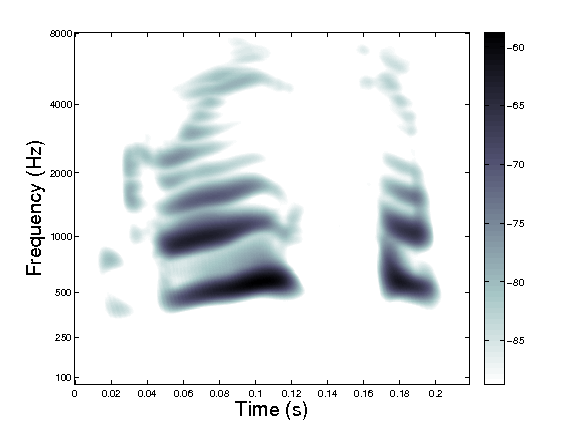

Greasy at 50 dB

This figure shows the DRNL of an input speech signal with a level of 50 dB SPL.

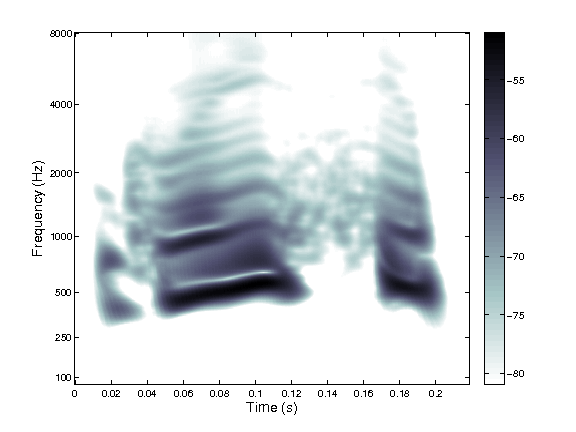

Greasy at 70 dB

This figure shows the DRNL of an input speech signal with a level of 50 dB SPL.

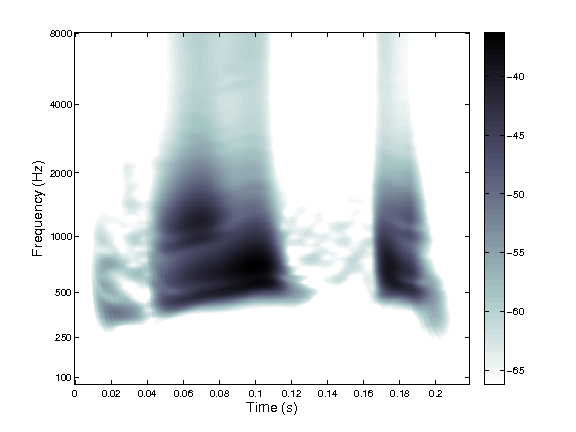

Greasy at 90 dB

This figure shows the DRNL of an input speech signal with a level of 50 dB SPL.
