EXP_BAUMGARTNER2013 - Figures from Baumgartner et al. (2013)

Usage

data = exp_baumgartner2013(flag)

Description

exp_baumgartner2013(flags) reproduces figures of the book chapter from Baumgartner et al. (2013).

Optional fields of output data structure:

data.id
listener ID
data.u
listener-specific uncertainty
data.dtfs
matrix containing DTFs. Dimensions: time, position, channel (more details see doc: HRTF format)
data.fs
sampling rate of impulse responses
data.pos
source-position matrix referring to 2nd dimension of hM and formated acc. to meta.pos (ARI format). 6th col is the lateral angle. 7th col is the polar angle.
data.spdtfs
DTFs of specific SPs
data.polangs
polar angles corresponding to data.spdtfs
data.pmv
predicted polar angular response PMVs
data.respangs
polar response angules corresponding to data.p
data.pe
predicted local polar RMS error in degrees
data.qe
predicted quadrant error

The following flags can be specified;

'plot' Plot the output of the experiment. This is the default.
'noplot' Don't plot, only return data.
'fig12' Reproduce Fig. 12: DTFs of median SP (left ear). Left: NH12. Center: NH58. Right: NH33. Brightness: Spectral magnitude.

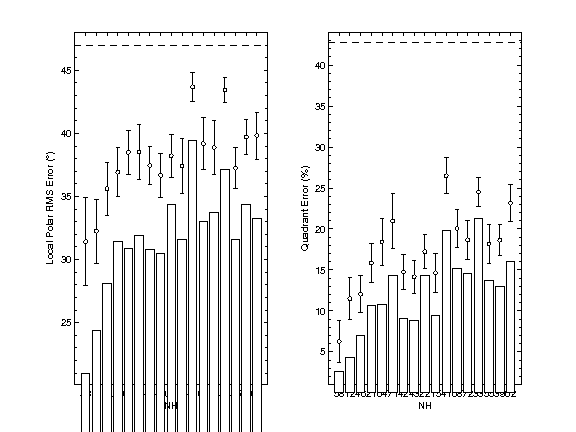

'fig13' Reproduce Fig. 13: Listener's localization performance for non-individualized versus individualized DTFs. Bars: Individualized DTFs. Circles: Non-individualized DTFs averaged over 16 DTF sets. Error bars: ±1 standard deviation of the average. Horizontal line: Chance performance corresponding to guessing the direction of the sound.

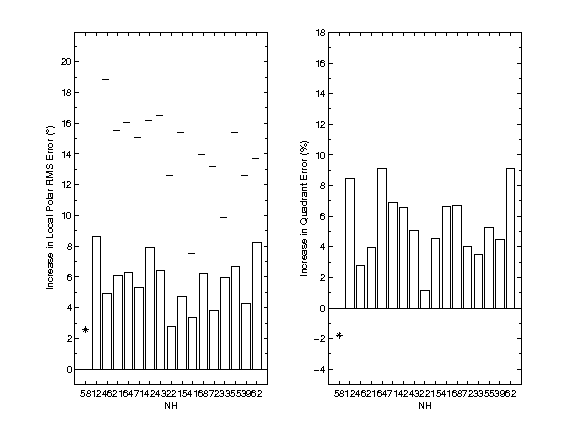

'fig14' Reproduce Fig. 14: Bars: Increase in localization errors when listening to a binaural recording created with the DTFs from NH58. Asterisk: Difference between actual (experiment) and predicted performance when listening to individualized DTFs. Horizontal lines: chance performance corresponding to guessing the direction of the sound.
'fig15' Reproduce Fig. 15: Bars: Localization performance of the pool listening to selected DTFs. Circles: DTFs from NH12. Squares: DTFs from NH58. Triangles: DTFs from NH33.

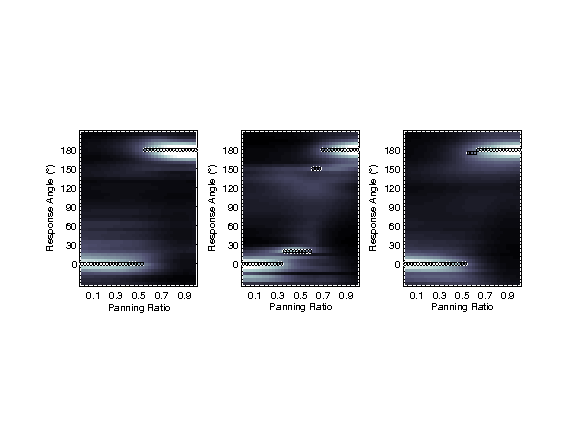

'fig18' Reproduce Fig. 18: Predicted response probabilities (PMVs) as a function of the amplitude panning ratio between a rear and a front loudspeaker in the same SP (lateral angle: 30 deg.). Left: Results for NH12. Center: Results for NH15. Right: Results for our pool of listeners. Circle: Maximum of a PMV. Panning ratio of 0: Only front loudspeaker active. Panning ratio of 1: Only rear loudspeaker active.

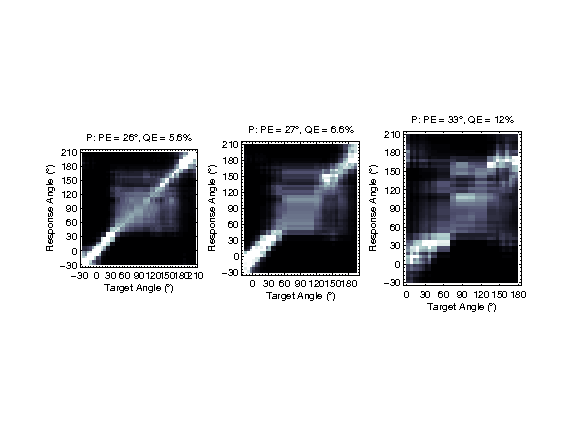

'fig19' Reproduce Fig. 19: Prediction matrices (PMVs) for different loudspeaker spans and NH12. Left: Span of 0 deg. (single-loudspeaker reproduction, baseline). Center: Span of 30 deg. Right: Span of 60 deg. P: Predicted performance.

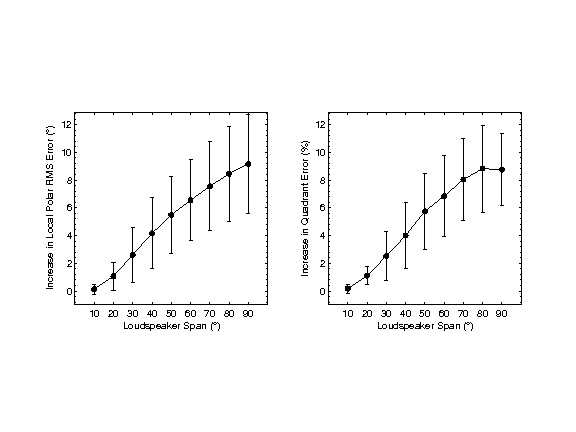

'fig20' Reproduce Fig. 20: Increase in localization errors as a function of the loudspeaker span. Circles: Averages over all listeners from the pool. Error bars: +/- 1 standard deviation of the averages.

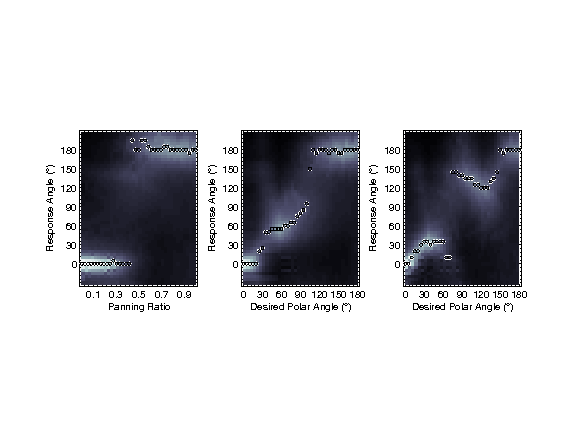

'fig22' Reproduce Fig. 22: Predictions for the surround setups in the VBAP configuration. Left: 5.1 setup, panning between the loudspeakers L and LS. Center: 10.2 setup (DSX), panning from L (polar angle of 0 deg.) via LH2 (55 deg.) to LS (180 deg.) Right: 9.1 setup (Auro-3D), panning from L (0 deg.) via LH1 (34 deg.) and LSH (121 deg.) to LS (180 deg.). Desired polar angle: Continuous scale representing the VBAP across pair-wise contributing loudspeakers. All other conventions as in Fig. 18.

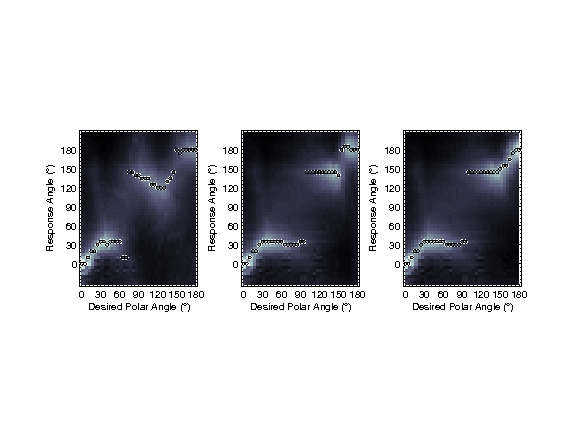

'fig23' Reproduce Fig. 23: Predictions for two modifications to the 9.1 setup (Auro 3D). Left: Original setup, loudspeakers LS and LSH at the azimuth of 110 deg. Center: LSH at the azimuth of 130 deg. Right: LS and LSH at the azimuth of 130 deg. All other conventions as in Fig. 22.

Requirements:

  1. SOFA API from http://sourceforge.net/projects/sofacoustics for Matlab (in e.g. thirdparty/SOFA)
  2. Data in hrtf/baumgartner2013

Examples:

To display Fig. 12 use

exp_baumgartner2013('fig12');

To display Fig. 13 use

exp_baumgartner2013('fig13');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

To display Fig. 14 use

exp_baumgartner2013('fig14');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

To display Fig. 15 use

exp_baumgartner2013('fig15');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

To display Fig. 18 use

exp_baumgartner2013('fig18');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

To display Fig. 19 use

exp_baumgartner2013('fig19');

This code produces the following output:

Span: 0 deg.
 Span: 30 deg.
 Span: 60 deg.

To display Fig. 20 use

exp_baumgartner2013('fig20');

This code produces the following output:

Span: 10 deg.
 Span: 20 deg.
 Span: 30 deg.
 Span: 40 deg.
 Span: 50 deg.
 Span: 60 deg.
 Span: 70 deg.
 Span: 80 deg.
 Span: 90 deg.

To display Fig. 22 use

exp_baumgartner2013('fig22');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17
 Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17
 Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

To display Fig. 23 use

exp_baumgartner2013('fig23');

This code produces the following output:

Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17
 Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17
 Subject  1 of 17
 Subject  2 of 17
 Subject  3 of 17
 Subject  4 of 17
 Subject  5 of 17
 Subject  6 of 17
 Subject  7 of 17
 Subject  8 of 17
 Subject  9 of 17
 Subject 10 of 17
 Subject 11 of 17
 Subject 12 of 17
 Subject 13 of 17
 Subject 14 of 17
 Subject 15 of 17
 Subject 16 of 17
 Subject 17 of 17

References:

R. Baumgartner. Modeling sagittal-plane sound localization with the application to subband-encoded head related transfer functions. Master's thesis, University of Music and Performing Arts, Graz, June 2012. [ .pdf ]

R. Baumgartner, P. Majdak, and B. Laback. Assessment of Sagittal-Plane Sound Localization Performance in Spatial-Audio Applications, chapter 4, page expected print date. Springer-Verlag GmbH, accepted for publication, 2013.
