THE AUDITORY MODELING TOOLBOX

Applies to version: 0.9.8

View the code

Go to function

DATA_ELBERLING2010 - ABR wave V data as functon of level and sweeping rate

Usage

data = data_elberling2010(flag)

Output parameters

delay "x-axis" - sweeping rate delay between 710Hz and 5700Hz
data_mean Mean of data
data_std Standard deviation of data

data_elberling2010(flag) returns data points from the Elberling et al. (2010)

The flag may be one of:

'noplot' Don't plot, only return data. This is the default.
'plot' Plot the data.
'fig4' Data from Fig. 4, Amplitude of wave V.
'fig5' Data from Fig. 5, Latency of wave V
'stim' Return the stimulus and the sampling frequency. XXX Describe the data. XXX change 'stim' to figure no., if applicable.

Examples:

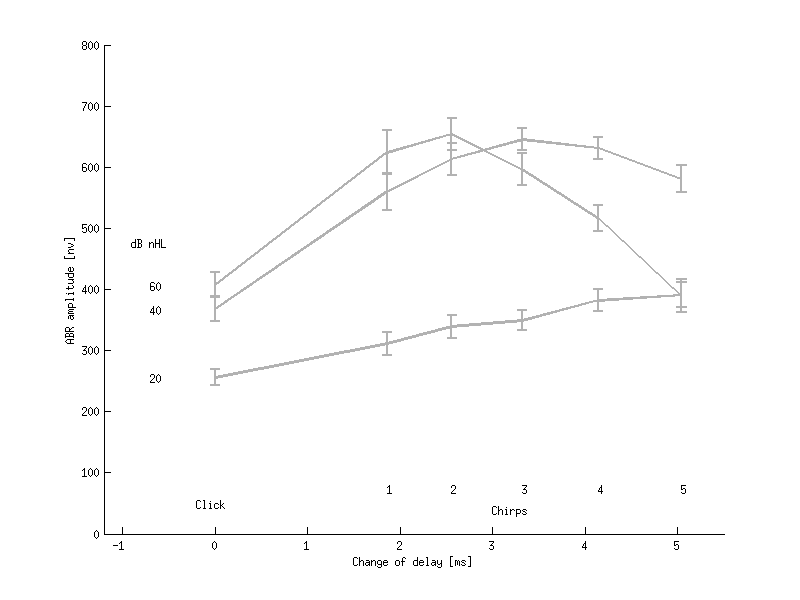

Figure 4 can be displayed using:

data_elberling2010('fig4','plot');
data_elberling2010_1_1.png data_elberling2010_1_2.png

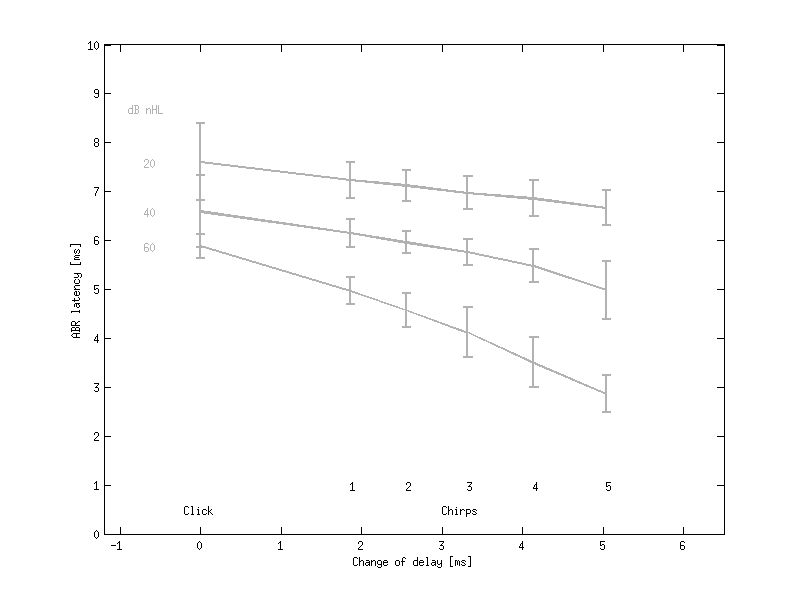

Figure 5 can be displayed using:

data_elberling2010('fig5','plot');

References:

C. Elberling, J. Calloe, and M. Don. Evaluating auditory brainstem responses to different chirp stimuli at three levels of stimulation. J. Acoust. Soc. Am., 128(1):215-223, 2010.
