Usage

data = exp_osses2022(flags)
data = exp_osses2022(..., 'idxs', models)

Description

exp_osses2021 reproduces Figs. X and XX from Osses et al. (2022), where the following models are compared: 'dau1997 : Model #1 from Dau et al., (1997) 'zilany2014 : Model #2 from Zilany et al., (2014) 'verhulst2015 : Model #3 from Verhulst et al., (2015) 'verhulst2018 : Model #4 from Verhulst et al., (2018) 'bruce2018 : Model #5 from Bruce et al., (2018) 'king2019 : Model #6 from King et al., (2019) 'relanoiborra2019 : Model #7 from Relano-Iborra et al., (2019) 'osses2021 : Model #8 from Osses and Kohlrausch (2021)''''''''

The following flags can be specified;

'redo'	Recomputes data for specified figure
'plot'	Plot the output of the experiment. This is the default.
'no_plot'	Don't plot, only return data.
'models'	Vector selecting the models, if not all models to process. For example 'models',[1 3 6] shows the data for Dau et al., (1997), Verhulst et al., (2015), and King et al., (2019) only.
'fig4'	Reproduce Fig. 4 of Osses et al., (2022).
'fig5'	Reproduce Fig. 5 of Osses et al., (2022).

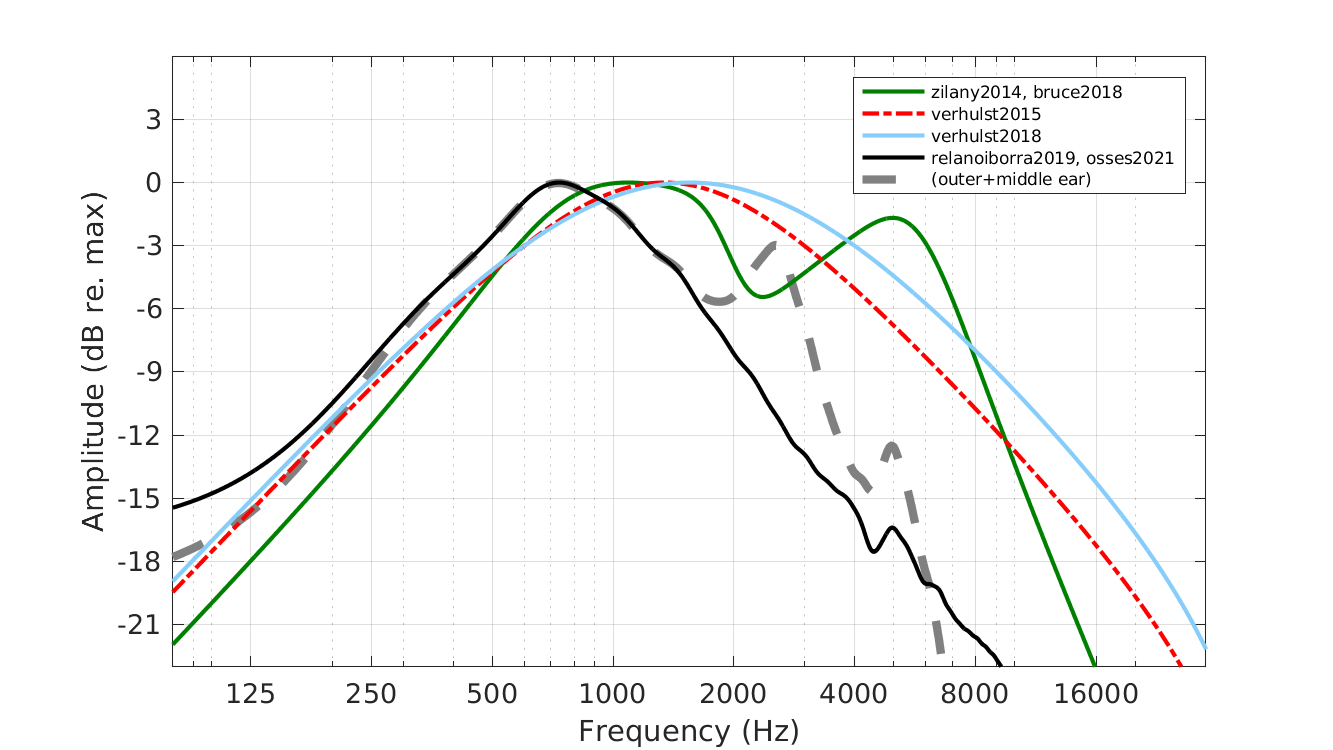

To display Fig. 3 of Osses et al., (2022) use

out = exp_osses2022('fig3');

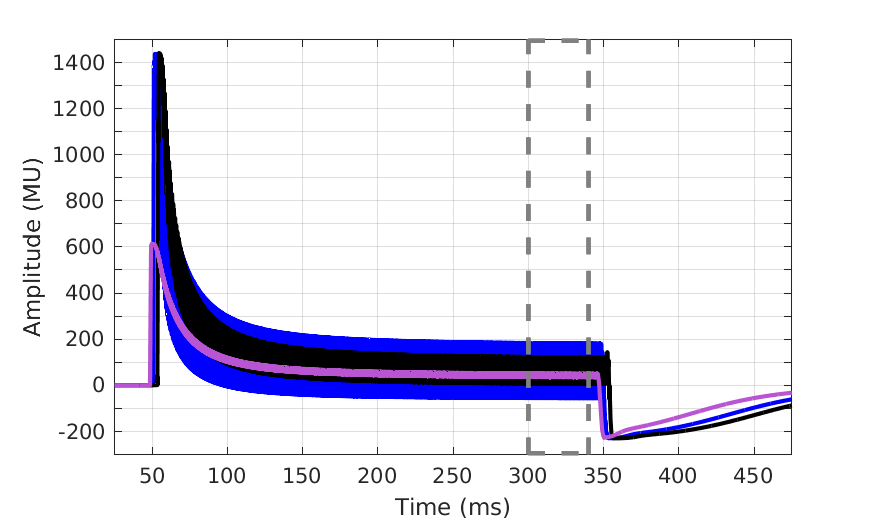

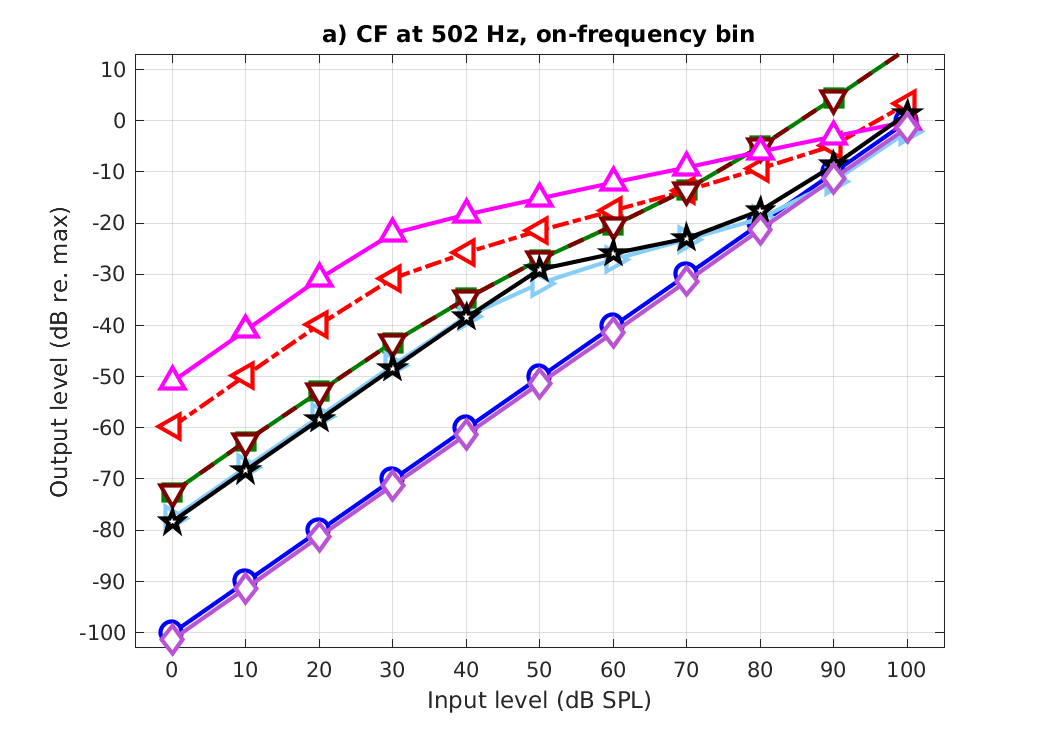

To display Fig. 4 of Osses et al., (2022) use

out = exp_osses2022('fig4');

This code produces the following output:

actual f0=1007.0 Hz using Verhulst's mapping (bin=245)
actual f0=501.8 Hz using Verhulst's mapping (bin=305)
actual f0=4012.7 Hz using Verhulst's mapping (bin=112)

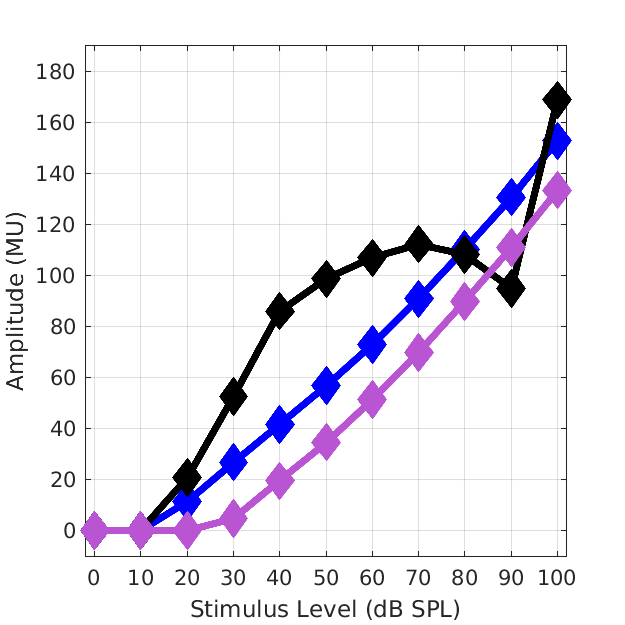

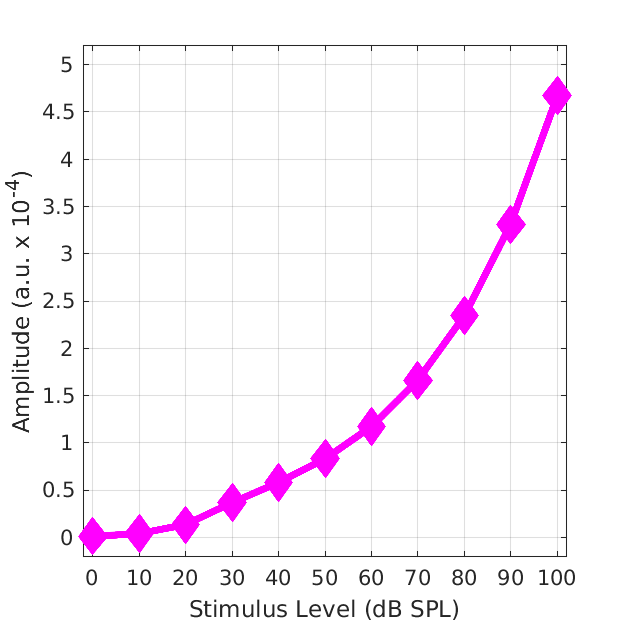

To display Figs. 6 and 7 of Osses et al., (2022) use

out = exp_osses2022('fig6');

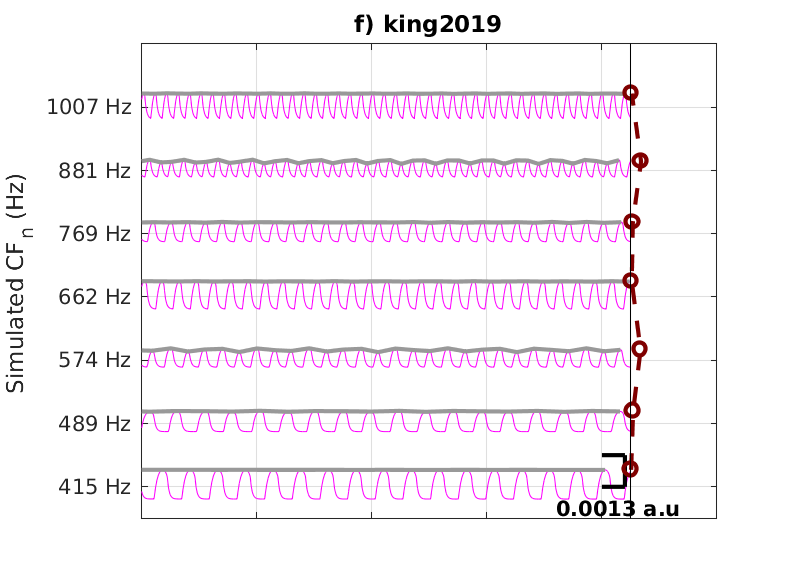

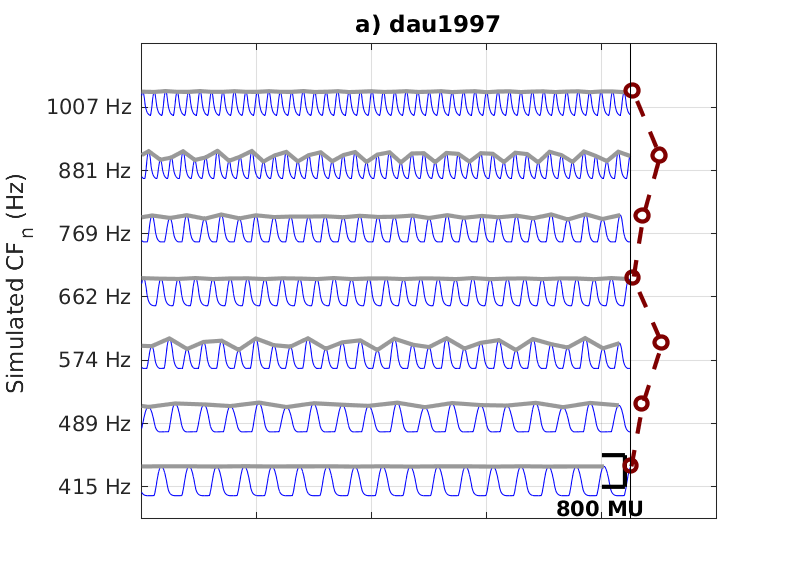

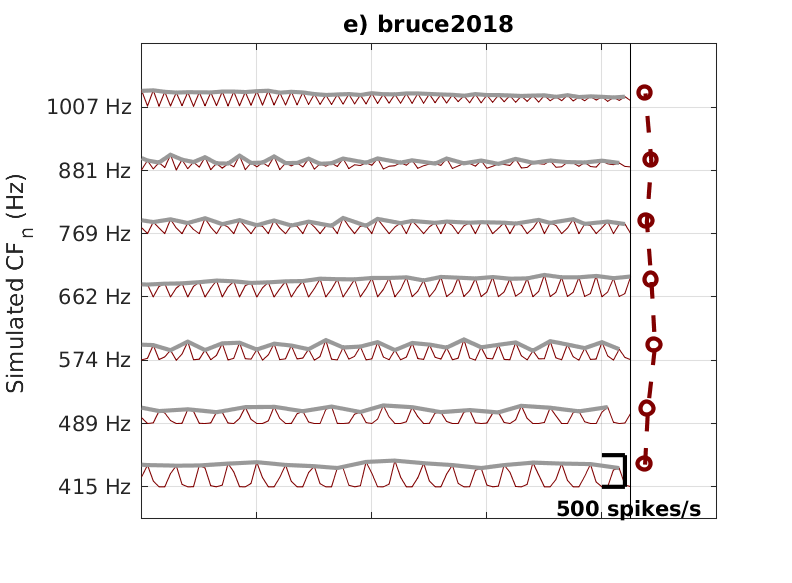

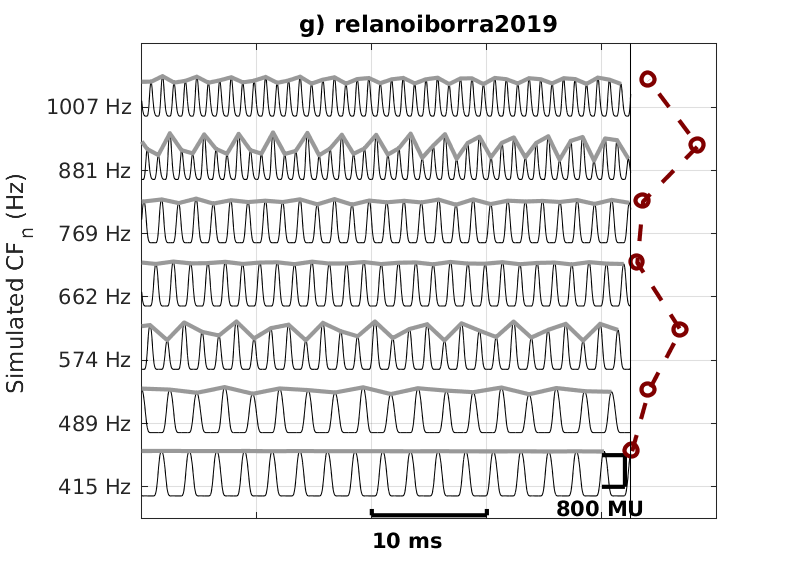

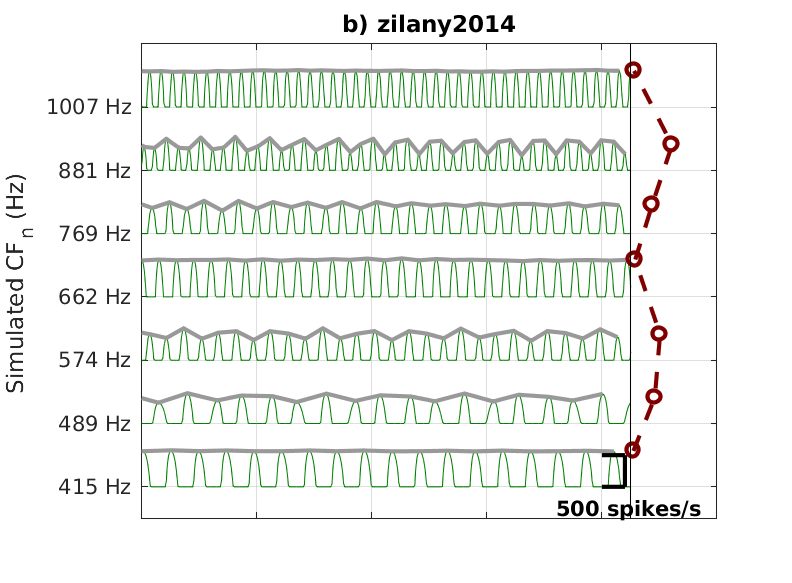

To display Fig. 8 of Osses et al., (2022) use

out = exp_osses2022('fig8');

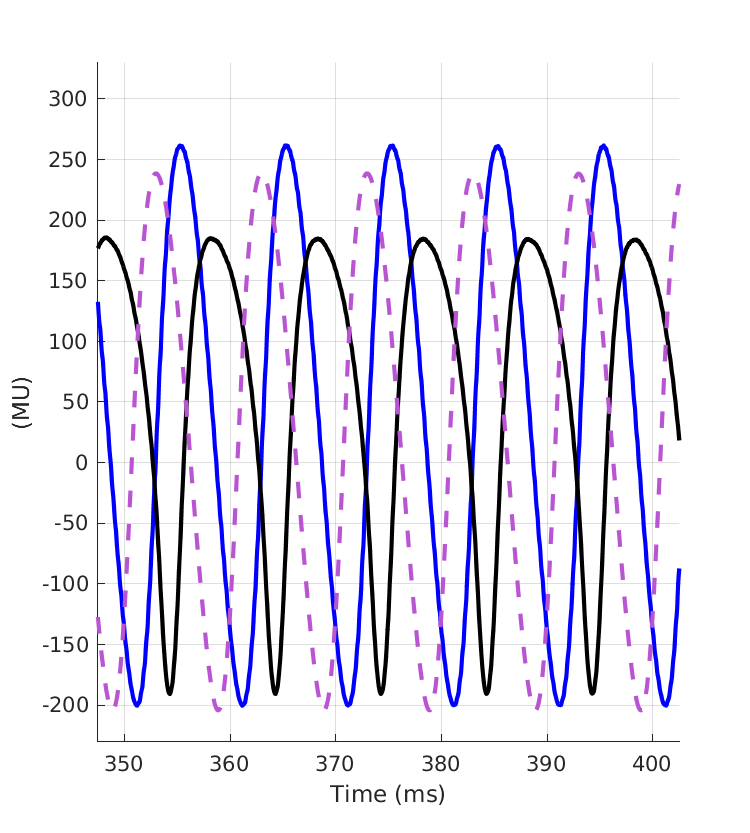

To display Fig. 9 of Osses et al., (2022) use

out = exp_osses2022('fig9');

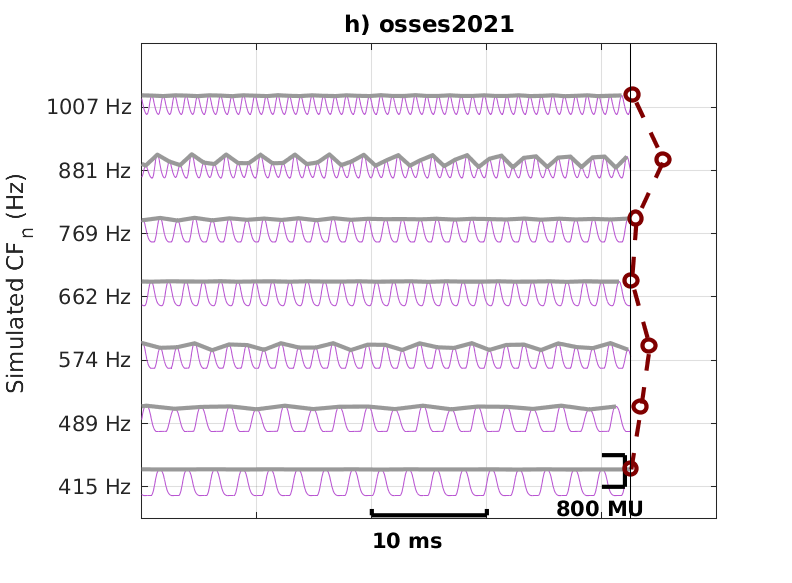

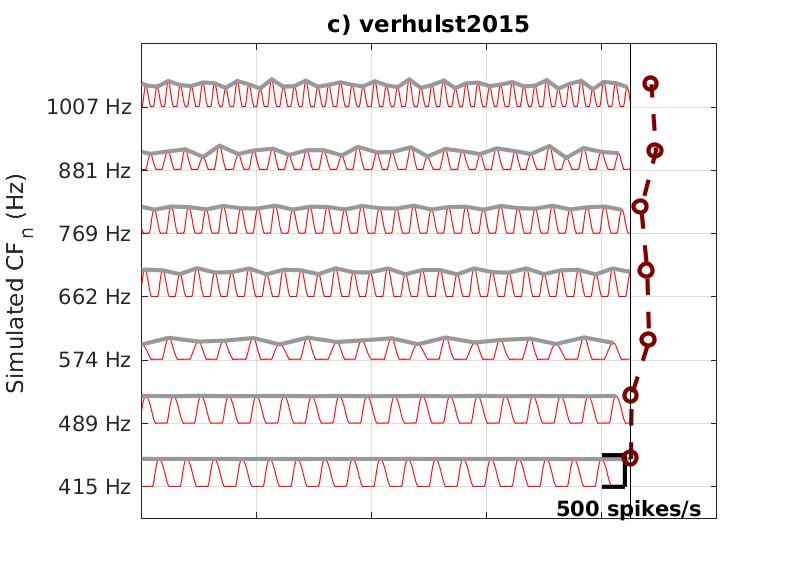

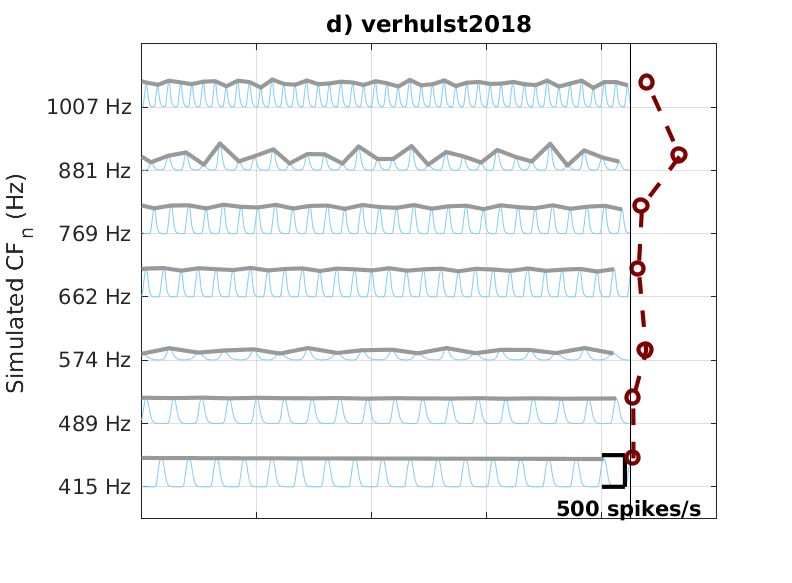

To display Fig. 11 of Osses et al., (2022) use

out = exp_osses2022('fig11');

To display Fig. 12 of Osses et al., (2022) use

out = exp_osses2022('fig12');
