THE AUDITORY MODELING TOOLBOX

Applies to version: 1.1.0

View the code

Go to function

DATA_GOODE1994 - Returns data points from the Goode et al. (1994) paper

Usage

data = data_goode1994_data(flag)

Description

data_goode1994(flag) returns various data from Goode et al. (1994). (See the particular flags for more details on the nature of the data).

The flag may be one of:

'no_plot' Don't plot, only return data. This is the default.
'plot' Plot the data.

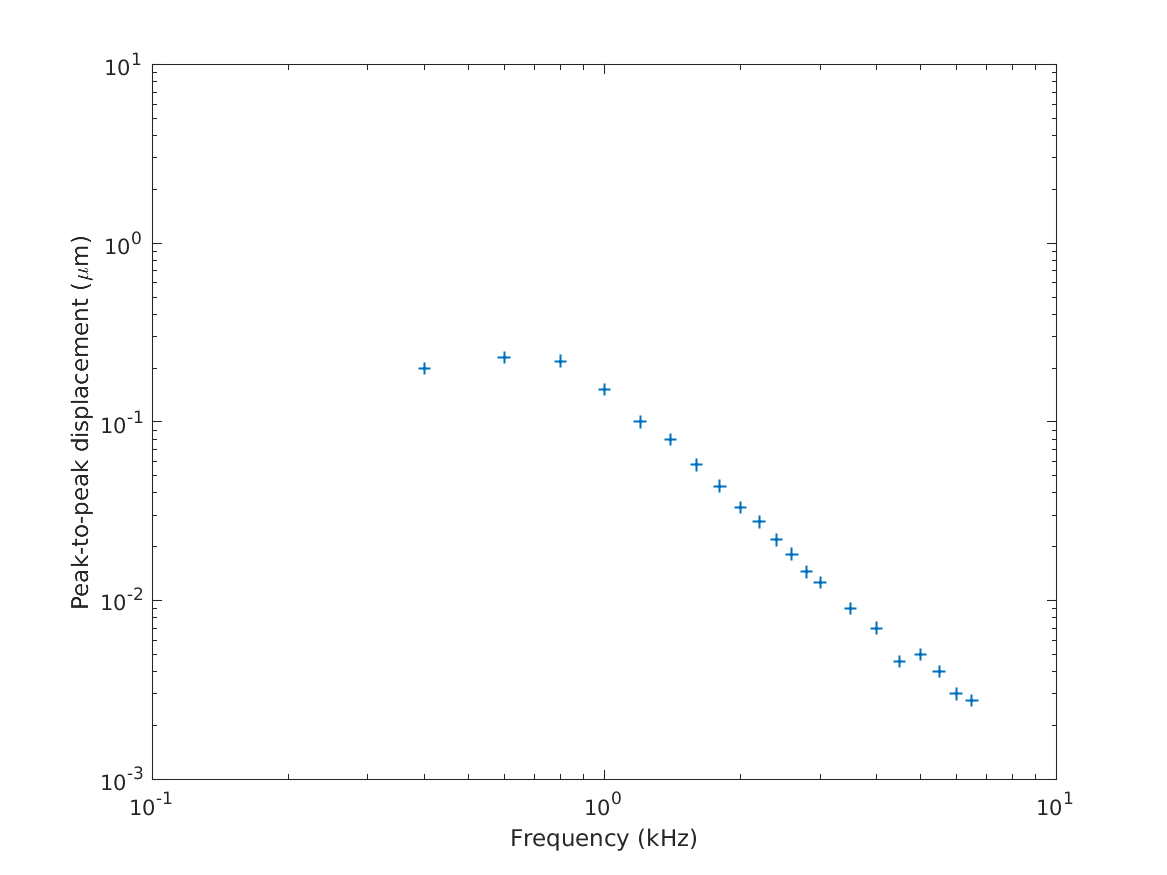

'fig1_104' (default) Returns the stapes footplate diplacement at an SPL of 104 dB as shown in Fig. 1. (Currently the only option).

Examples:

To plot the Fig. 1 from Goode et al. (1994) use

data_goode1994('fig1_104','plot');

References:

R. Goode, M. Killion, K. Nakamura, and S. Nishihara. New knowledge about the function of the human middle ear: development of an improved analog model. The American journal of otology, 15(2):145--154, 1994.
