Usage

data = exp_osses2022(flags)
data = exp_osses2022(..., 'models', models)

Description

exp_osses2022 reproduces the figures from Osses et al. (2022), where the following models are compared: 'dau1997 : Model #1 from Dau et al., (1997) 'zilany2014 : Model #2 from Zilany et al., (2014) 'verhulst2015 : Model #3 from Verhulst et al., (2015) 'verhulst2018 : Model #4 from Verhulst et al., (2018) 'bruce2018 : Model #5 from Bruce et al., (2018) 'king2019 : Model #6 from King et al., (2019) 'relanoiborra2019 : Model #7 from Relano-Iborra et al., (2019) 'osses2021 : Model #8 from Osses and Kohlrausch (2021)''''''''

The following flags can be specified;

'redo'	Recomputes data for specified figure
'plot'	Plot the output of the experiment. This is the default.
'no_plot'	Doesn't plot, only return data.
'models'	Vector selecting the models, if not all models to process. For example 'models',[1 3 6] shows the data for Dau et al., (1997), Verhulst et al., (2015), and King et al., (2019) only.

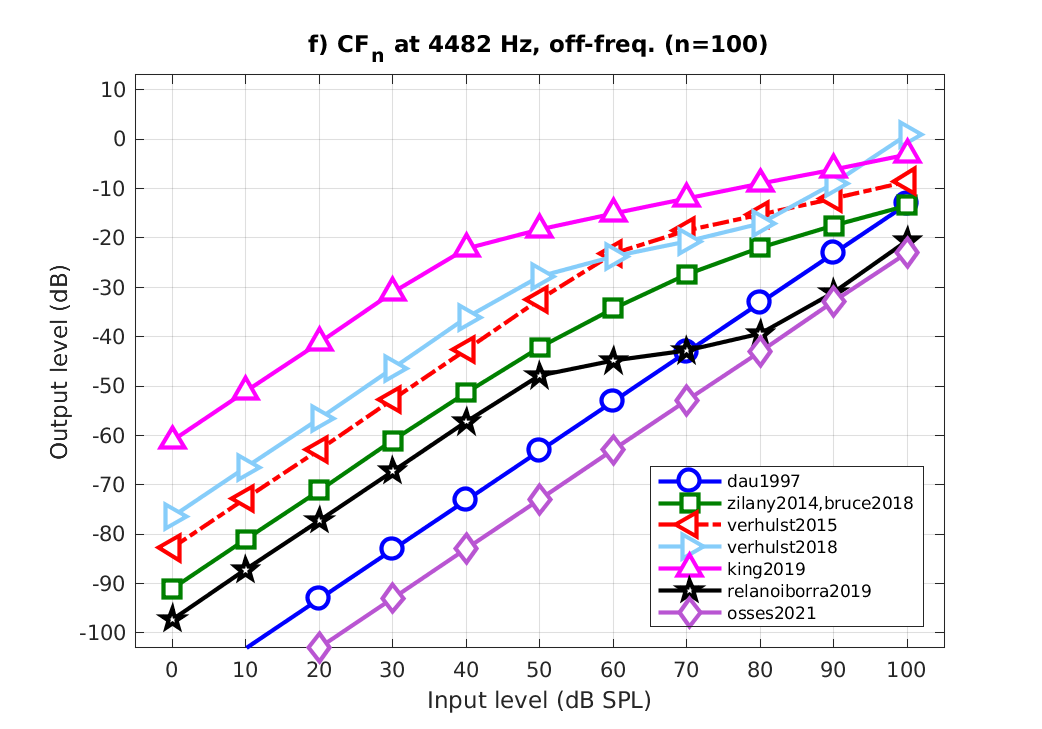

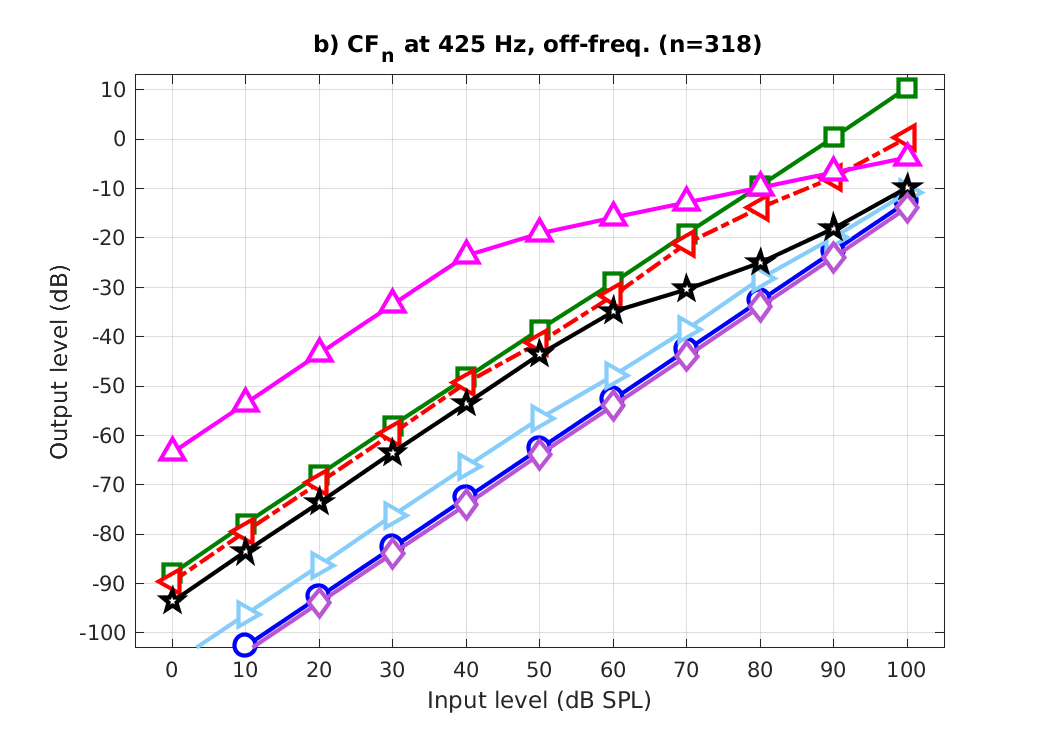

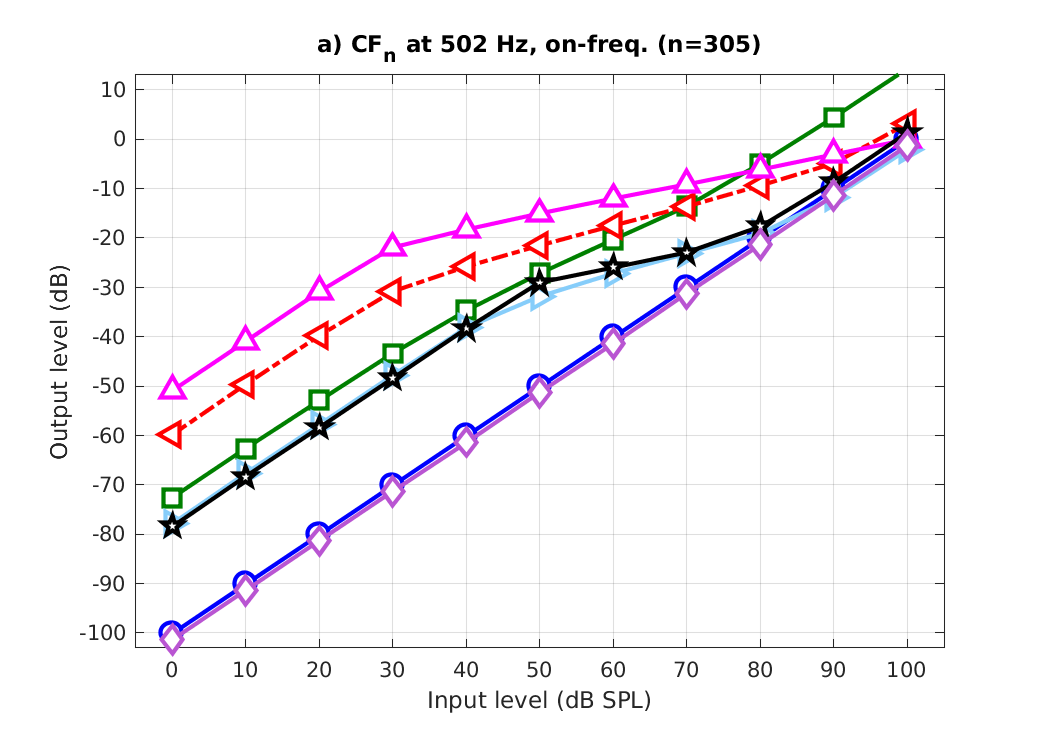

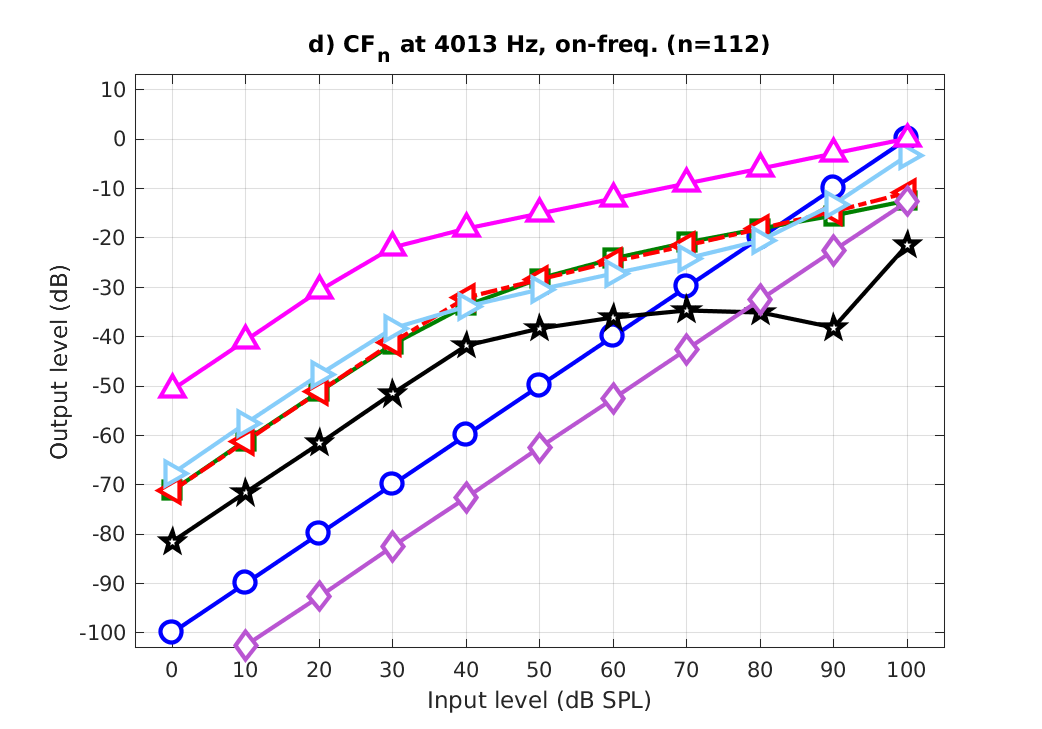

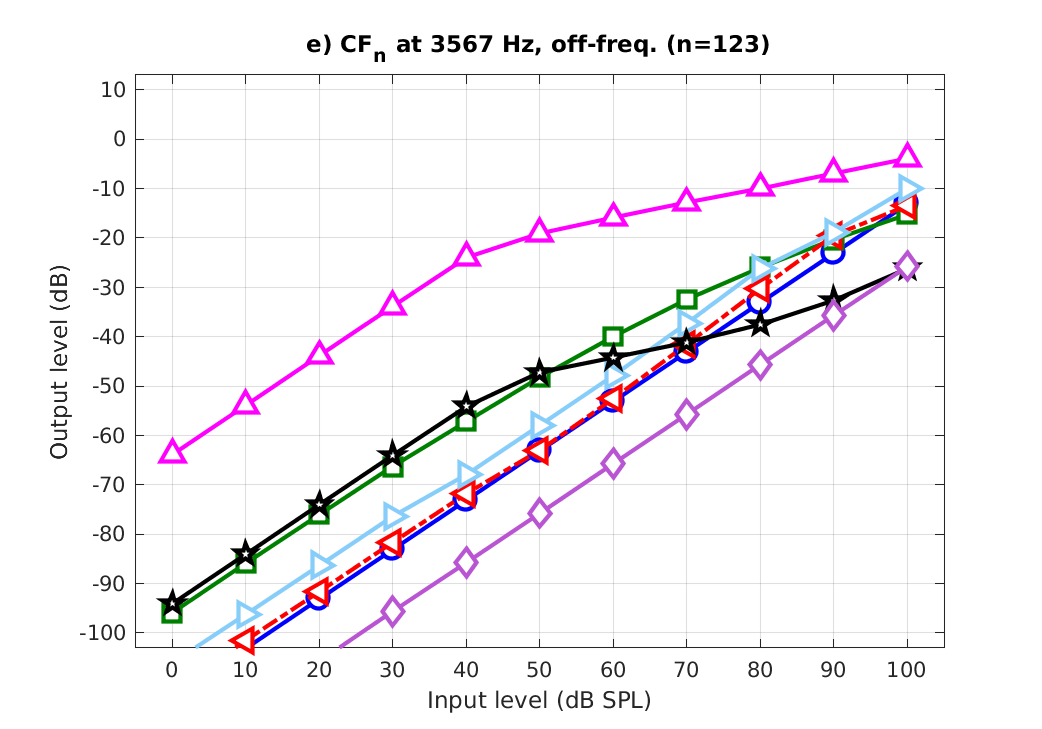

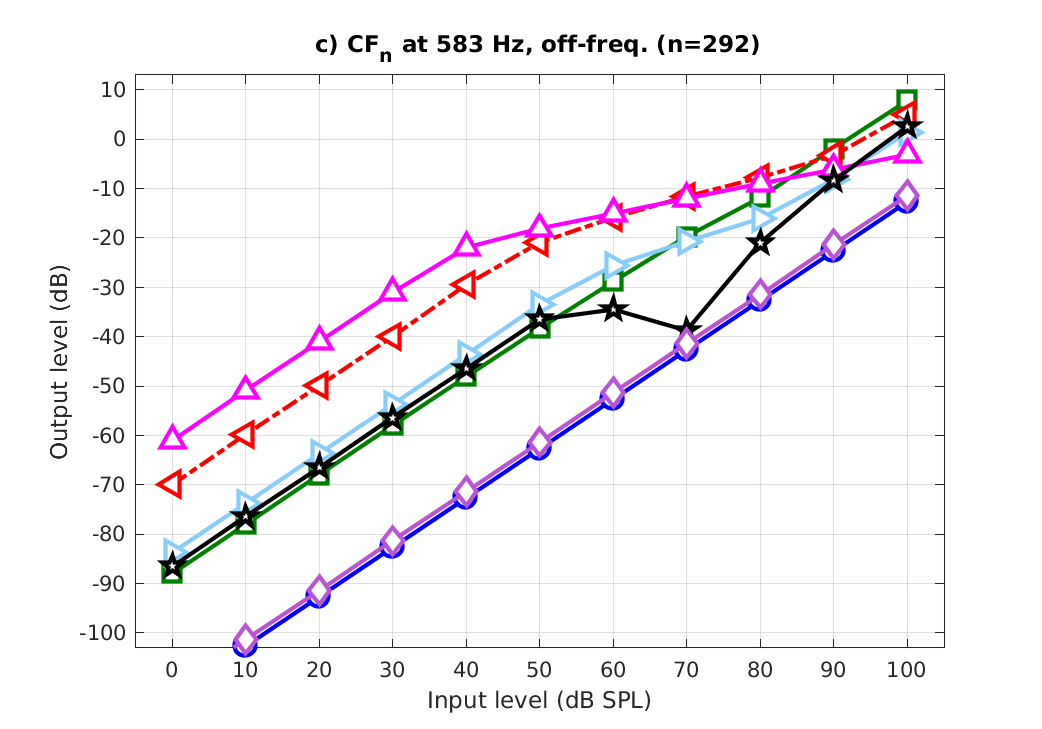

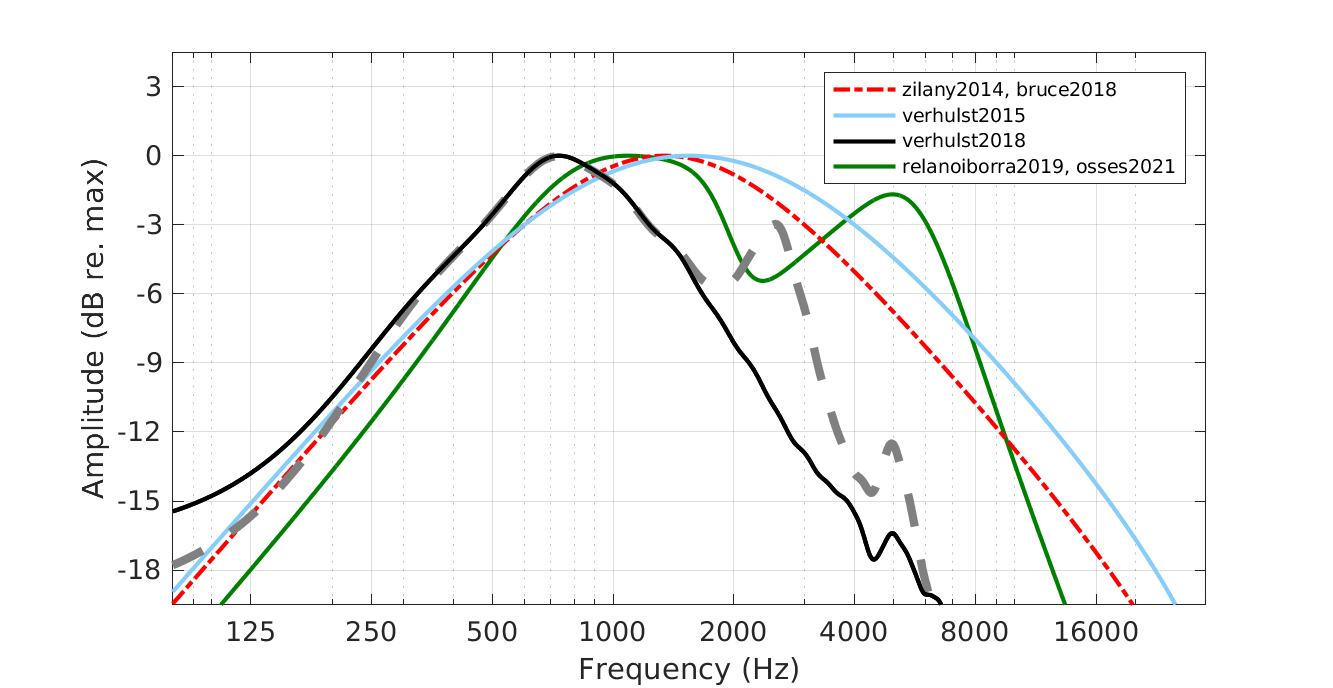

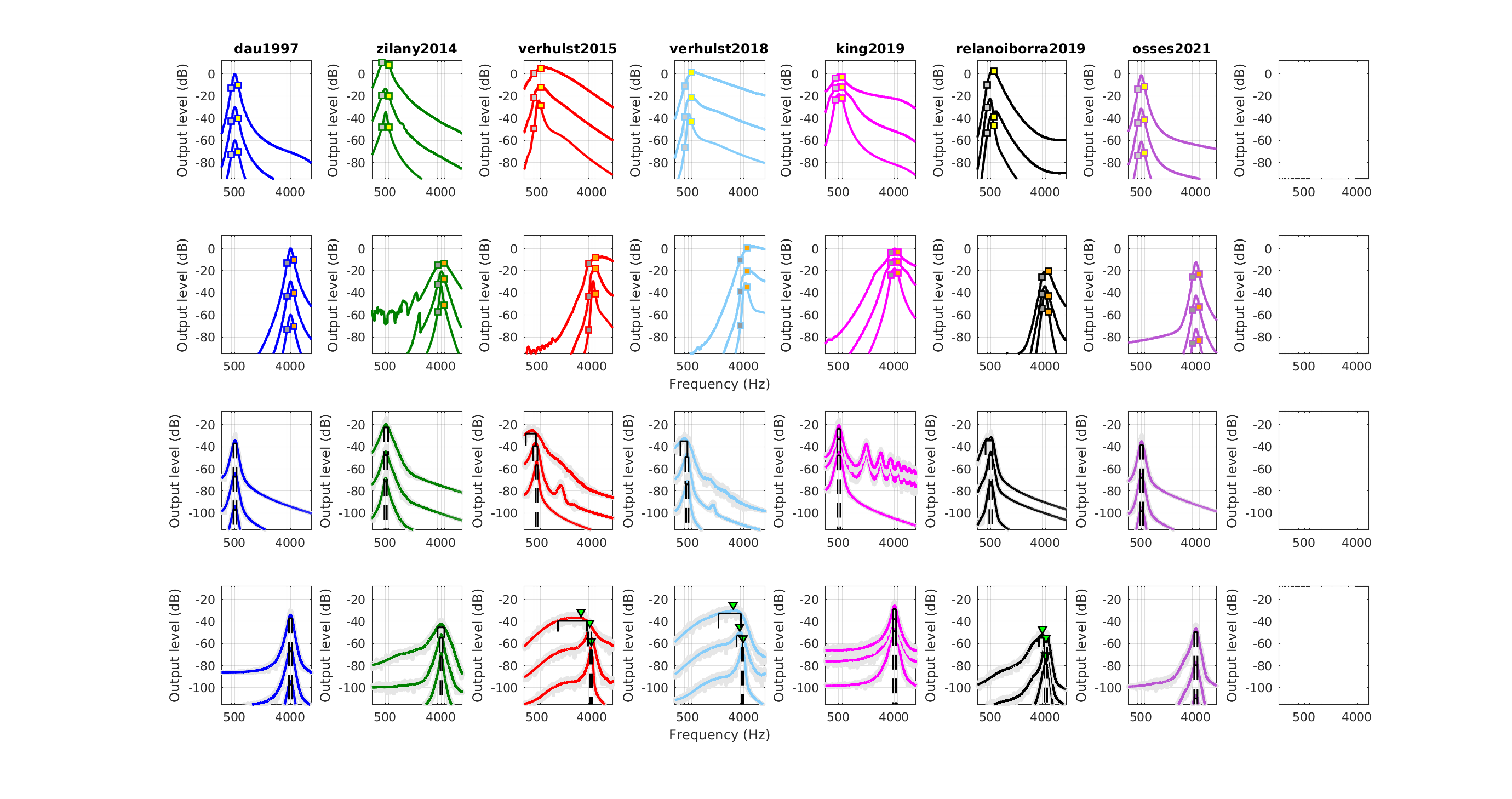

To display Fig. 3 of Osses et al., (2022) use

out = exp_osses2022('fig3');

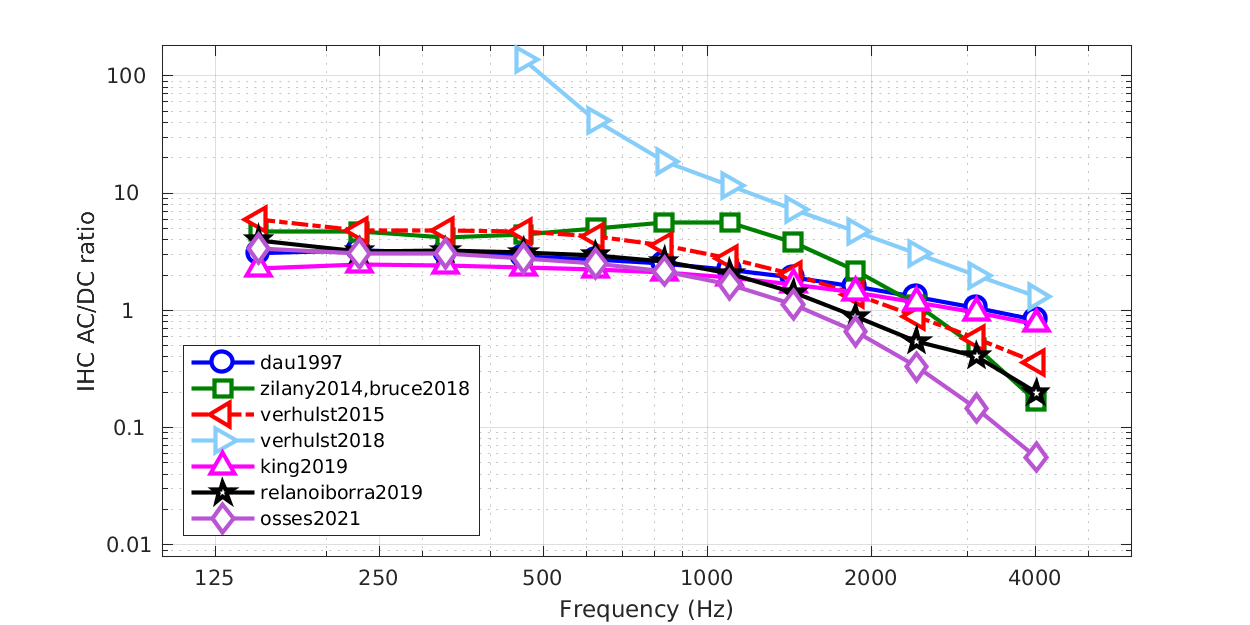

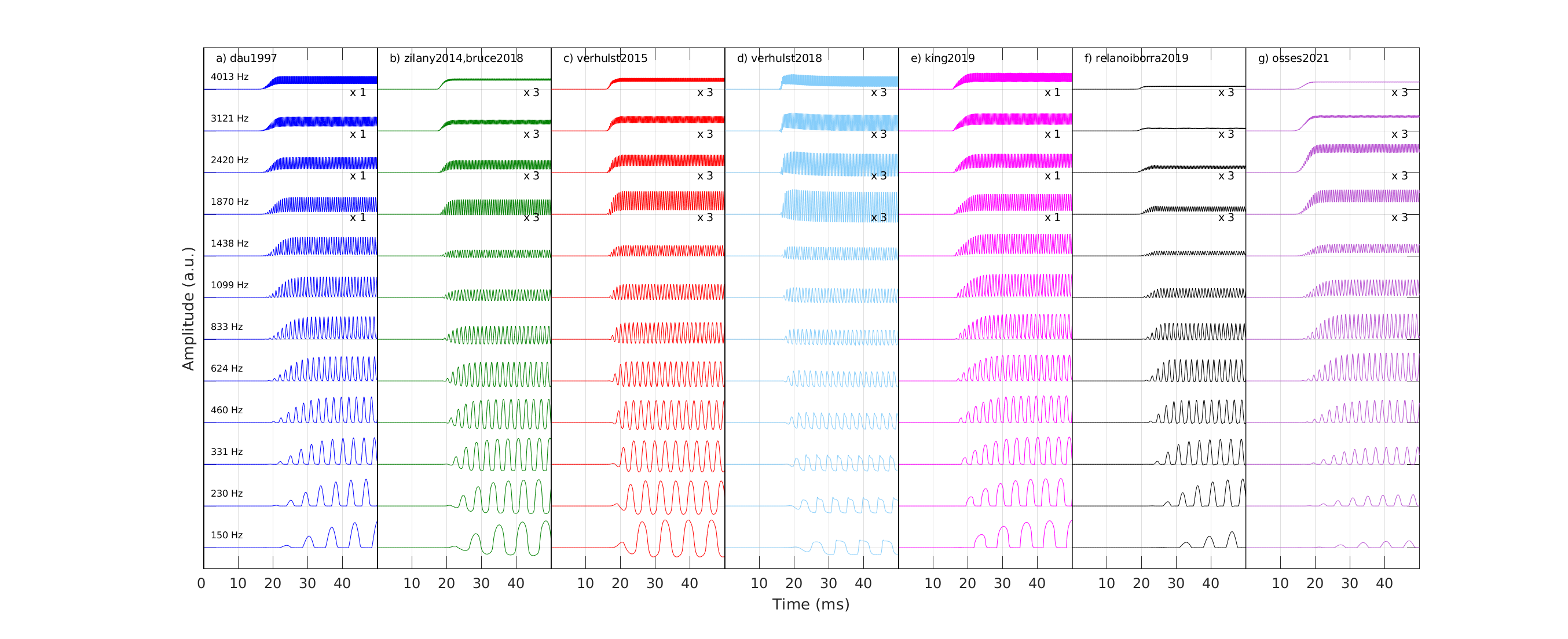

To display Fig. 4 of Osses et al., (2022) use

out = exp_osses2022('fig4');

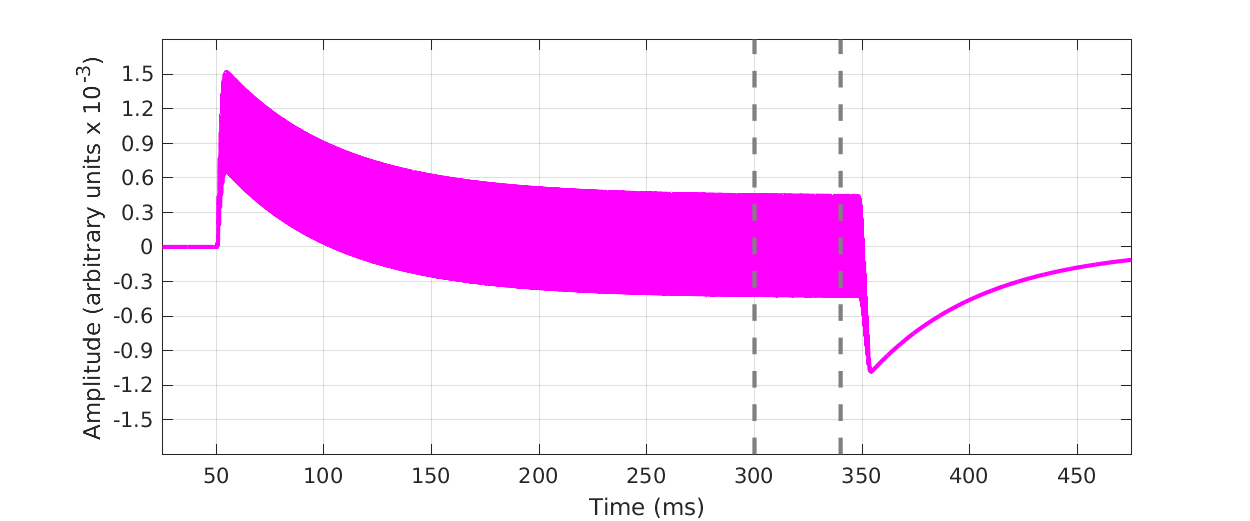

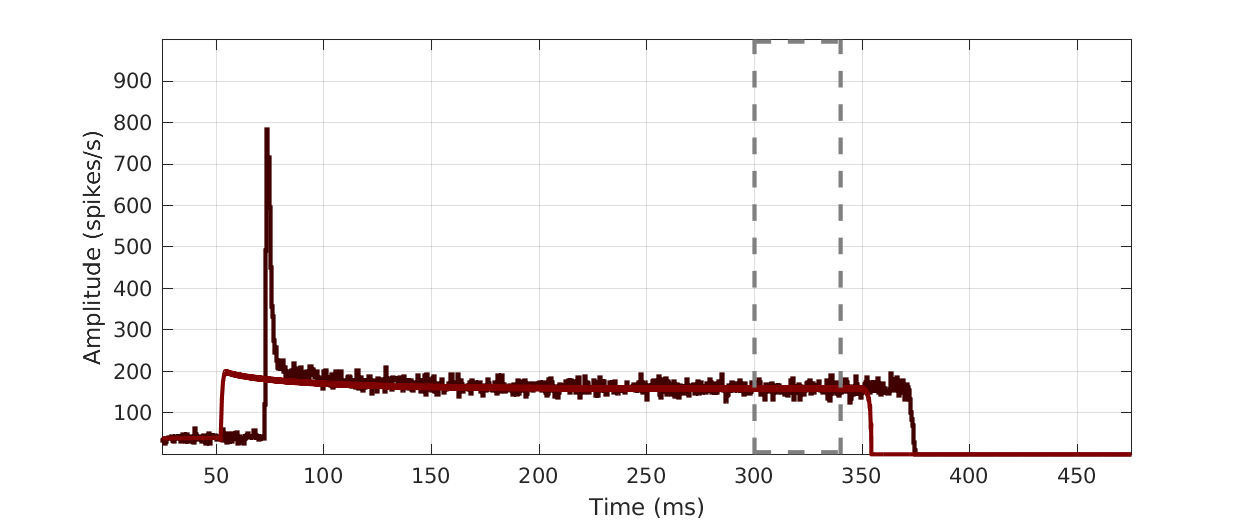

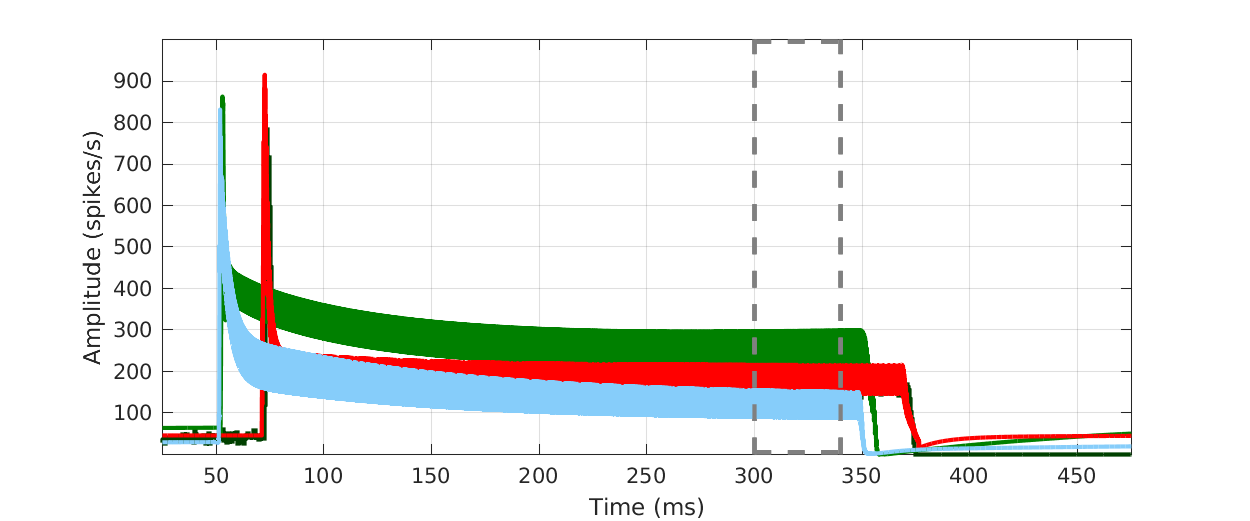

To display Fig. 5 of Osses et al., (2022) use

out = exp_osses2022('fig5');

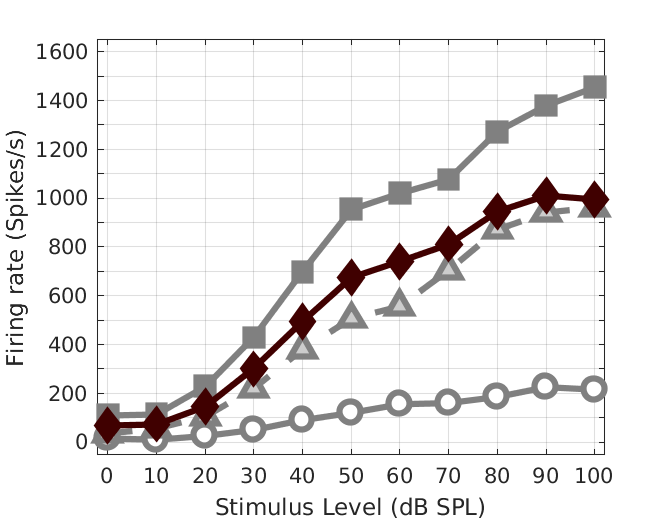

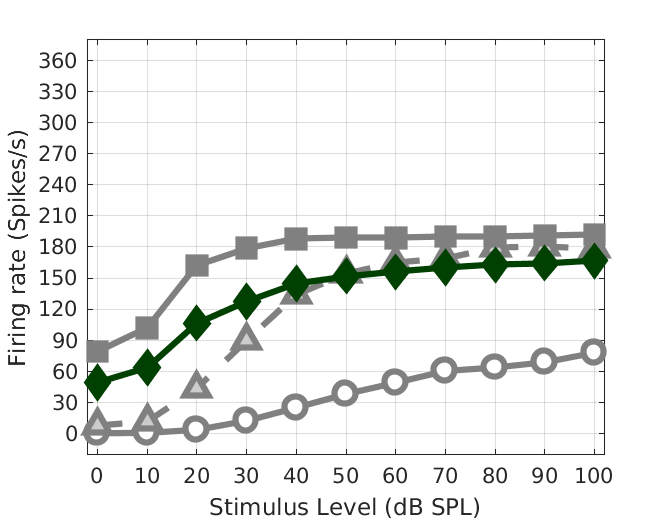

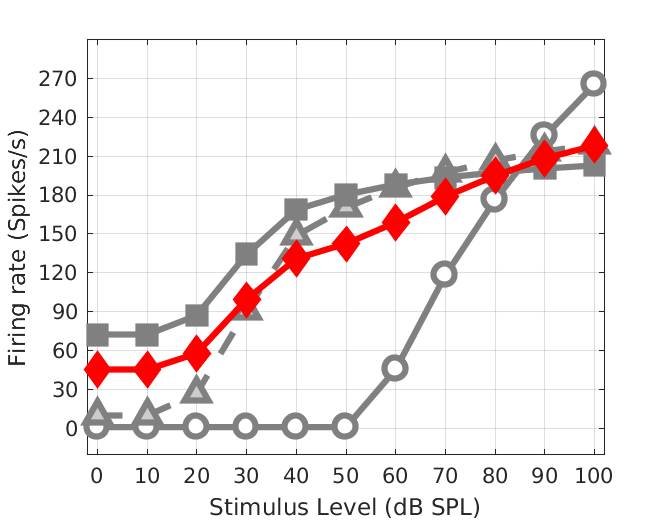

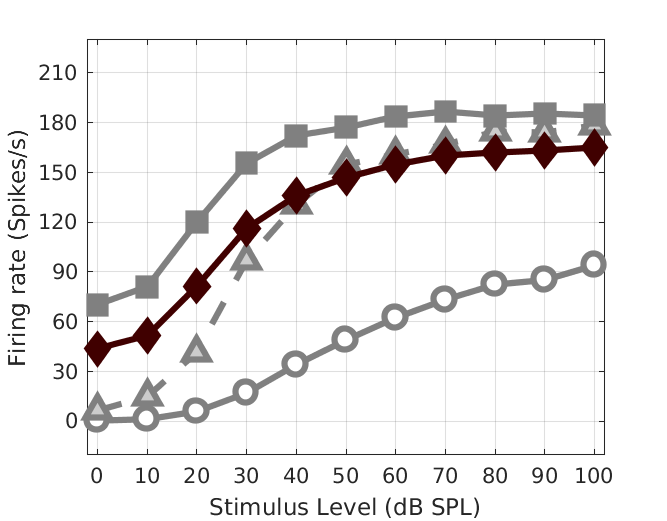

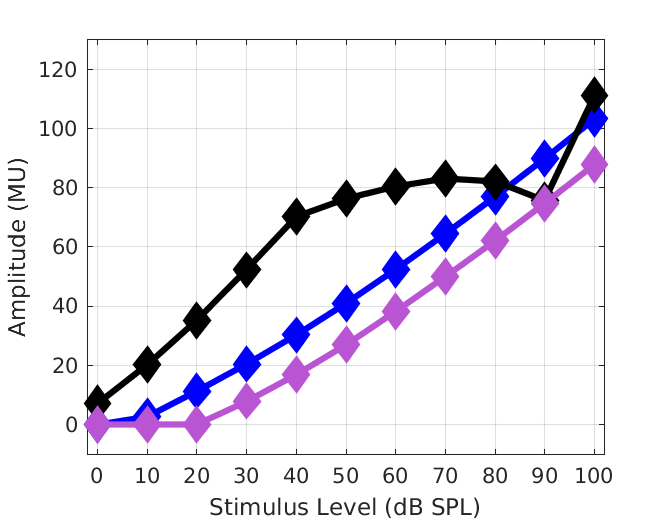

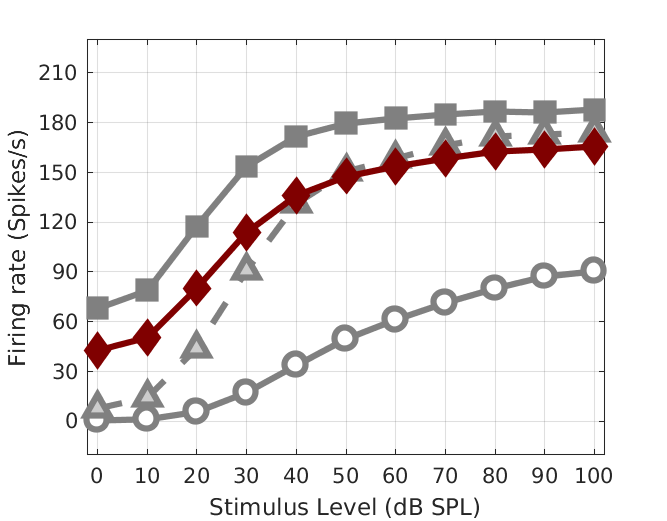

To display Fig. 6 of Osses et al., (2022) use

out = exp_osses2022('fig6');

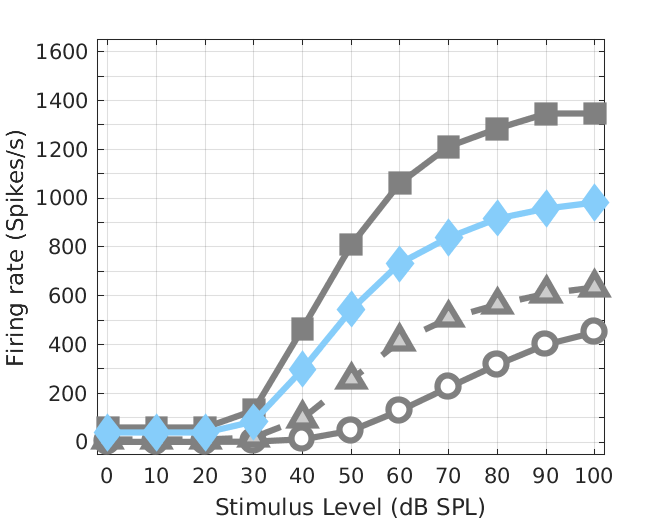

This code produces the following output:

Demos

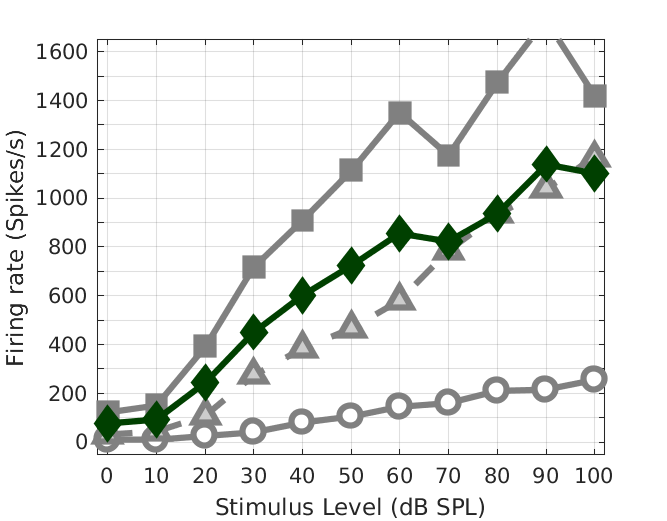

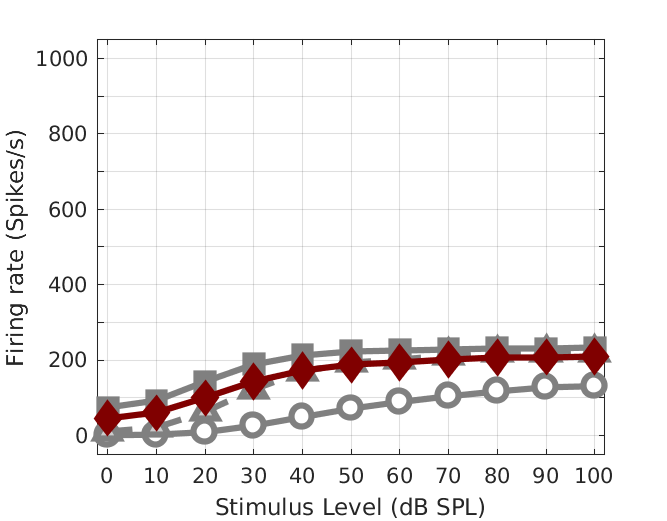

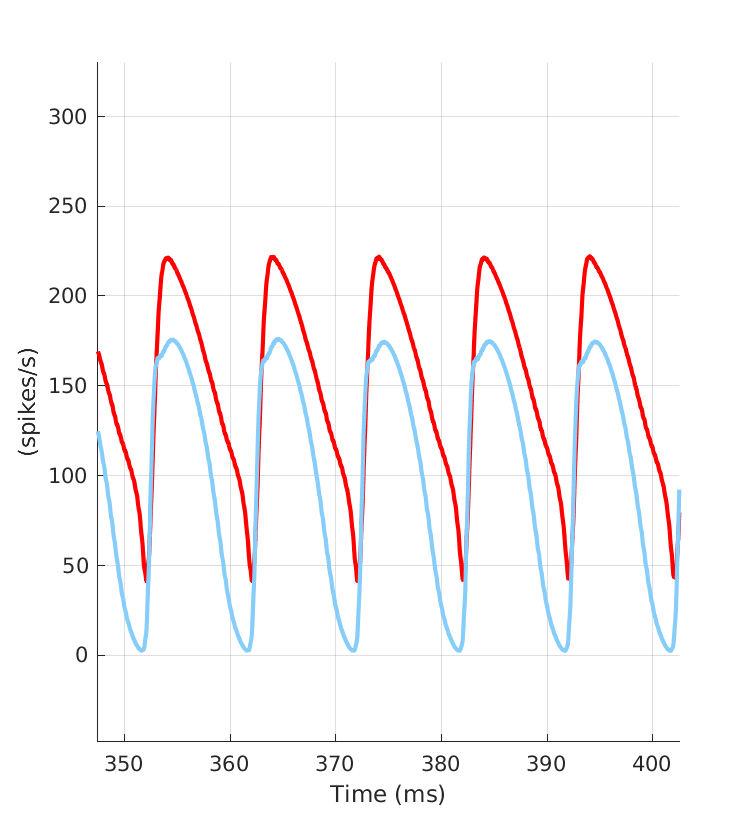

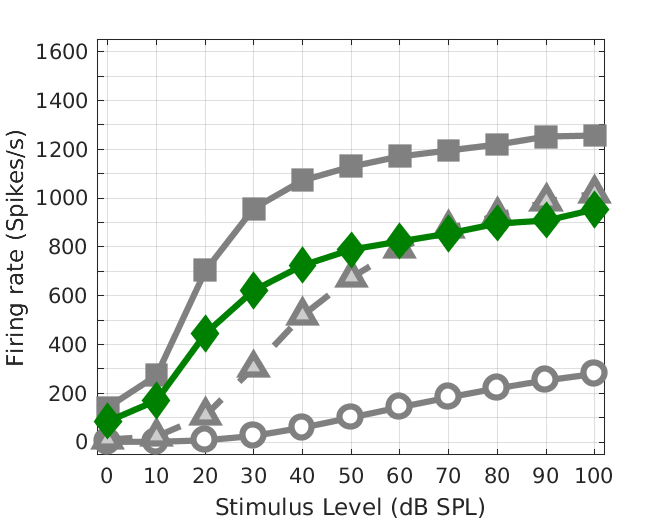

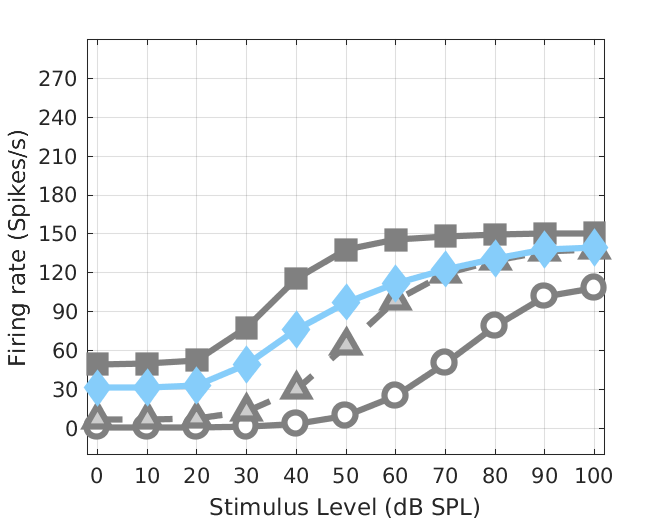

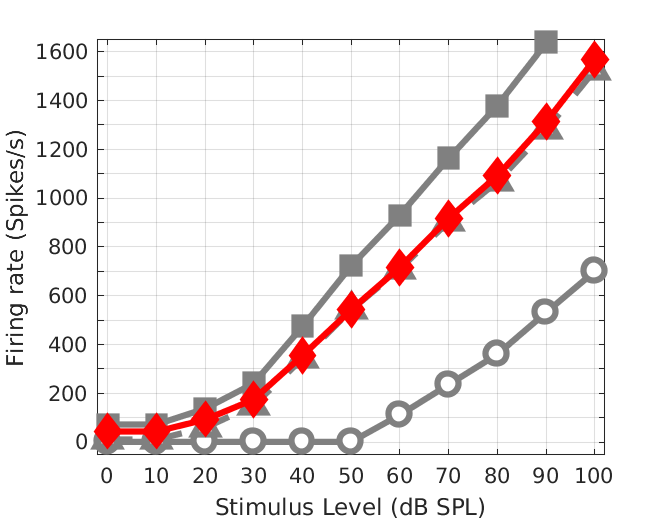

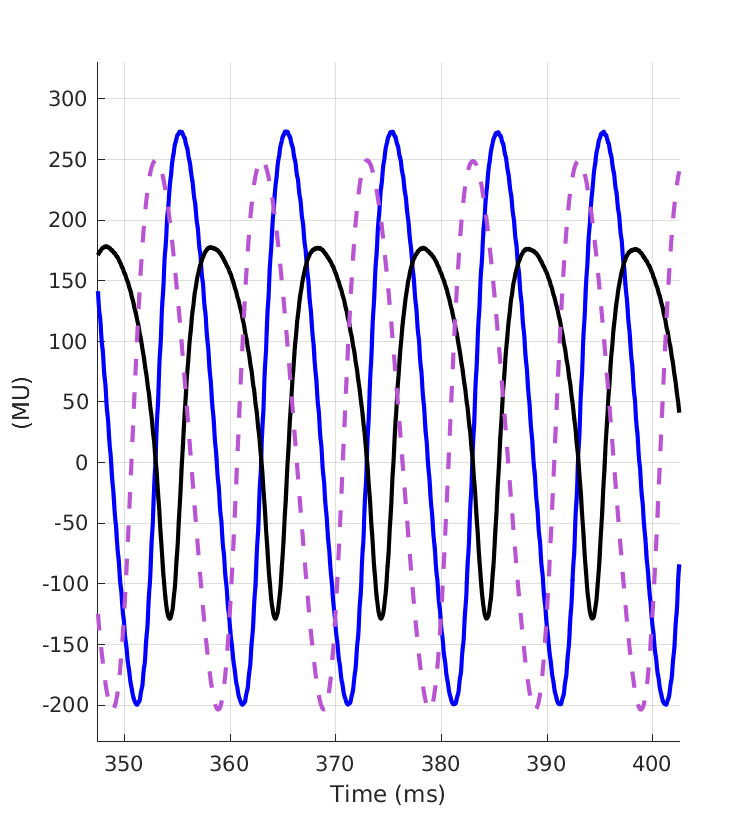

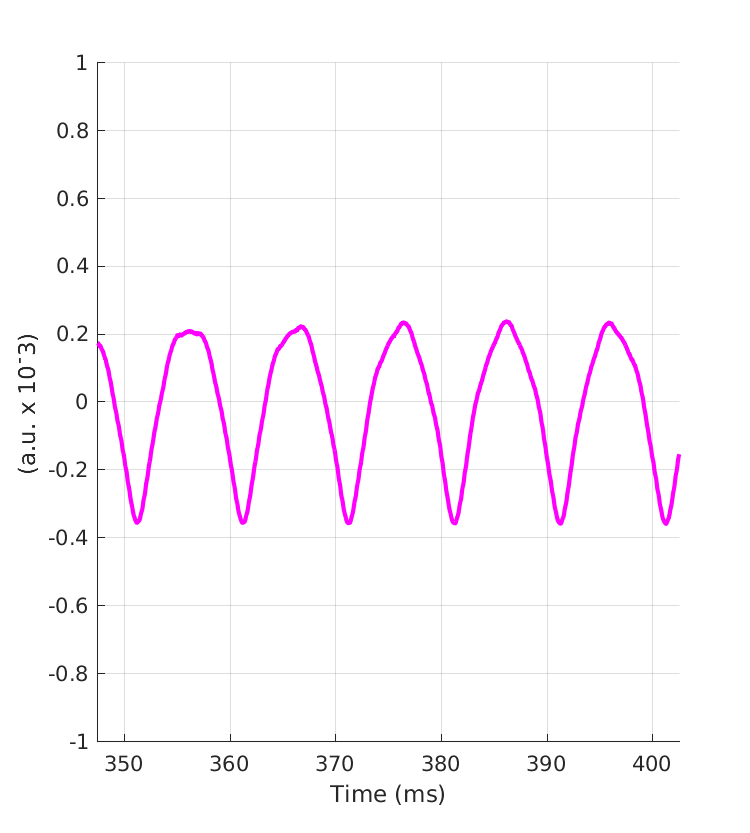

To display Figs. 7 and 8 of Osses et al., (2022) use

out = exp_osses2022('fig7'); % this flag will obtain both figures, 6 and 7
out = exp_osses2022('fig8'); % this flag will obtain both figures, 6 and 7

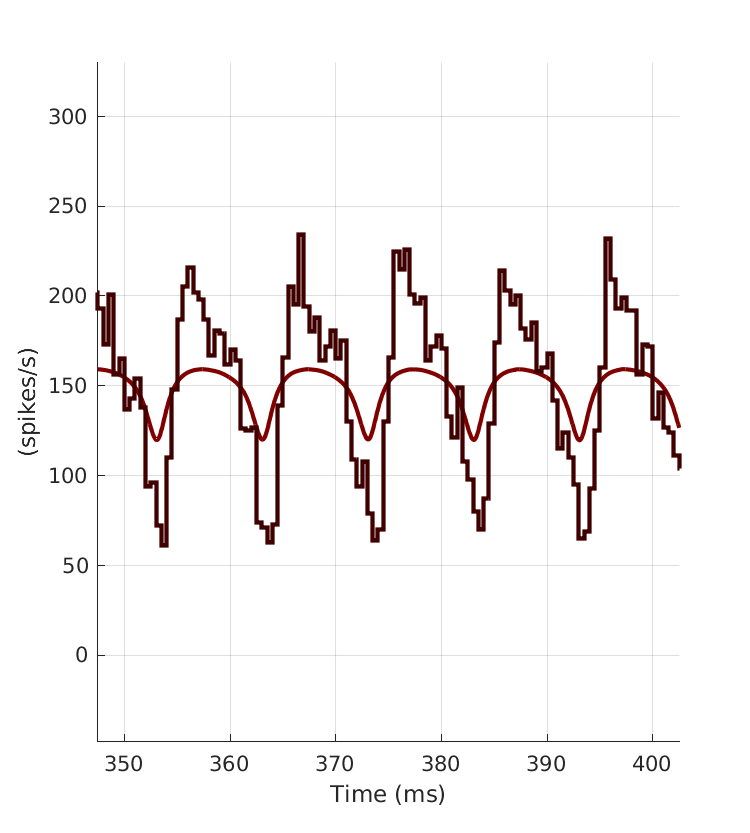

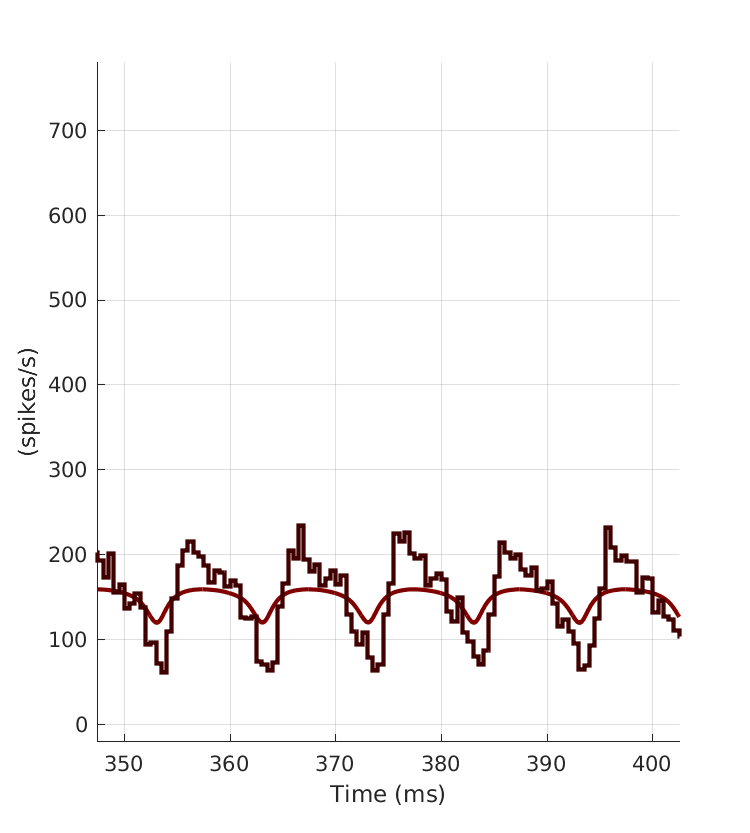

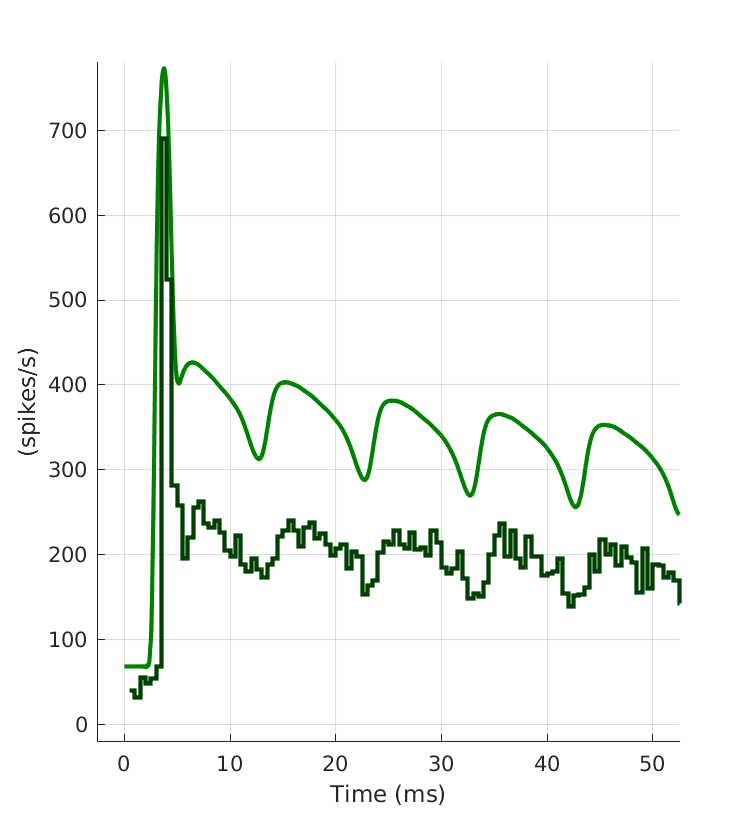

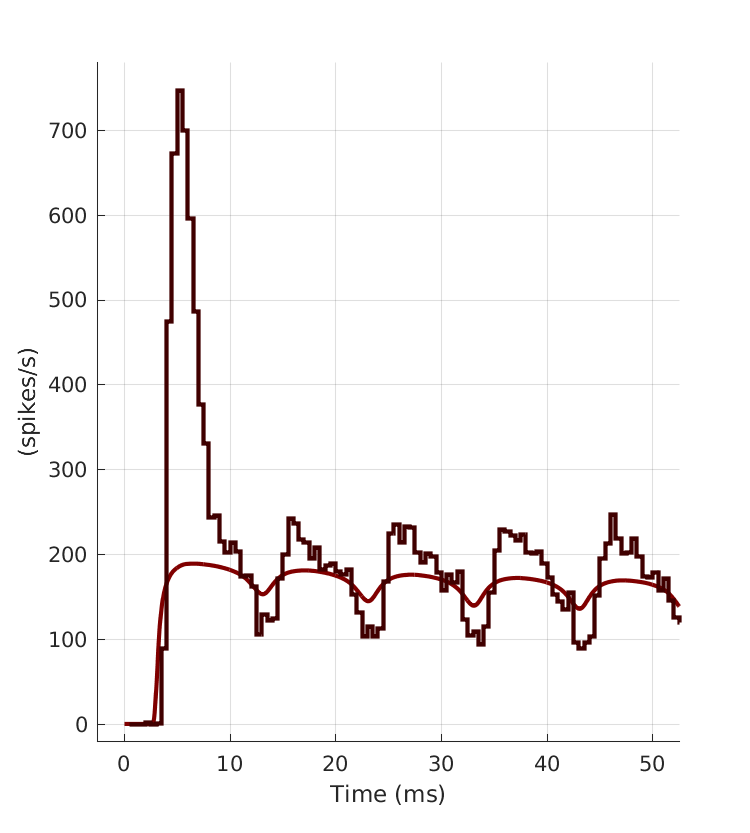

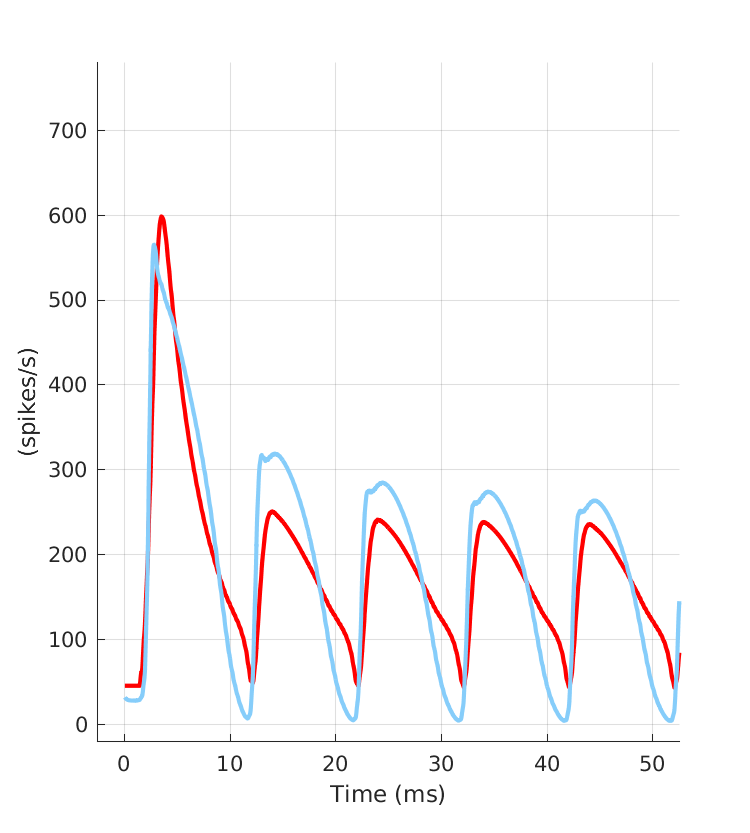

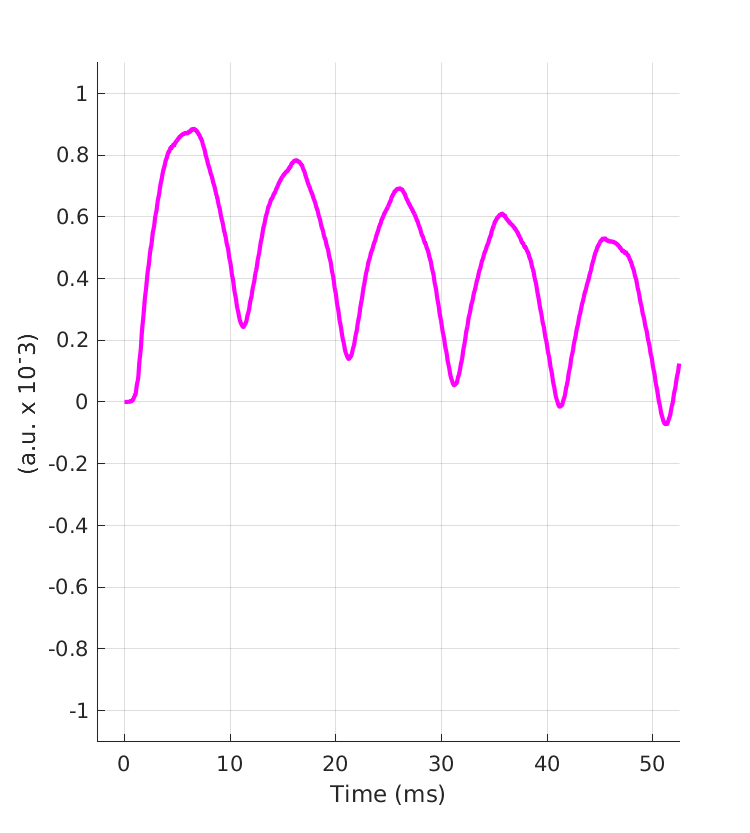

To display Fig. 9 of Osses et al., (2022) use

out = exp_osses2022('fig9');

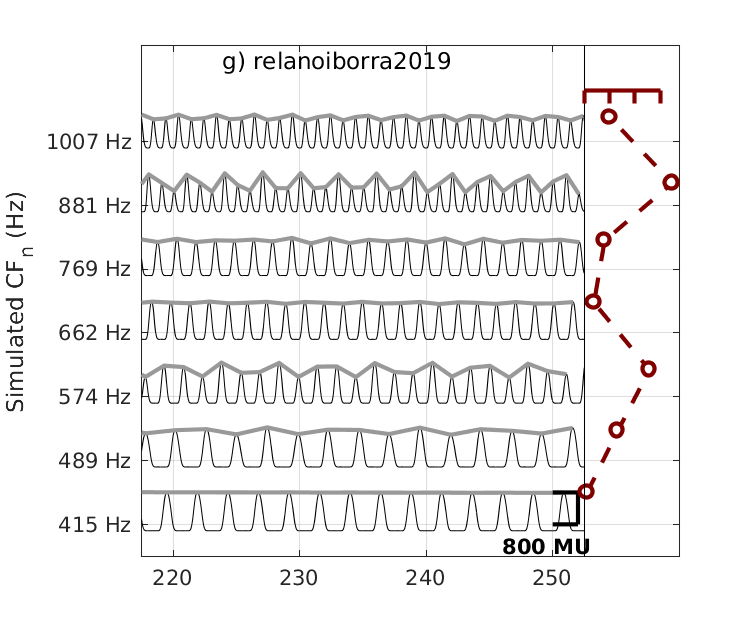

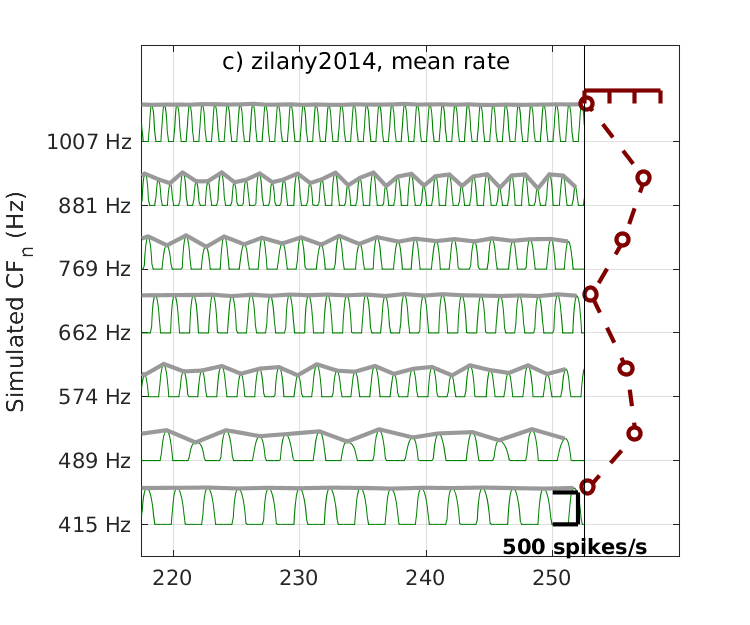

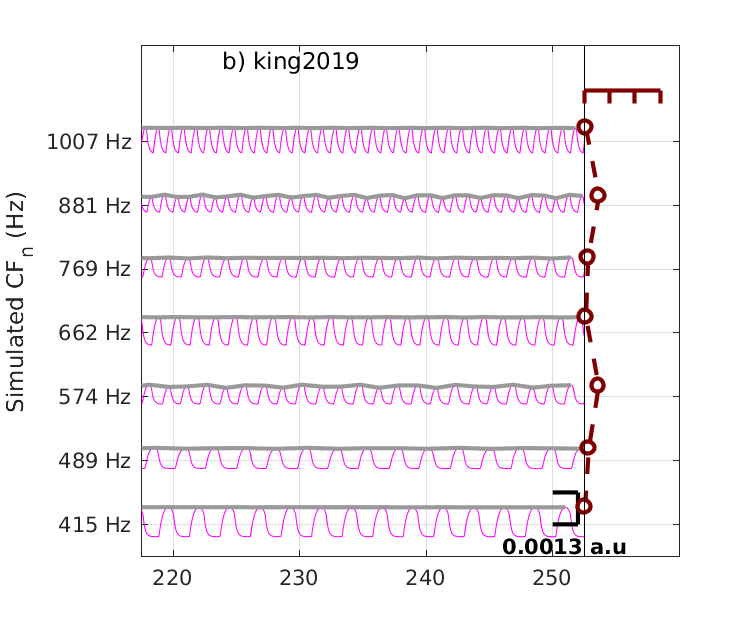

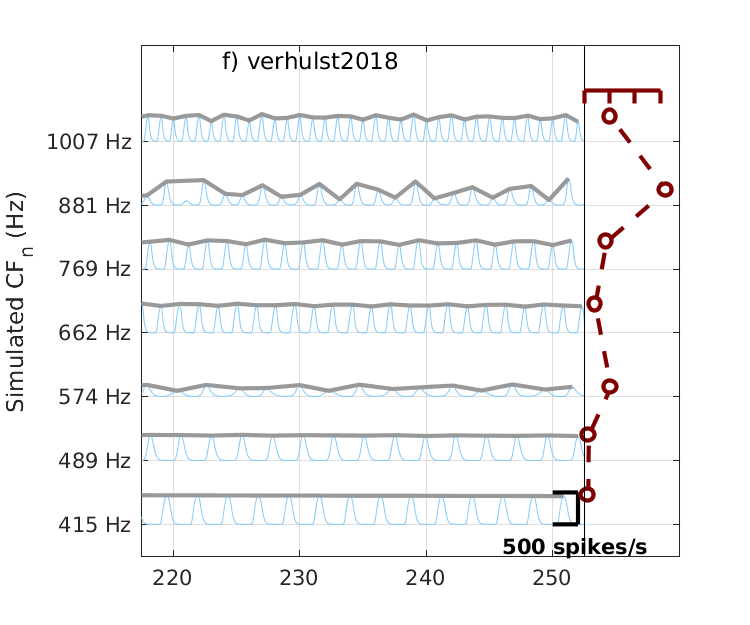

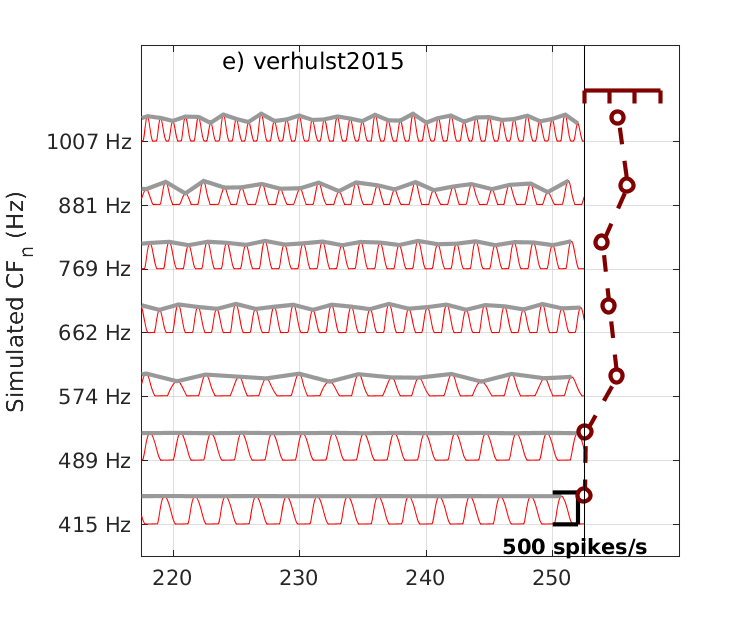

To display Fig. 10 of Osses et al., (2022) use

out = exp_osses2022('fig10');

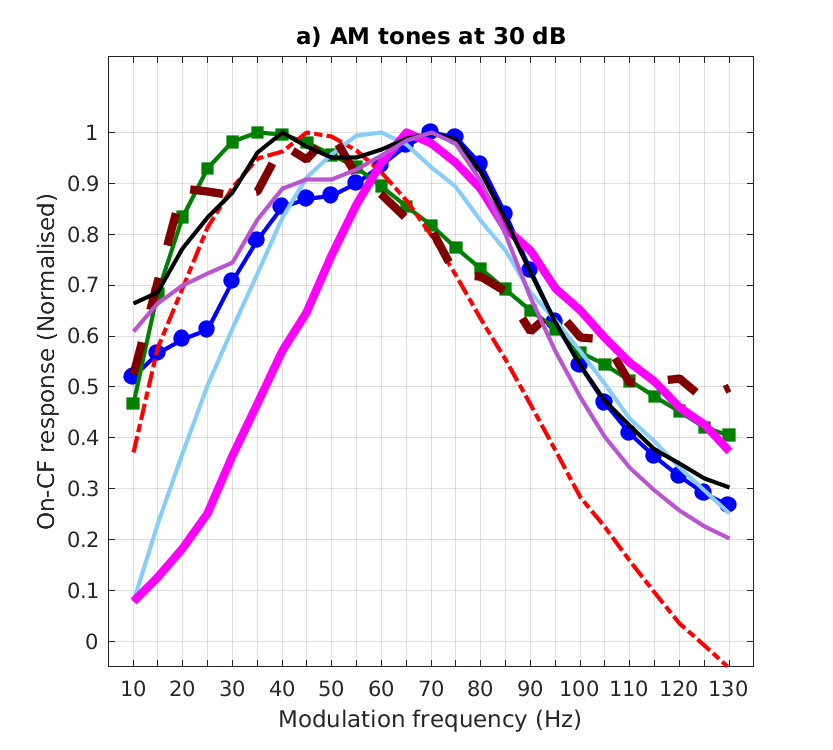

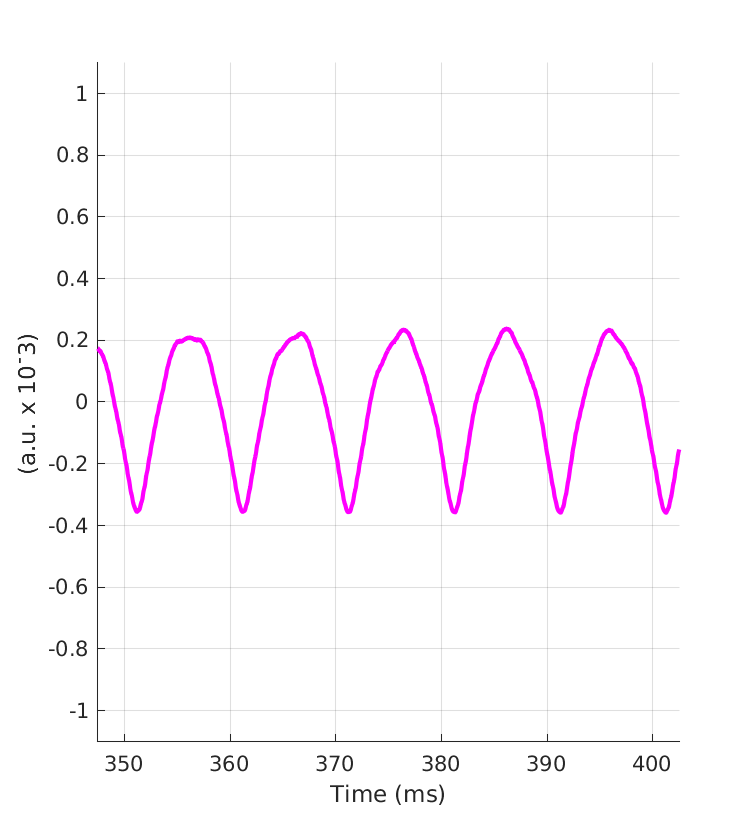

To display Fig. 11 of Osses et al., (2022) use

out = exp_osses2022('fig11');

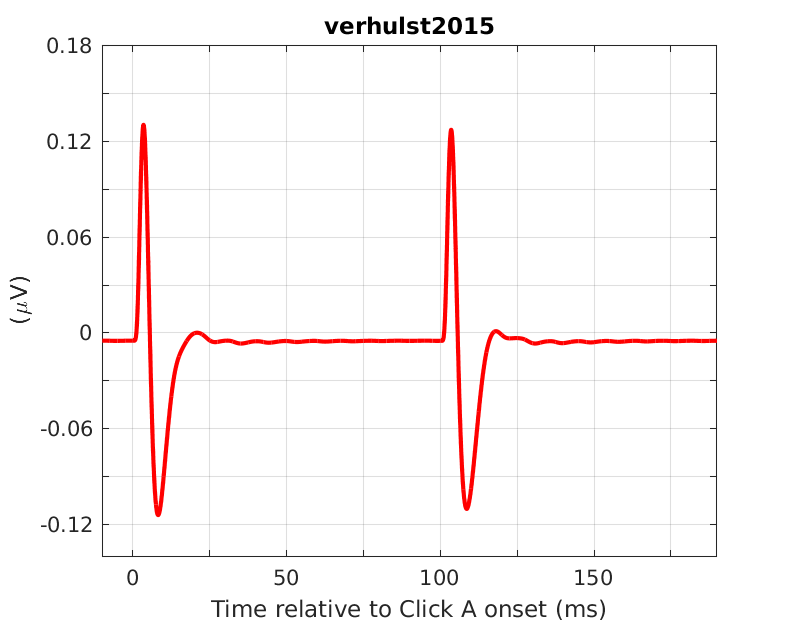

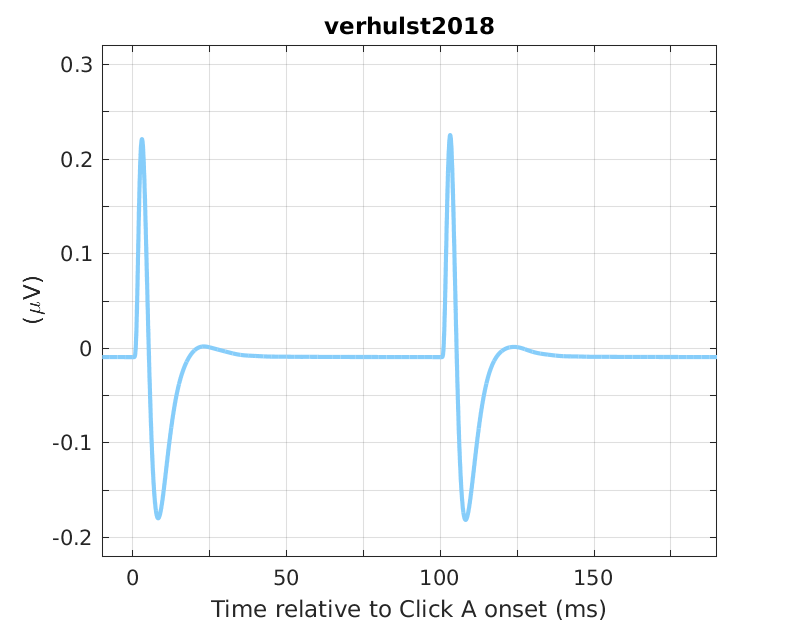

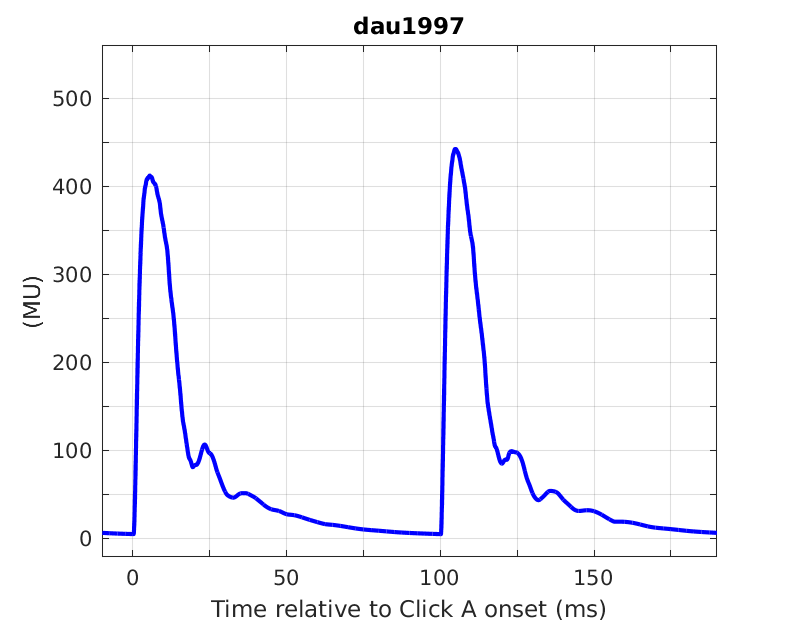

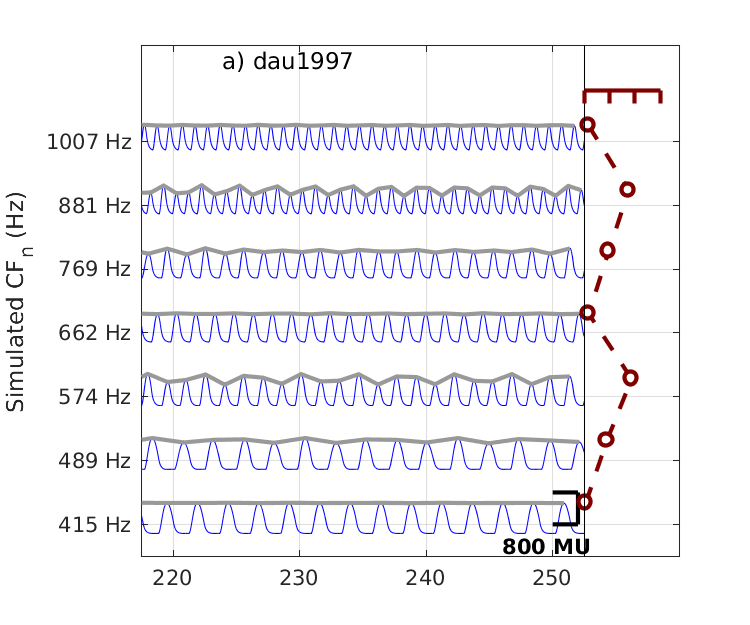

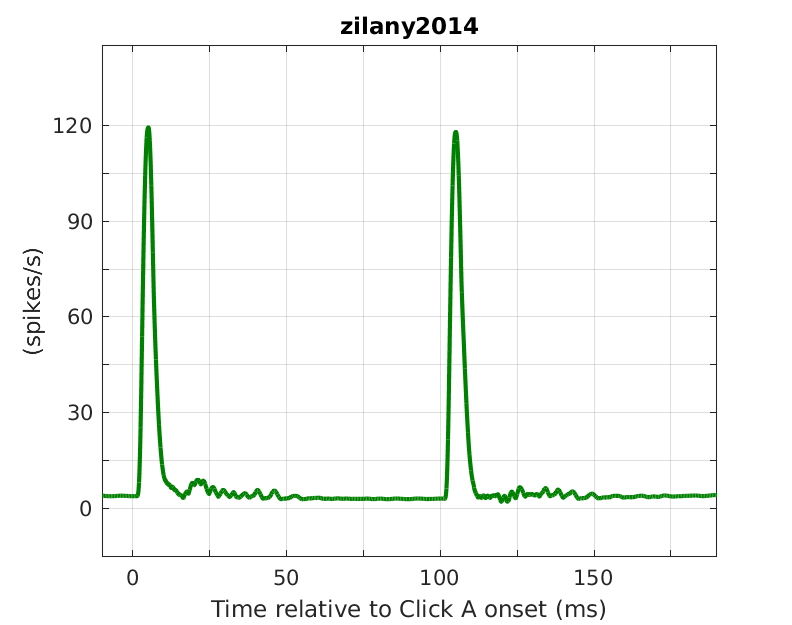

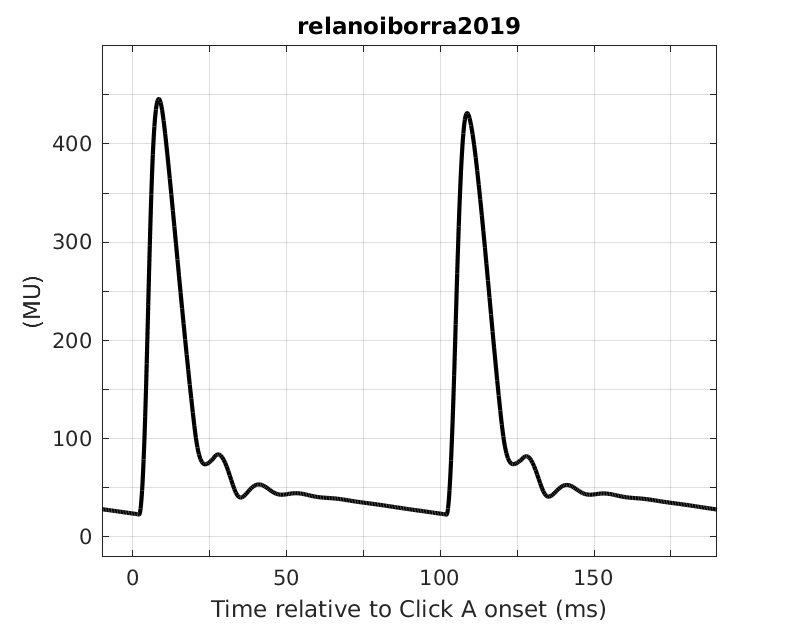

To display Fig. 12a or 12b of Osses et al., (2022) use

out = exp_osses2022('fig12a');
out = exp_osses2022('fig12b');

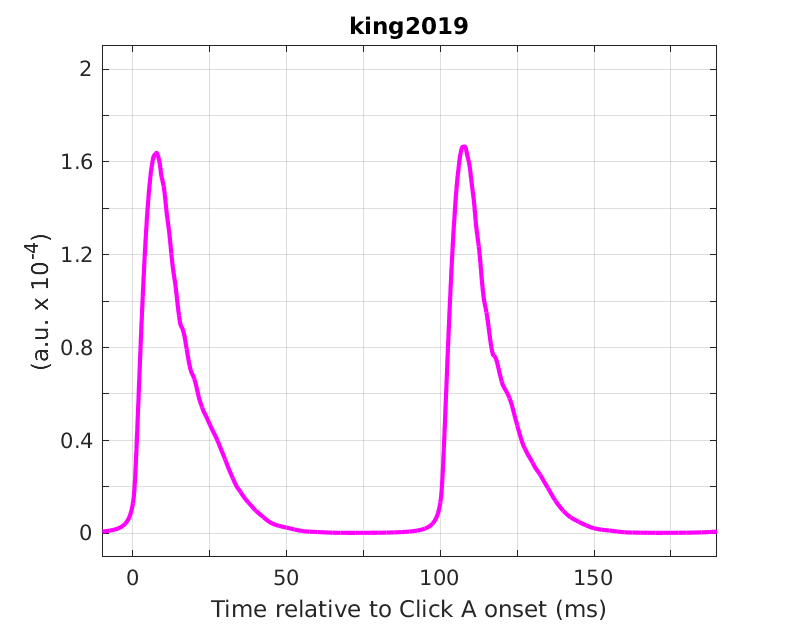

To display Fig. 13 of Osses et al., (2022) use

out = exp_osses2022('fig13');

To display Fig. 14a or 14b of Osses et al., (2022) use

out = exp_osses2022('fig14a');
out = exp_osses2022('fig14b');

To display Fig. 15 of Osses et al., (2022) use

out = exp_osses2022('fig15');
