THE AUDITORY MODELING TOOLBOX

Applies to version: 1.4.0

View the code

Go to function

DATA_NEELY1988 - ABR wave V data as functon of level and sweeping rate

Usage:

tau = data_neely1988(flag)

Input parameters:

F Centre frequencies of stimulus
L Levels at centre frequencies

Output parameters:

tau Wave V latency

Description:

data_neely1988(F,L) returns data points based on equation 1 from Neely et al. (1988) where F is the centre frequencies and L are the associated levels.

The flag may be one of:

'no_plot' Don't plot, only return data. This is the default.
'plot' Plot the data.

Examples:

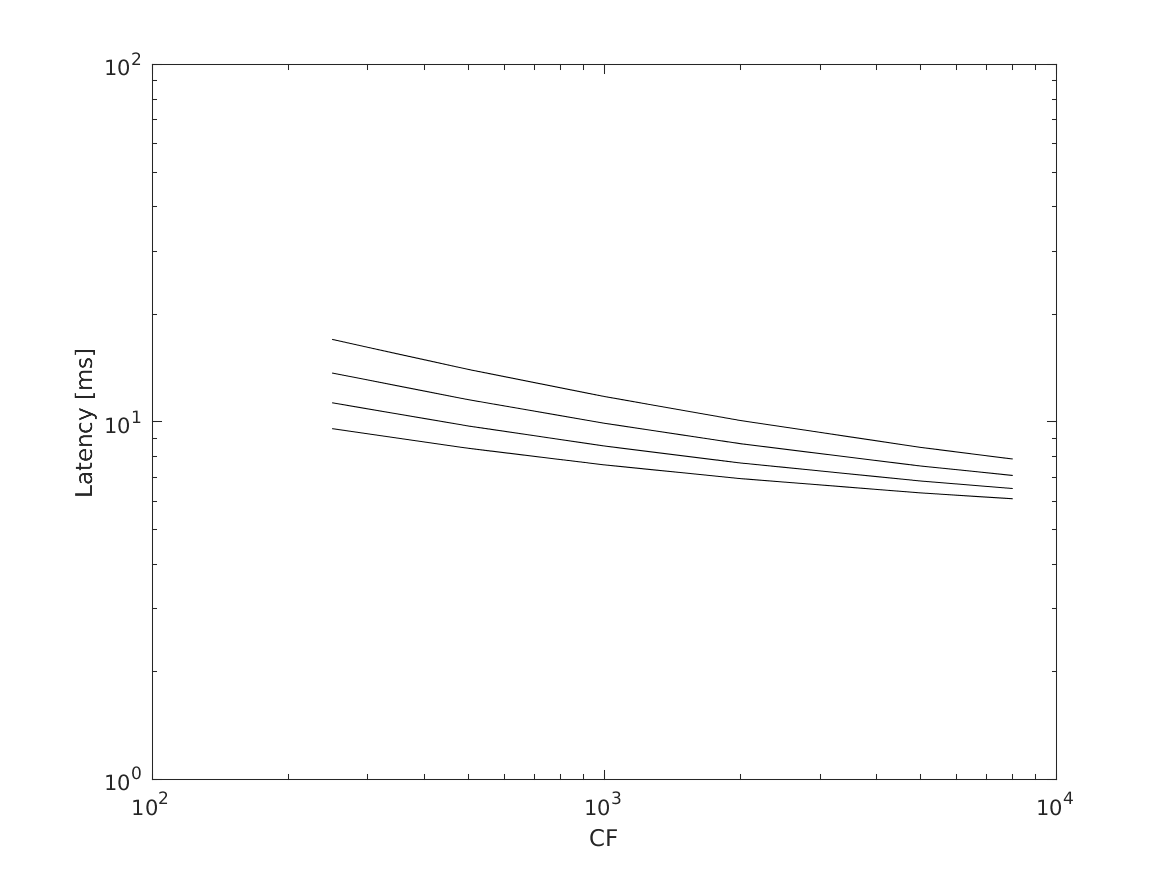

Figure 2 in Neely et al. (1988) can be reproduced using:

F=[250 500 1000 2000 5000 8000];
tau=data_neely1988(F,[40 60 80 100]);
loglog(F,tau','k-');
xlabel('CF');
ylabel('Latency [ms]')

References:

S. Neely, S. Norton, M. Gorga, and J. W. Latency of auditory brain-stem responses and otoacoustic emissions using tone-burst stimuli. J. Acoust. Soc. Am., 83(2):652--656, feb 1988.
