THE AUDITORY MODELING TOOLBOX

Applies to version: 1.5.0

View the code

Go to function

EXP_CHEN2011 - experiments from Chen et al. 2011

Description:

exp_chen2011(fig) reproduce Fig. no. fig from the Chen et al. 2011 paper.

The following flags can be specified;

'fig7' Reproduce Fig. 7, yields the excitation patterns

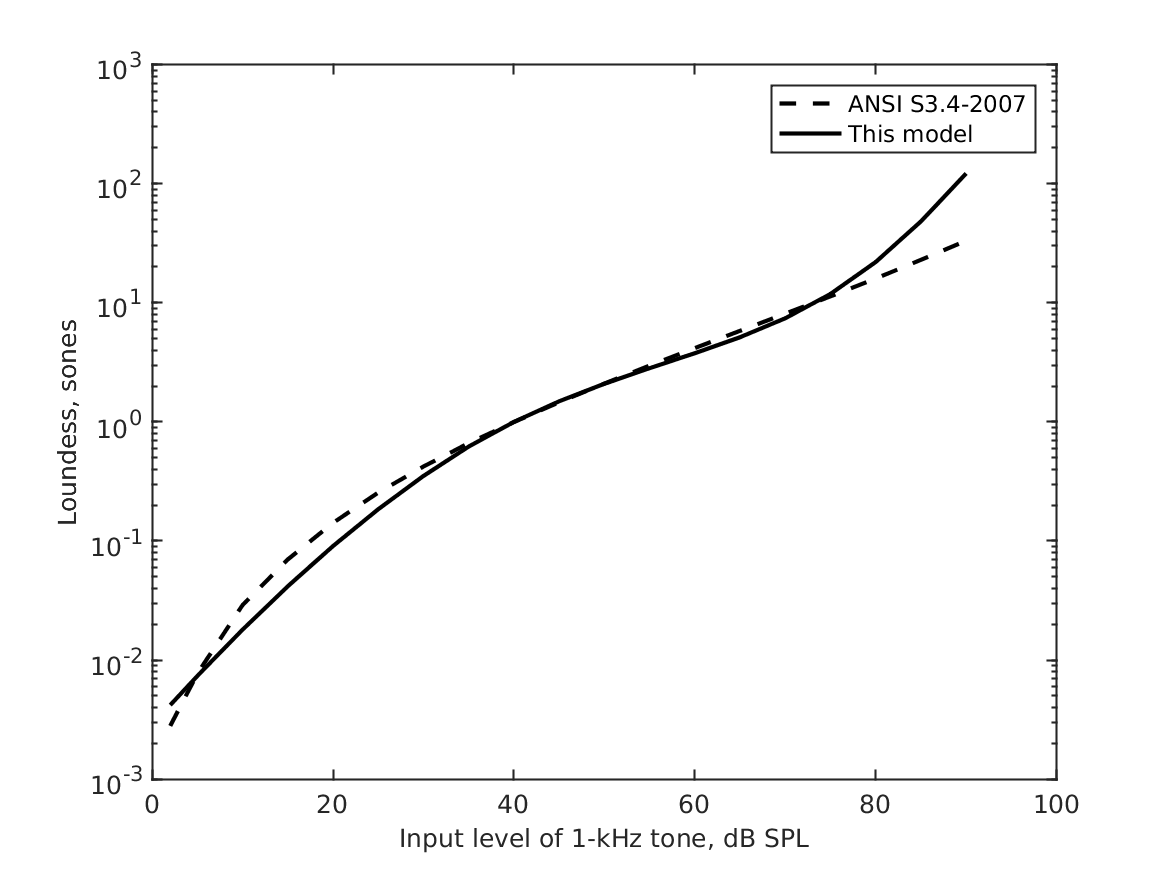

'fig9' Reproduce Fig. 9, contrasting loudness (sones) with input level (dBSPL)
'fig10' Reproduce Fig. 10, comparing the equal loudness contours from chen2011_loudness with the ISO 2006 standard

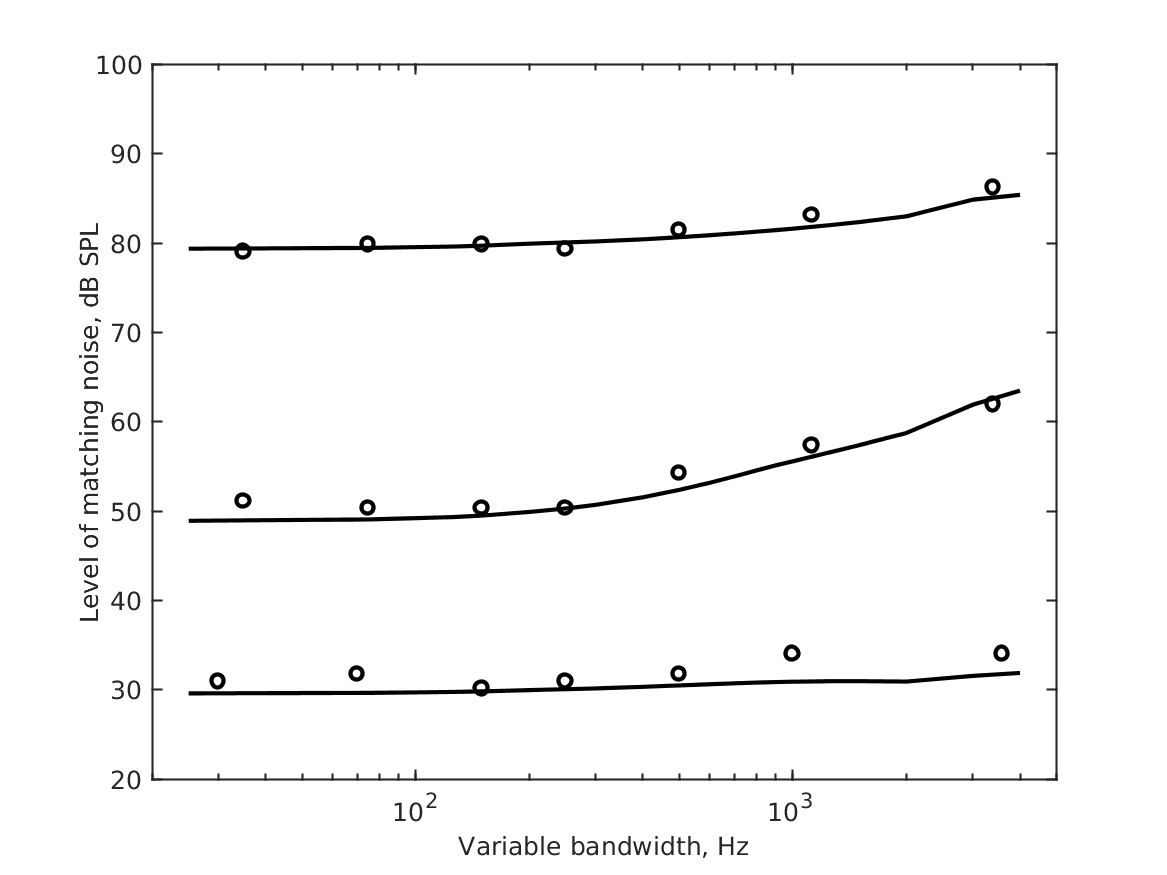

'fig11' Reproduce Fig. 11, displaying loudness as a function of bandwidth

Examples:

To display Fig. 7 use :

exp_chen2011('fig7');

To display Fig. 9 use :

exp_chen2011('fig9');

To display Fig. 10 use :

exp_chen2011('fig10');

To display Fig. 11 use :

exp_chen2011('fig11');

References:

Z. Chen, G. Hu, B. R. Glasberg, and C. Moore, Brian. A new model for calculating auditory excitation patterns and loudness for cases of cochlear hearing loss. J. Acoust. Soc. Am., 282(1), 2011.
