EXP_KELVASA2015 - Figures from Kelvasa and Dietz (2015)

Description:

EXP_KELVASA2015(fig) computes data to produce corresponding figure number from the Kelvasa and Dietz 2015 paper.

Usage:

[dataOut] = exp_kelvasa2015('fig8a')
[dataOut] = exp_kelvasa2015('fig8a','identifier','BTE','HRTFchannels',[3,4]);
[dataOut] = exp_kelvasa2015('fig8a',varargin);

The following flags can be specified;

'redo' Recomputes data for specified figure
'plot' Plot the output of the experiment. This is the default.
'no_plot' Don't plot, only return data.

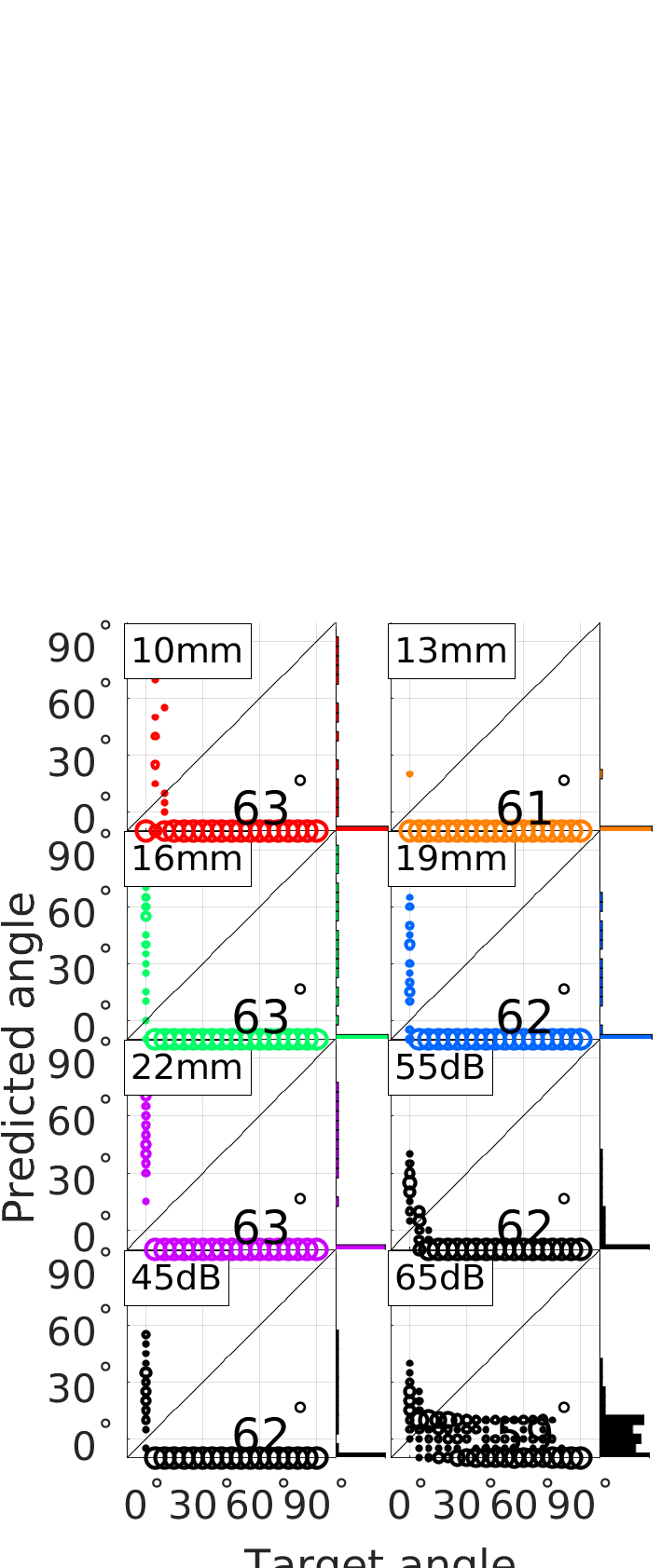

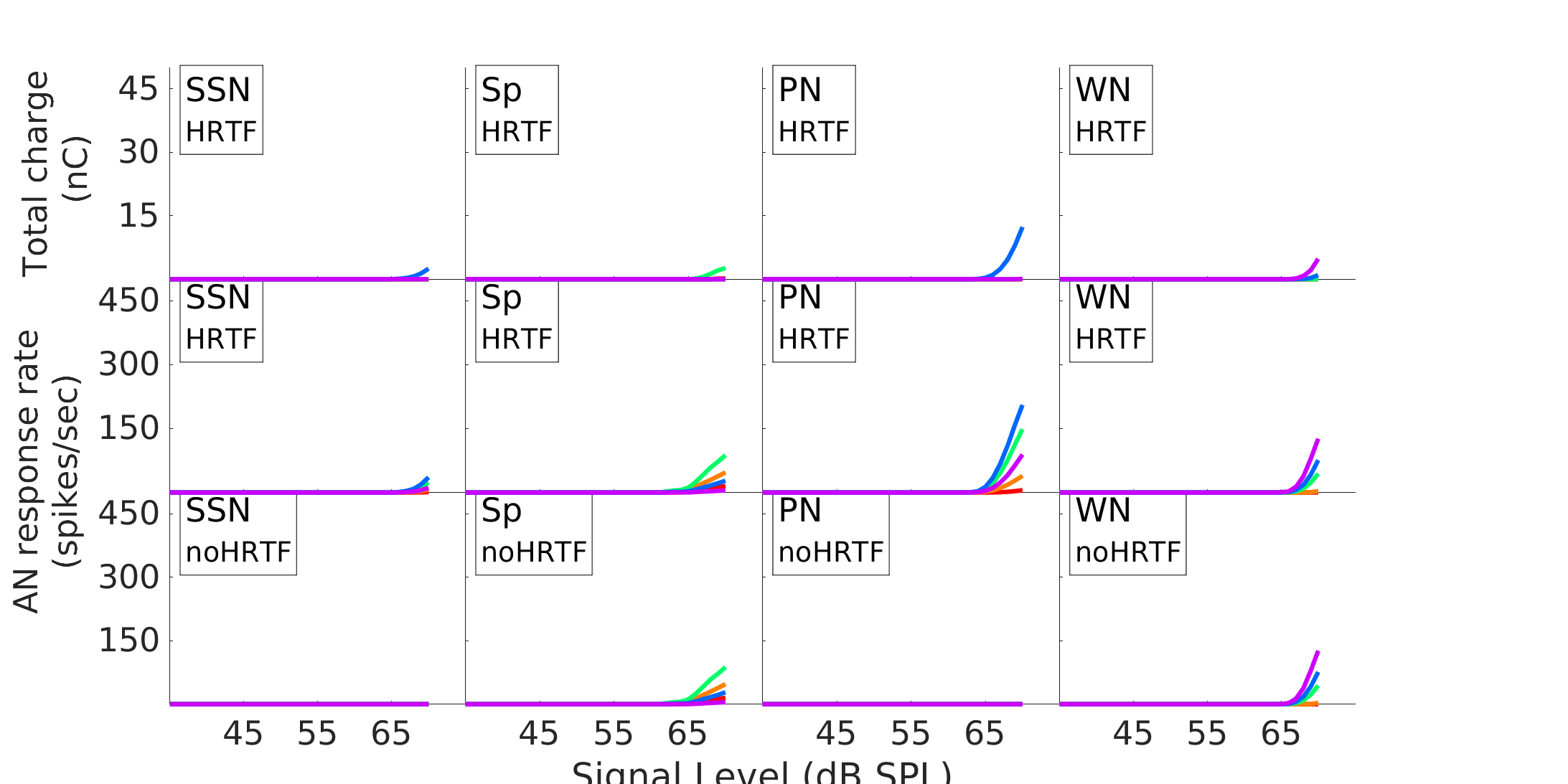

'fig5' Reproduce Fig. 5.

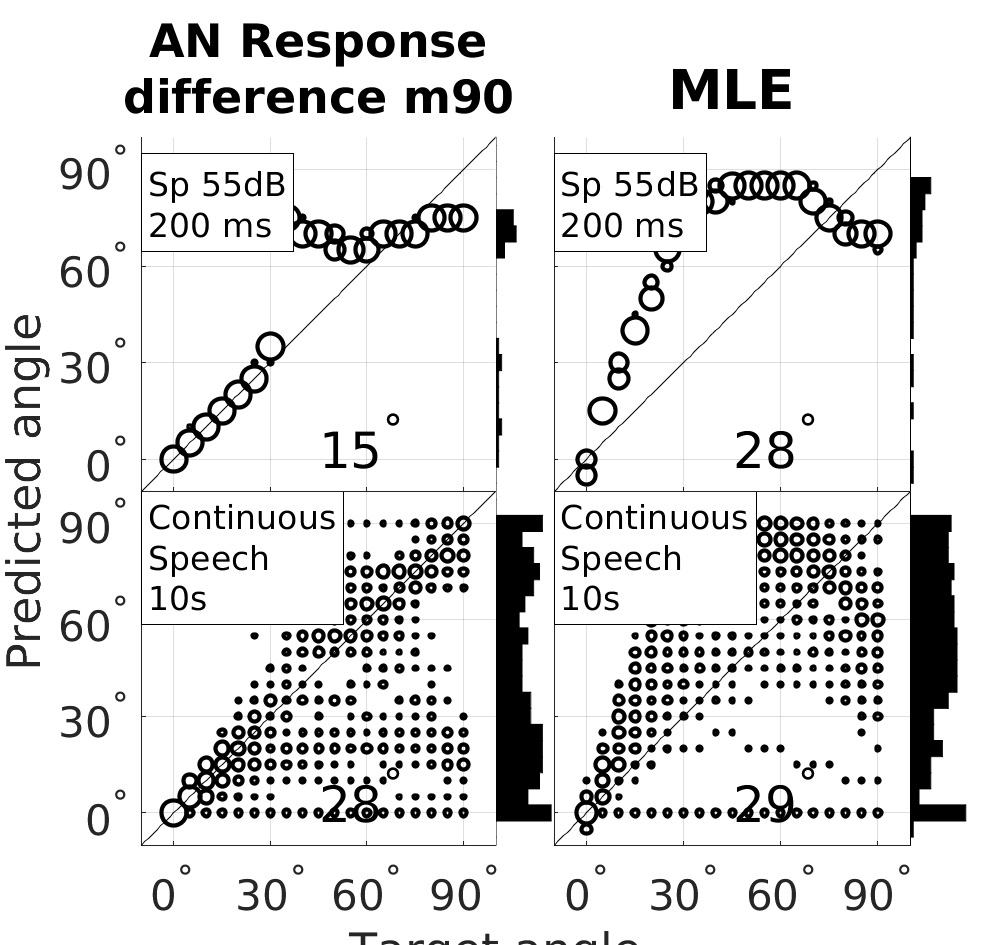

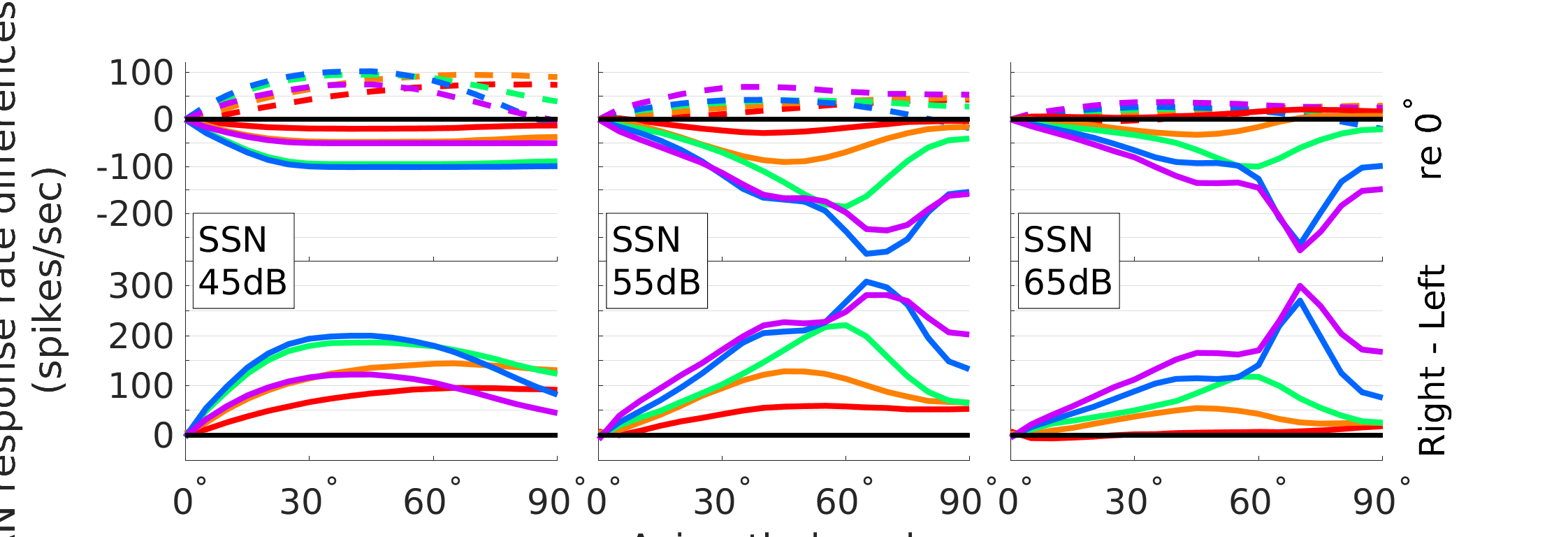

'fig6' Reproduce Fig. 6.

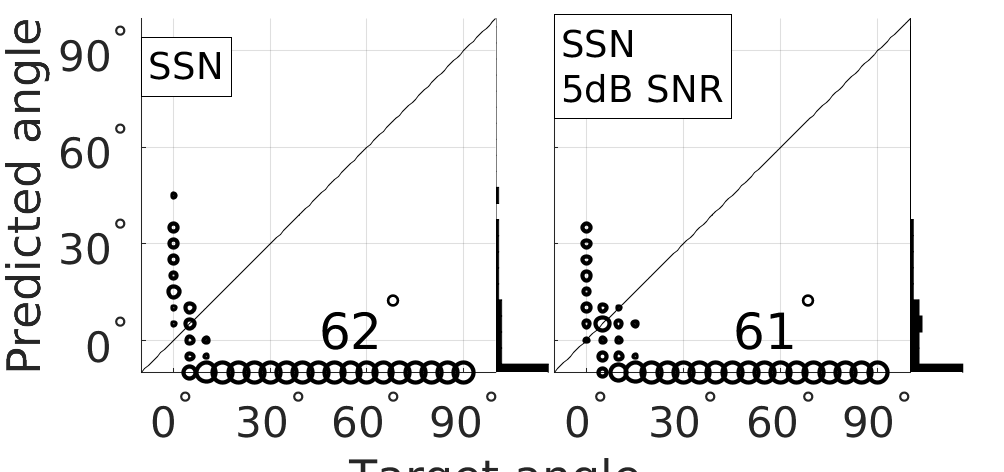

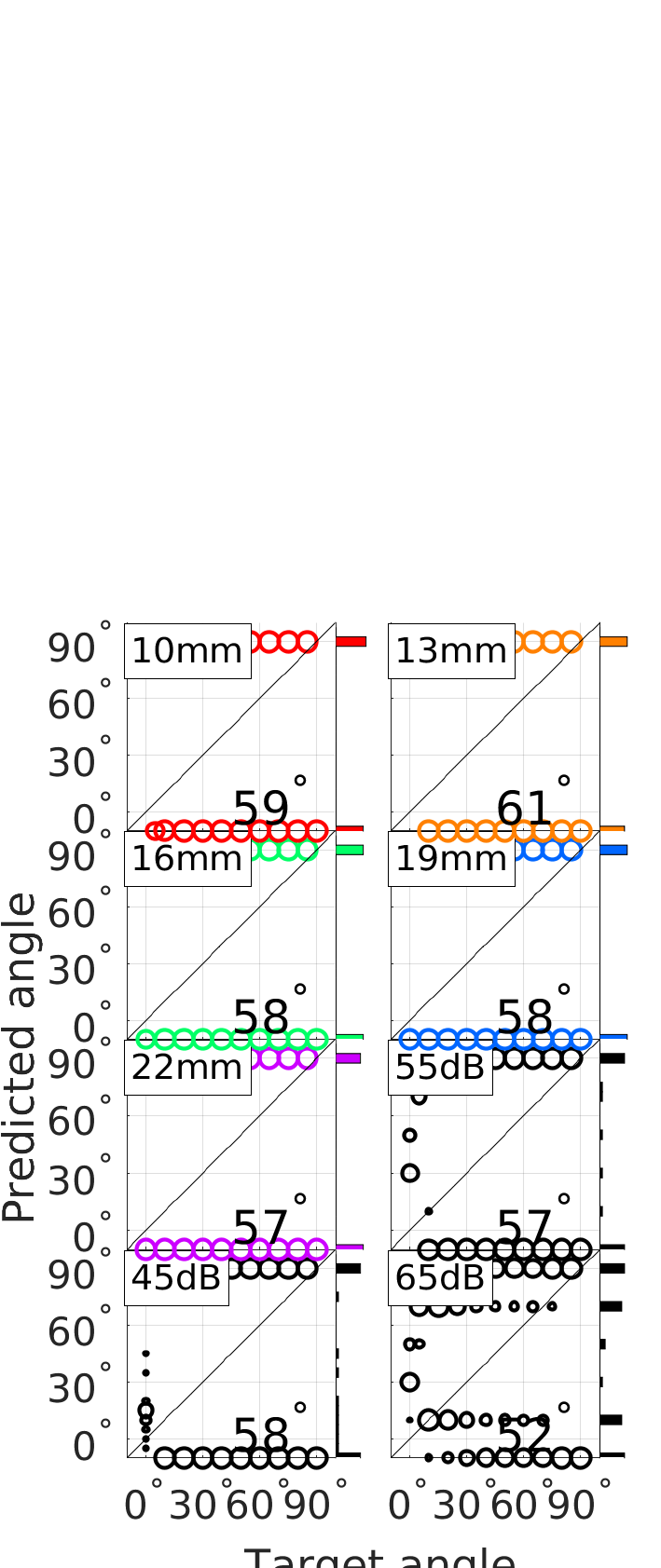

'fig8a' Reproduce Fig. 8a.

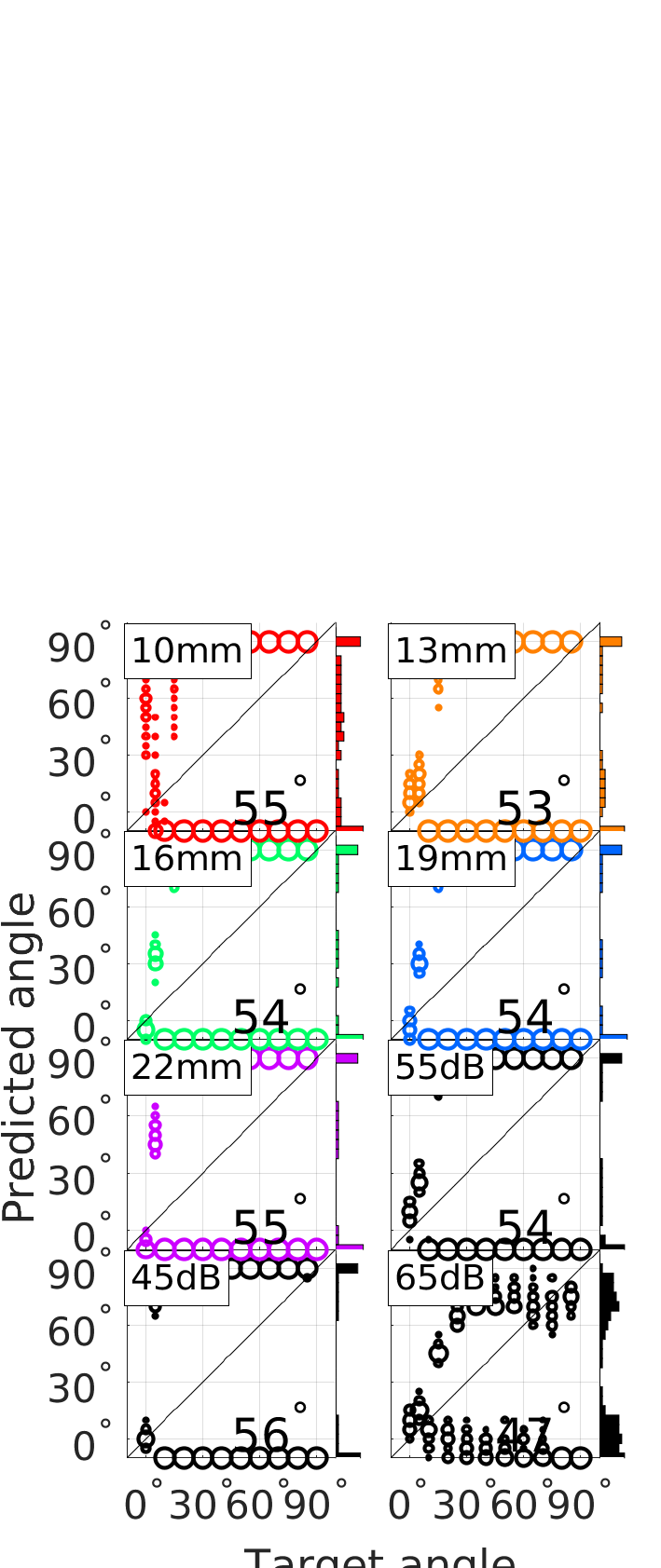

'fig8b' Reproduce Fig. 8b.
'fig9a' Reproduce Fig. 9a.
'fig10' Reproduce Fig. 10.
'fig12' Reproduce Fig. 12.

Examples:

To display Fig. 5 use :

exp_kelvasa2015('fig5');

To display Fig. 6 use :

exp_kelvasa2015('fig6');

To display Fig. 8a use :

exp_kelvasa2015('fig8a');

To display Fig. 8b use :

exp_kelvasa2015('fig8b');

To display Fig. 9a use :

exp_kelvasa2015('fig9a');

To display Fig. 10 use :

exp_kelvasa2015('fig10');

To display Fig. 12 use :

exp_kelvasa2015('fig12');

References:

D. Kelvasa and M. Dietz. Auditory model-based sound direction estimation with bilateral cochlear implants. Trends in Hearing, 19:2331216515616378, 2015. [ DOI ]
