THE AUDITORY MODELING TOOLBOX

Applies to version: 0.9.6

View the code

Go to function

EXP_DIETZ2011 - Experiments from Dietz et al. 2011

Description

exp_dietz2011(fig) reproduce Fig. no. fig from the Dietz et al. 2011 paper.

Note: The input signals used in this routine are not identical to the ones used in the original paper.

The following flags can be specified;

'plot' Plot the output of the experiment. This is the default.
'noplot' Don't plot, only return data.

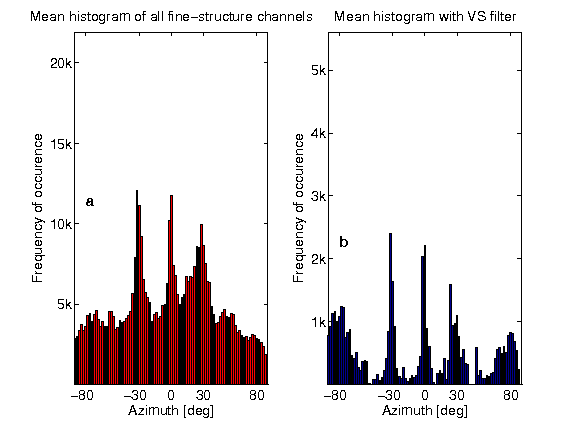

'fig3' Reproduce Fig. 3 panels a + b.
'fig4' Reproduce Fig. 4.
'fig5' Reproduce Fig. 5.
'fig6' Reproduce Fig. 6.

Examples:

To display Fig. 3 use

exp_dietz2011('fig3');

To display Fig. 4 use

exp_dietz2011('fig4');

To display Fig. 5 use

exp_dietz2011('fig5');

To display Fig. 6 use

exp_dietz2011('fig6');

References:

M. Dietz, S. D. Ewert, and V. Hohmann. Auditory model based direction estimation of concurrent speakers from binaural signals. Speech Communication, 53(5):592-605, 2011. [ DOI | http ]
