THE AUDITORY MODELING TOOLBOX
This documentation page applies to an outdated major AMT version. We show it for archival purposes only.
Click here for the documentation menu and here to download the latest AMT (1.6.0).
Go to function
DATA_GOODE1994 - Returns data points from the Goode et al. (1994) paper
Usage
data = data_goode1994_data(flag)
Description
data_goode1994(flag) returns data points from the paper by Goode et al. (1994). Currently, only Fig. 1 with condition 104 dB is supported.
The flag may be one of:
| 'noplot' | Don't plot, only return data. This is the default. |
| 'plot' | Plot the data. |
| 'fig1_104' | Return data from Fig. 1. for 104 dB SPL, stapes footplate diplacement at 104 dB SPL. This is the default (and currently only option). |
Examples:

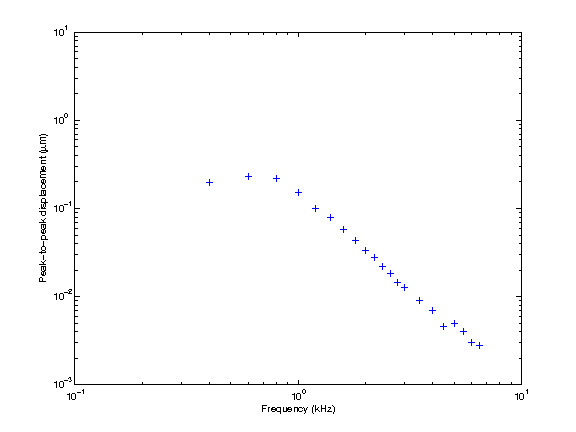

To plot the figure use
data_goode1994('fig1_104','plot');
References:
R. Goode, M. Killion, K. Nakamura, and S. Nishihara. New knowledge about the function of the human middle ear: development of an improved analog model. The American journal of otology, 15(2):145-154, 1994.
