THE AUDITORY MODELING TOOLBOX
Go to function
data_baumgartner2017looming - - Results from Baumgartner et al. (2017)
Usage
data = data_baumgartner2017looming(dataFlag,measure) data = data_baumgartner2017looming(fig)
Output parameters
| data | structure that contains either HRTFs (id, and Obj) or experimental results including raw and averaged data (rawData,`data`, opional meta information). Statisitcs (stat) and figure handles (fig) are provided if requested. |
Description
data_baumgartner2017looming provides individually measured HRTFs and experimental results from Baumgartner et al. (2017). Use the fig flag to obtain data shown in figures from Baumgartner et al. (2017).
The dataFlag flag may be used to choose between HRTFs and various experimental results:
| 'hrtf' | HRTFs used in all experiments. |
| 'pretest' | Behavioral results of pre-test. |
| 'exp1' | Behavioral or ERP results of Exp. I. Default. |
| 'exp2' | Behavioral results of Exp. II. |
The measure flag may be one of:
| 'judgment' | Judgment of relative distance change (motion direction). Default. |
| 'rt' | Response time. |
| 'erp' | ERP magnitude measures. |
The fig flag may be one of:

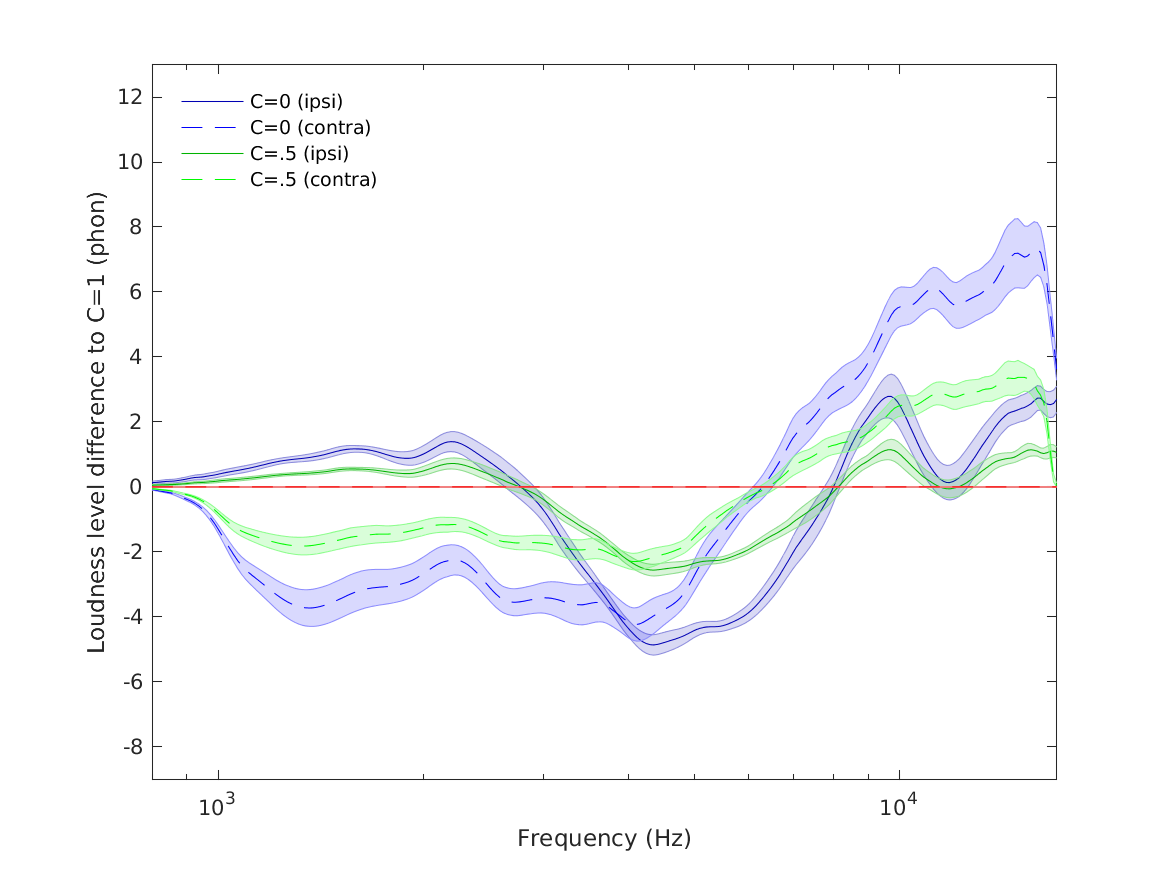

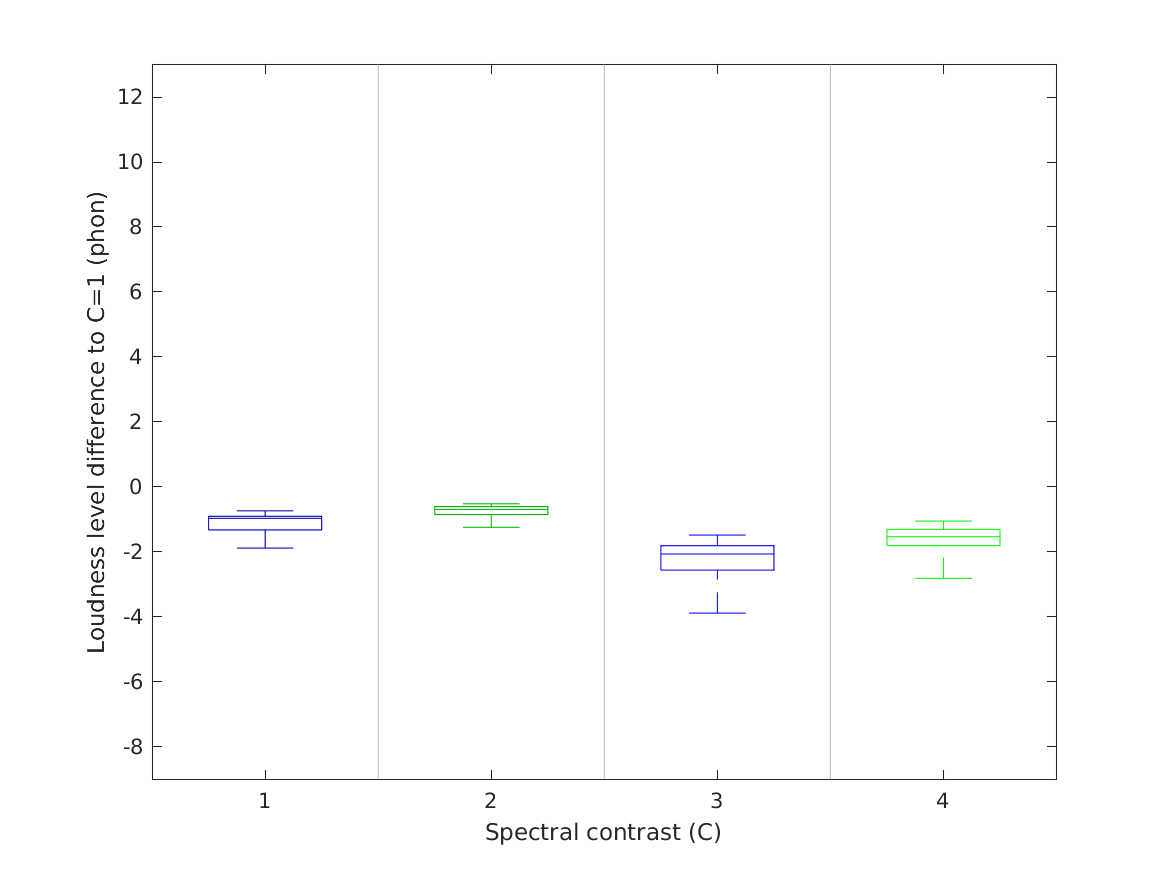

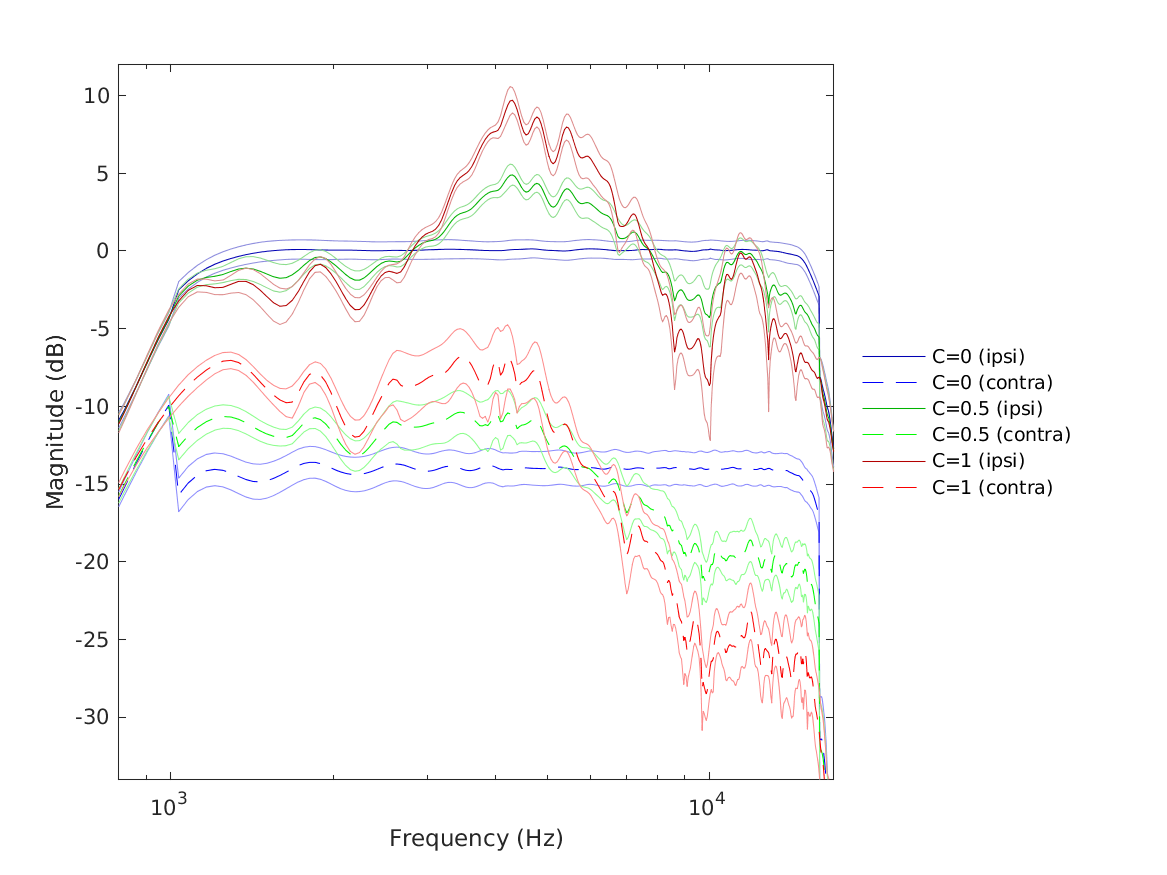

| 'fig1b' | Effect of spectral contrast manipulation according to factor C on magnitude responses of listener-specific stimuli of Exp. I (B, Top) as well as their frequency-specific and overall loudness changes relative to C = 1. Shaded areas denote ??1 standard error of the mean (SEM; N = 15). Note that changes in overall loudness oppose the intended effect of contrast switch. |

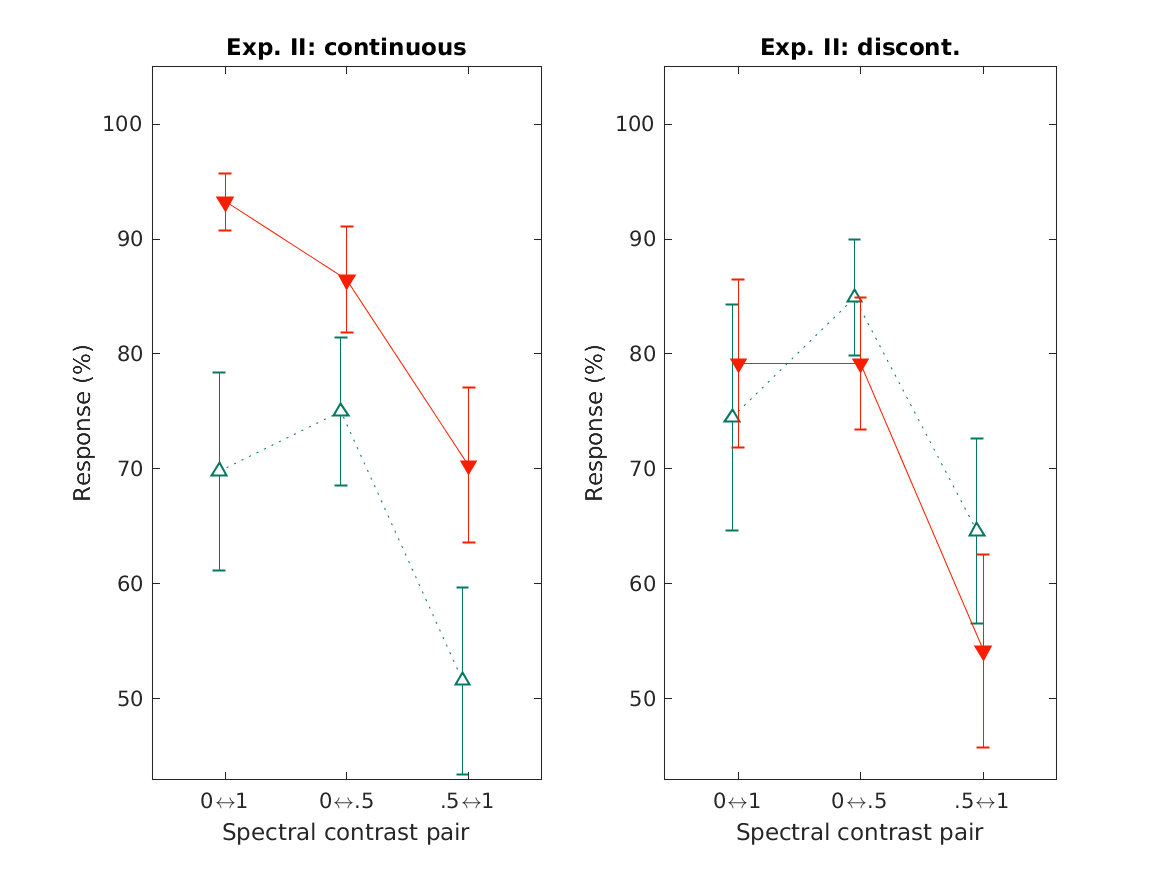

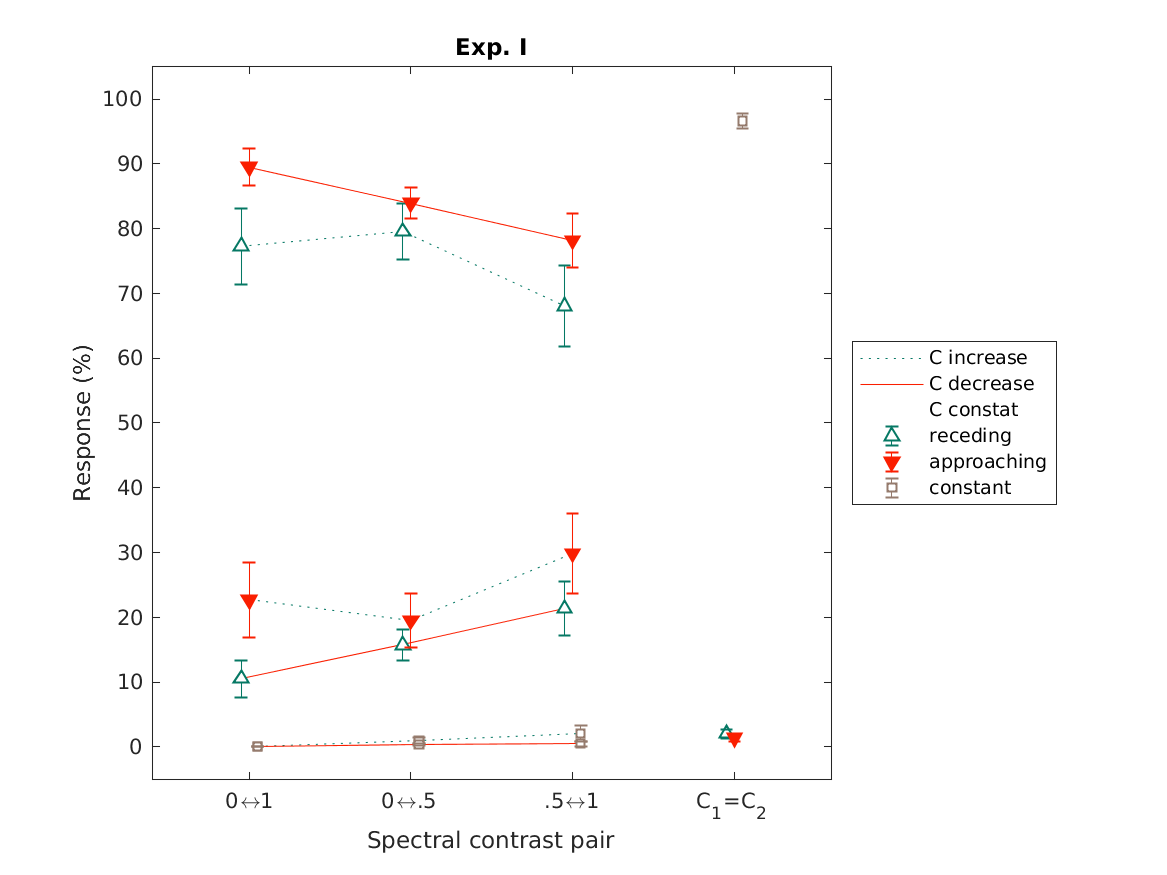

| 'fig2' | Behavioral responses were more consistent for sounds perceived as approaching compared to sounds perceived as receding if instantaneous spectral changes were presented in continuous stimuli. Mean behavioral responses in the 3?AFC motion discrimination task of Exp. I (fist figure; N = 15) and the 2?AFC motion discrimination task of Exp. II (second figure; N = 13). Results of Exp. II are separated between trials presenting instantaneous but continuous (Left; as in Exp. I) and discontinuous (Right) spectral contrast switches. Decreasing spectral contrast switches (orange lines) were predominantly perceived as approaching (orange triangles), increasing spectral contrast switches (green lines) as receding (green triangles), and constant spectral contrasts (no lines) as static (gray squares). Statistical analyses focused on these predominant response associations. Values reflect mean ??1 SEM. |

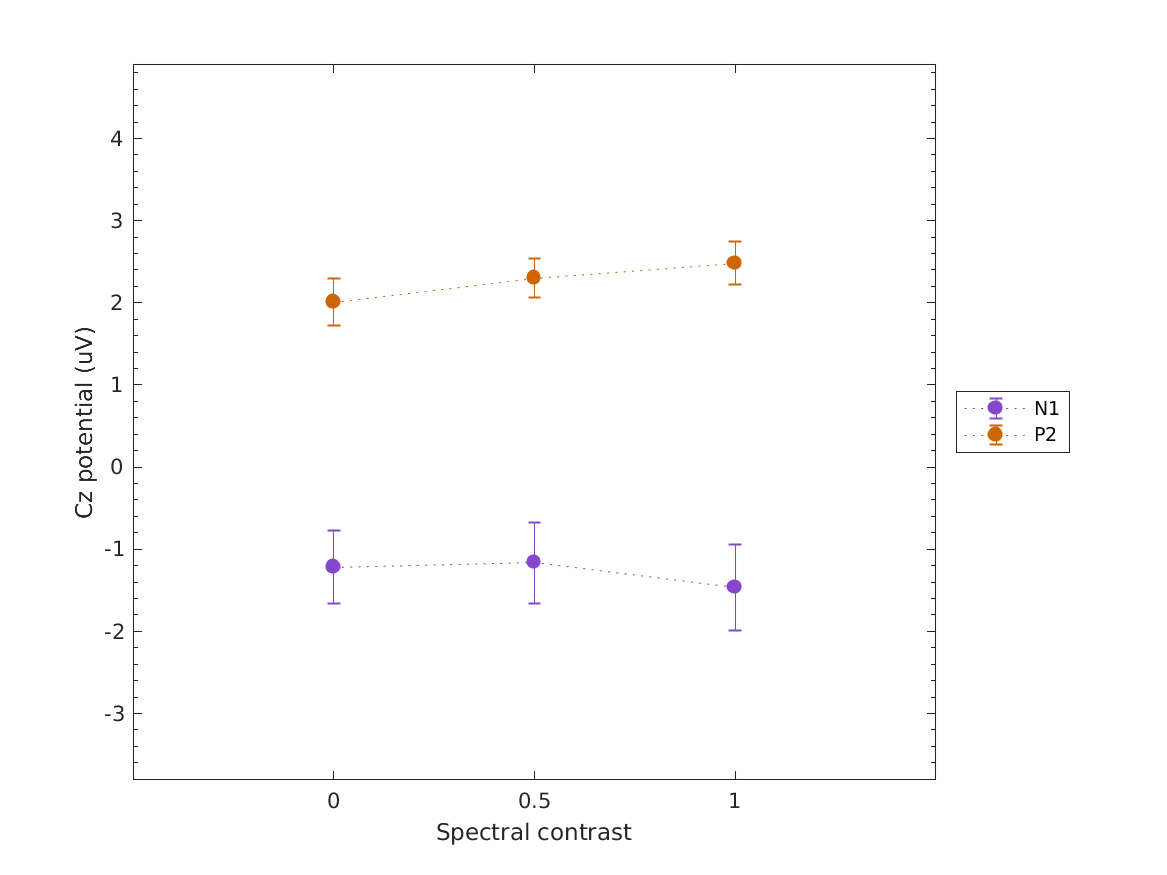

| 'fig3a' | Extracted N1 and P2 amplitudes evoked by stimulus onset. Error bars reflect SEM. |

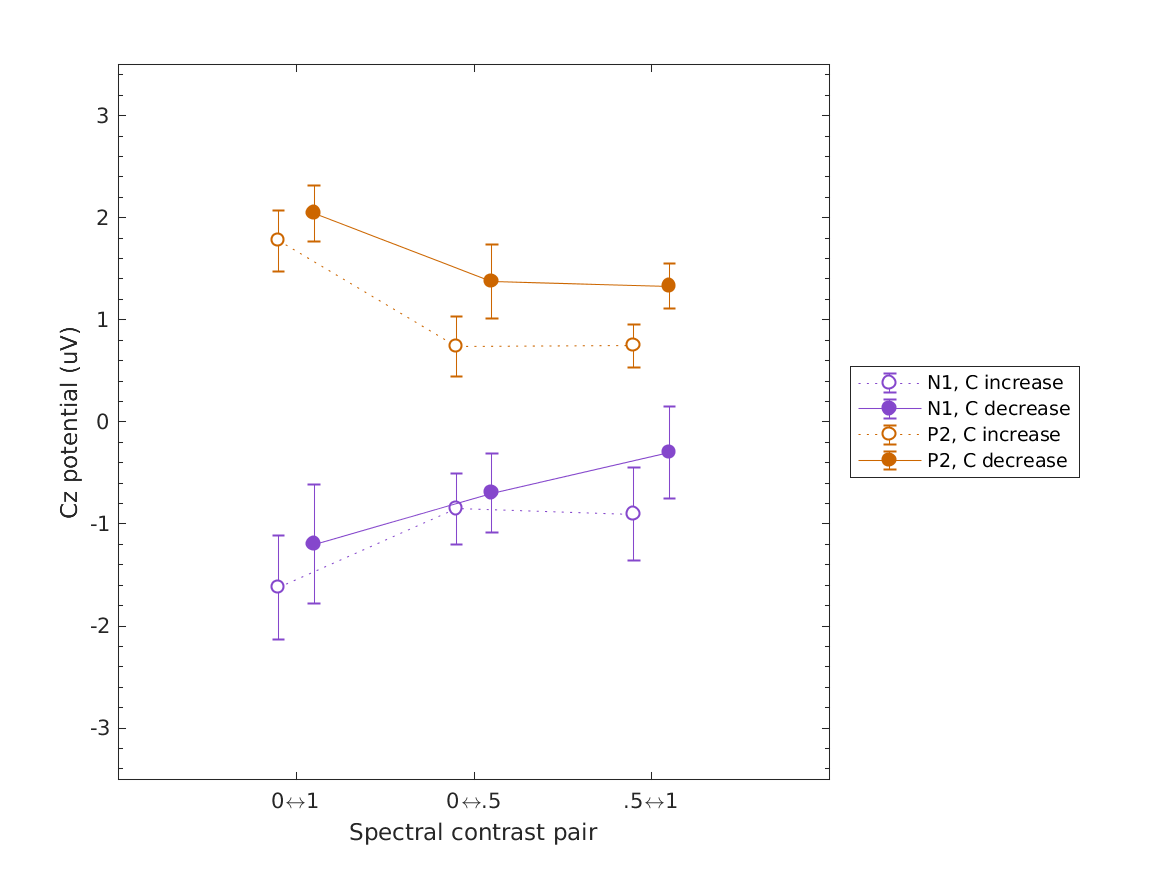

| 'fig3b' | Extracted N1 and P2 amplitudes evoked by stimulus switch. Error bars reflect SEM. |
| 'fig3c' | Significant cluster in time and space that is distinctive between decreasing and increasing spectral contrasts. (no plotting) |
Additional flags may be:
| 'plot' | Plot results as published. |
| 'no_plot' | No plots. Default. |
| 'stat' | Analyze and display inferential statistics. |
| 'nostat' | No statistics. Default. |
| 'onset' | To use onset ERPs. |
| 'switch' | To use switch-ERPs. Default. |
Requirements:
- SOFA API v0.4.3 or higher from http://sourceforge.net/projects/sofacoustics for Matlab (in e.g. thirdparty/SOFA)
- Data in hrtf/baumgartner2017looming and auxdata/baumgartner2017looming (downloaded on the fly)
- Statistics Toolbox for Matlab (for some fig)
Examples:
To display results of Fig.1B
data_baumgartner2017looming('fig1b','plot');
To display results of Fig.2
data_baumgartner2017looming('fig2','plot');
This code produces the following output:
Exp. I:
F pValueGG DFGG eta_pSq
______ __________ ______ _______
(Intercept) 424.57 7.1759e-12 1 0.96808
Error 14 NaN
contrast 14.676 0.00034947 1.4409 0.51178
Error(contrast) 20.172 NaN
direction 6.8776 0.020077 1 0.32943
Error(direction) 14 NaN
contrast:direction 1.9649 0.17086 1.5473 0.12307
Error(contrast:direction) 21.663 NaN
contrast_1 contrast_2 Difference StdErr pValue Lower Upper
__________ __________ __________ ______ __________ _______ _______
'.5-1' '0-.5' -8.6389 2.5048 0.010235 -15.195 -2.0832
'.5-1' '0-1' -10.278 2.0939 0.00063233 -15.758 -4.7975
'0-.5' '.5-1' 8.6389 2.5048 0.010235 2.0832 15.195
'0-.5' '0-1' -1.6389 1.3446 0.46196 -5.1581 1.8803
'0-1' '.5-1' 10.278 2.0939 0.00063233 4.7975 15.758
'0-1' '0-.5' 1.6389 1.3446 0.46196 -1.8803 5.1581
Exp. II:
Subject S09 identified as outlier and removed from further analyses.
F pValueGG DFGG eta_pSq
_______ __________ ______ ________
(Intercept) 186.8 3.0216e-08 1 0.94439
Error 11 NaN
contrast 36.152 1.7995e-07 1.9275 0.76671
Error(contrast) 21.203 NaN
direction 3.5166 0.087534 1 0.24225
Error(direction) 11 NaN
ISInom 0.30113 0.59414 1 0.026646
Error(ISInom) 11 NaN
contrast:direction 0.94707 0.38299 1.504 0.079272
Error(contrast:direction) 16.544 NaN
contrast:ISInom 0.61794 0.52893 1.7533 0.053189
Error(contrast:ISInom) 19.286 NaN
direction:ISInom 14.572 0.0028564 1 0.56984
Error(direction:ISInom) 11 NaN
contrast:direction:ISInom 1.1054 0.33592 1.469 0.091316
Error(contrast:direction:ISInom) 16.159 NaN
contrast_1 contrast_2 Difference StdErr pValue Lower Upper
__________ __________ __________ ______ __________ _______ _______
'.5-1' '0-.5' -21.224 2.9324 4.5609e-05 -29.144 -13.304
'.5-1' '0-1' -19.01 2.4768 2.6456e-05 -25.7 -12.321
'0-.5' '.5-1' 21.224 2.9324 4.5609e-05 13.304 29.144
'0-.5' '0-1' 2.2135 2.8034 0.71681 -5.358 9.7851
'0-1' '.5-1' 19.01 2.4768 2.6456e-05 12.321 25.7
'0-1' '0-.5' -2.2135 2.8034 0.71681 -9.7851 5.358
To display results of Fig.3A
data_baumgartner2017looming('fig3a','plot');
To display results of Fig.3B
data_baumgartner2017looming('fig3b','plot');
References:
R. Baumgartner, D. K. Reed, B. Tóth, V. Best, P. Majdak, H. S. Colburn, and B. Shinn-Cunningham. Asymmetries in behavioral and neural responses to spectral cues demonstrate the generality of auditory looming bias. Proceedings of the National Academy of Sciences, 2017. [ DOI | arXiv | http ]
