DEMO_LYON2011_COMPRESSIVEFUNCTIONS - compressive Input-Output (I/O) function of the CARFAC model

Description

The I/O function of the 'cascade of asymmetric resonators with fast-acting compression' (CARFAC) modelis calculated by the RMS of the out in response tones at intensities from 10 to 100 dB SPL at the CFs of 0.5, 1, 2 and 4 kHz. The nonlinear compressive shape of the I/O function represents the cochlear mechanical compression.

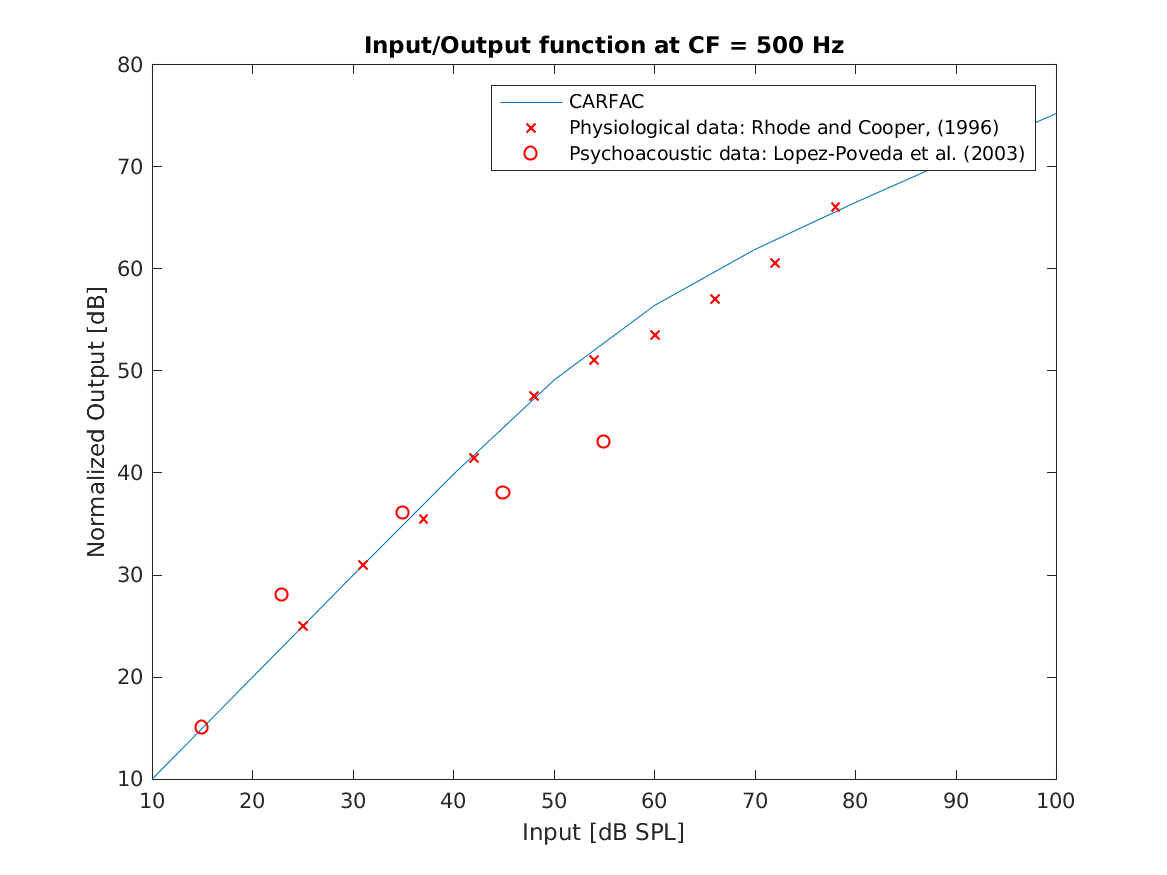

The Input-Output (I/O) functions at a center frequency of 500 Hz

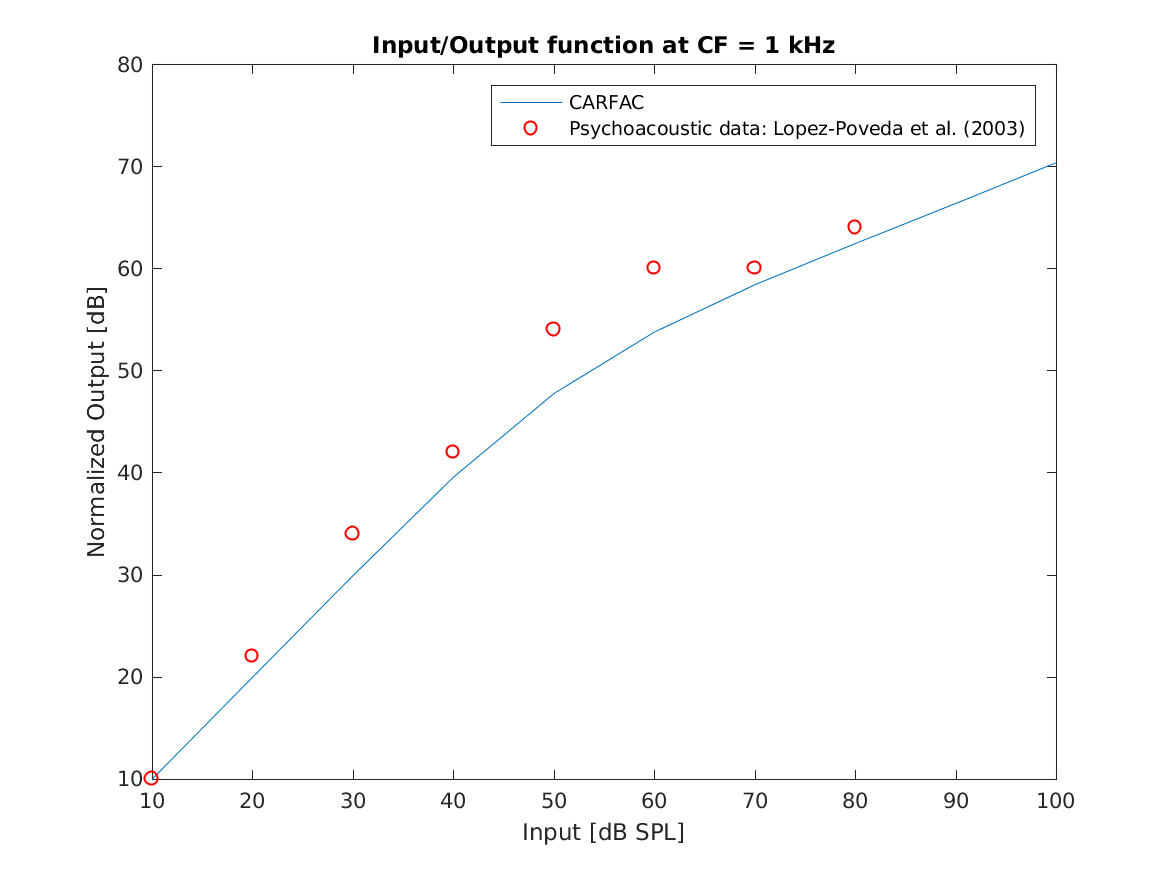

The Input-Output (I/O) functions at a center frequency of 1 kHz

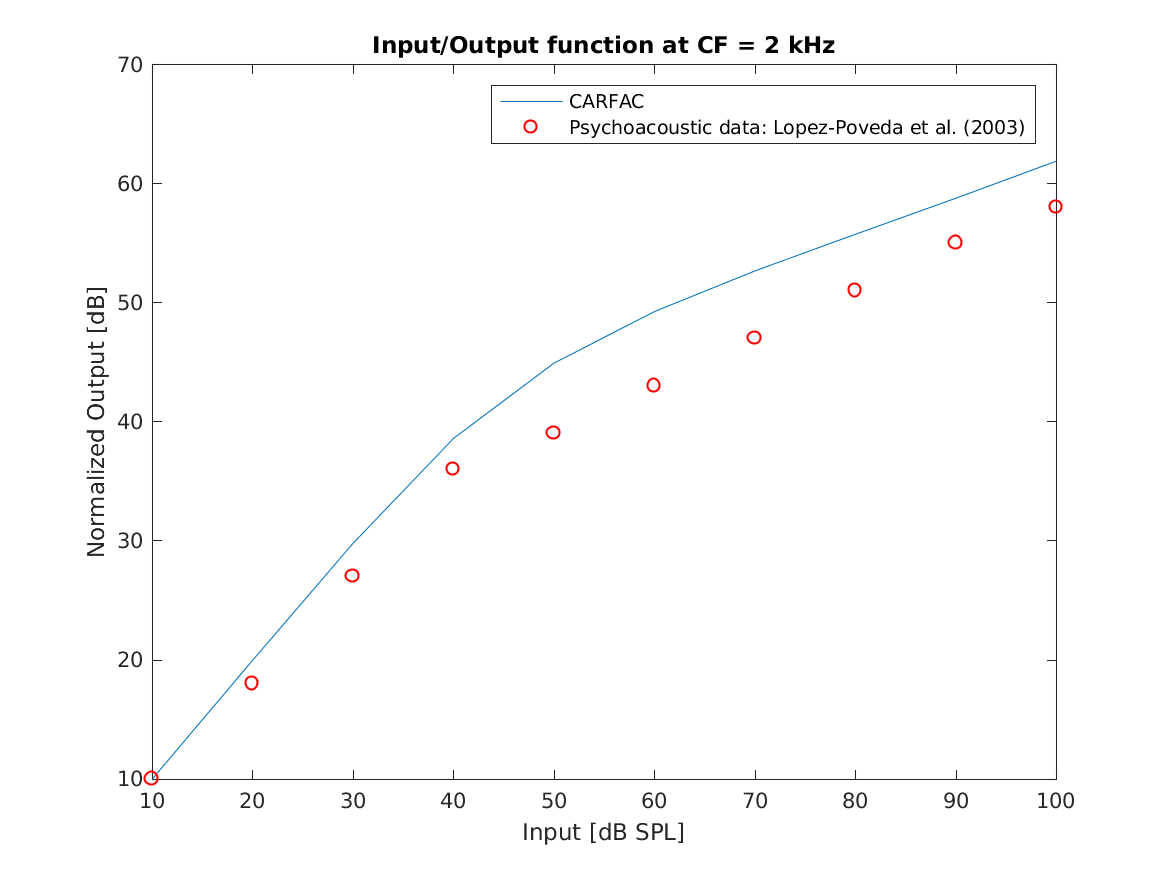

The Input-Output (I/O) functions at a center frequency of 2 kHz

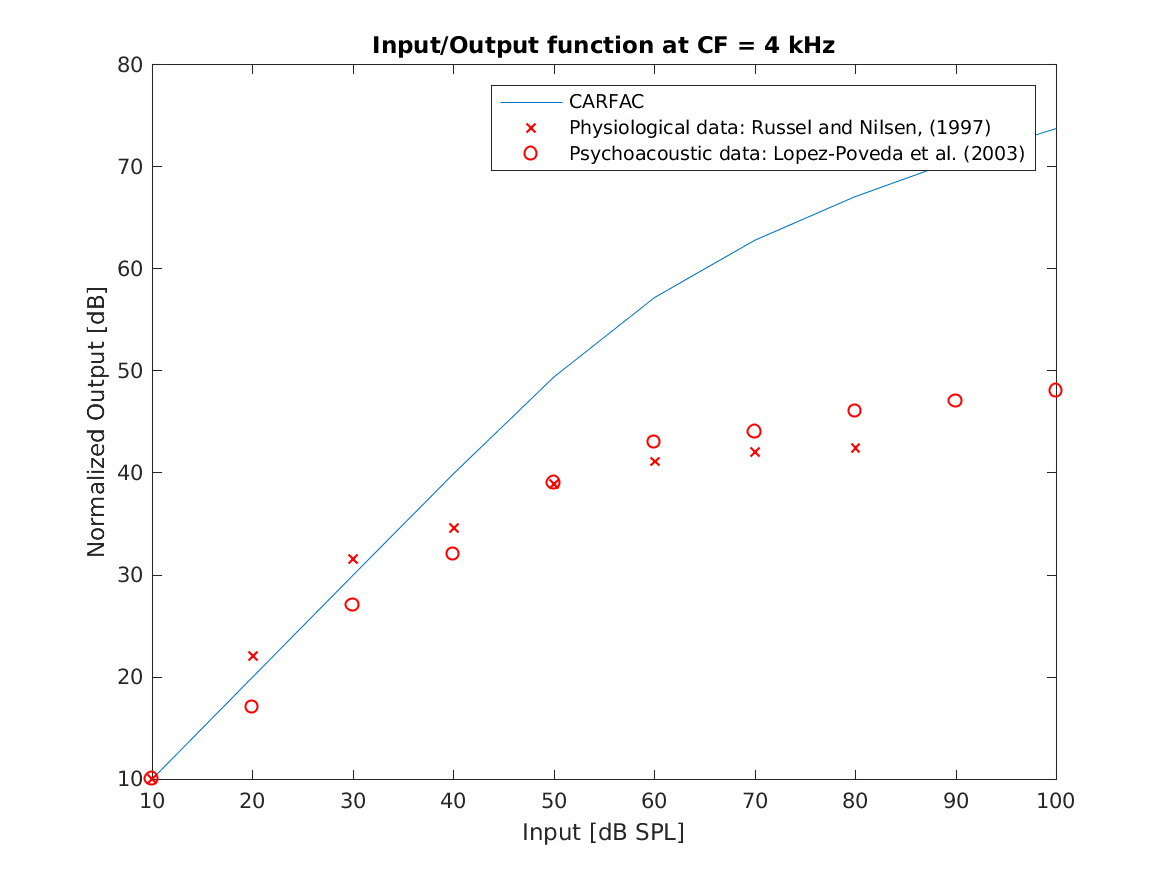

The Input-Output (I/O) functions at a center frequency of 4 kHz
