THE AUDITORY MODELING TOOLBOX

Applies to version: 1.3.0

View the code

Go to function

EXP_ENGEL2021 - Simulations of Engel et al. (2021)

Usage

data = exp_engel2021(flag)

Input parameters

fig1 spherical harmonics spectra
fig2 mag/phase errors per spatial order
fig3 ITD/ILD per spatial order
fig4 mag/phase errors per method
fig5 ITD/ILD per method
fig6 loudness per direction
fig7 models' outputs per spatial order

Description

exp_engel2021(flag) reproduces figures of the study from Engel et al. (2021).

This script will look for cached data of hnm and results obtained from running the 3 models baumgartner2021, jelfs2011, and reijniers2014.

If these are not found, the data will be generated from a set of HRTF.

WARNINGS: The HRTF data (hnm) is fairly large (~9GB) and may take several minutes to generate. Most of it is not needed for the plots.

The results data is smaller (~300MB) but may take LONG to generate (it took ~12 hours on a consumer-grade laptop. It is recommended to download it if available online.

Examples:

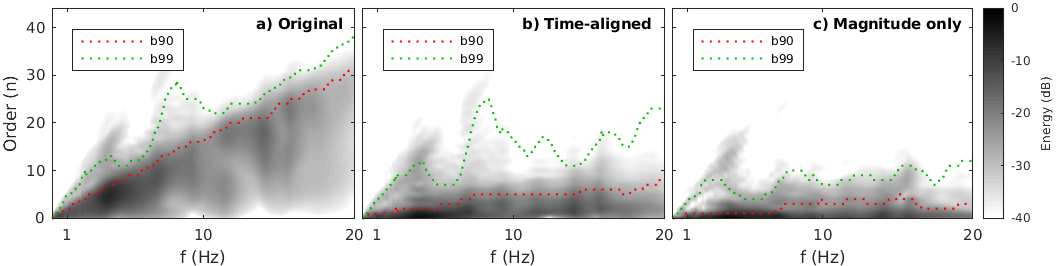

To display Fig.1 of Engel(2021) use

exp_engel2021('fig1');

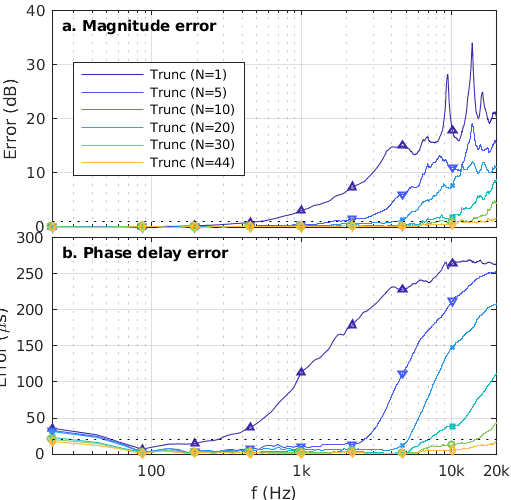

To display Fig.2 of Engel(2021) use

exp_engel2021('fig2');

To display Fig.3 of Engel(2021) use

exp_engel2021('fig3');

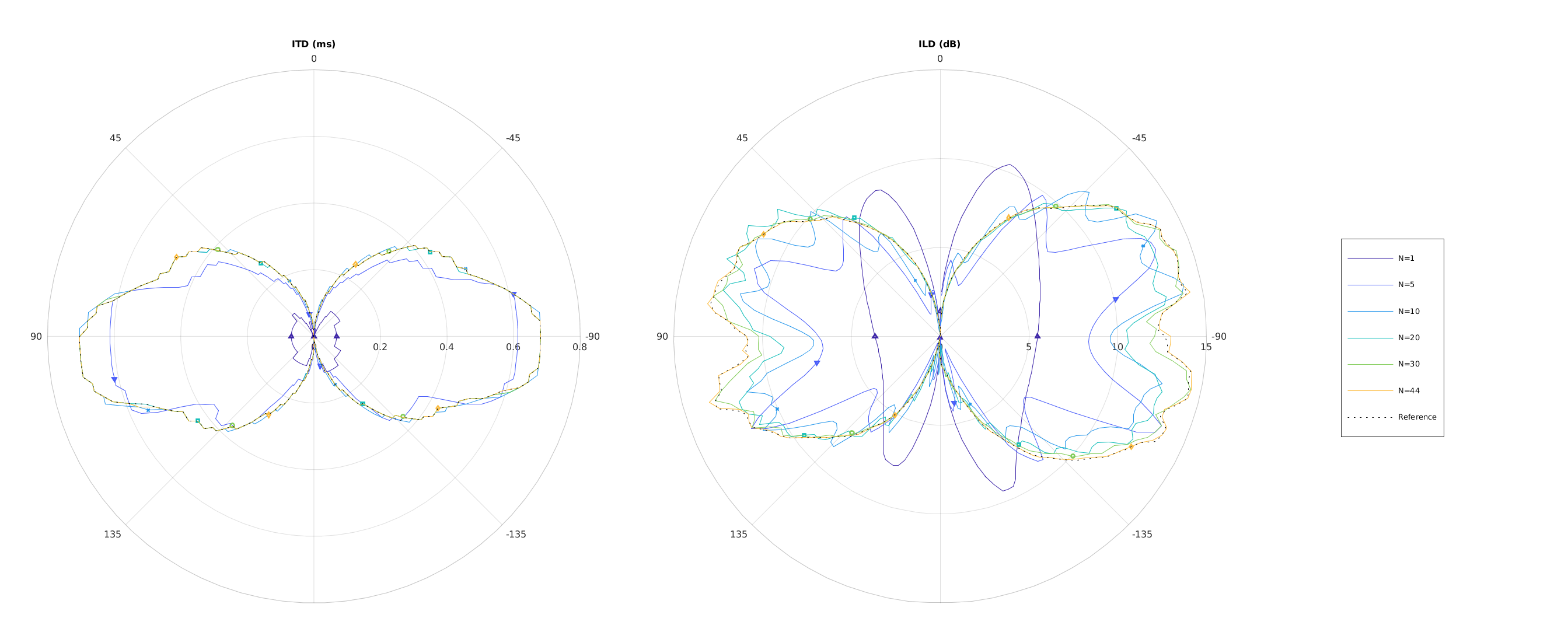

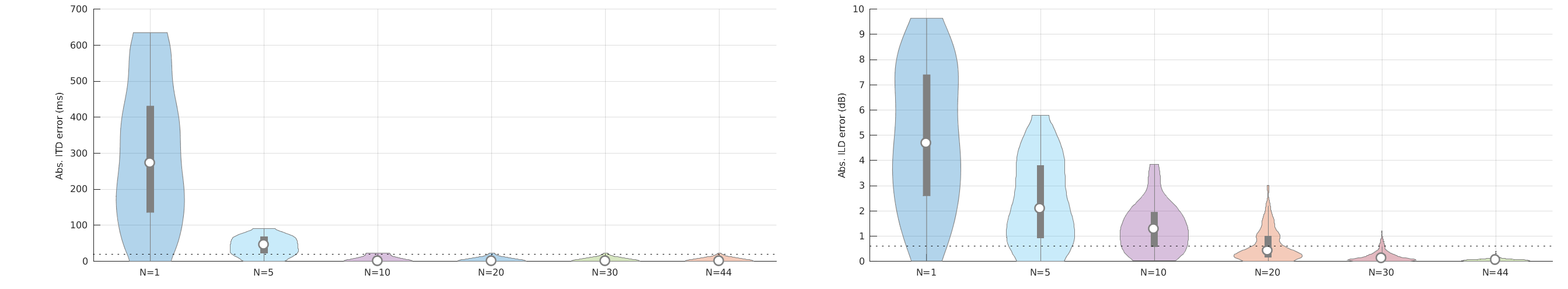

exp_engel2021_3_1.png exp_engel2021_3_2.png

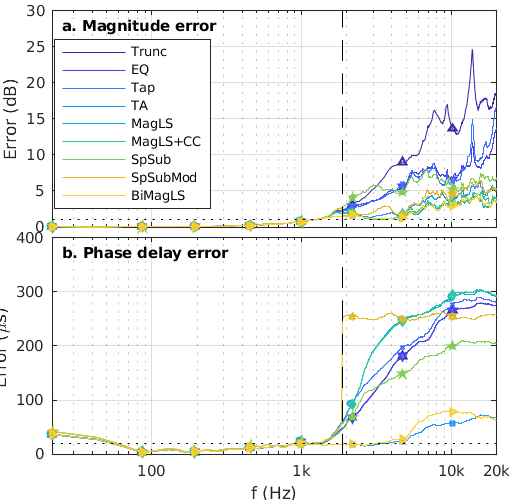

To display Fig.4 of Engel(2021) use

exp_engel2021('fig4');

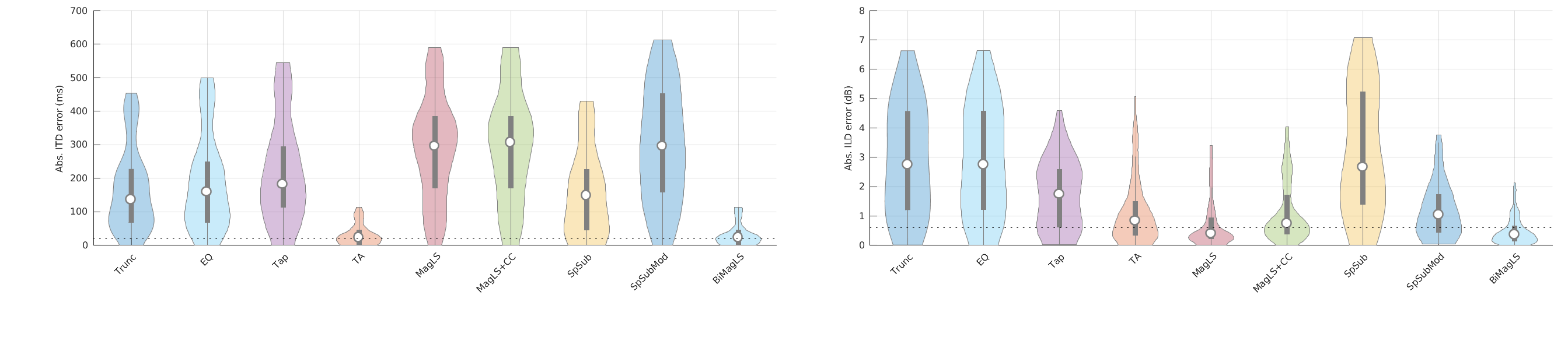

To display Fig.5 of Engel(2021) use

exp_engel2021('fig5');

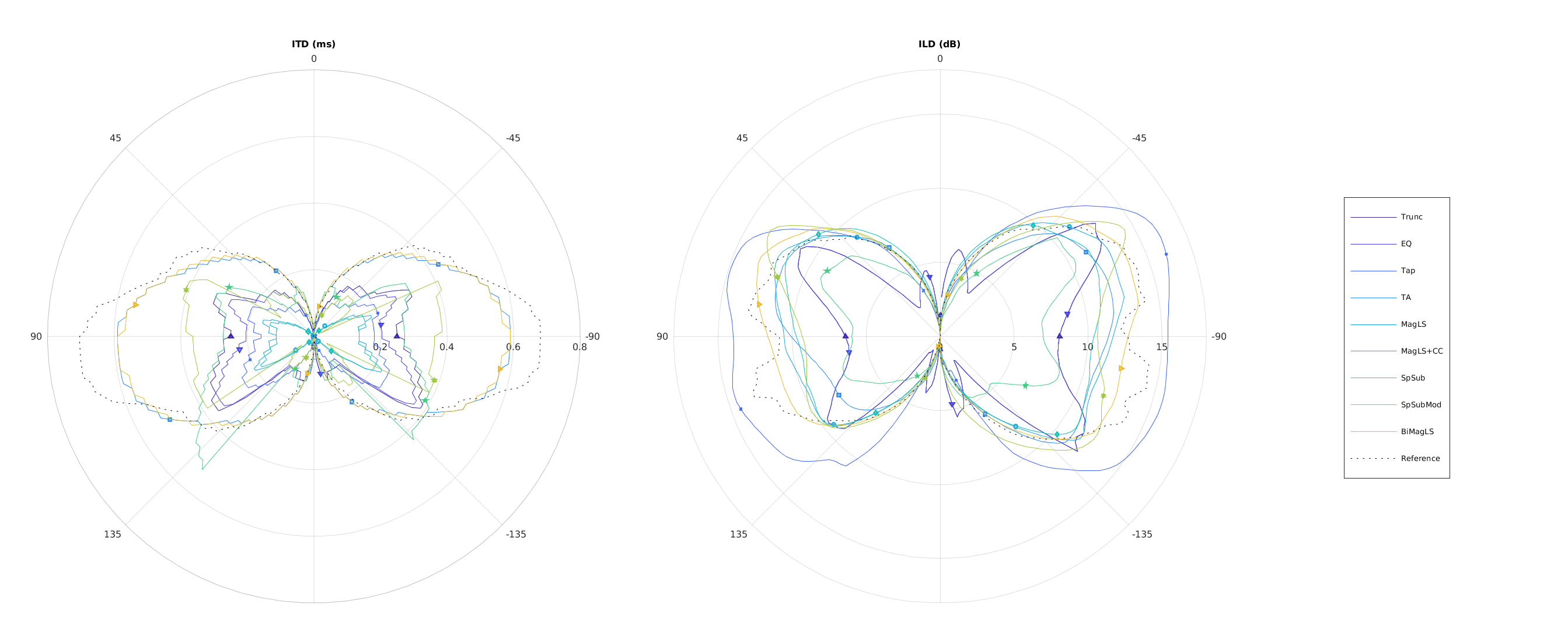

exp_engel2021_5_1.png exp_engel2021_5_2.png

To display Fig.6 of Engel(2021) use

exp_engel2021('fig6');

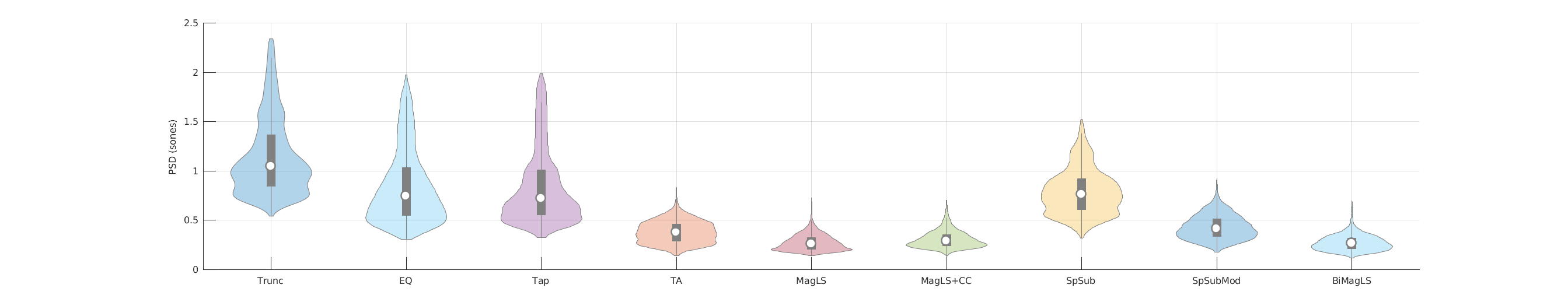

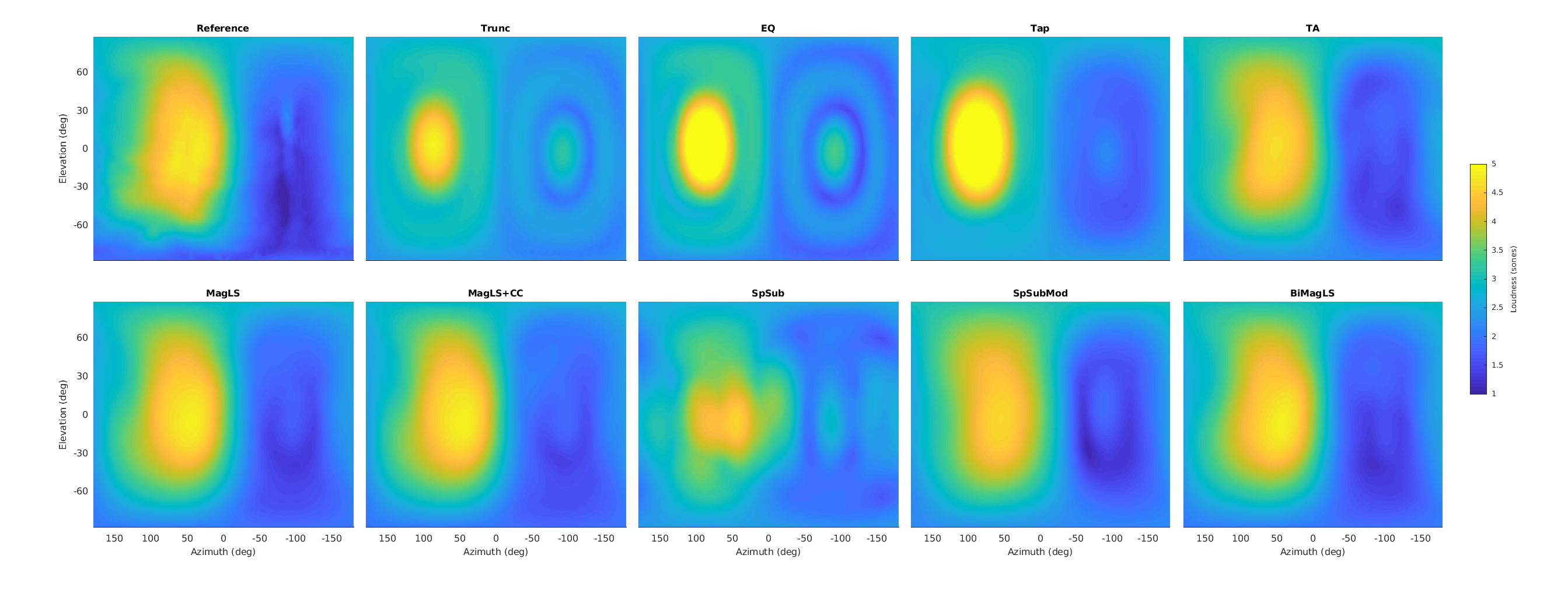

exp_engel2021_6_1.png exp_engel2021_6_2.png

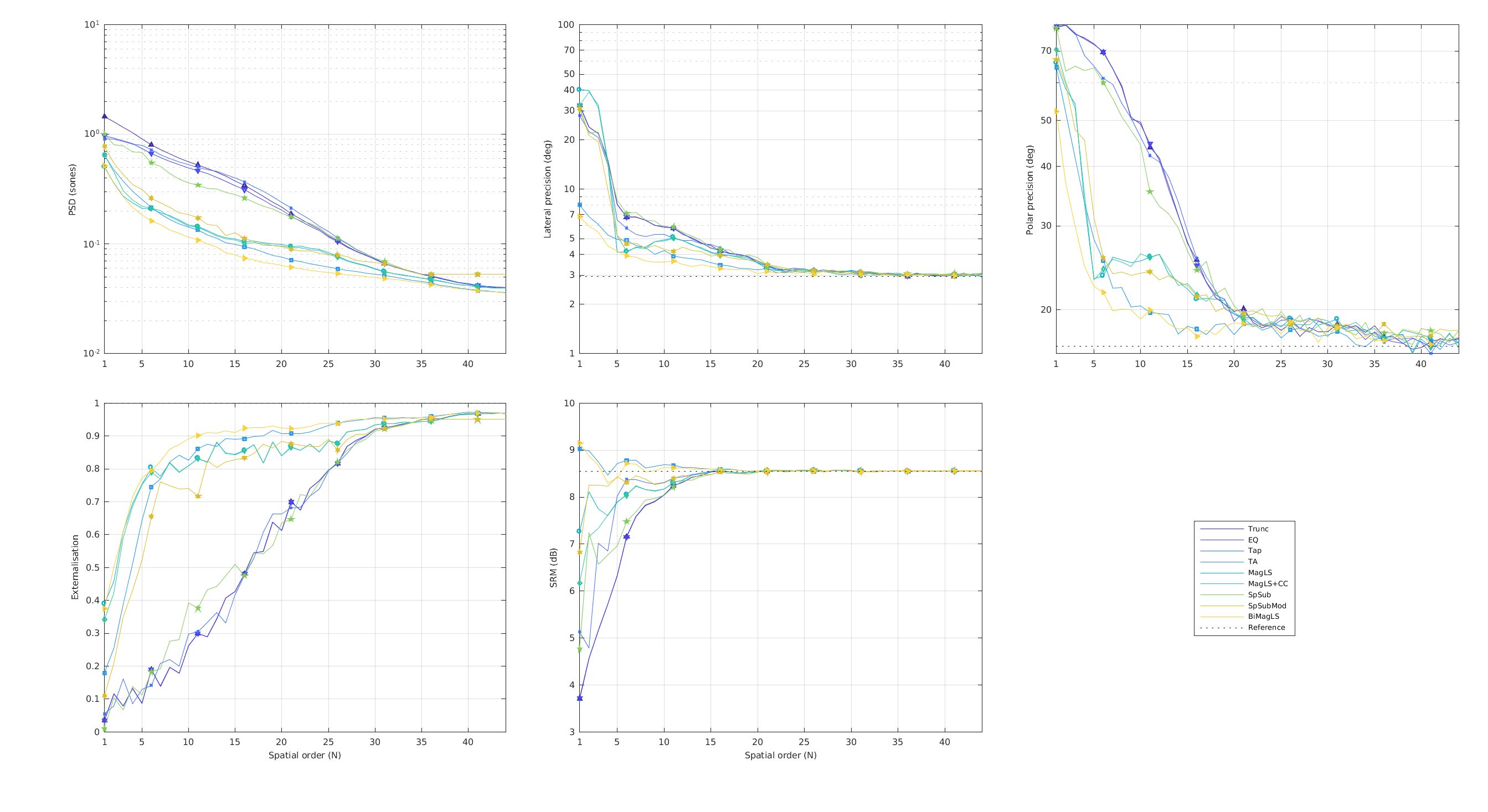

To display Fig.7 of Engel(2021) use

exp_engel2021('fig7');
