plot_modspecgram(f,fs); plot_modspecgram(f,fs,...);

`plot_modspecgram(f,fs)` plot the modulation spectogram of the signal *f* sampled
at a sampling frequency of *fs* Hz.

`C=plot_modspecgram(f,fs, ... )` returns the image to be displayed as a matrix. Use
this in conjunction with `imwrite` etc.

The function takes the following additional arguments

'win',g |
Use the window g. See the help on gabwin for some
possiblities. Default is to use a Gaussian window
controlled by the 'thr' or 'wlen' parameters listed below. |

'tfr',v |
Set the ratio of frequency resolution to time resolution. A value \(v=1\) is the default. Setting \(v>1\) will give better frequency resolution at the expense of a worse time resolution. A value of \(0<v<1\) will do the opposite. |

'wlen',s |
Window length. Specifies the length of the window measured in samples. See help of PGAUSS on the exact details of the window length. |

'image' |
Use imagesc to display the spectrogram. This is the
default. |

'clim',clim |
Use a colormap ranging from clim(1) to clim(2). These
values are passed to imagesc. See the help on imagesc. |

'dynrange',r |
Use a colormap in the interval [chigh-r,chigh], where chigh is the highest value in the plot. |

'fmax',fmax |
Display fmax as the highest frequency. |

'mfmax',mfmax |
Display mfmax as the highest modulation frequency. |

'xres',xres |
Approximate number of pixels along x-axis / time. |

'yres',yres |
Approximate number of pixels along y-axis / frequency |

'contour' |
Do a contour plot to display the spectrogram. |

'surf' |
Do a surf plot to display the spectrogram. |

'mesh' |
Do a mesh plot to display the spectrogram. |

'colorbar' |
Display the colorbar. This is the default. |

'no_colorbar' |
Do not display the colorbar. |

'interp' |
Interpolate the image to get the desired x-resolution. Turn this off by using 'no_interp' |

The parameters `'dynrange'` and `'mfmax'` may be speficied first on the
argument line, in that order.

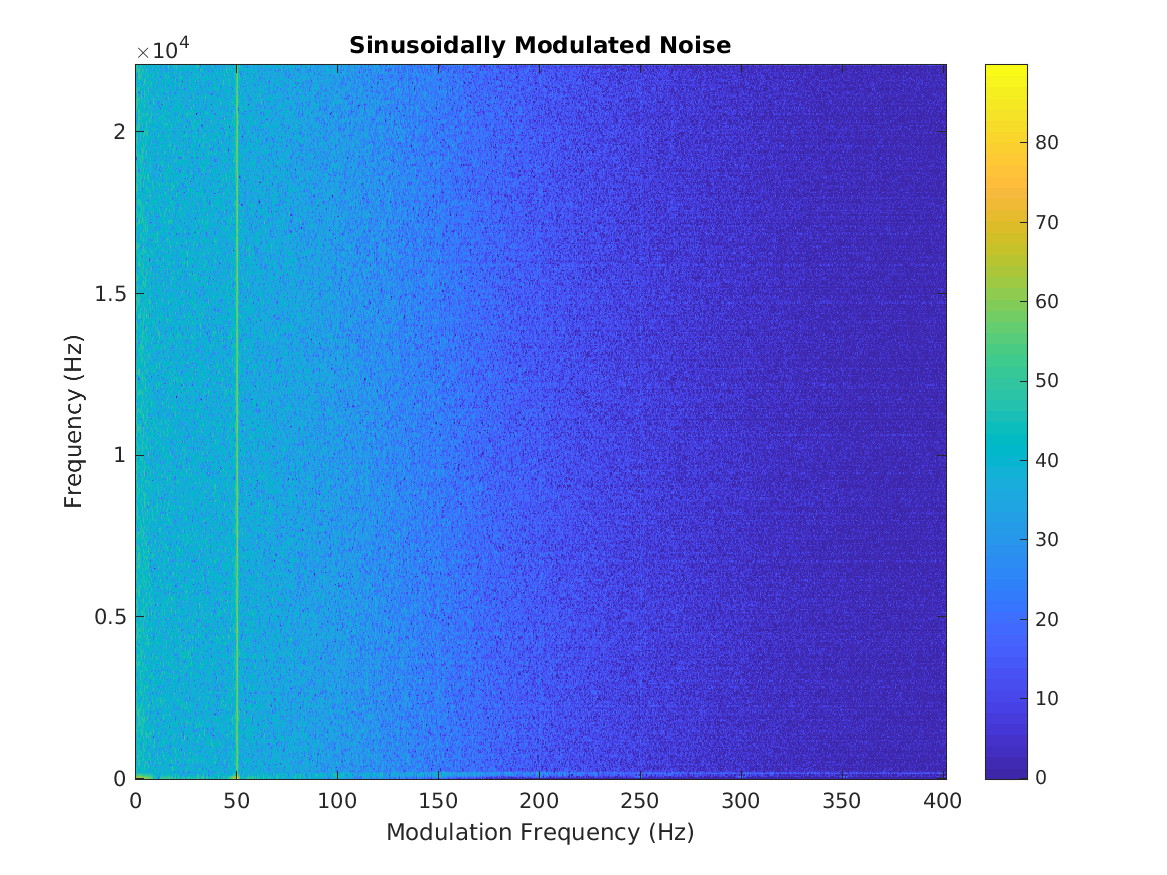

The first example shows a Modulation spectrogram of modulated wide band noise. The modulation frequency is 50 Hz and the signal is sampled at 44.1 kHz:

fm = 50; % Modulation frequency l = 2; % Length of the signal in seconds fs = 44100; % Sampling frequency t = 0:1/fs:l; n = length(t); noise = 1-2*randn(1,n); modnoise = noise.*(1+cos(2*pi*t*fm)); plot_modspecgram(modnoise,fs,90) title('Sinusoidally Modulated Noise')

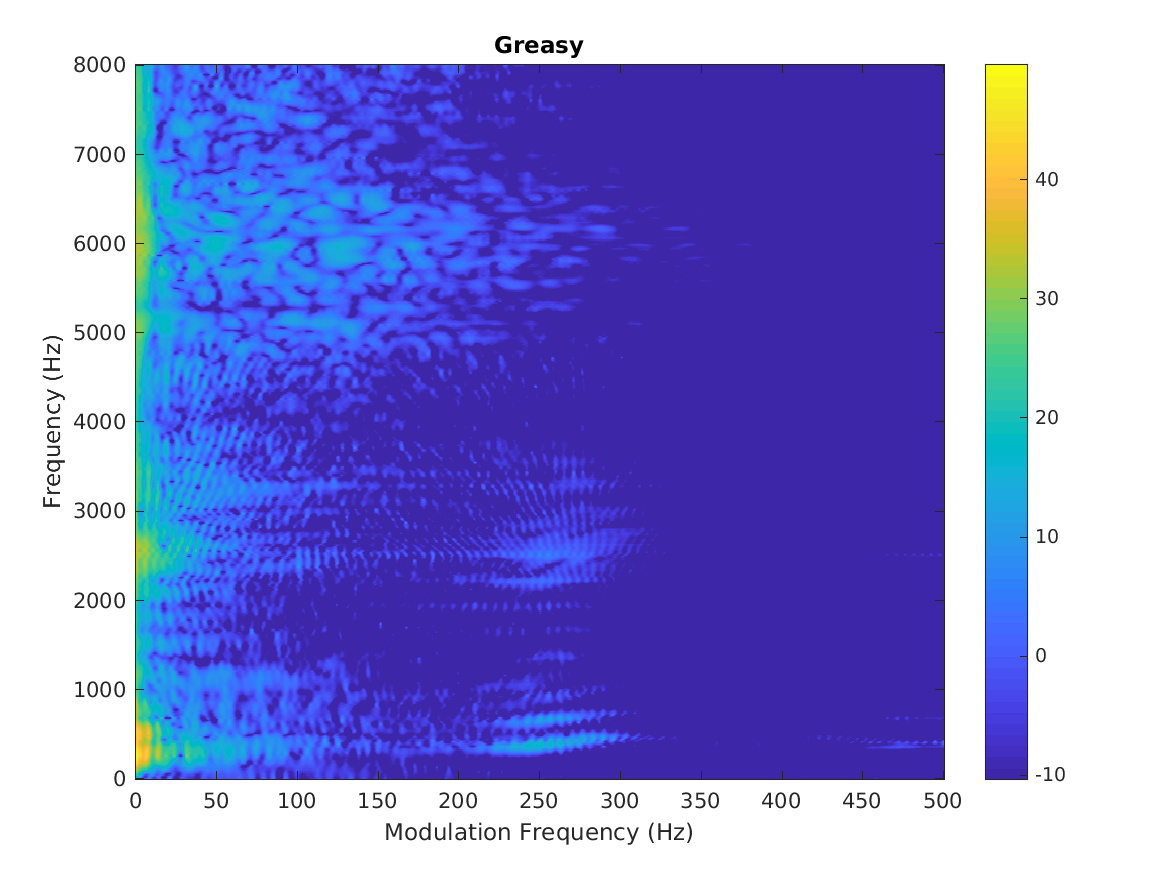

The second example shows a modulation spectrogram of a speech signal sampled at 16 kHz:

plot_modspecgram(greasy,16000,60,500) title('Greasy')

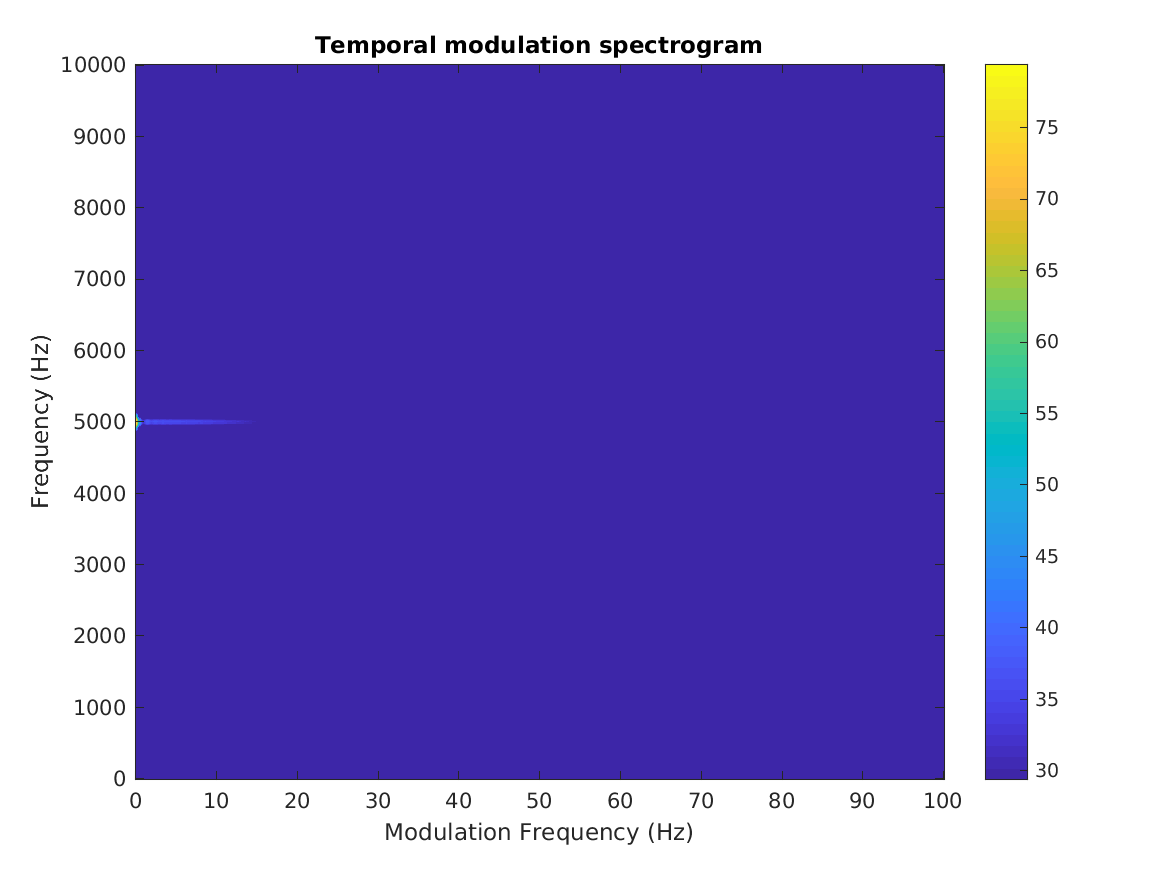

The third example shows a modulation spectrogram of a modulated sinusoid with a carrier frequency of 5 kHz. FIXME: What is the modulation frequency:

fm = 50; % Modulation frequency l = 2; % Length of the signal in seconds fs = 44100; % Sampling frequency fc = 5000; % Carrier frequency t = 0:1/fs:l; s = sin(2*pi*t*fc); smod = s.*(1+0.5*cos(2*pi*t*fm)); plot_modspecgram(s,fs,50,2*fm,'fmax',2*fc)
