EXP_DIETZ2011 - Experiments from Dietz et al. 2011

Description:

exp_dietz2011(fig) reproduce Fig. no. fig from the Dietz et al. 2011 paper.

Note: The input signals used in this routine are not identical to the ones used in the original paper.

The following flags can be specified;

'plot' Plot the output of the experiment. This is the default.
'no_plot' Don't plot, only return data.

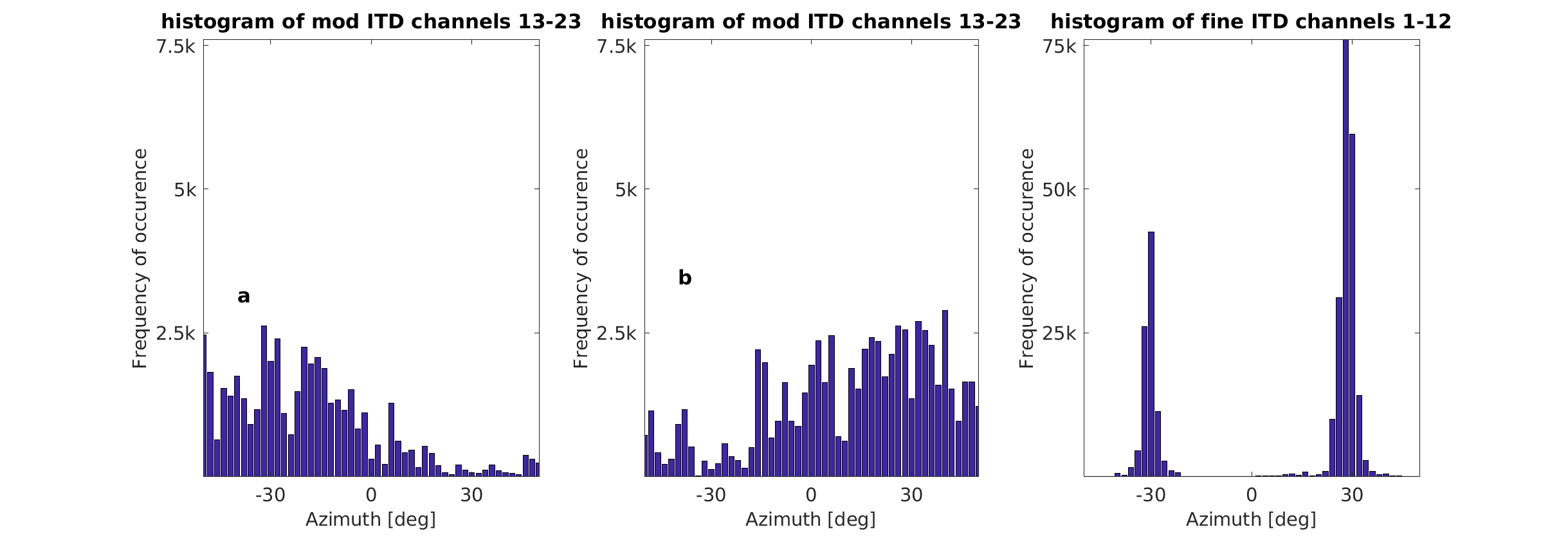

'fig3' Reproduce Fig. 3 panels a + b.

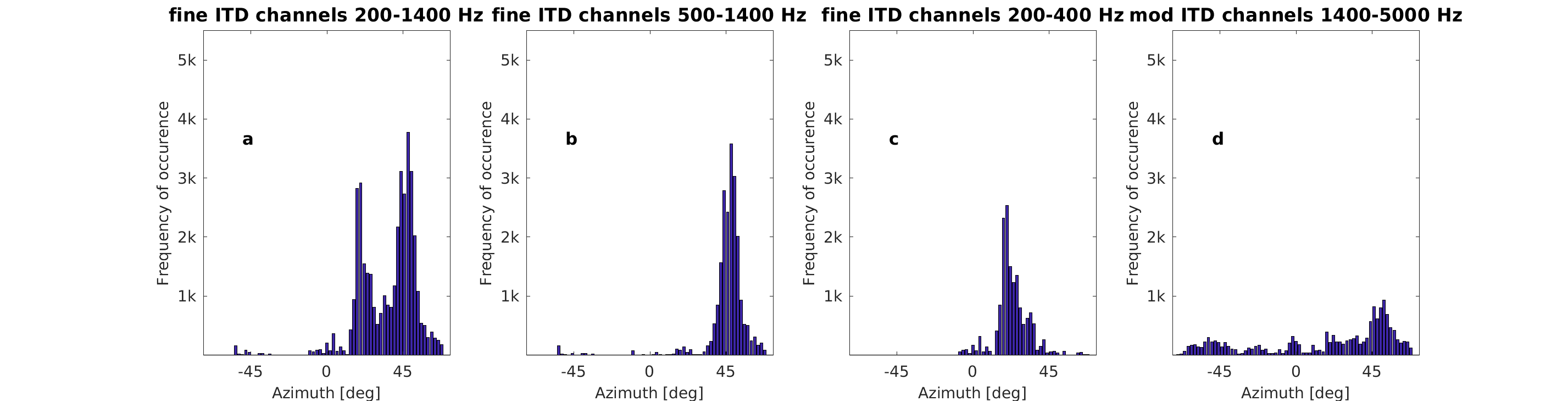

'fig4' Reproduce Fig. 4.

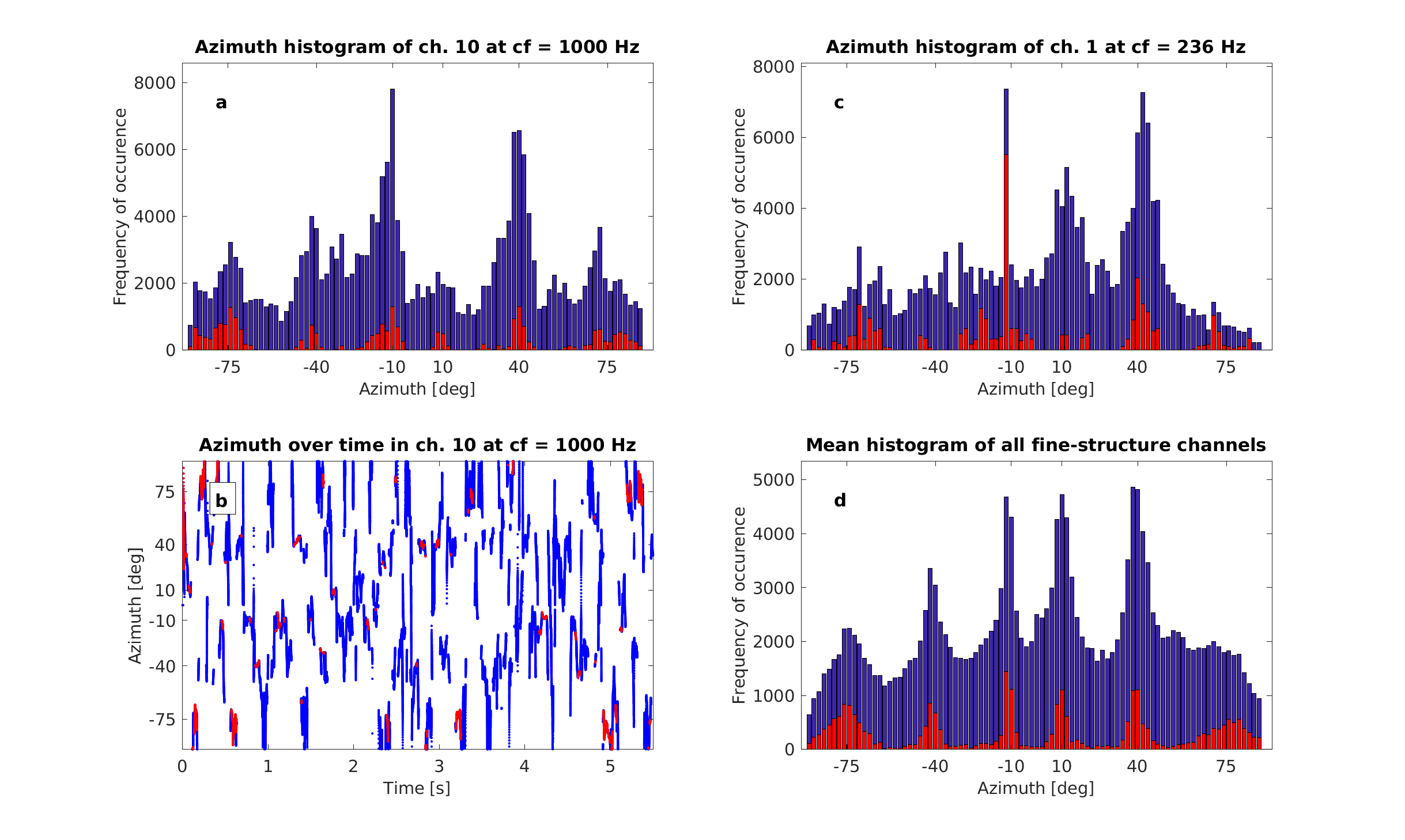

'fig5' Reproduce Fig. 5.

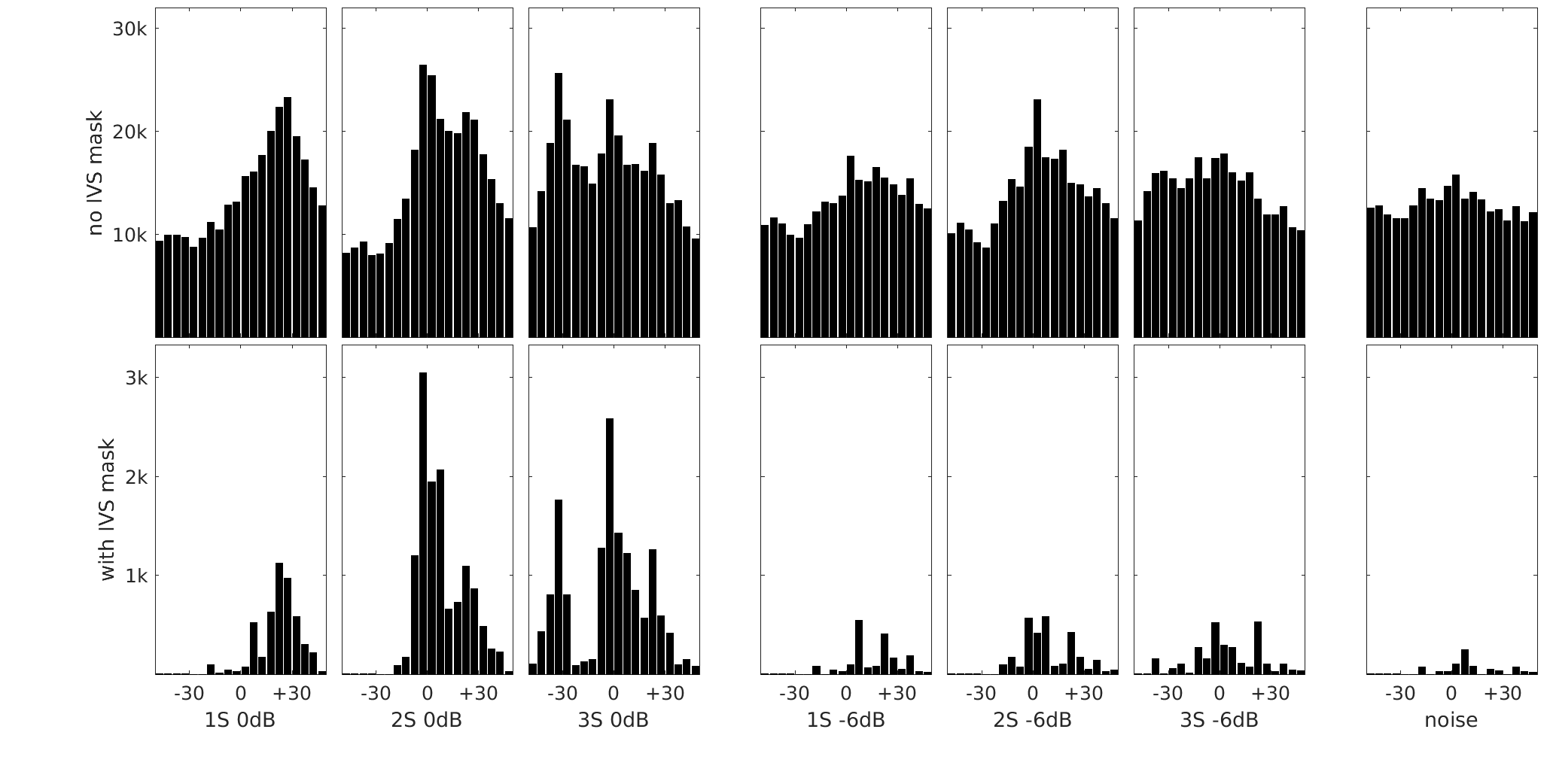

'fig6' Reproduce Fig. 6.

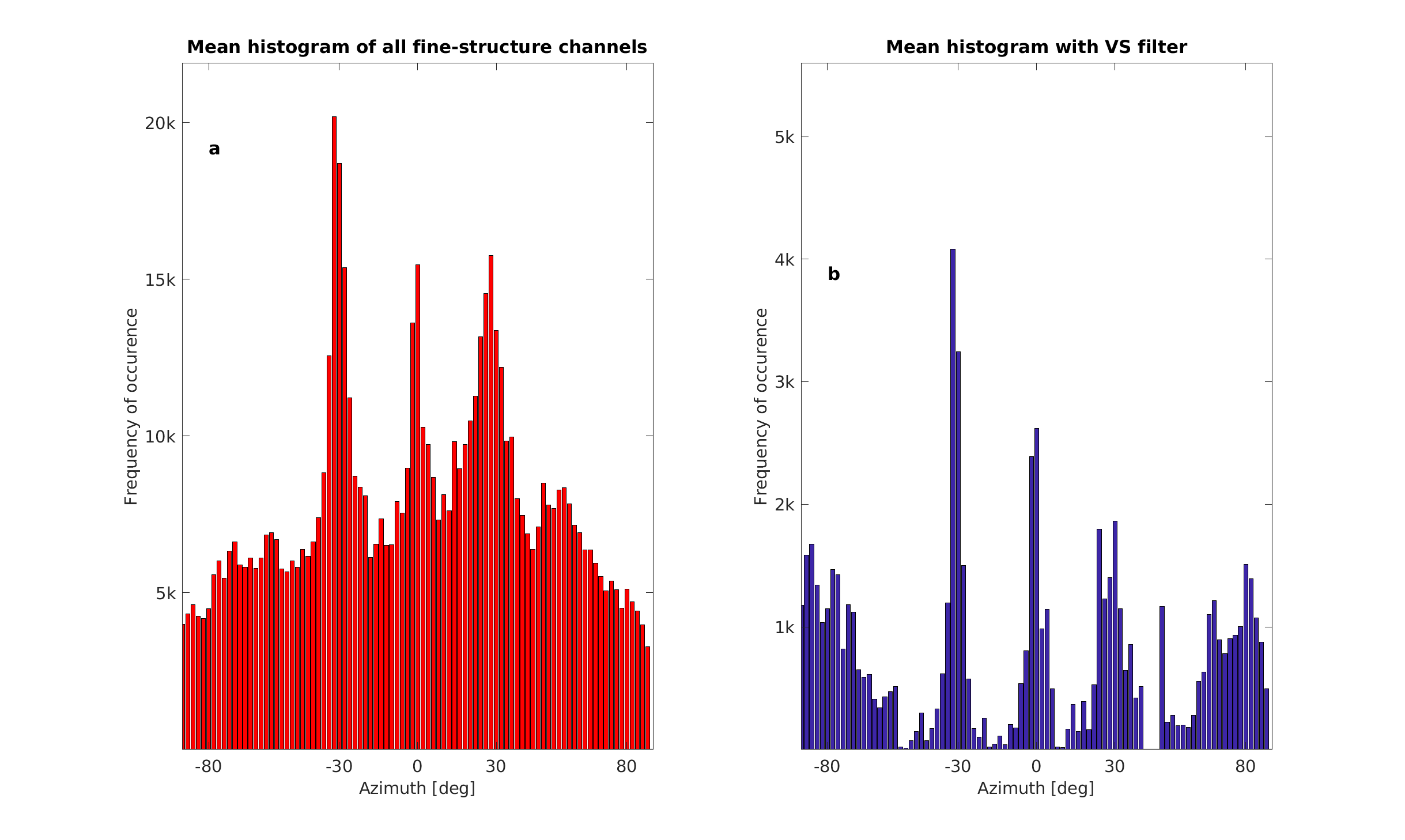

'fig6_spille2013' Reproduce Fig. 6 from Spille et al. (2013).

Examples:

To display Fig. 3 use

exp_dietz2011('fig3');

To display Fig. 4 use

exp_dietz2011('fig4');

To display Fig. 5 use

exp_dietz2011('fig5');

To display Fig. 6 use

exp_dietz2011('fig6');

To display Fig. 6 from Spille et al. (2013) use

exp_dietz2011('fig6_spille2013');

References:

M. Dietz, S. D. Ewert, and V. Hohmann. Auditory model based direction estimation of concurrent speakers from binaural signals. Speech Communication, 53(5):592--605, 2011. [ DOI | http ]

C. Spille, B. Meyer, M. Dietz, and V. Hohmann. Binaural scene analysis with multi-dimensional statistical filters, chapter 6. Springer-Verlag GmbH, 2013.
