THE AUDITORY MODELING TOOLBOX
This documentation page applies to an outdated major AMT version. We show it for archival purposes only.
Click here for the documentation menu and here to download the latest AMT (1.6.0).
Go to function
DATA_LOPEZPOVEDA2001 - Data from Lopez-Poveda & Meddis (2001)
Usage
data = data_lopezpoveda2001(flag)
data_lopezpoveda2001(flag) returns data points from the paper by Lopez-Poveda and Meddis (2001).
The flag may be one of:
| 'noplot' | Don't plot, only return data. This is the default. |
| 'plot' | Plot the data. |
| 'fig2a' | Data from Fig. 2(a), outer ear filter. |
| 'fig2b' | Data from Fig. 2(b), middle ear filter. |
For Fig. 2b you can choose between:
| 'goode' | Return the data points derived from Goode et al. (1994) This is the default. |
| 'lopezpoveda' | Return the data points just read from Fig. 2b of Lopez-Poveda and Meddis (2001) |
Examples:

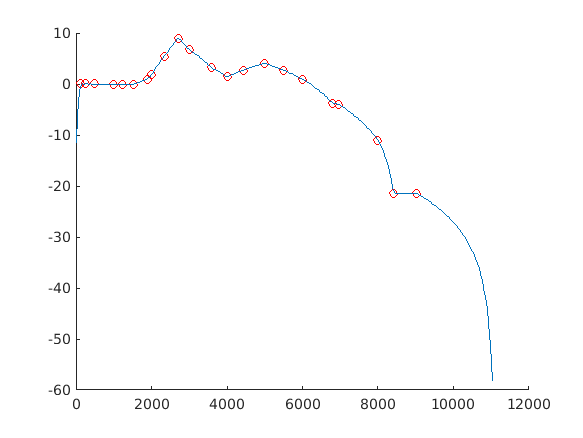

To display Figure 2a, use:
data_lopezpoveda2001('fig2a','plot');

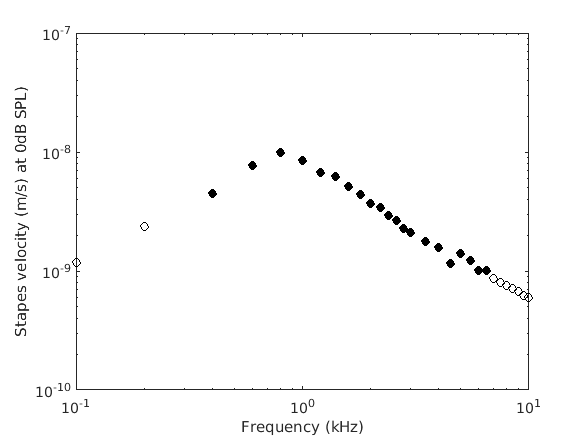

To display Figure 2b, use:
data_lopezpoveda2001('fig2b','plot');
References:
E. Lopez-Poveda and R. Meddis. A human nonlinear cochlear filterbank. J. Acoust. Soc. Am., 110:3107--3118, 2001.
