Usage

ur = data_roenne2012()

Description

[ur,fs]=data_roenne2012 returns the unitary response from Roenne (2012) and its sampling frequency, \(fs=30000\).

Examples:

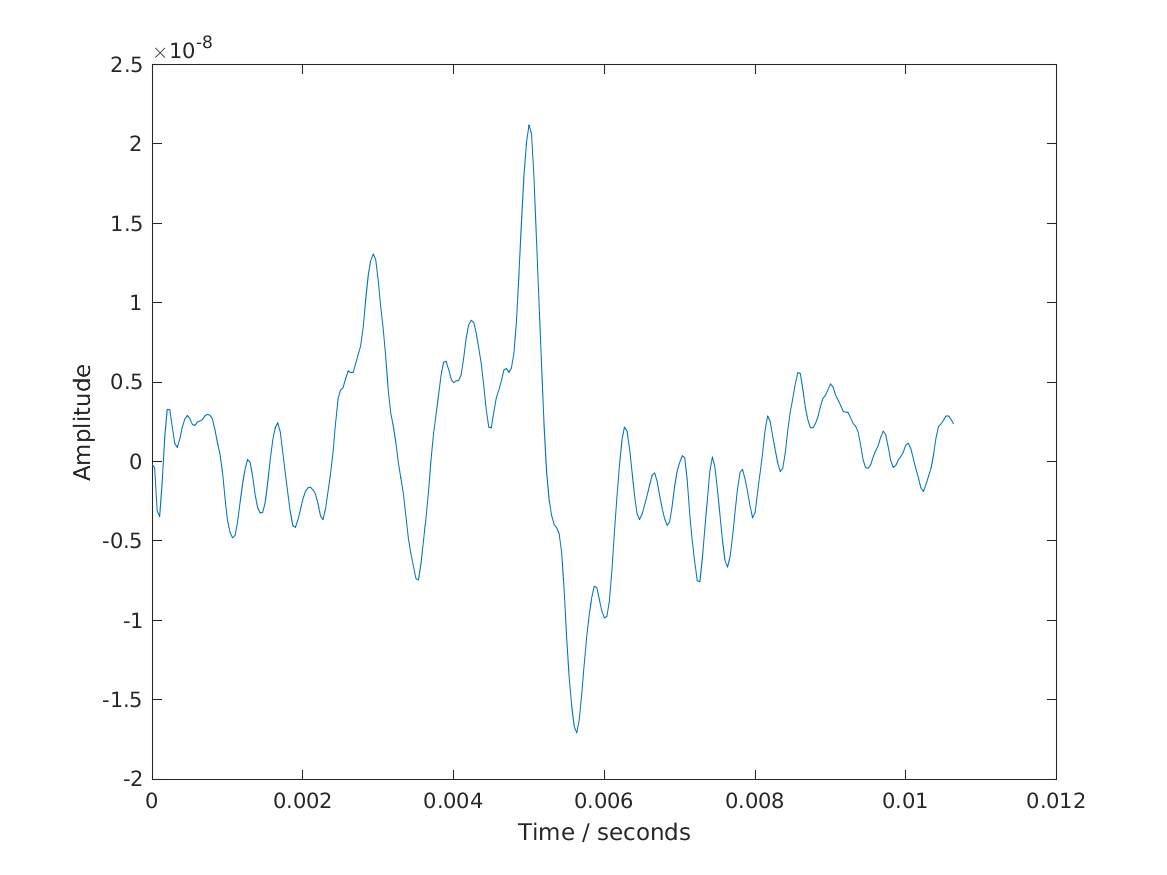

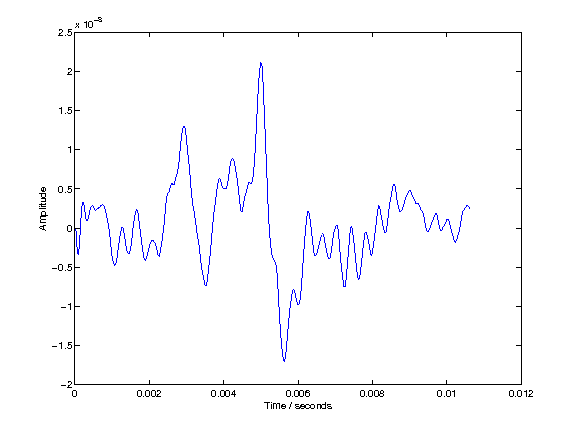

The first plot shows the unitary response in the time-domain:

[ur,fs]  = data_roenne2012;
plot((0:length(ur)-1)/fs,ur);
xlabel('Time / seconds');
ylabel('Amplitude');

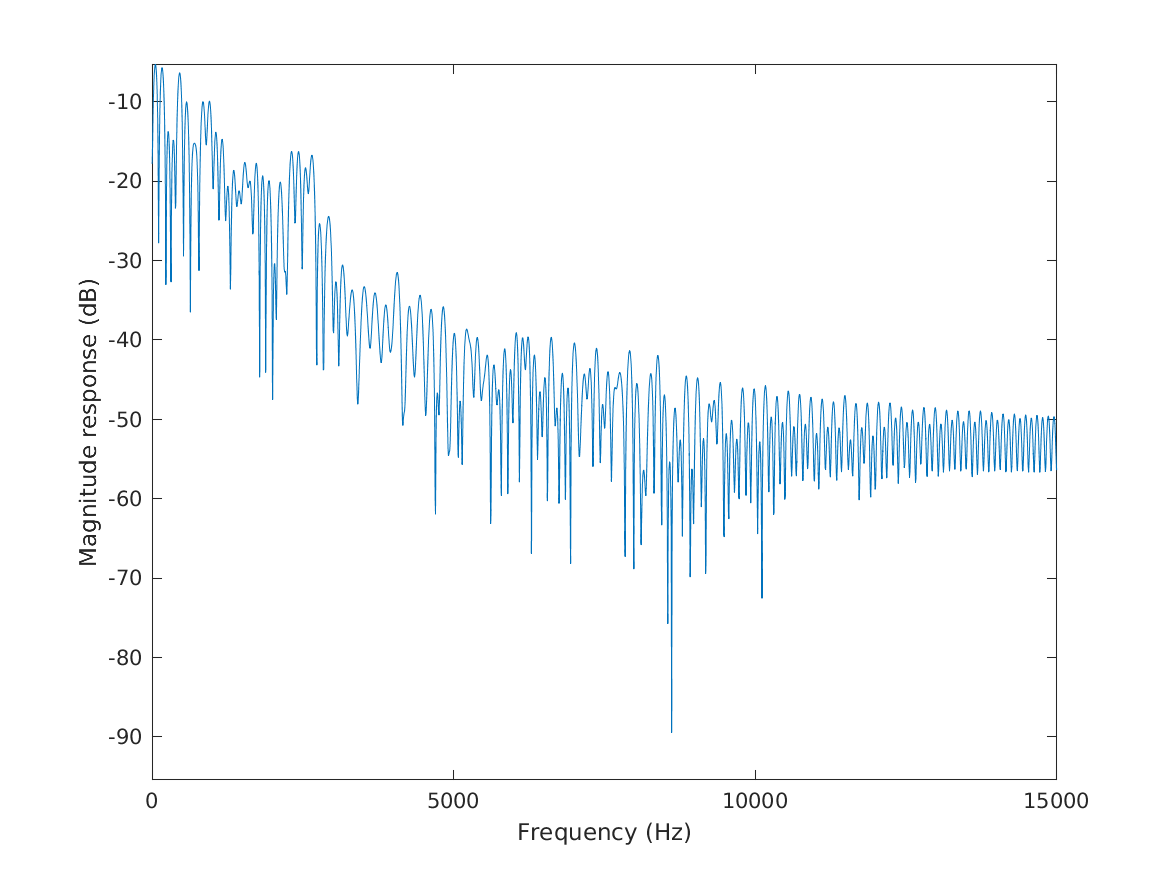

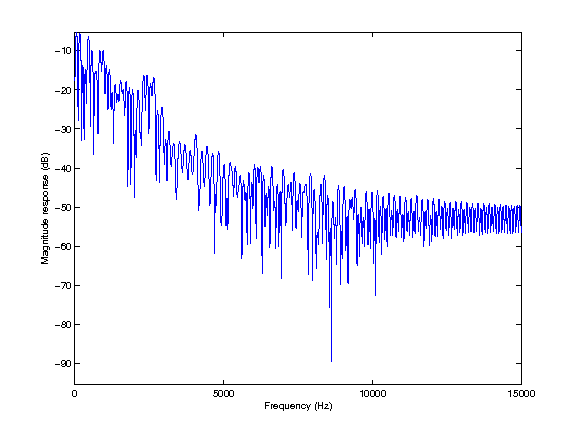

The second plot shows the magnitude response of the unitary response, normalized so the highest peak reaches 0-dB:

[ur,fs]  = data_roenne2012;
magresp(ur,fs,90,'fir','1');
