Usage:

ur = data_roenne2012()

Description:

[ur,fs]=data_roenne2012 returns the unitary response from Roenne (2012) and its sampling frequency, \(fs=30000\).

Examples:

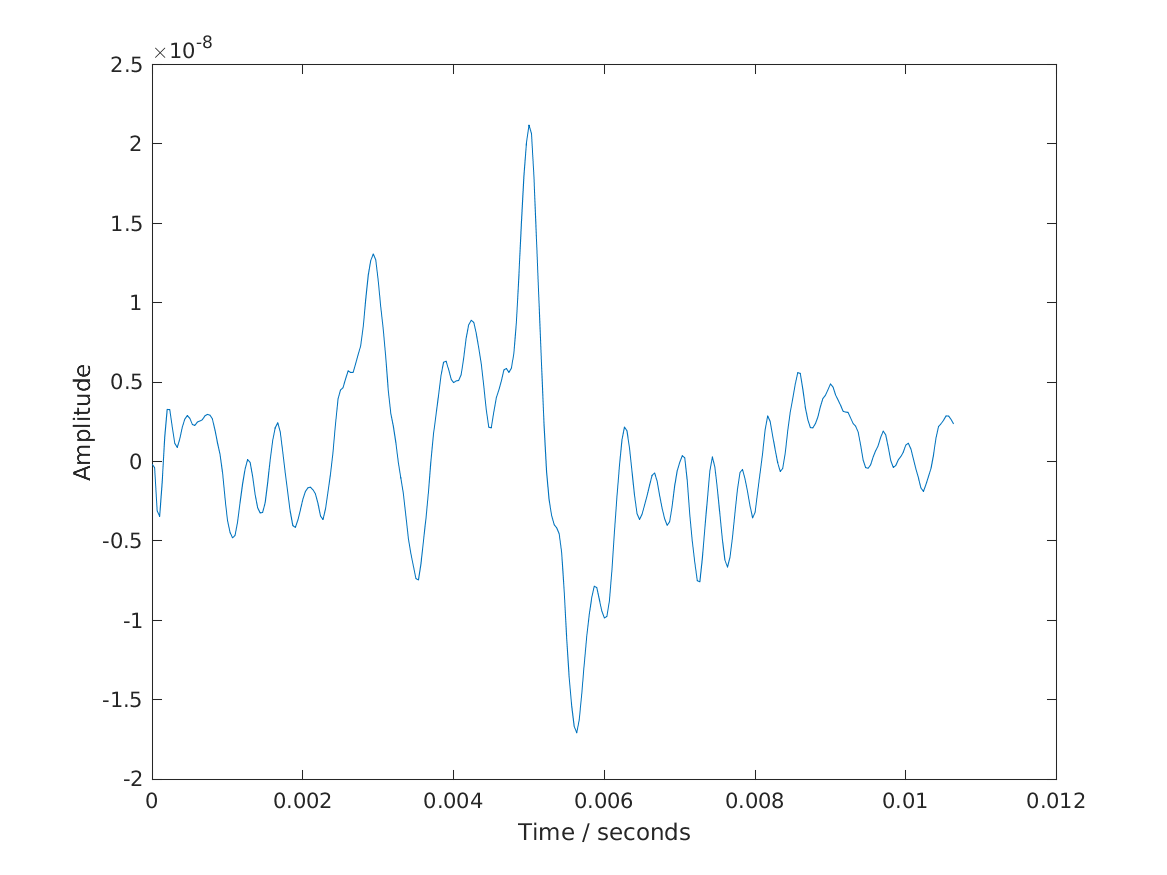

The first plot shows the unitary response in the time-domain:

[ur,fs] = data_roenne2012; plot((0:length(ur)-1)/fs,ur); xlabel('Time / seconds'); ylabel('Amplitude');

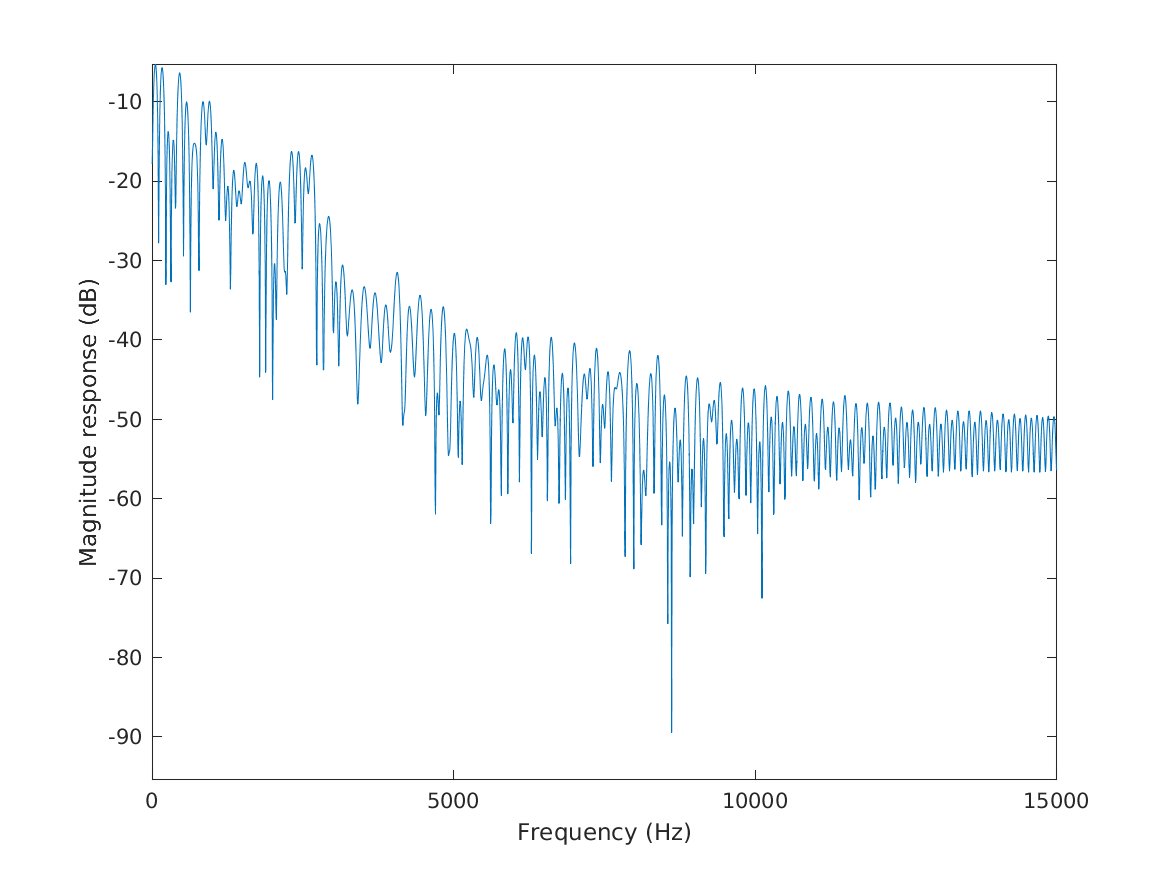

The second plot shows the magnitude response of the unitary response, normalized so the highest peak reaches 0-dB:

[ur,fs] = data_roenne2012; magresp(ur,fs,90,'fir','1');
