# DATA_ROENNE2012 - Unitary response

## Usage

ur = data_roenne2012()


## Description

[ur,fs]=data_roenne2012 returns the unitary response from Roenne (2012) and its sampling frequency, $$fs=30000$$.

## Examples:

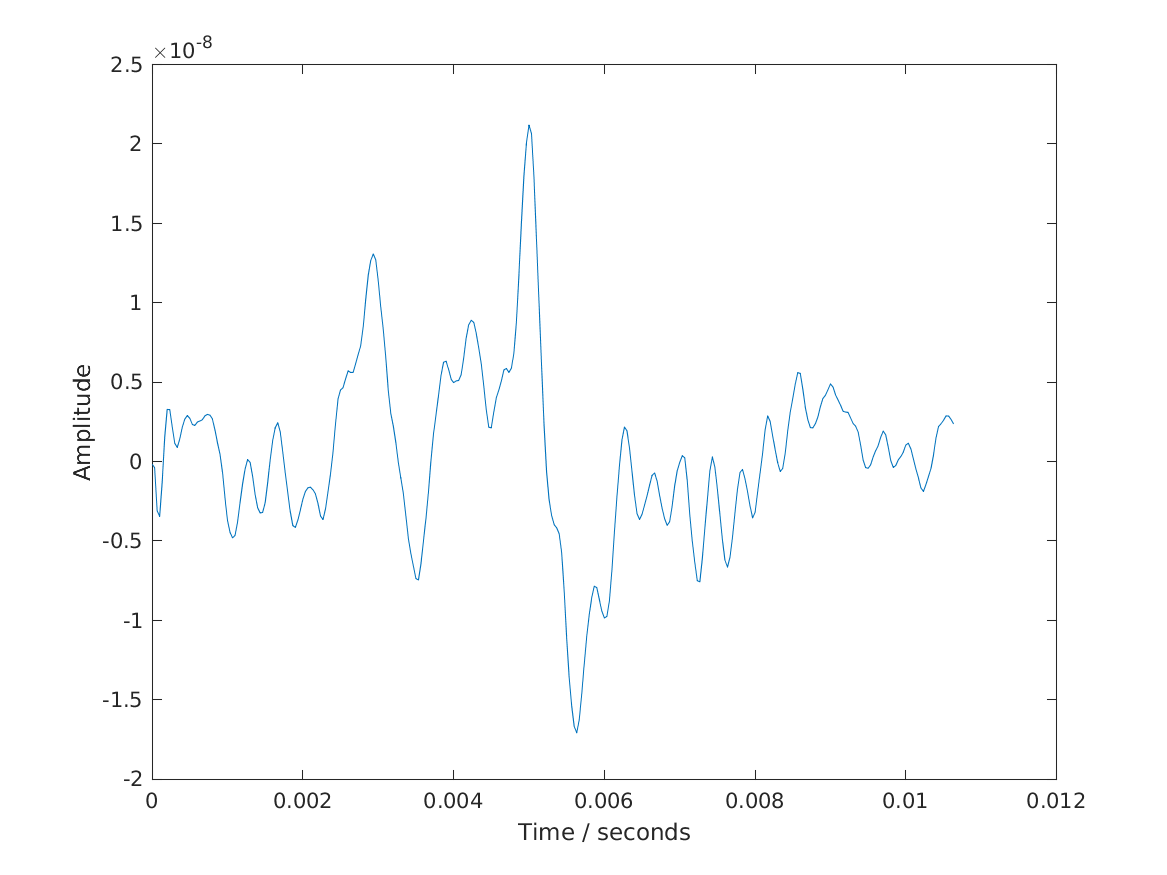

The first plot shows the unitary response in the time-domain:

[ur,fs]  = data_roenne2012;
plot((0:length(ur)-1)/fs,ur);
xlabel('Time / seconds');
ylabel('Amplitude');

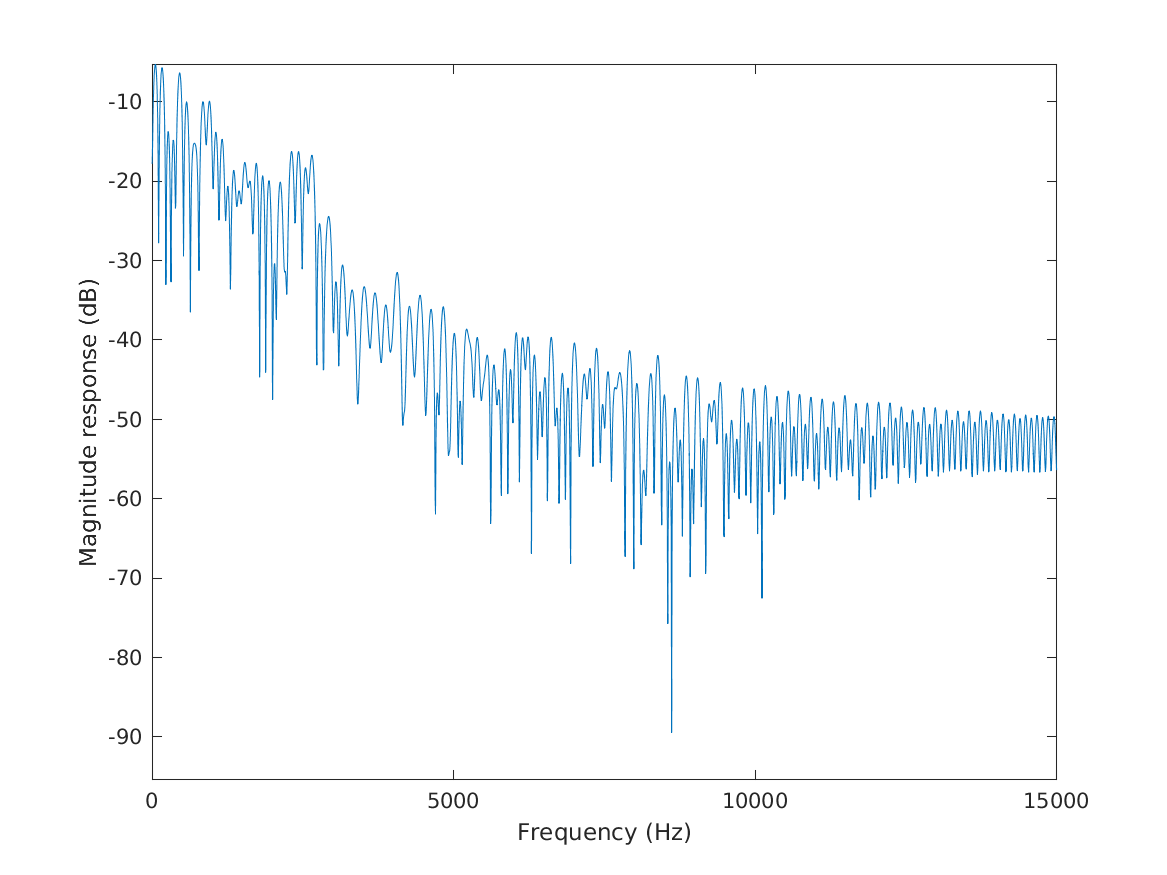

The second plot shows the magnitude response of the unitary response, normalized so the highest peak reaches 0-dB:

[ur,fs]  = data_roenne2012;
magresp(ur,fs,90,'fir','1');


## References:

F. M. Rønne, T. Dau, J. Harte, and C. Elberling. Modeling auditory evoked brainstem responses to transient stimuli. The Journal of the Acoustical Society of America, 131(5):3903--3913, 2012. [ DOI | http ]
