Usage

data = exp_osses2022(flags)
data = exp_osses2022(..., 'models', models)

Description

exp_osses2022 reproduces the figures from Osses et al. (2022), where the following models are compared:

'dau1997'	: Model #1 from Dau et al., (1997)
'zilany2014'	: Model #2 from Zilany et al., (2014)
'verhulst2015'	: Model #3 from Verhulst et al., (2015)
'verhulst2018'	: Model #4 from Verhulst et al., (2018)
'bruce2018'	: Model #5 from Bruce et al., (2018)
'king2019'	: Model #6 from King et al., (2019)
'relanoiborra2019'	: Model #7 from Relano-Iborra et al., (2019)
'osses2021'	: Model #8 from Osses and Kohlrausch (2021)

The following flags can be specified;

'redo'	Recomputes data for specified figure
'plot'	Plot the output of the experiment. This is the default.
'no_plot'	Doesn't plot, only return data.
'models'	Vector selecting the models, if not all models to process. For example 'models',[1 3 6] shows the data for Dau et al., (1997), Verhulst et al., (2015), and King et al., (2019) only.

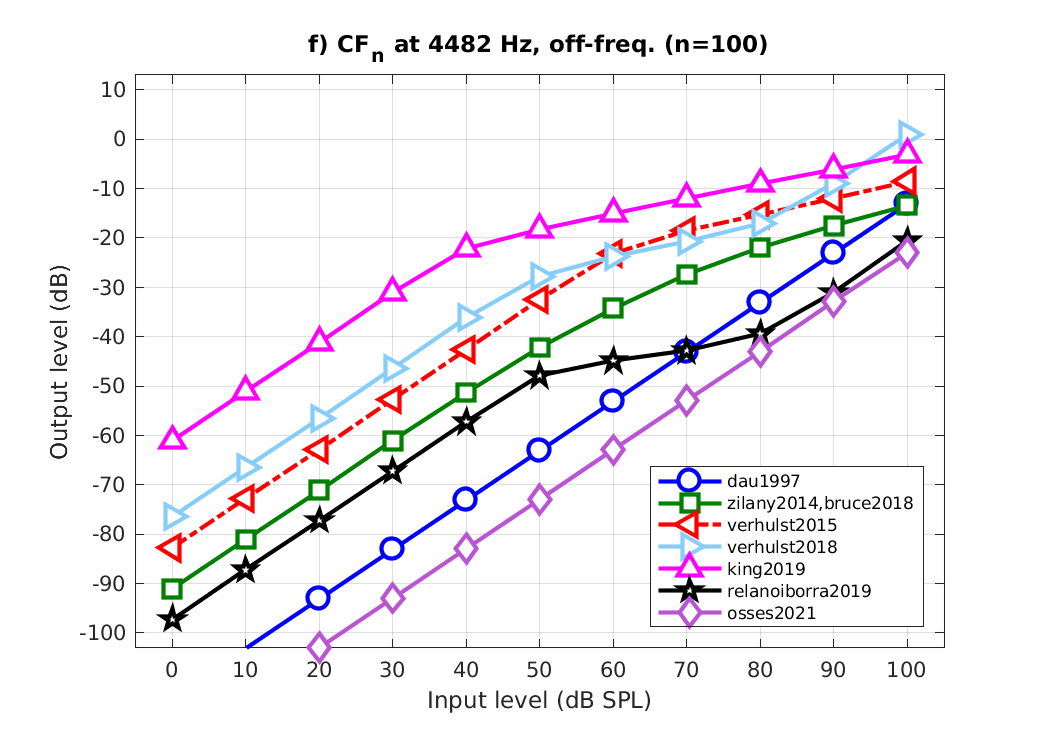

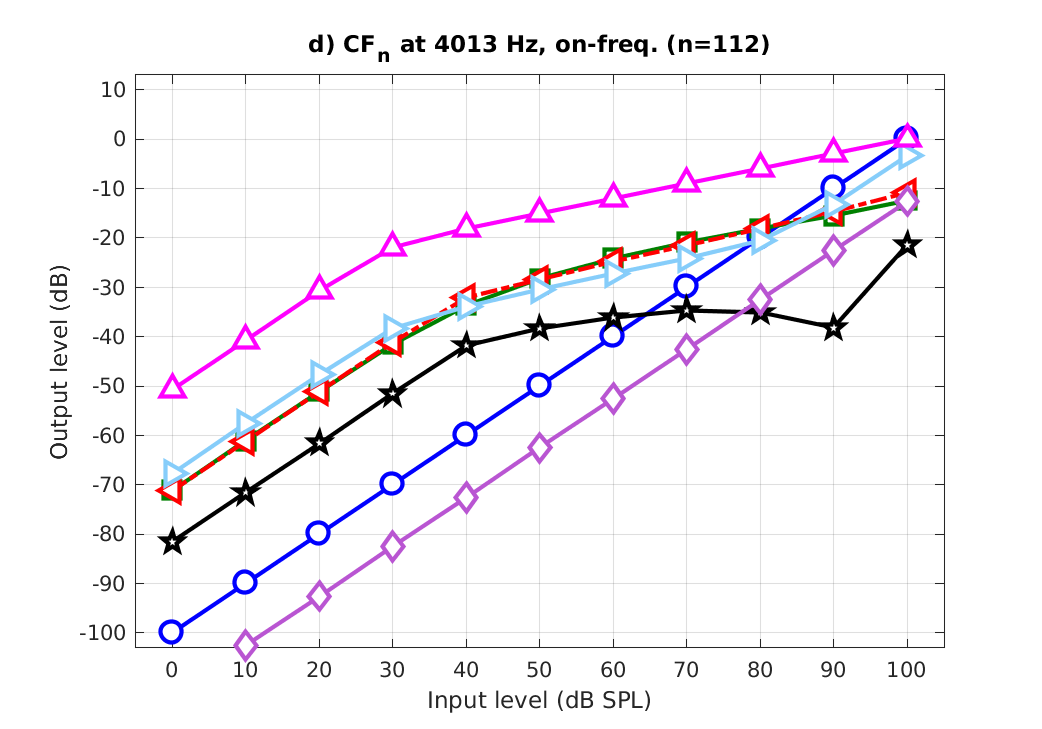

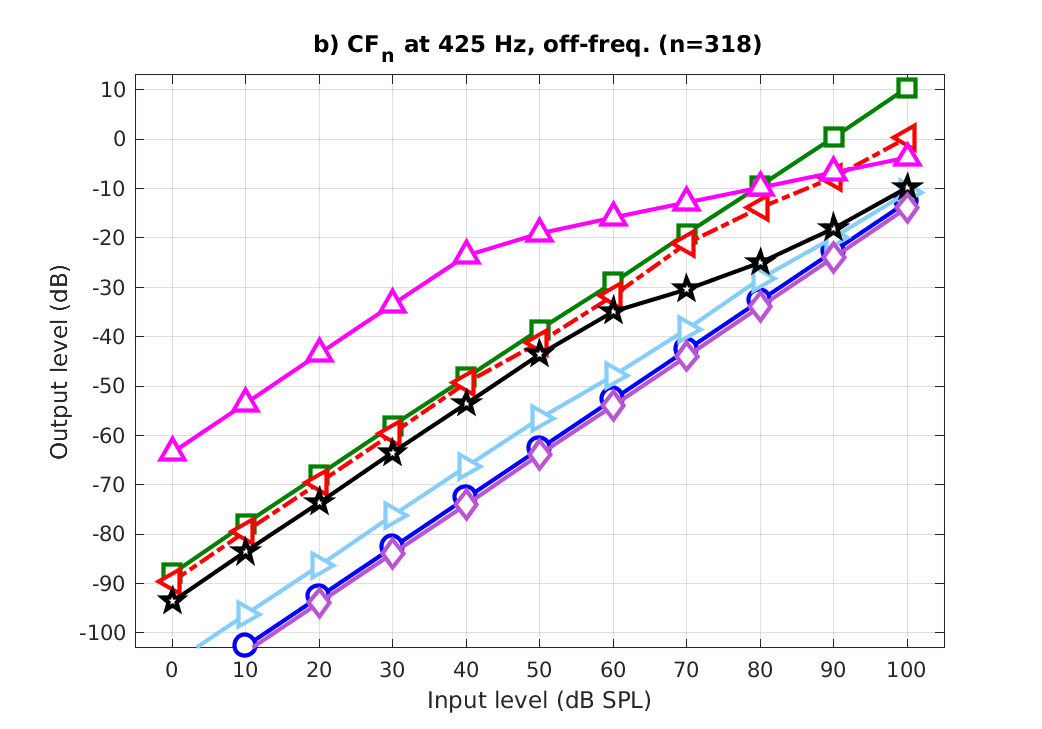

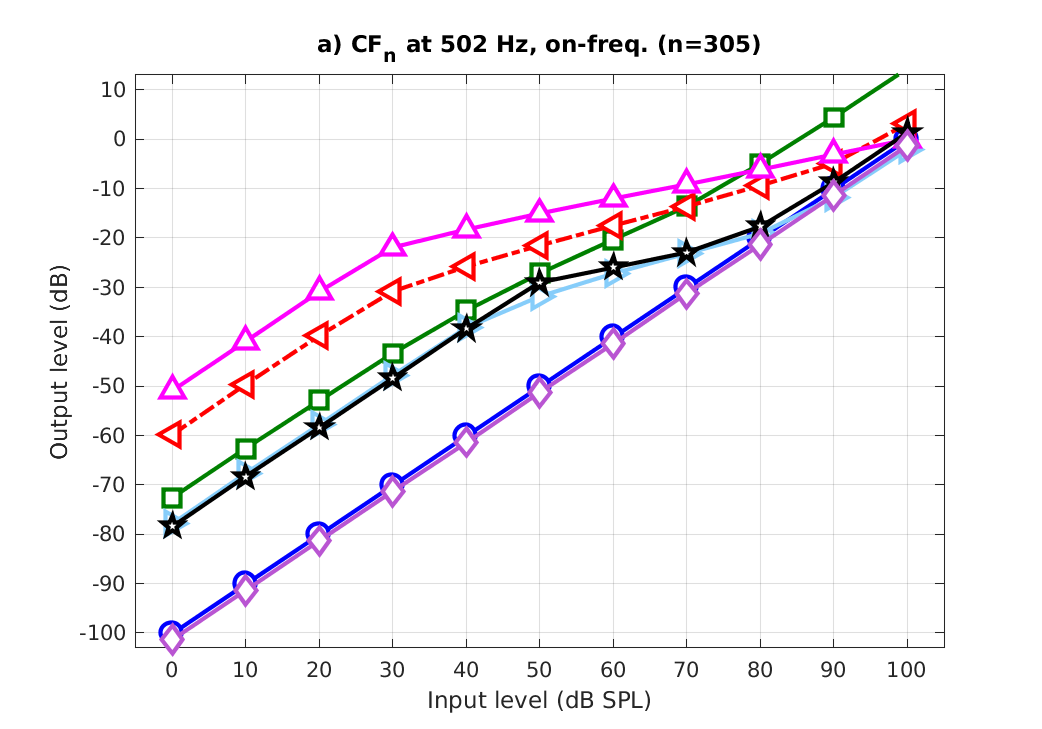

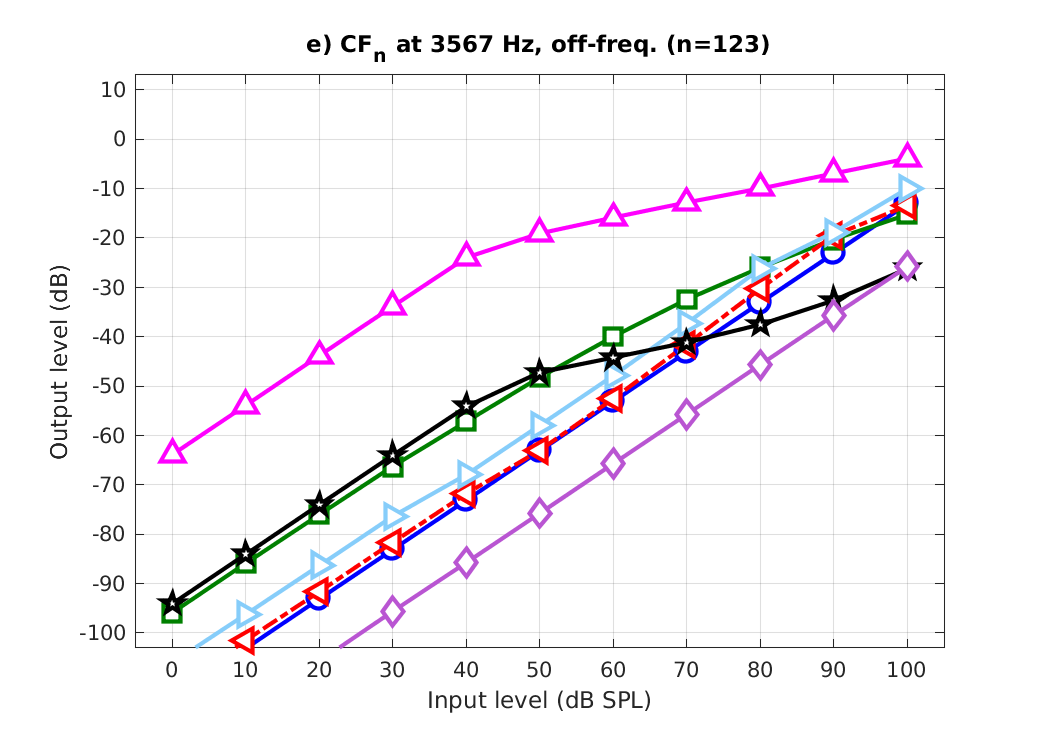

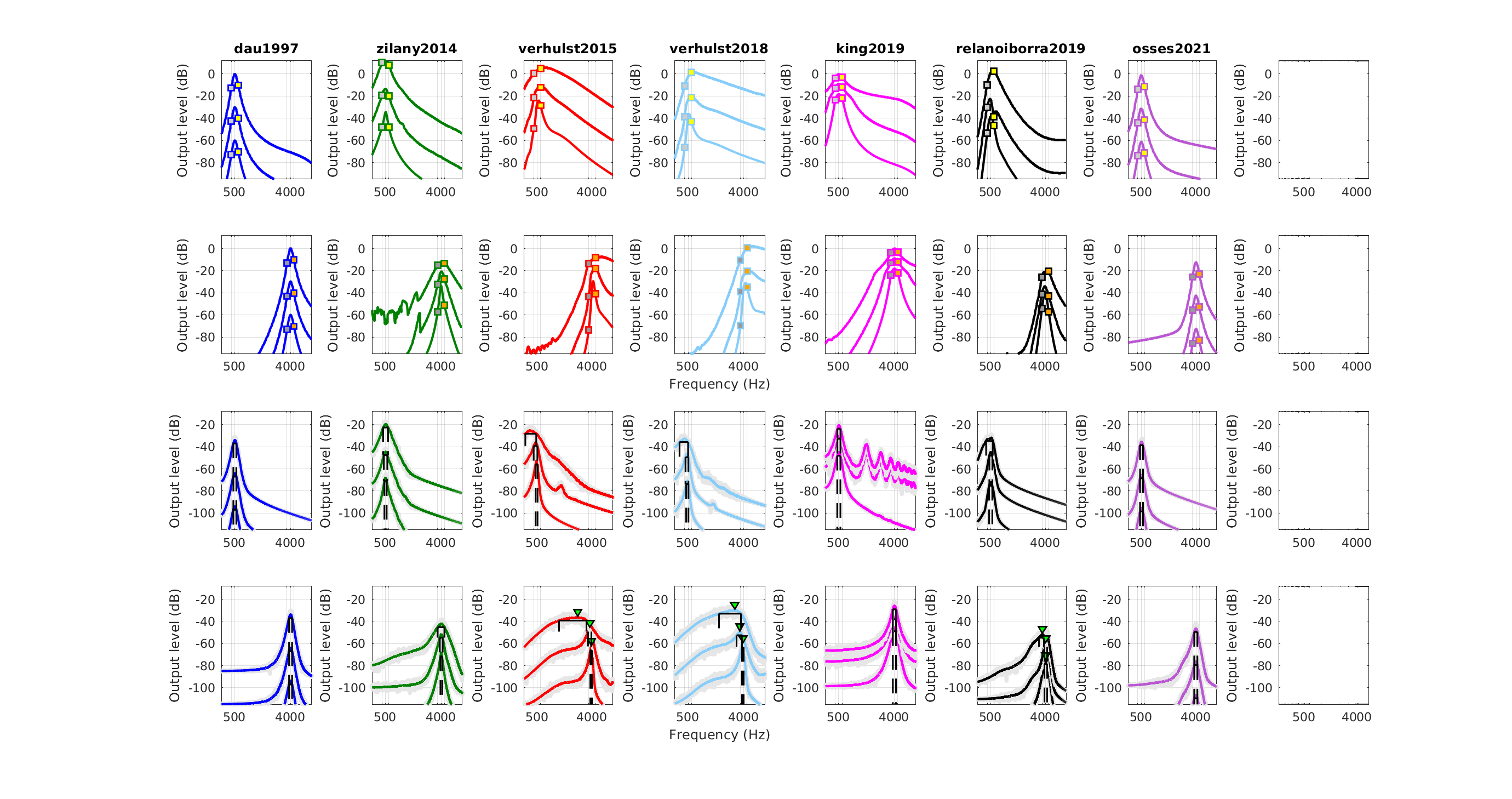

To display Fig. 3 of Osses et al., (2022) use

out = exp_osses2022('fig3');

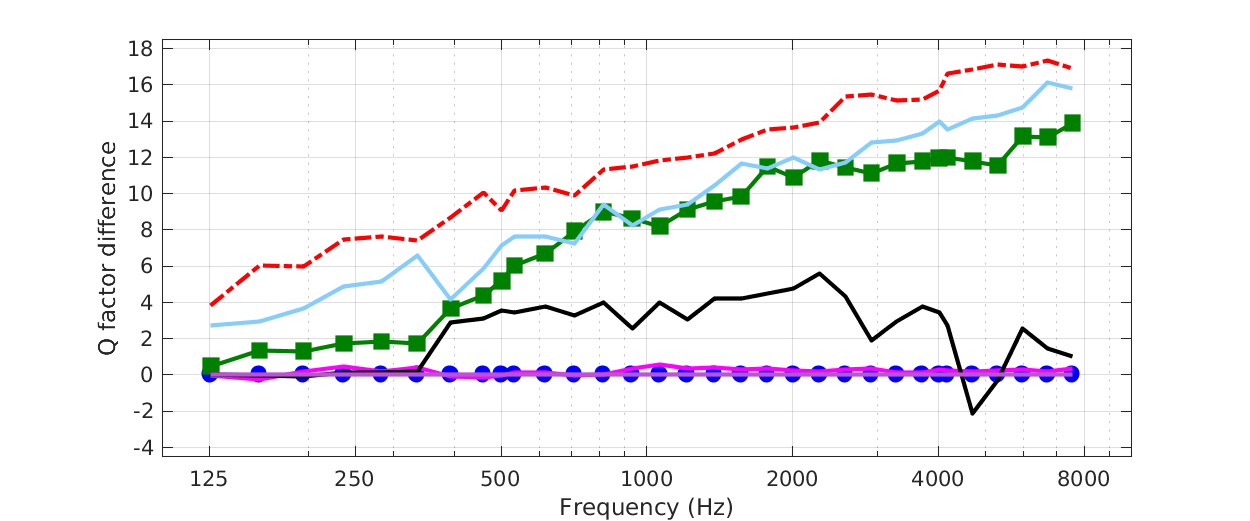

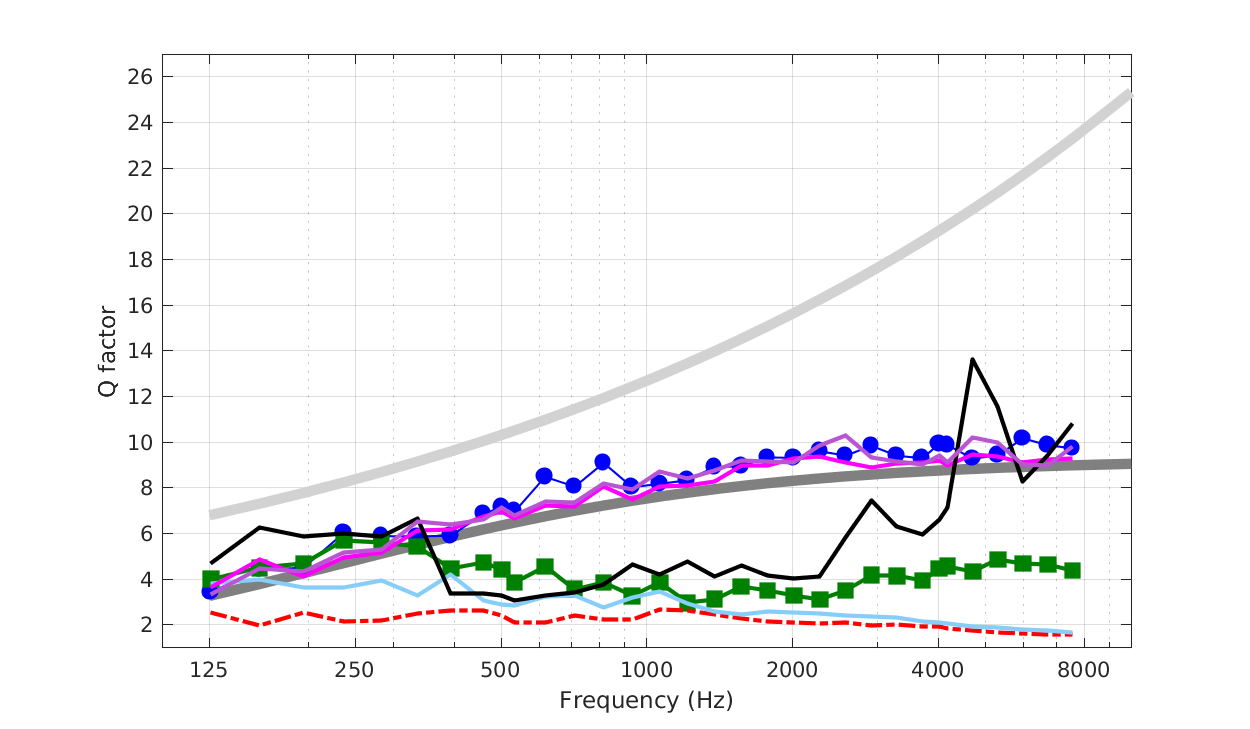

To display Fig. 4 of Osses et al., (2022) use

out = exp_osses2022('fig4');

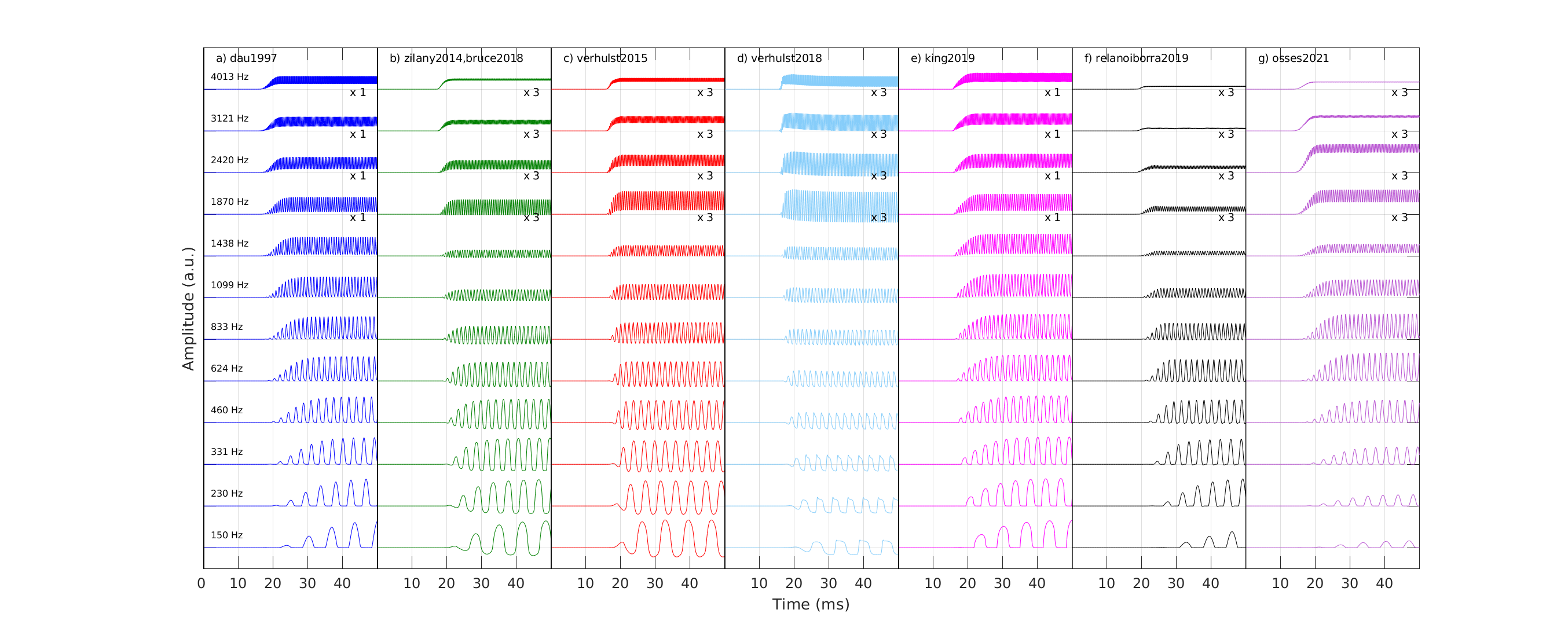

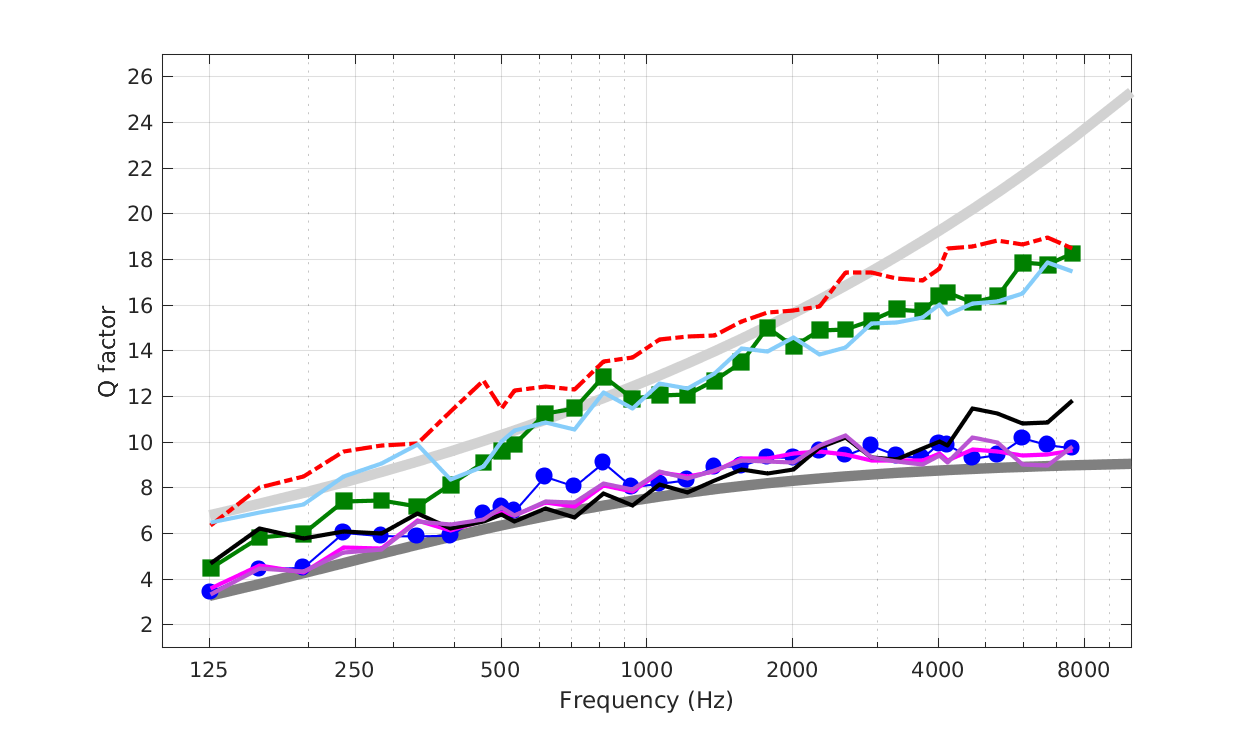

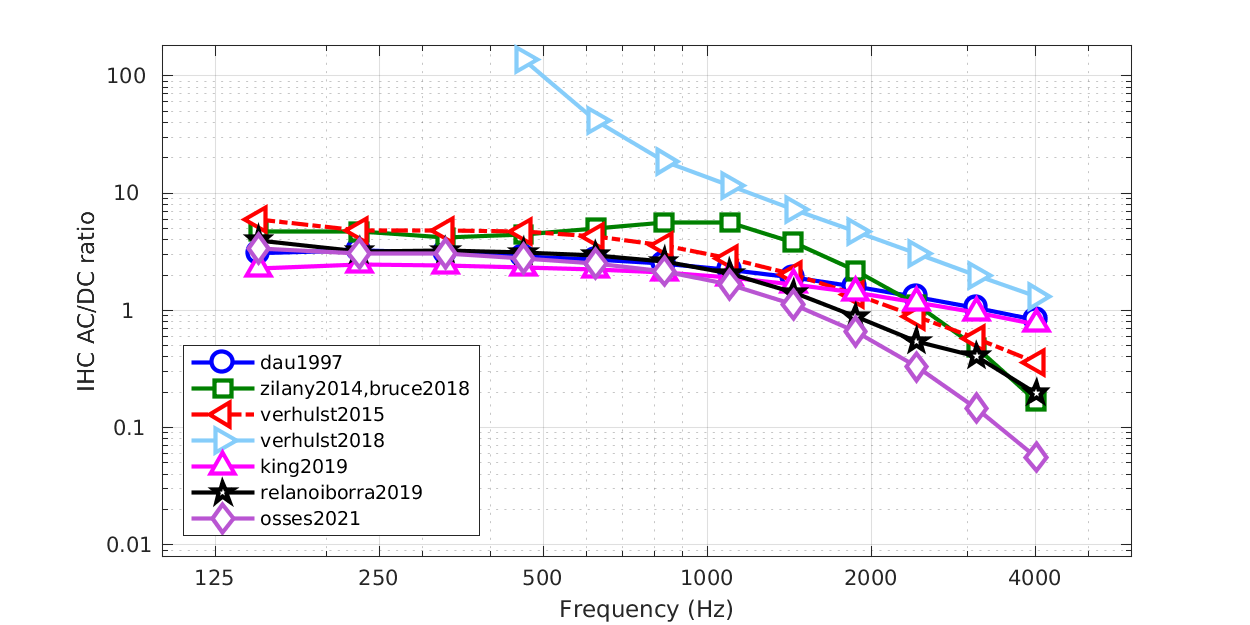

To display Fig. 5 of Osses et al., (2022) use

out = exp_osses2022('fig5');

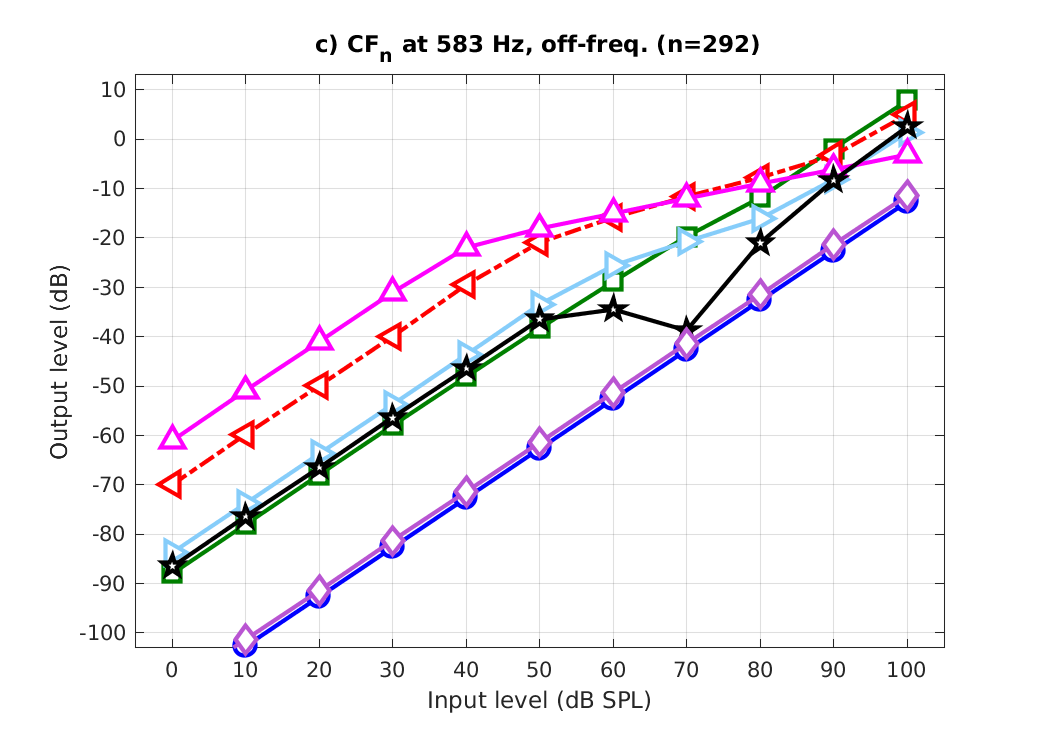

To display Fig. 6 of Osses et al., (2022) use

out = exp_osses2022('fig6');

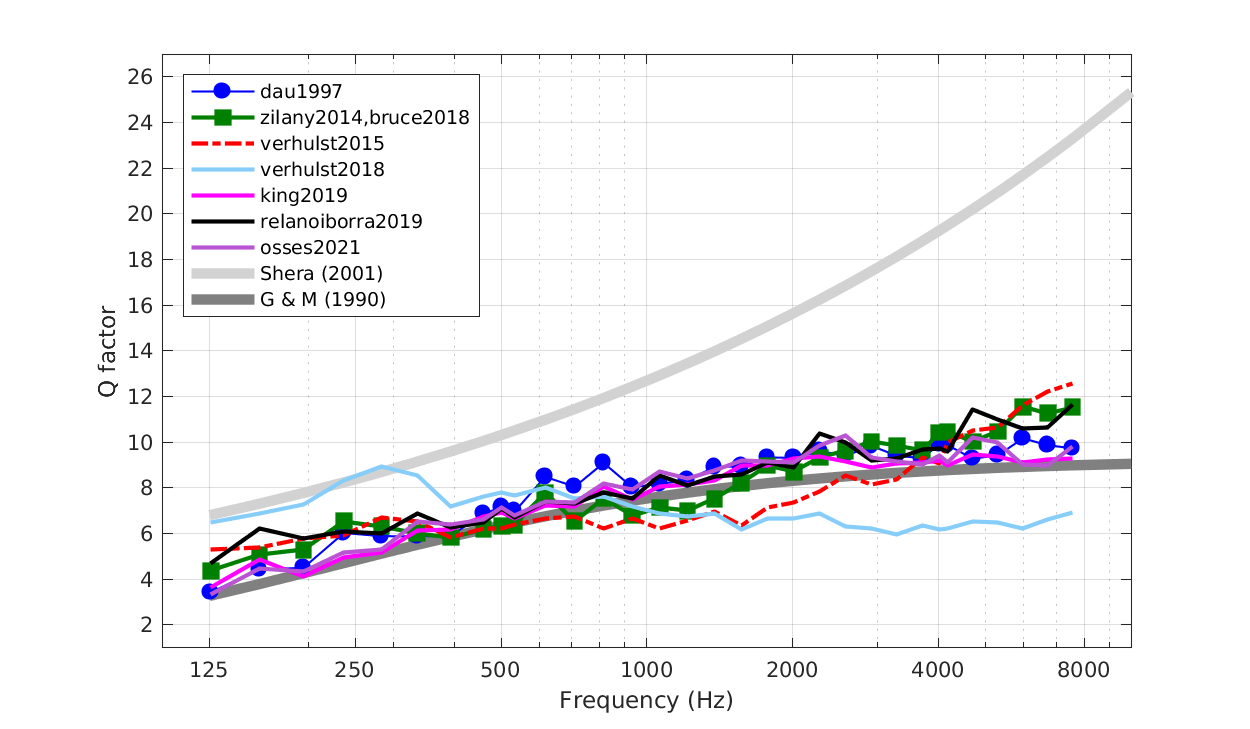

This code produces the following output:

Using Q03
Using Q03
Using Q03

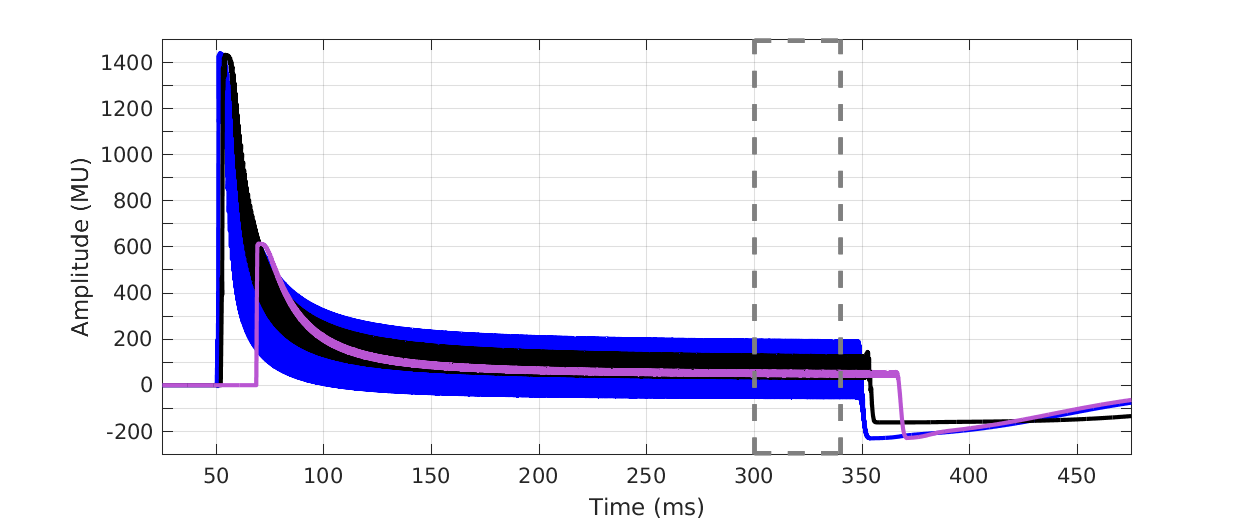

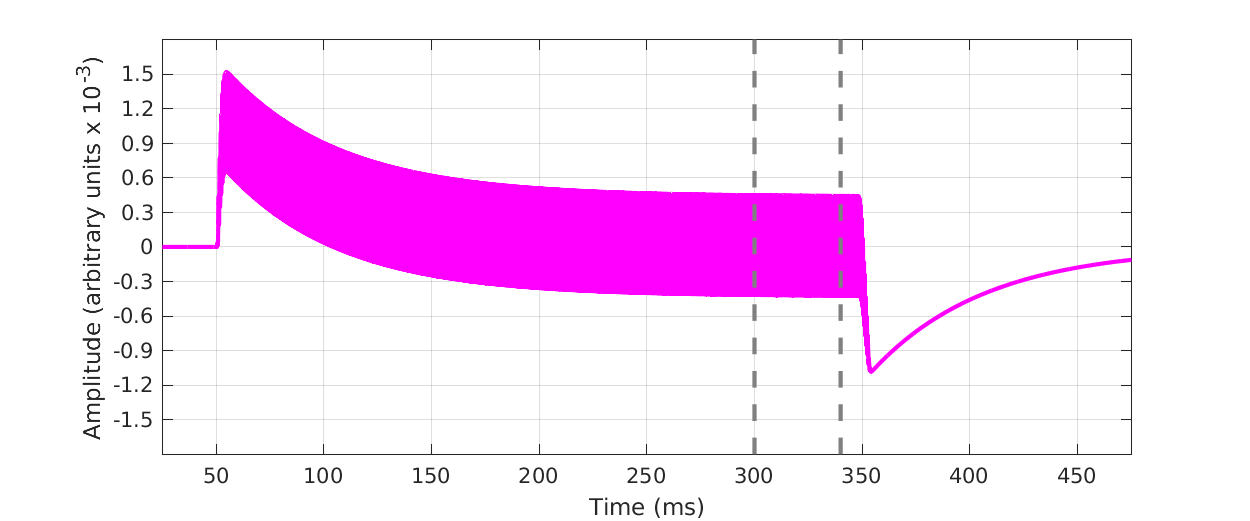

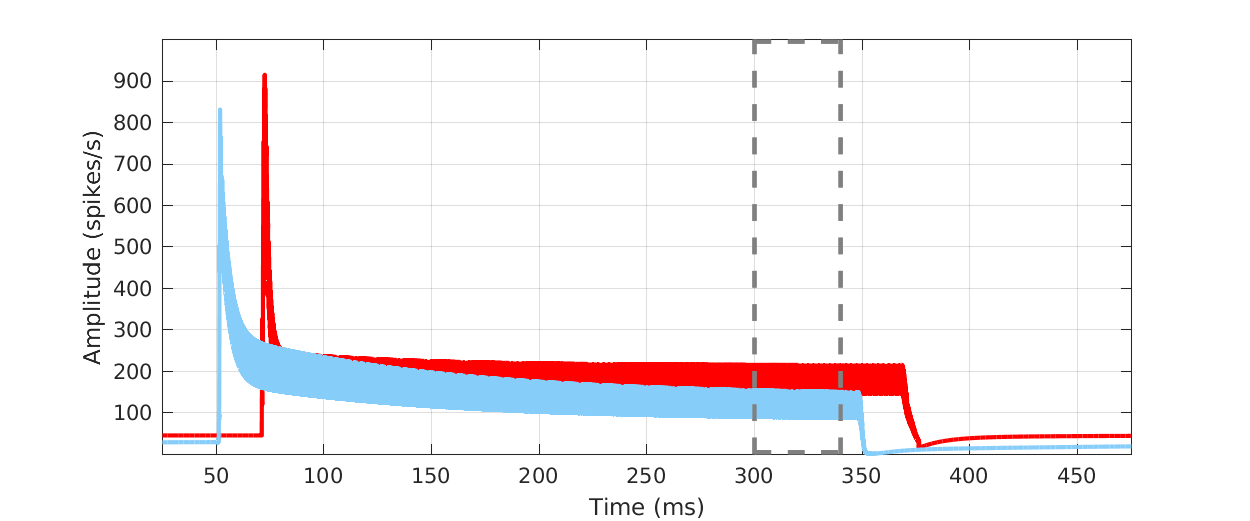

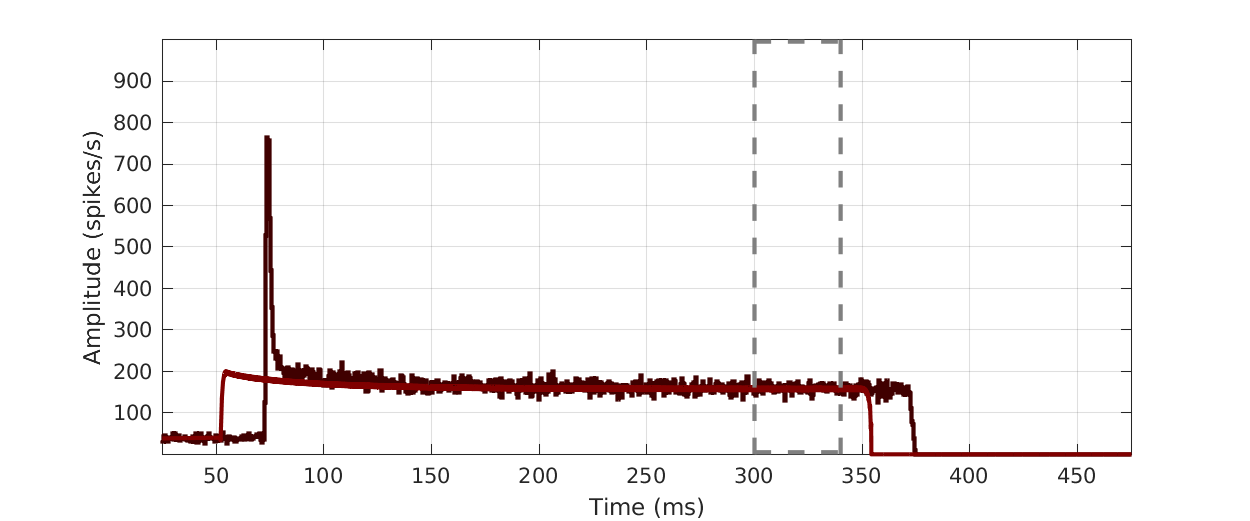

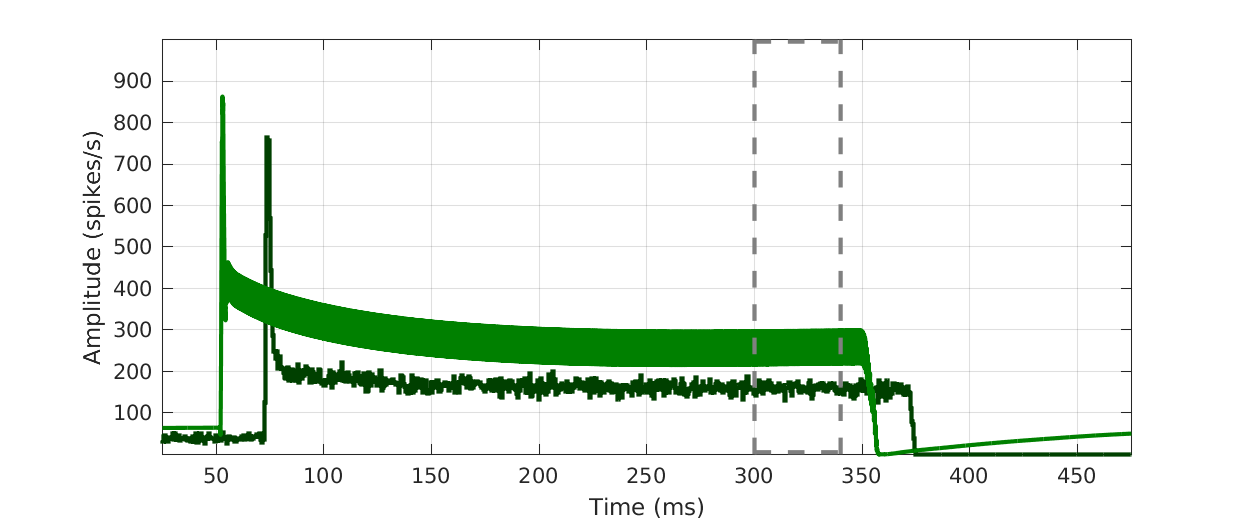

To display Figs. 7 of Osses et al., (2022) use

out = exp_osses2022('fig7'); % this flag will obtain both figures, 6 and 7

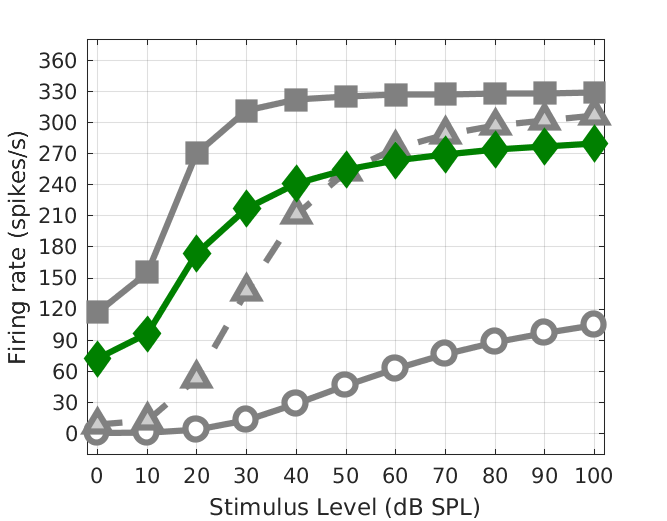

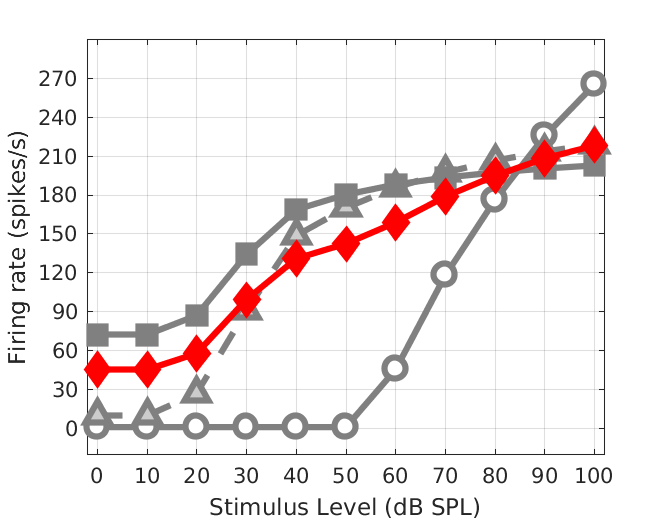

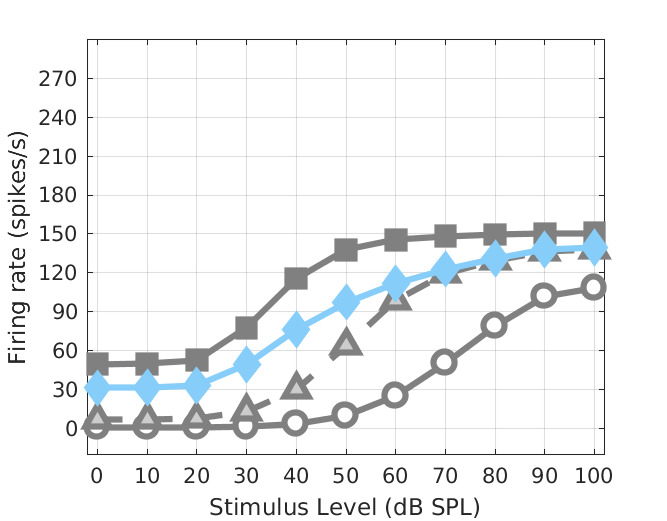

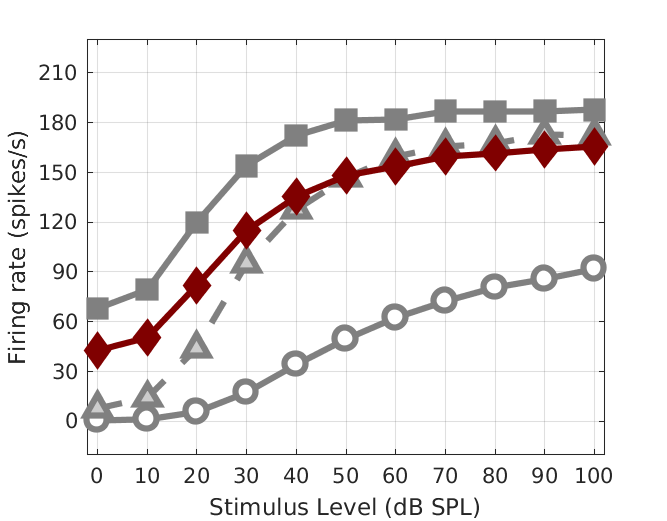

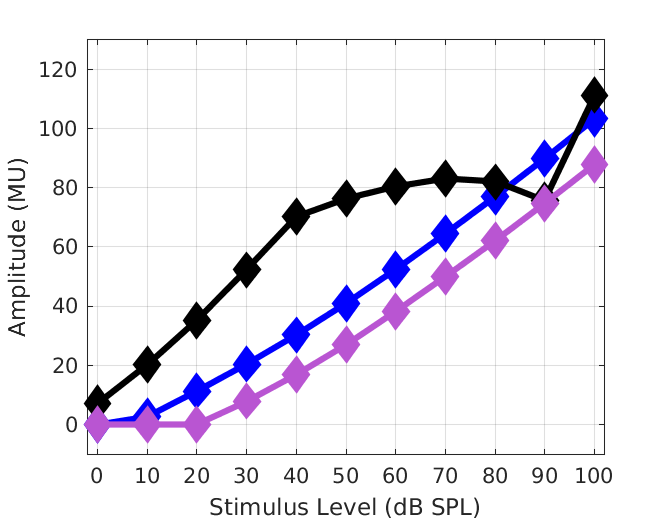

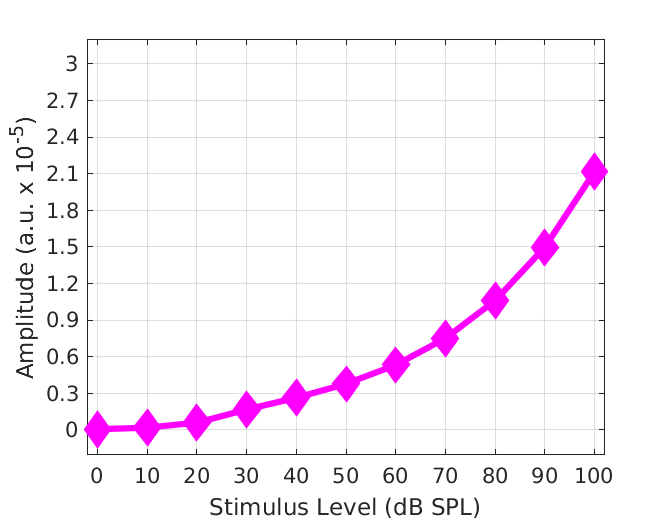

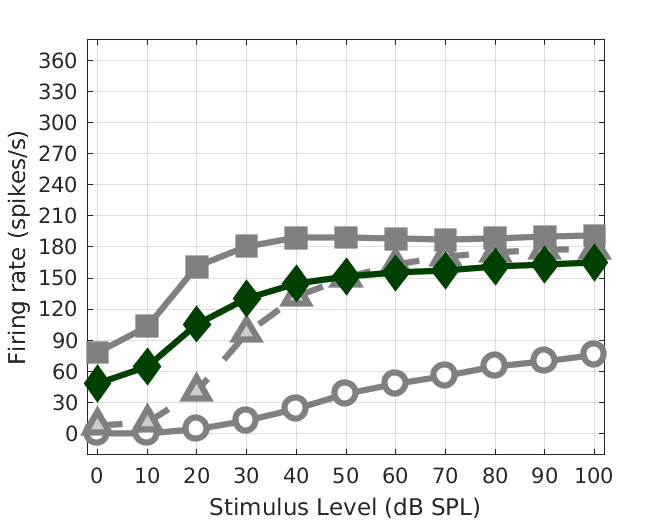

To display Figs. 8 of Osses et al., (2022) use

out = exp_osses2022('fig8'); % this flag will obtain both figures, 6 and 7

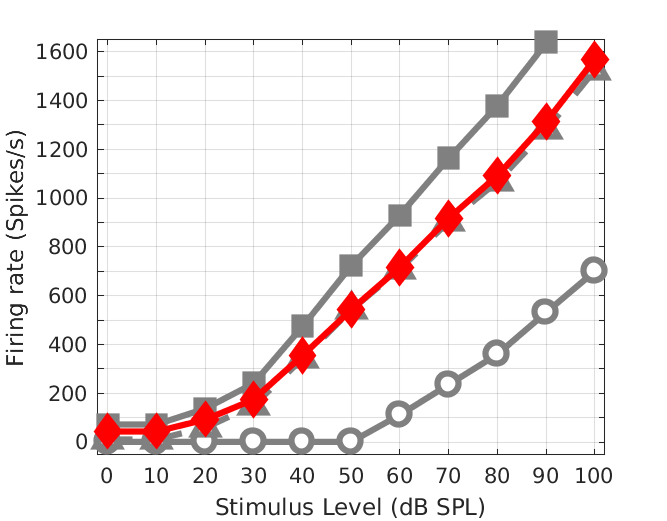

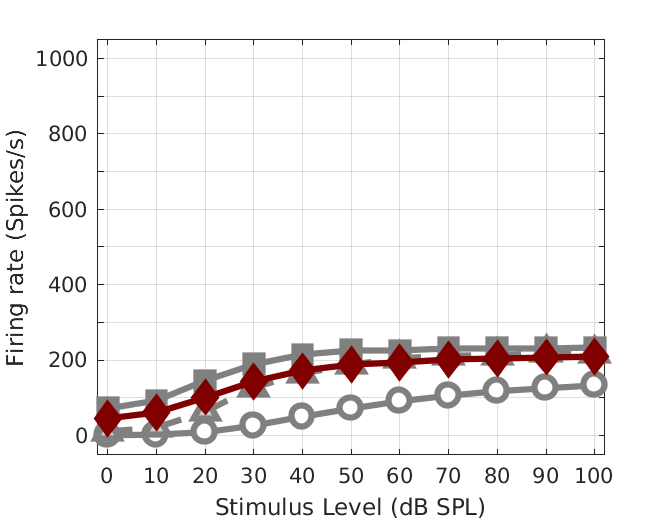

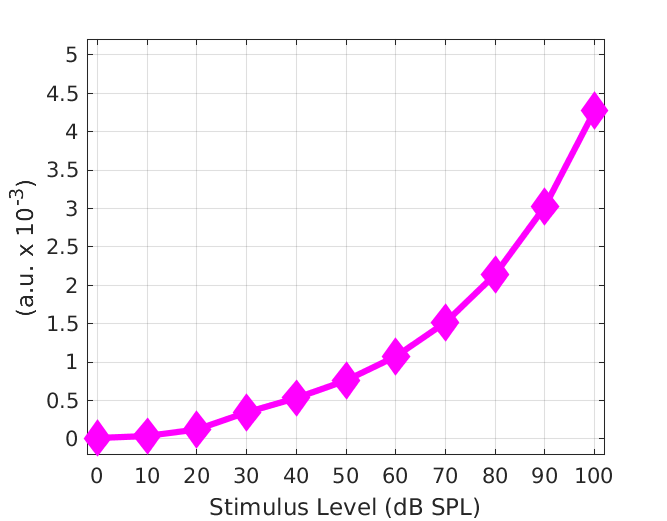

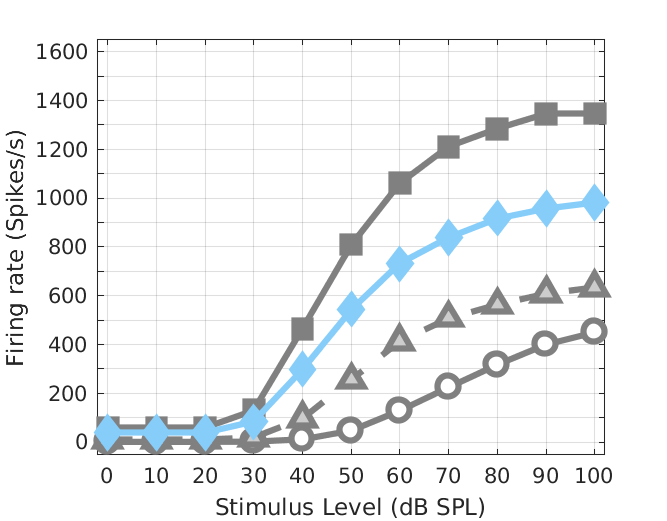

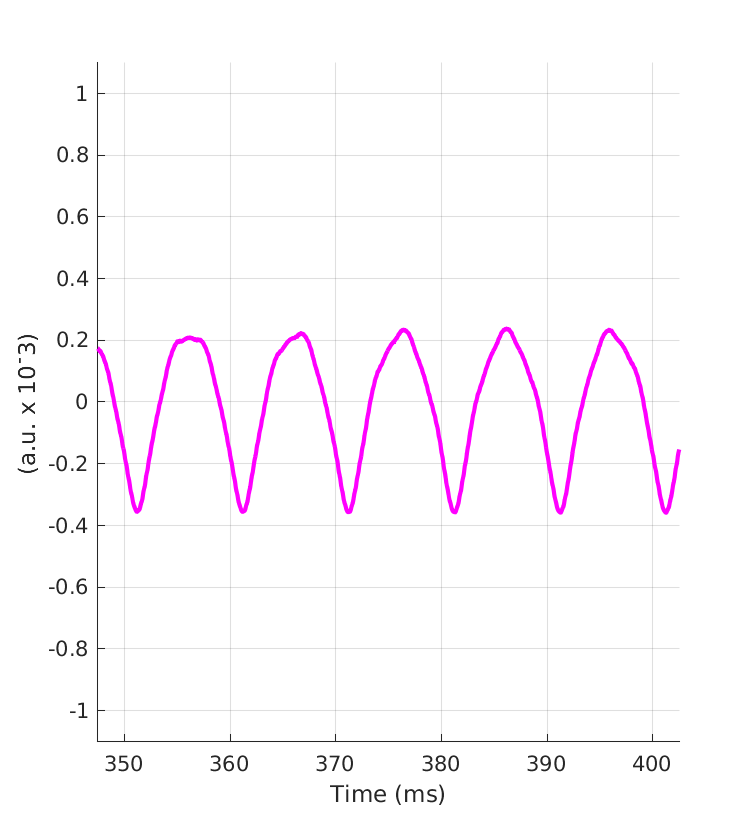

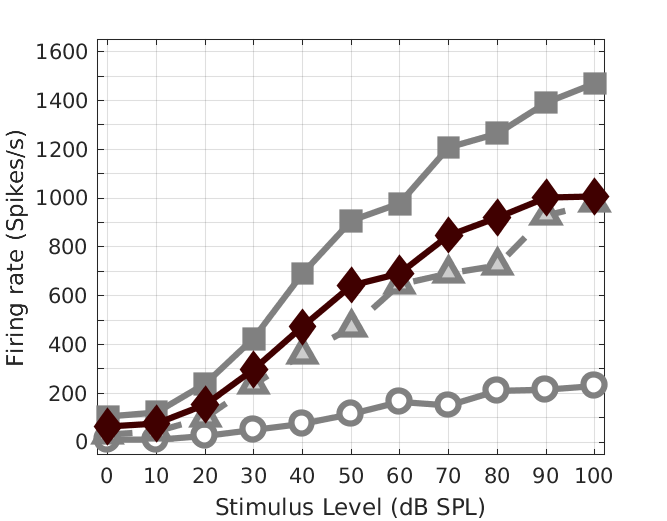

To display Fig. 9 of Osses et al., (2022) use

out = exp_osses2022('fig9');

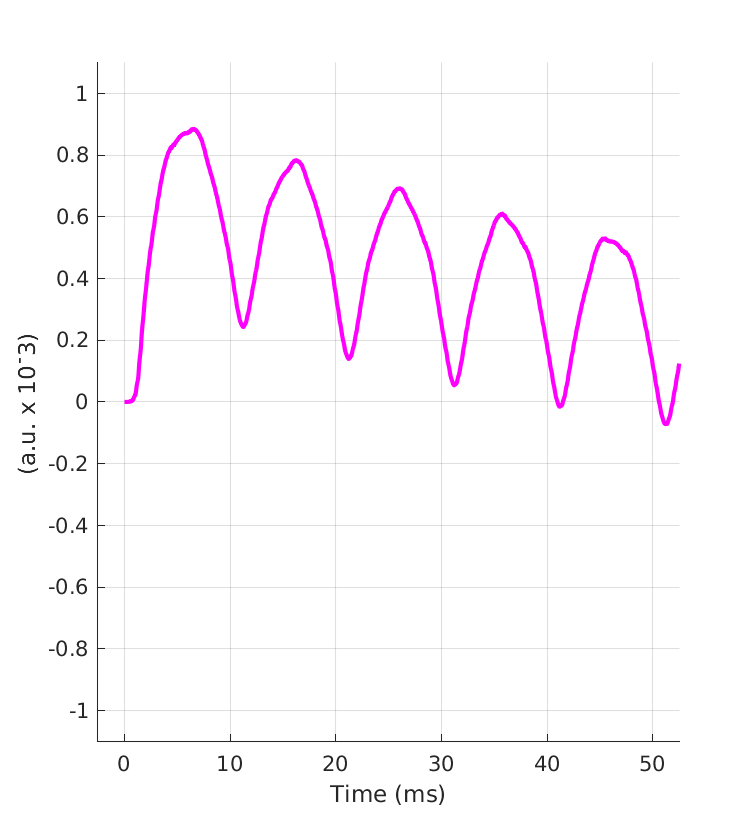

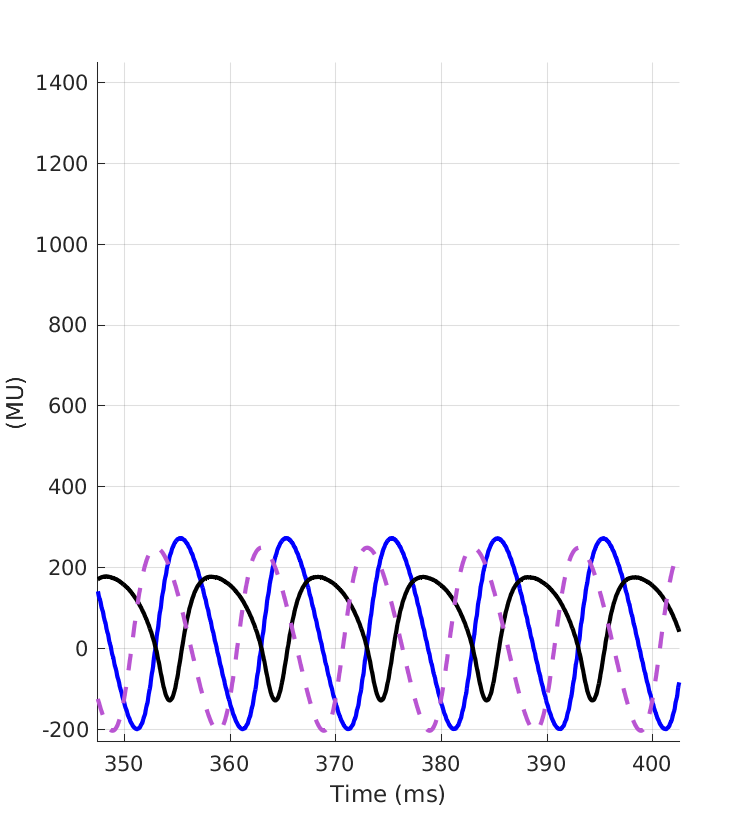

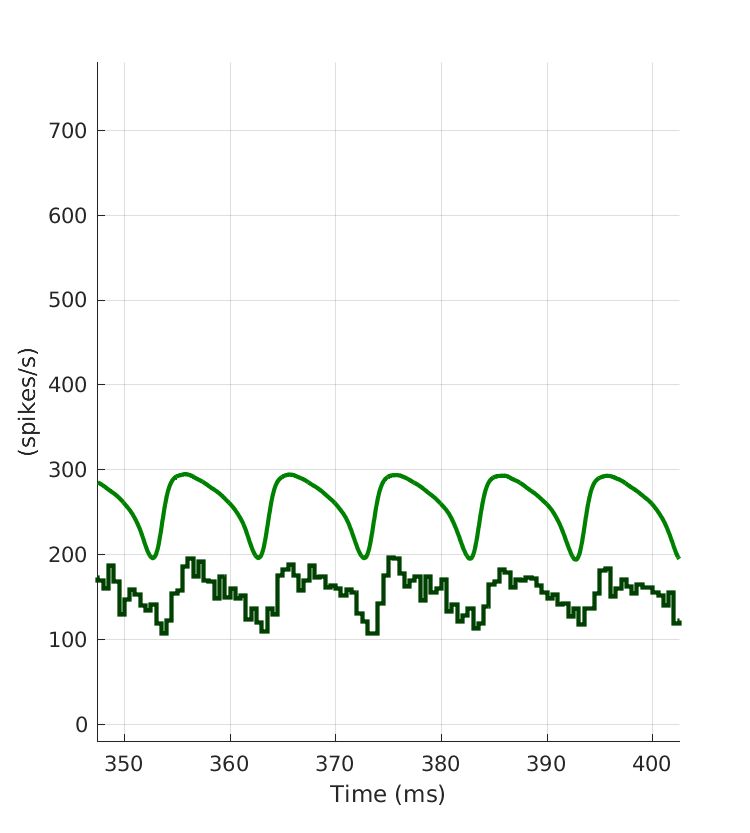

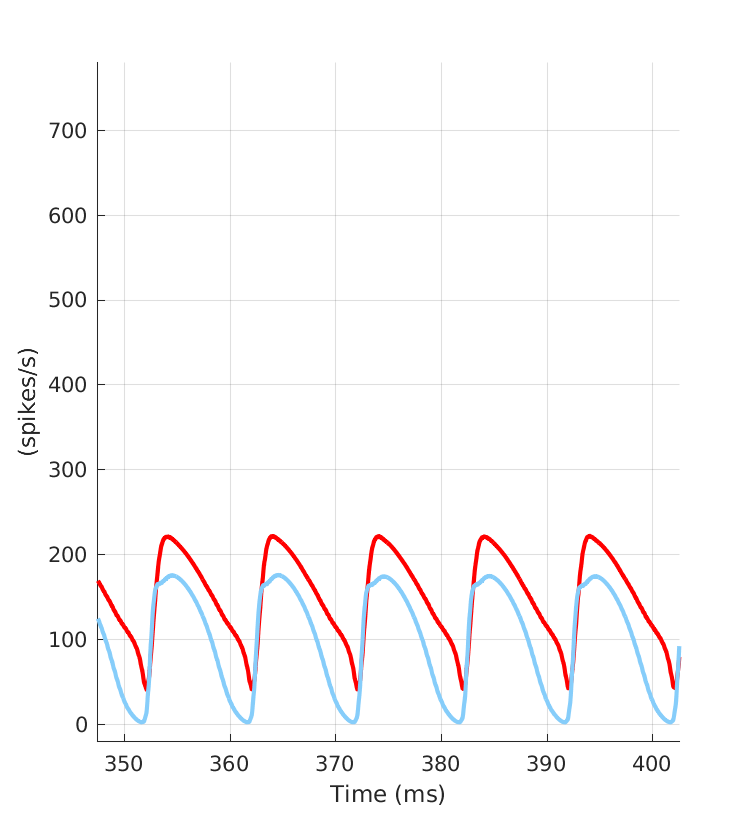

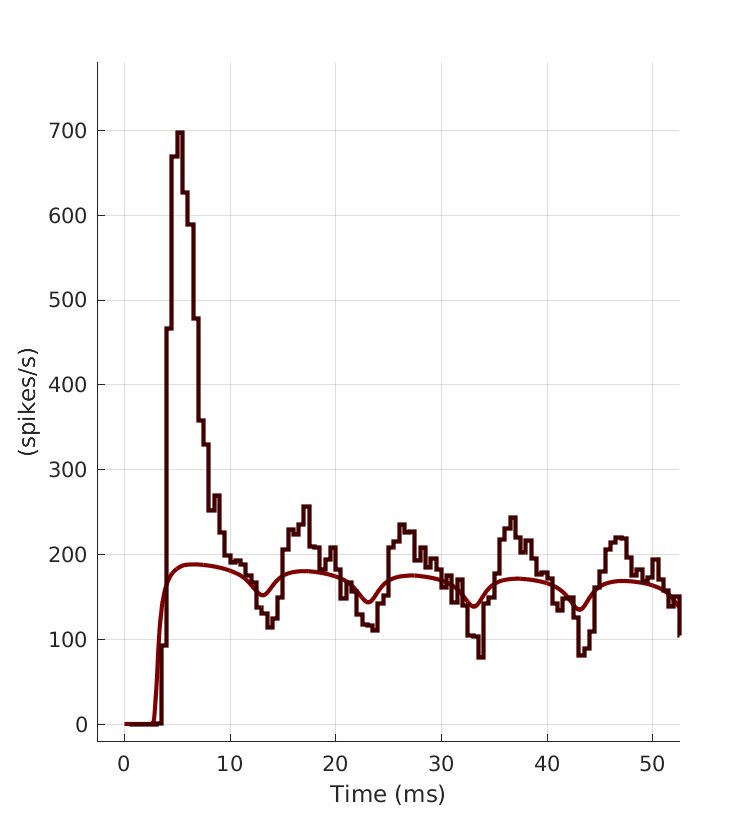

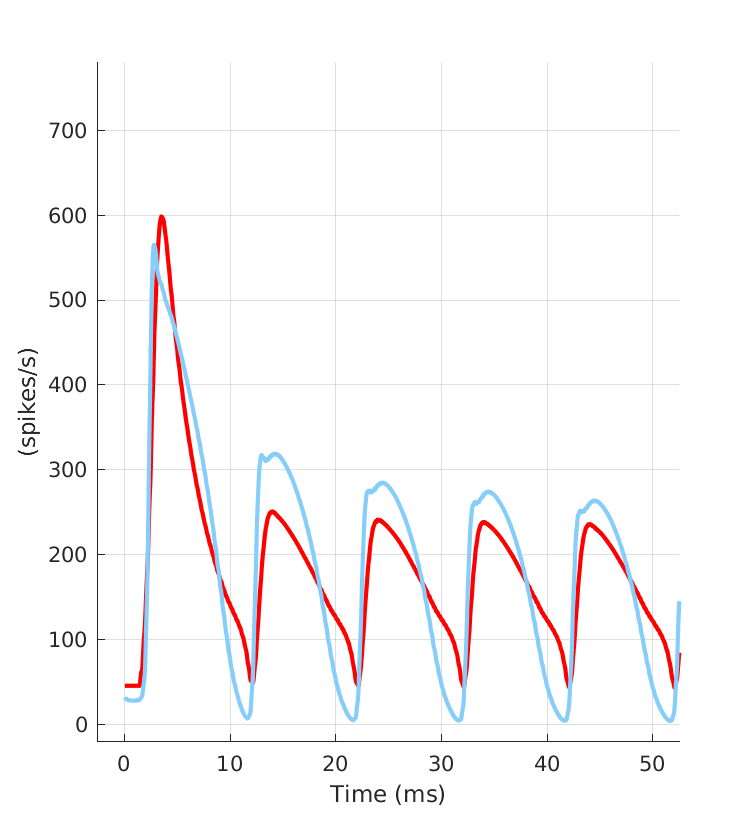

To display Fig. 10 of Osses et al., (2022) use

out = exp_osses2022('fig10');

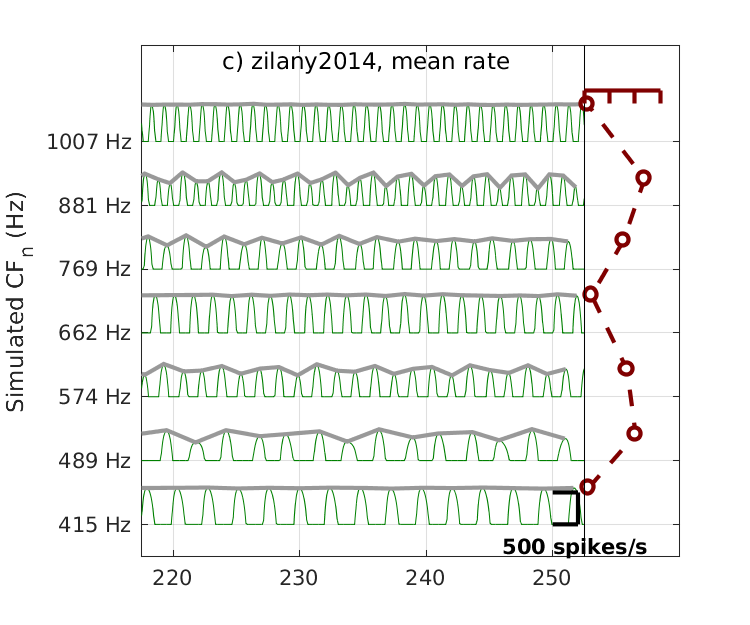

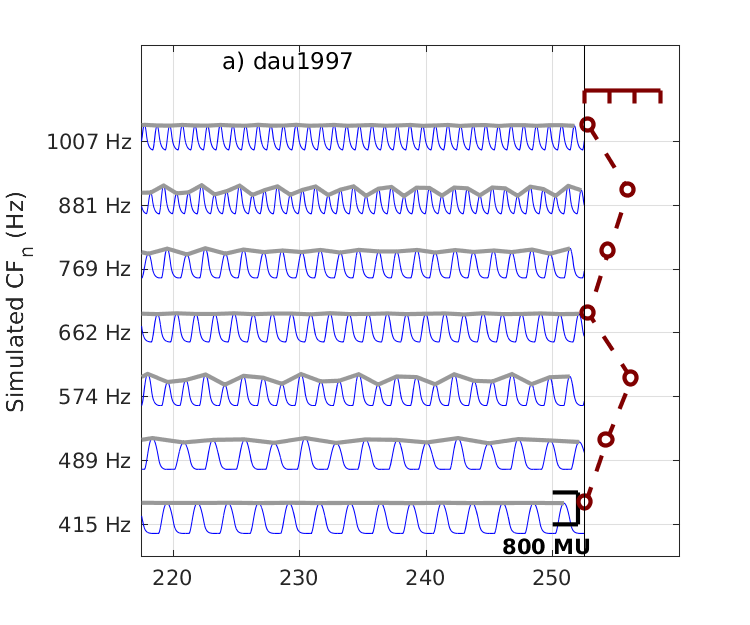

To display Fig. 11 of Osses et al., (2022) use

out = exp_osses2022('fig11');

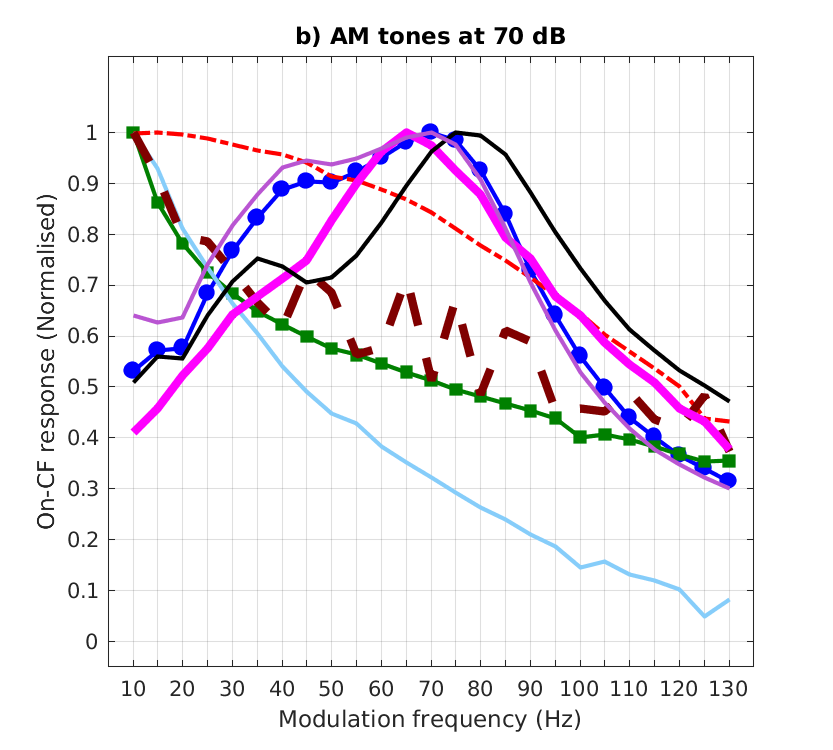

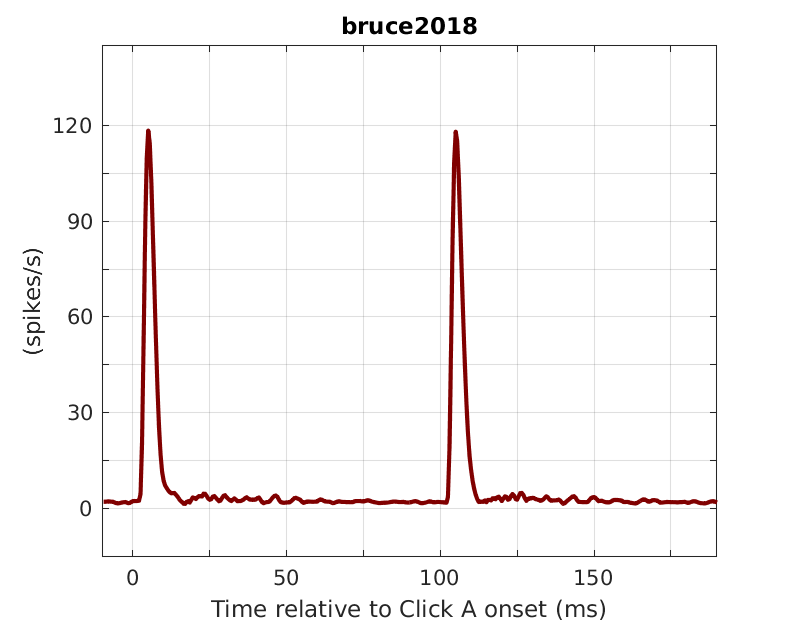

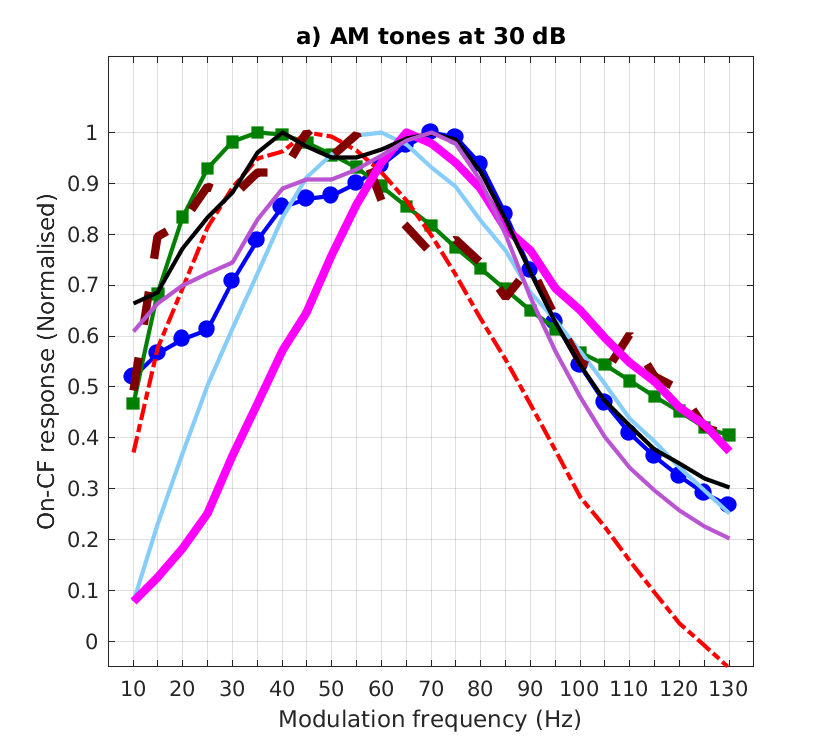

To display Fig. 12a or 12b of Osses et al., (2022) use

out = exp_osses2022('fig12a');
out = exp_osses2022('fig12b');

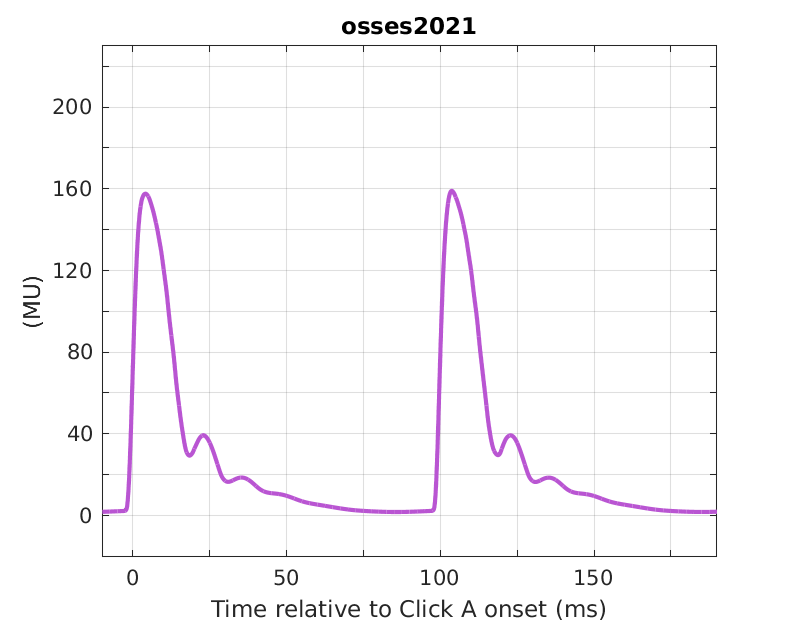

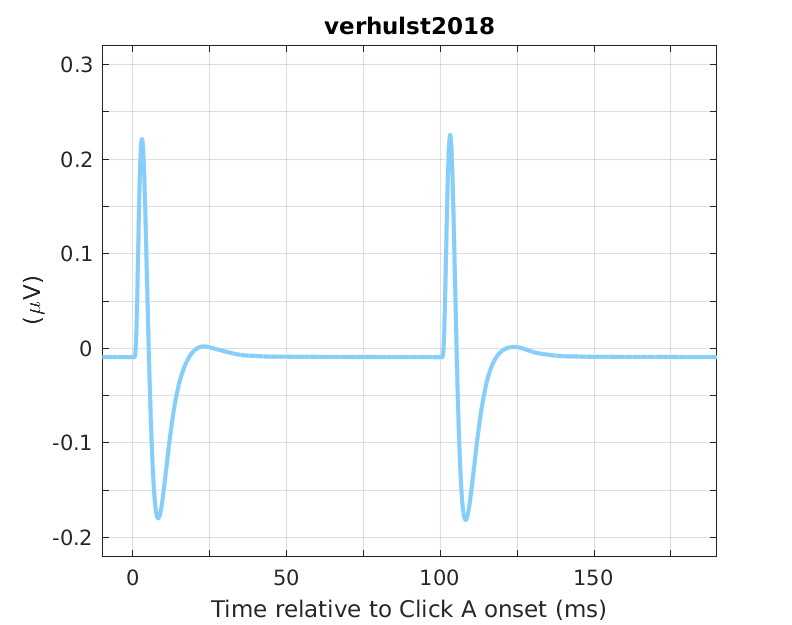

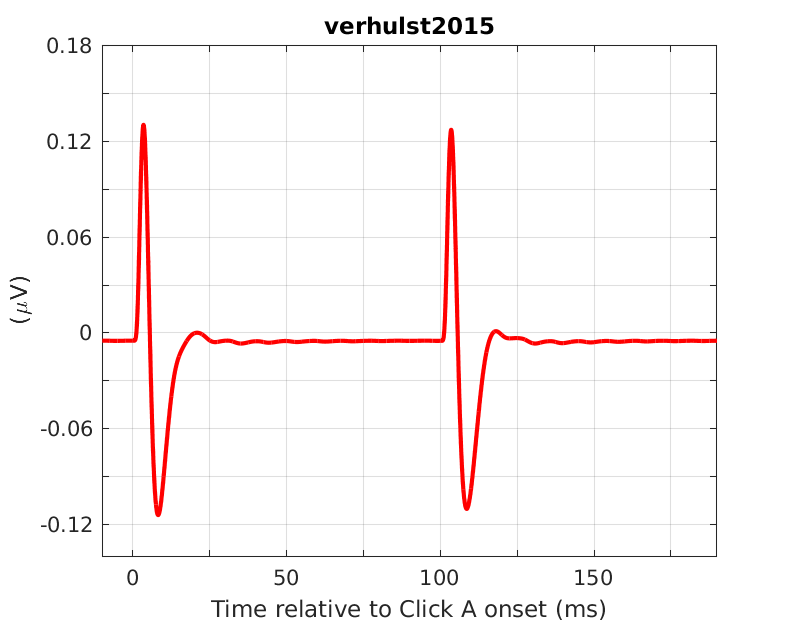

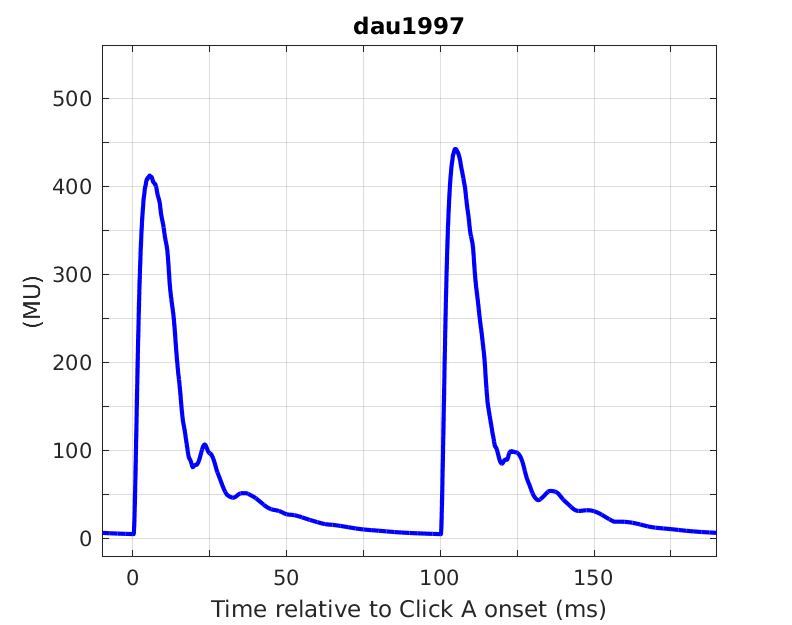

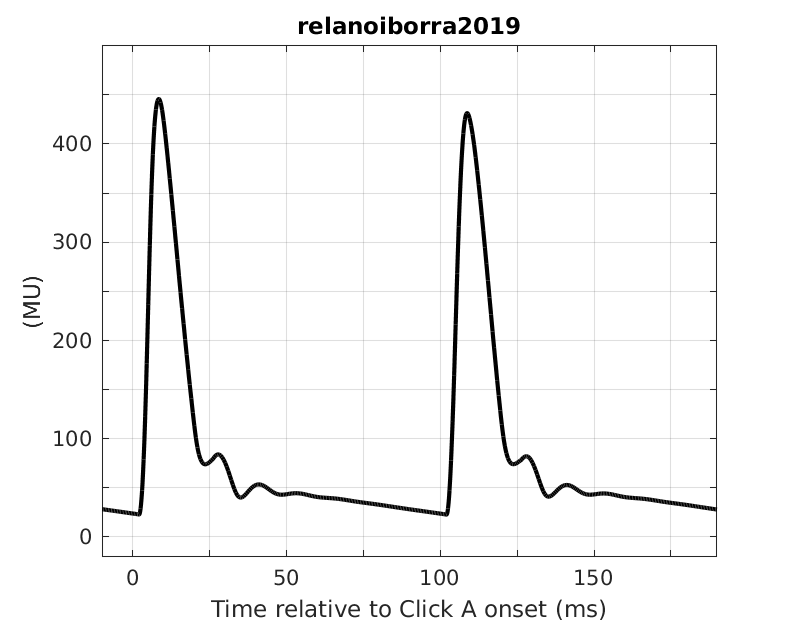

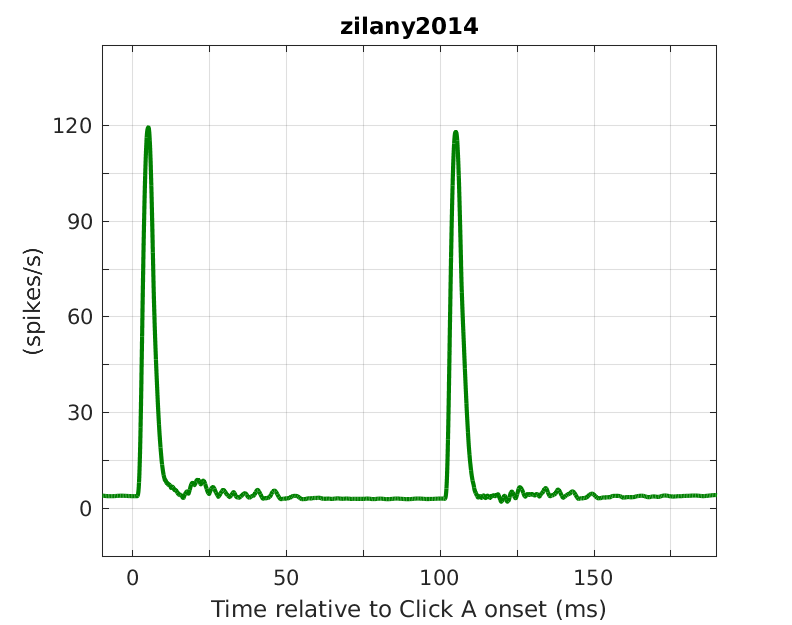

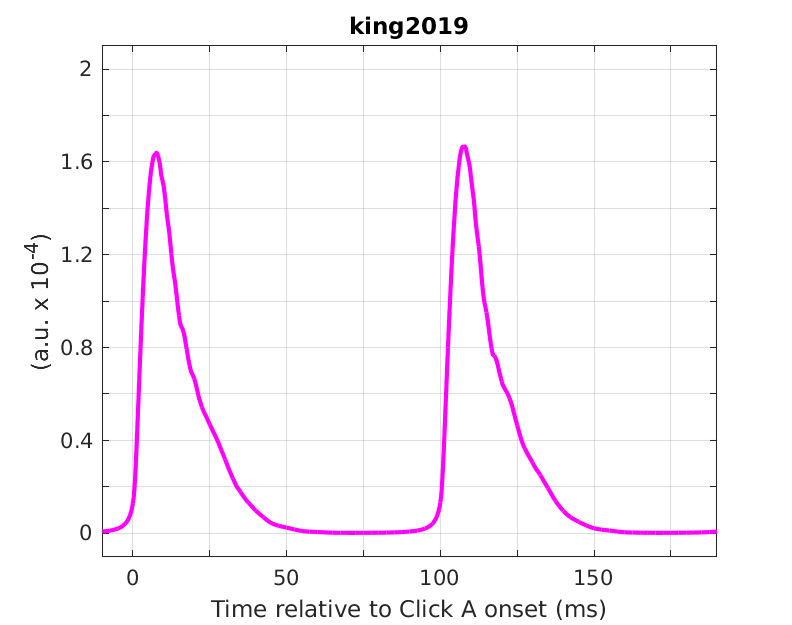

To display Fig. 13 of Osses et al., (2022) use

out = exp_osses2022('fig13');

To display Fig. 14a or 14b of Osses et al., (2022) use

out = exp_osses2022('fig14a');
out = exp_osses2022('fig14b');

This code produces the following output:

Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...

To display Fig. 15 of Osses et al., (2022) use

out = exp_osses2022('fig15');

This code produces the following output:

Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
Using Wave-V estimate only...
