Usage:

exp_mckenzie2022('fig11d'); % (to plot Figure 11 d).
exp_mckenzie2022('fig11a'); % (to plot Figure 11 a).

Description:

Reproduces the plots in the listening test section (Figure 11a-d) McKenzie, T.; Armstrong, C.; Ward, L.; Murphy, D.T.; Kearney, G. "Predicting the Colouration between Binaural Signals". Appl. Sci. 2022, 12(2441). https://doi.org/10.3390/app12052441

PEAQ and CLL are commented out in this script so that it runs without any additional files necessary. To produce the respective data, download the PEAQ and CLL code: https://github.com/NikolajAndersson/PEAQ and www.acoustics.hut.fi/-301ville/software/auditorymodel/. The test sounds (ts.... etc) must be saved as wav files to work with the PEAQ model.

Examples:

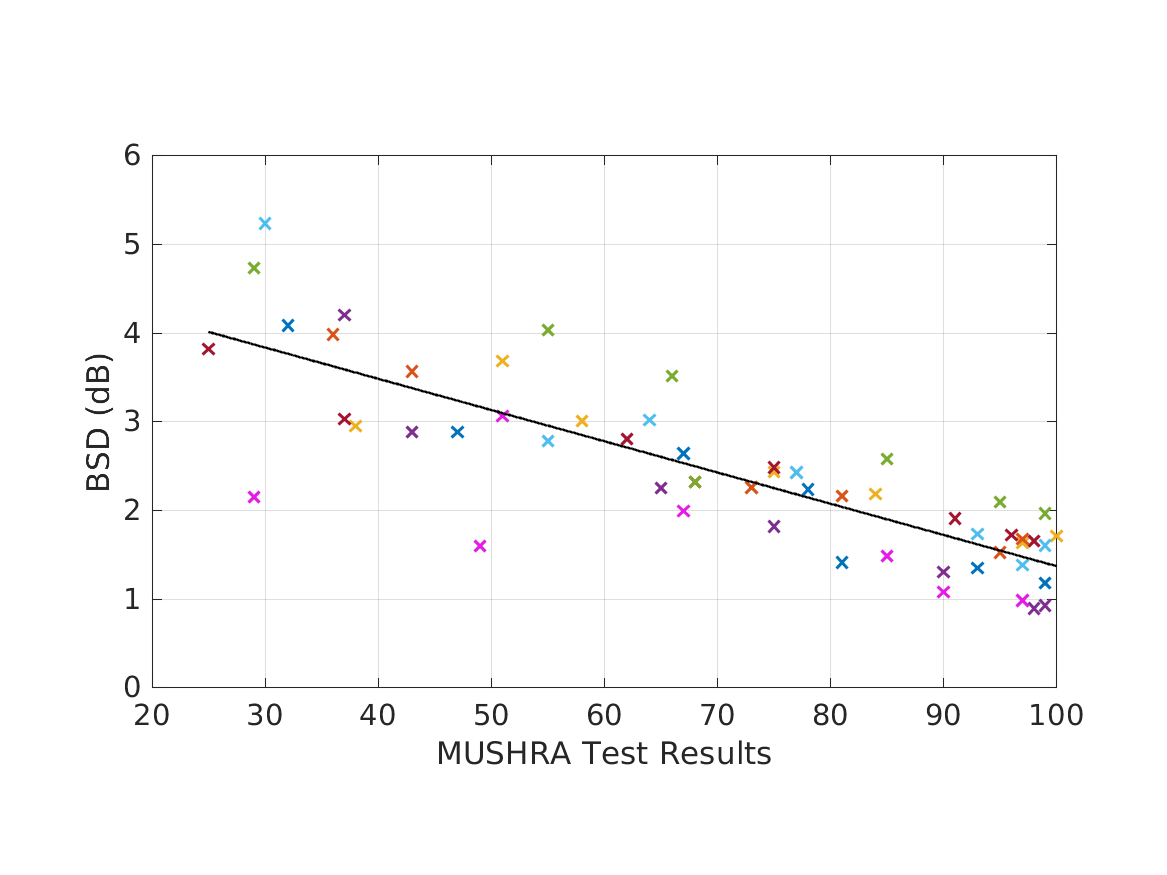

To display Figure 11a use

exp_mckenzie2022('fig11a');

This code produces the following output:

BSD correlation=-0.83246, p=1.832e-15

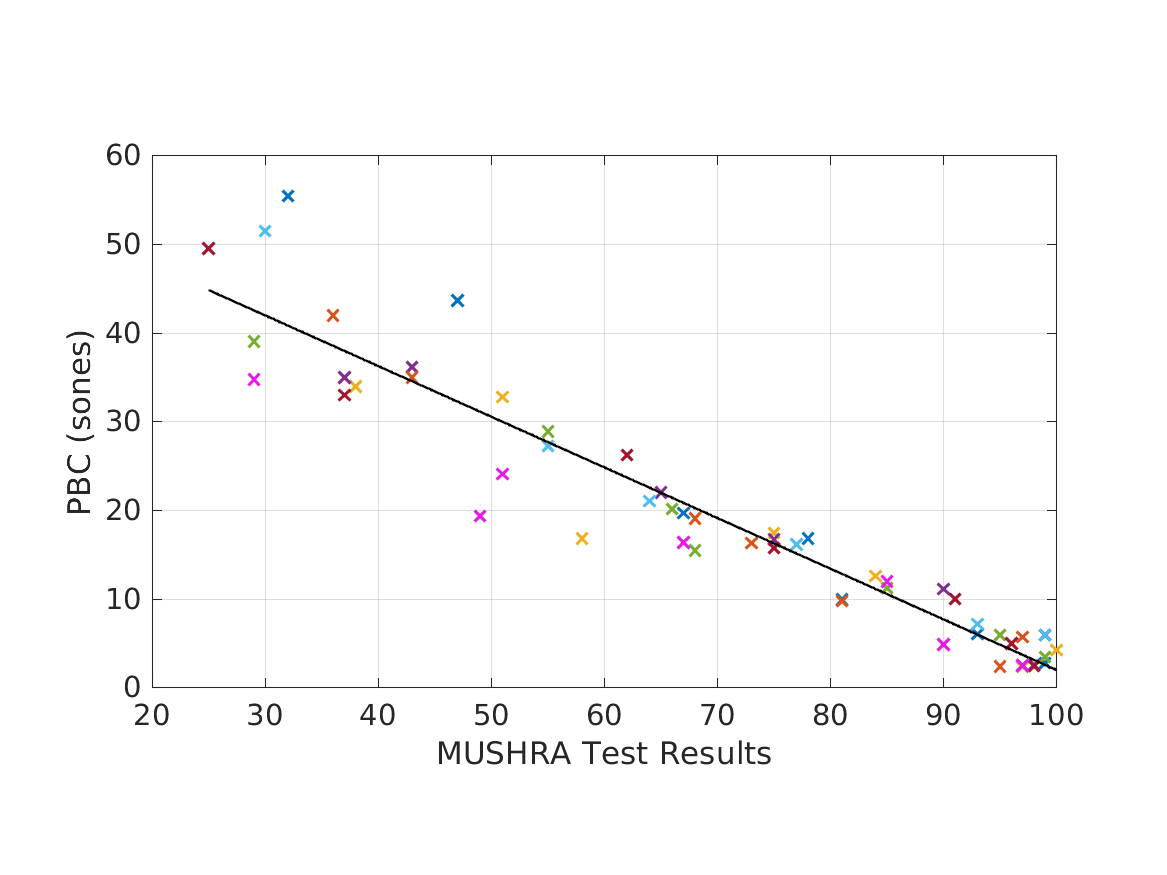

To display Figure 11d use

exp_mckenzie2022('fig11d');

This code produces the following output:

PBC correlation=-0.95281, p=1.2461e-29
