Usage:

exp_mckenzie2022('fig11d'); % (to plot Figure 11 d).
exp_mckenzie2022('fig11a'); % (to plot Figure 11 a).

Description:

Reproduces the Figures 11a-d from the listening performed in McKenzie et al. (2022). The signals are from McKenzie et al. (2018).

Note: PEAQ and CLL are commented out in this script so that it runs without any additional files necessary. To produce the respective data, download the PEAQ and CLL code: https://github.com/NikolajAndersson/PEAQ and https://www.acoustics.hut.fi/-301ville/software/auditorymodel/. The test sounds (ts.... etc) must be saved as wav files to work with the PEAQ model.

Examples:

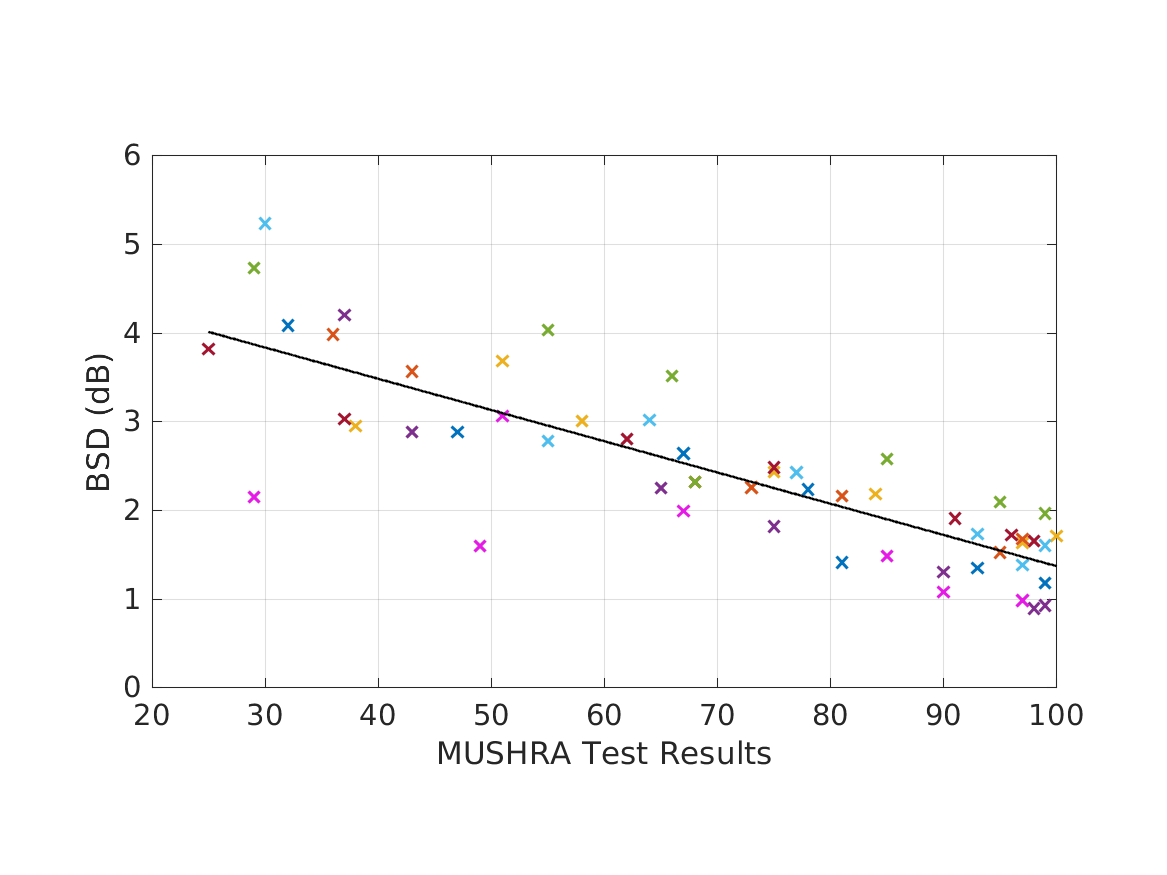

To display Figure 11a use :

exp_mckenzie2022('fig11a');

This code produces the following output:: BSD correlation=-0.83246, p=1.832e-15

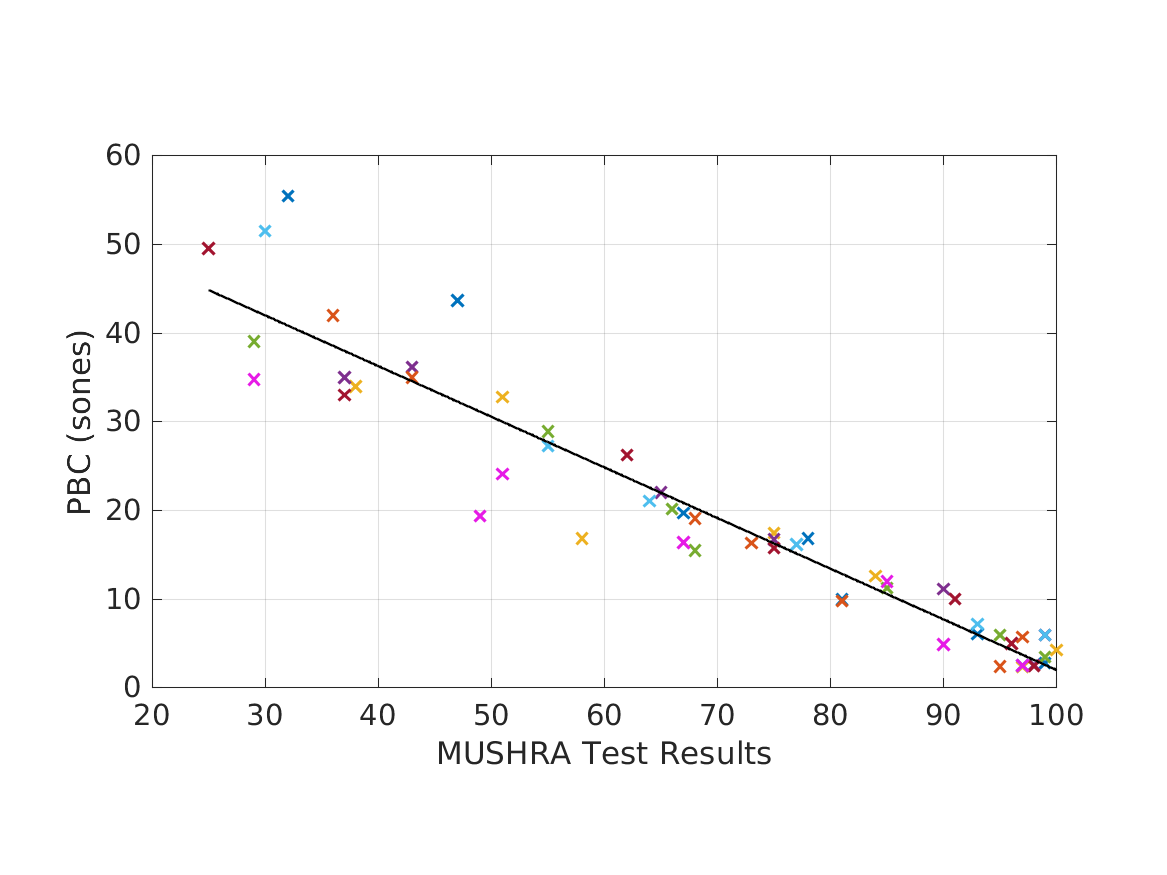

To display Figure 11d use :

exp_mckenzie2022('fig11d');

This code produces the following output:: PBC correlation=-0.95281, p=1.2461e-29
