THE AUDITORY MODELING TOOLBOX
Go to function
DATA_GOODE1994 - Returns data points from the Goode et al. (1994) paper
Usage:
data = data_goode1994_data(flag)
Description:
data_goode1994(flag) returns various data from Goode et al. (1994). (See the particular flags for more details on the nature of the data).
The flag may be one of:
| 'no_plot' | Don't plot, only return data. This is the default. |
| 'plot' | Plot the data. |

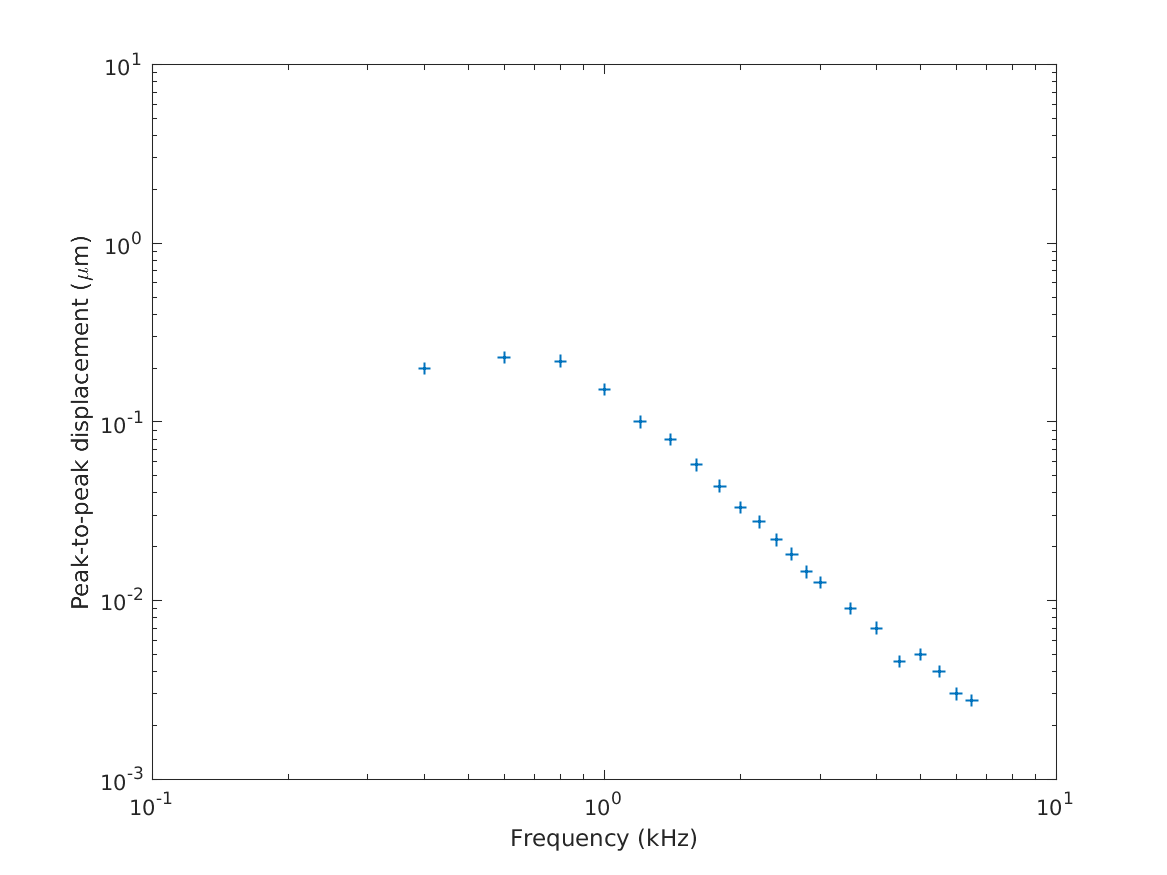

| 'fig1_104' | (default) Returns the stapes footplate diplacement at an SPL of 104 dB as shown in Fig. 1. (Currently the only option). |
Examples:
To plot the Fig. 1 from Goode et al. (1994) use :
data_goode1994('fig1_104','plot');
|
|
References:
R. Goode, M. Killion, K. Nakamura, and S. Nishihara. New knowledge about the function of the human middle ear: development of an improved analog model. The American journal of otology, 15(2):145--154, 1994.
