exp_dietz2011(fig) reproduce Fig. no. fig from the Dietz et al. 2011 paper.
Note: The input signals used in this routine are not identical to the ones used in the original paper.
The following flags can be specified;
'plot' | Plot the output of the experiment. This is the default. |
'no_plot' | Don't plot, only return data. |
'fig3' | Reproduce Fig. 3 panels a + b. |
'fig4' | Reproduce Fig. 4. |
'fig5' | Reproduce Fig. 5. |
'fig6' | Reproduce Fig. 6. |
'fig6_spille2013' | Reproduce Fig. 6 from Spille et al. (2013). |

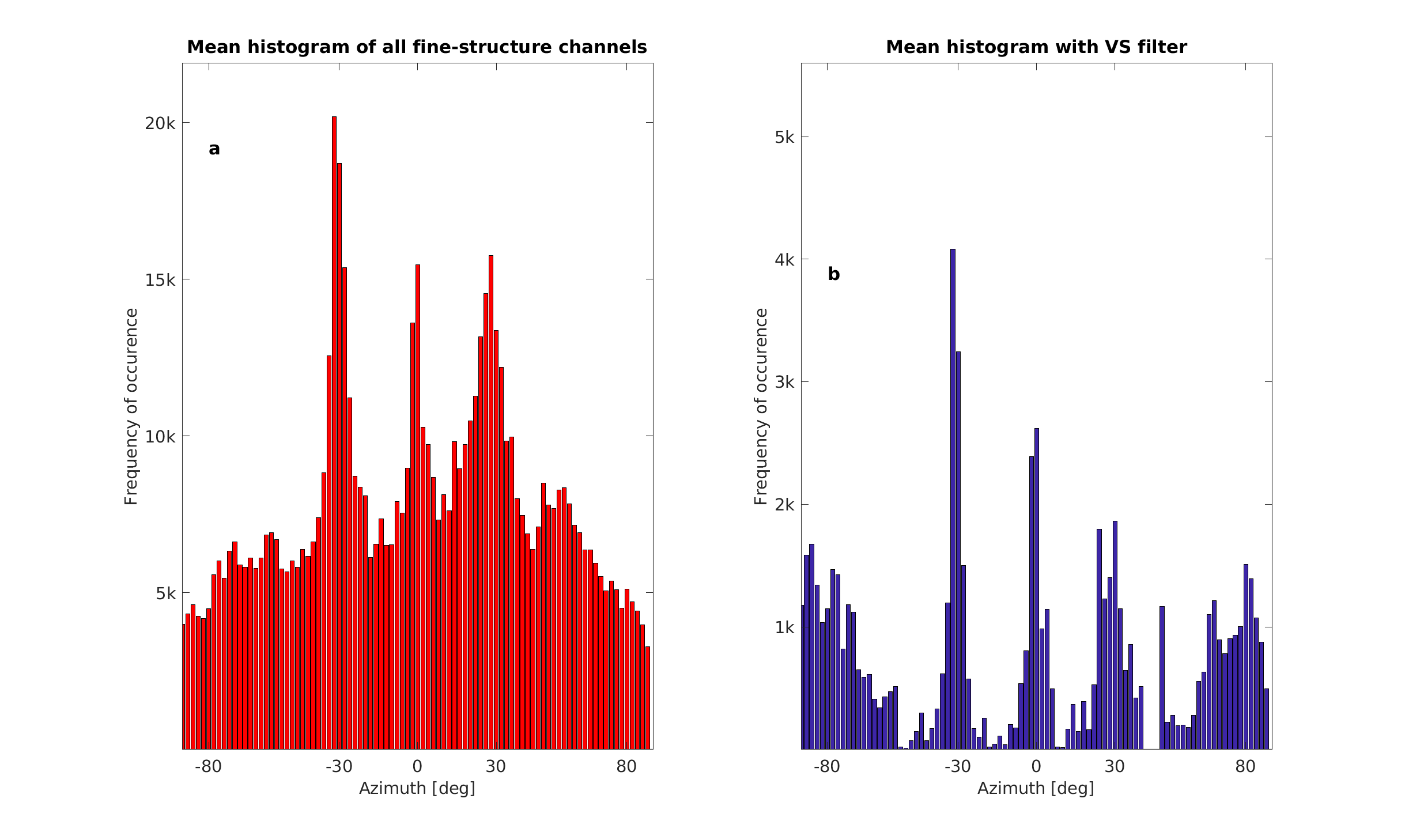

To display Fig. 3 use :
exp_dietz2011('fig3'); |
![]() |

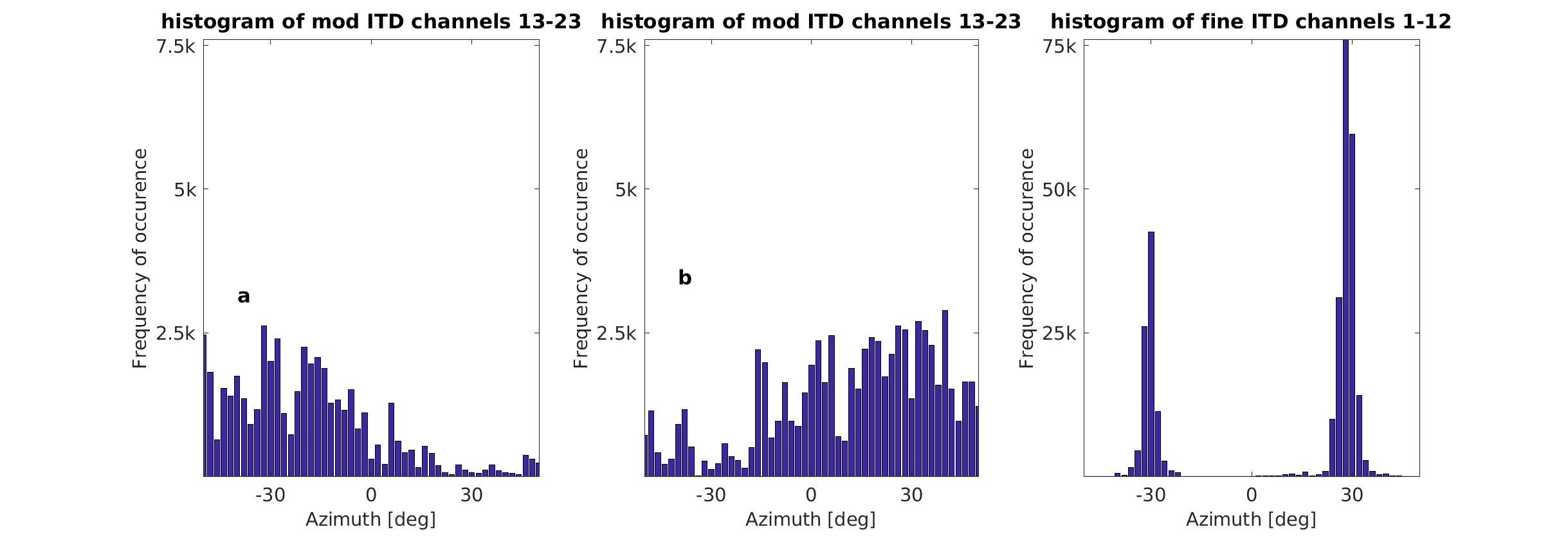

To display Fig. 4 use :
exp_dietz2011('fig4'); |
![]() |

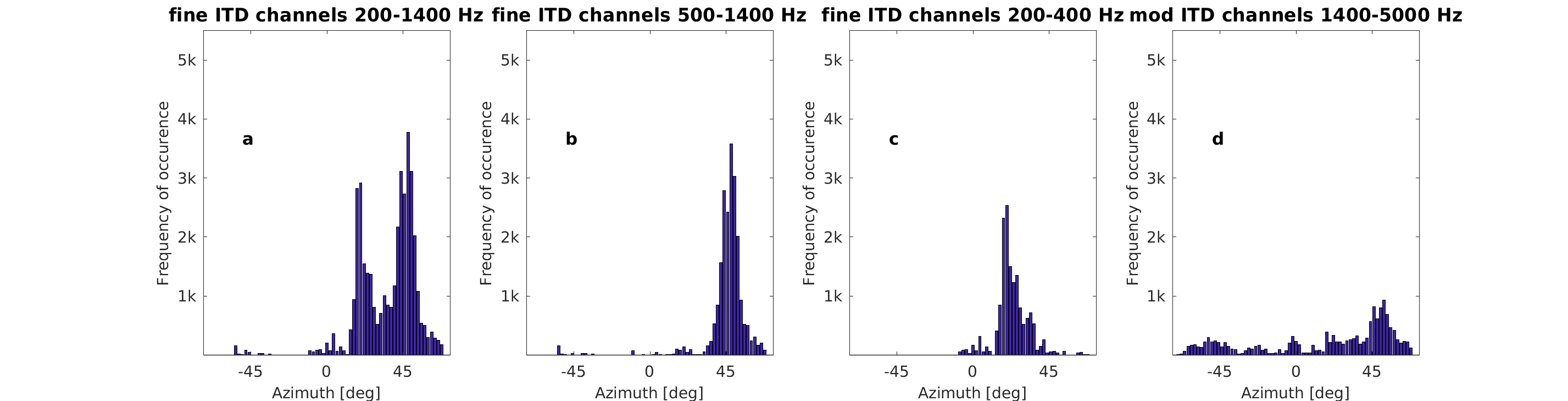

To display Fig. 5 use :
exp_dietz2011('fig5'); |
![]() |

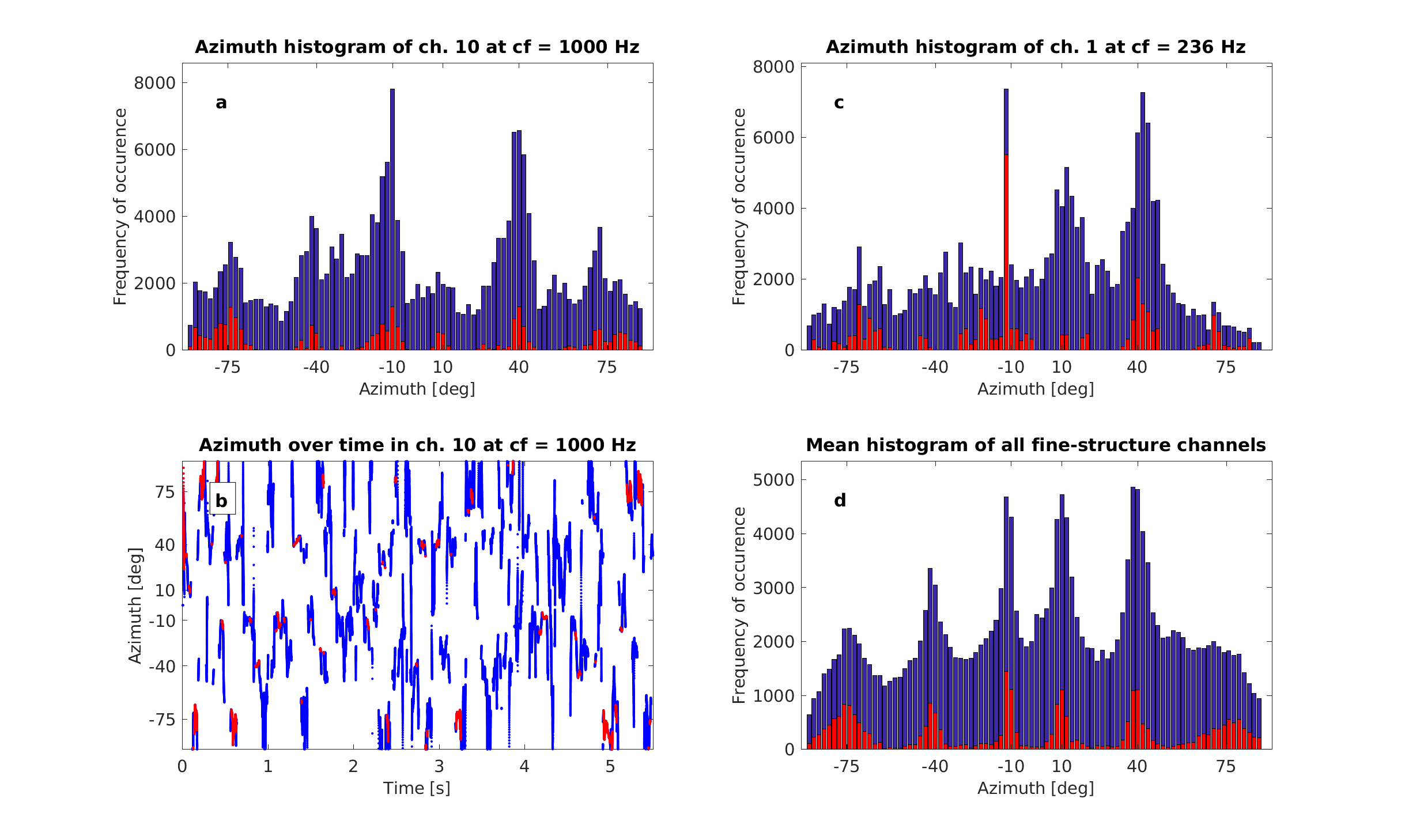

To display Fig. 6 use :
exp_dietz2011('fig6'); |
![]() |

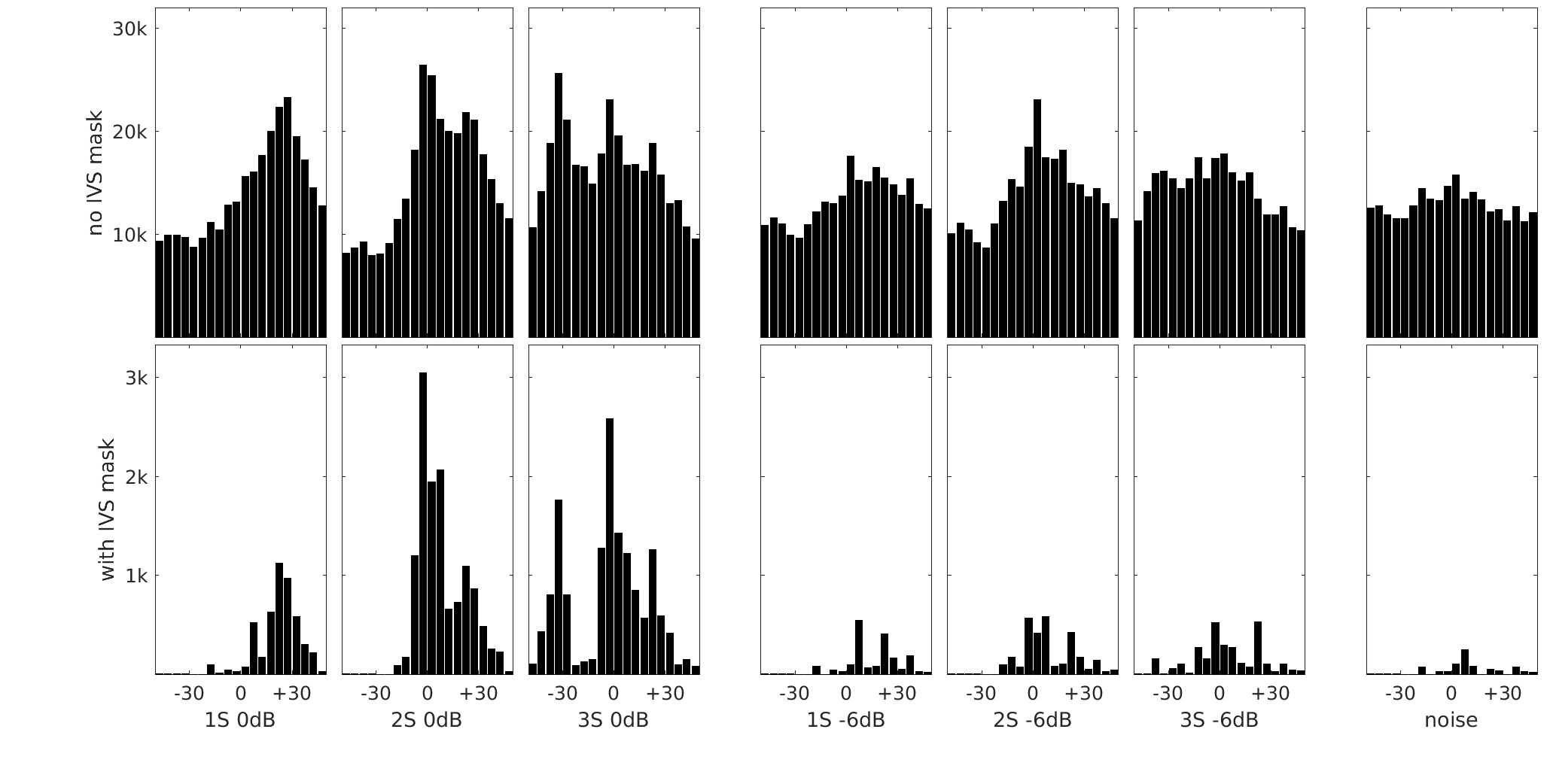

To display Fig. 6 from Spille et al. (2013) use :
exp_dietz2011('fig6_spille2013'); |
![]() |
M. Dietz, S. D. Ewert, and V. Hohmann. Auditory model based direction estimation of concurrent speakers from binaural signals. Speech Communication, 53(5):592--605, 2011. [ DOI | http ]
C. Spille, B. Meyer, M. Dietz, and V. Hohmann. Binaural scene analysis with multi-dimensional statistical filters, chapter 6. Springer-Verlag GmbH, 2013.
