THE AUDITORY MODELING TOOLBOX

Applies to version: 1.5.0

View the code

Go to function

DEMO_DAU1997 - Demo of the auditory model of Dau, Kollmeier, and Kohrausch (1997)

Description:

This script estimates the internal representations of a pure tone with and without a sinusoidal amplitude modulation, and plots two modulation frequency bands for the band centred at 5 kHz. The simulations are run using the model default parameters.

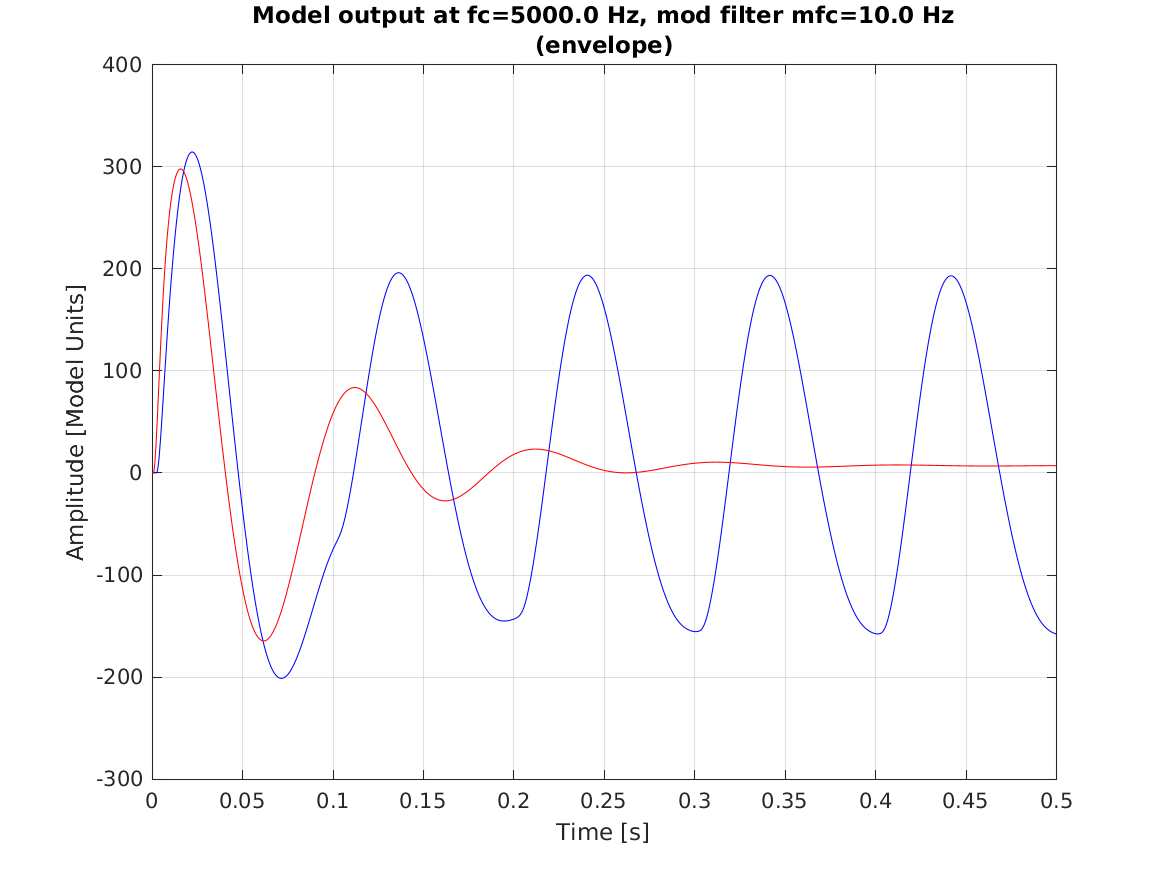

The above figure shows the model output at 5 kHz for the modulation filter centred at 10 Hz.

This time signal corresponds to the 'venelope' post-processing, which keeps the Hilbert envelope of the modulation filter (similar for other modulation bands with mfc>=10 Hz).

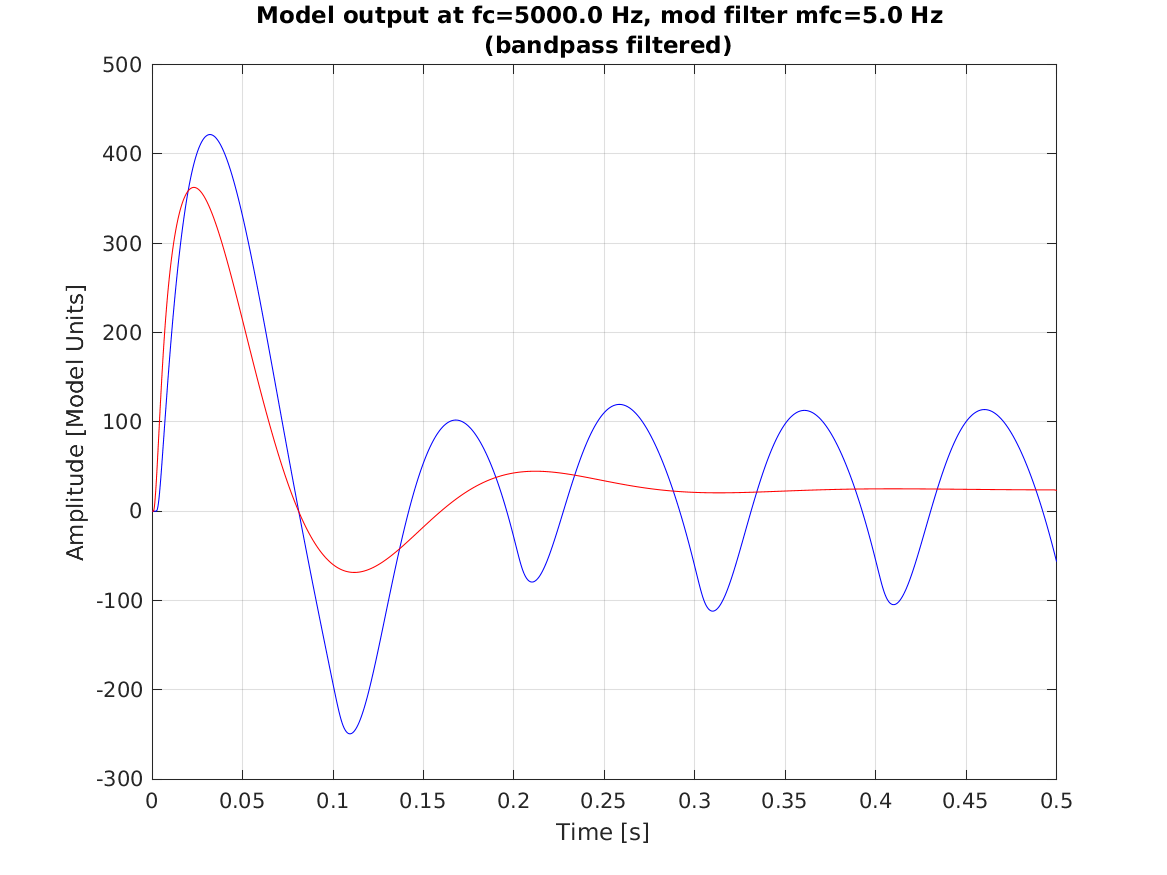

The above figure shows the bandpass-filtered output at 5 kHz for the modulation filter centred at 5 Hz.

This time signal corresponds to the band-passed modulation signal. The same processing is adopted by the model for modulation bands such that mfc>2.5 Hz and mfc<10 Hz.
