THE AUDITORY MODELING TOOLBOX

Applies to version: 1.6.0

View the code

Go to function

demo_lopezpoveda2001
Widening of filters in the lopezpoveda2001

Description:

This script displays three auditory spectrograms generated using the lopezpoveda2001. The input signal is the same, just presented at three different levels. The purpose is to visualize the broading of the auditory filters at higher input levels.

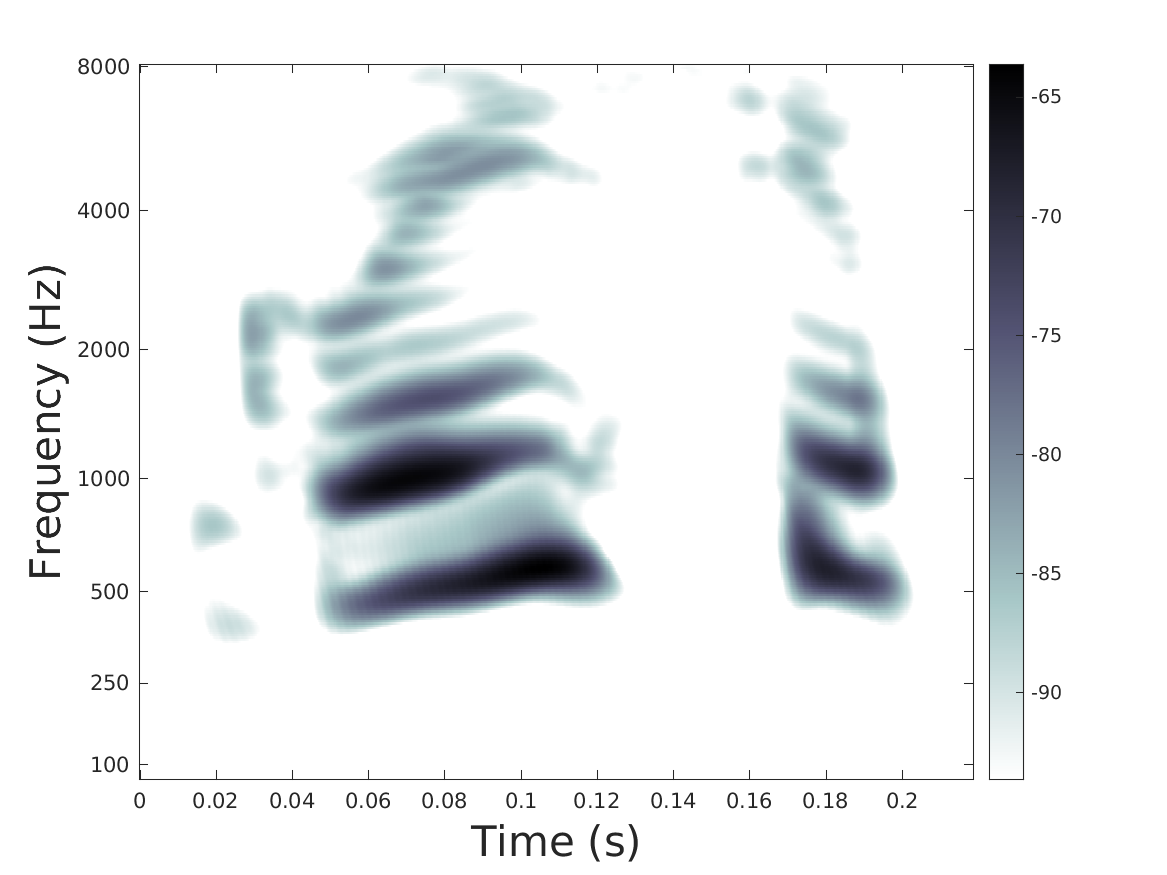

Greasy at 50 dB

This figure shows the lopezpoveda2001 of an input speech signal with a level of 50 dB SPL.

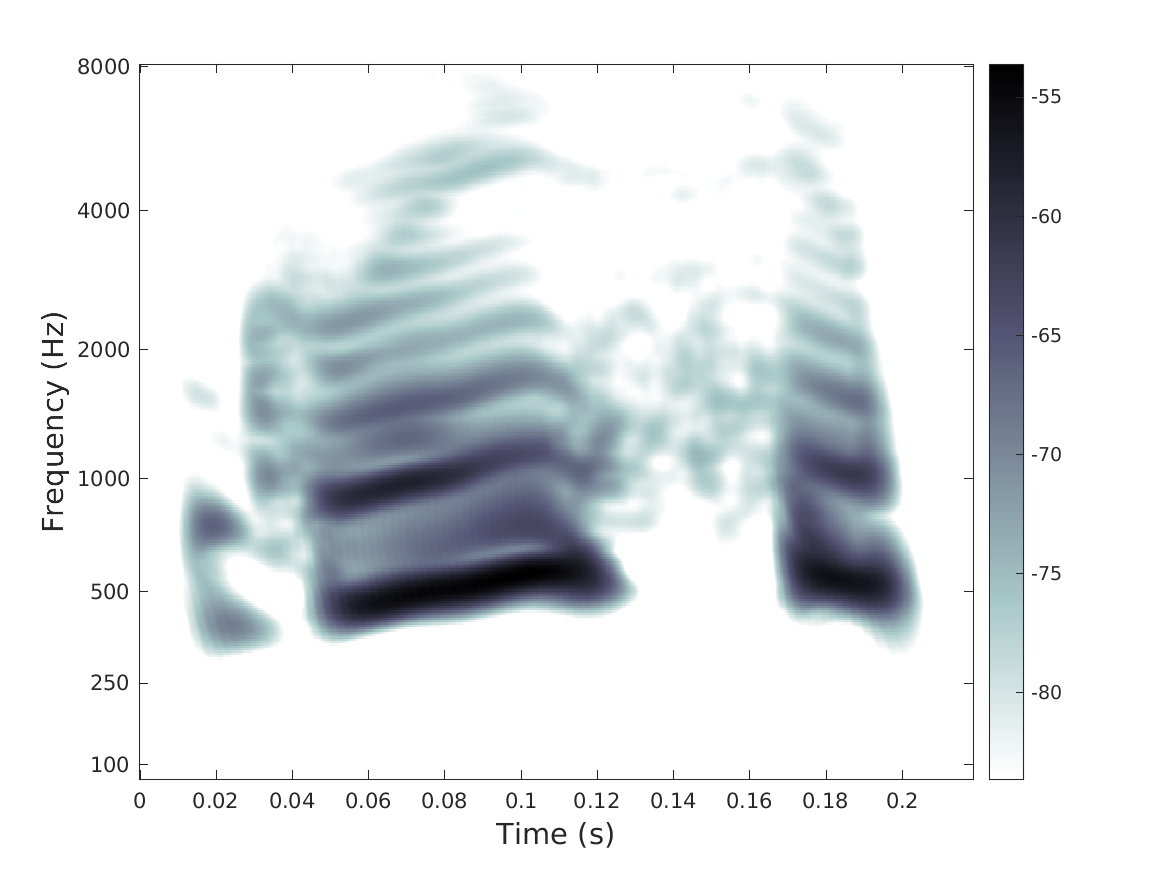

Greasy at 70 dB

This figure shows the lopezpoveda2001 of an input speech signal with a level of 50 dB SPL.

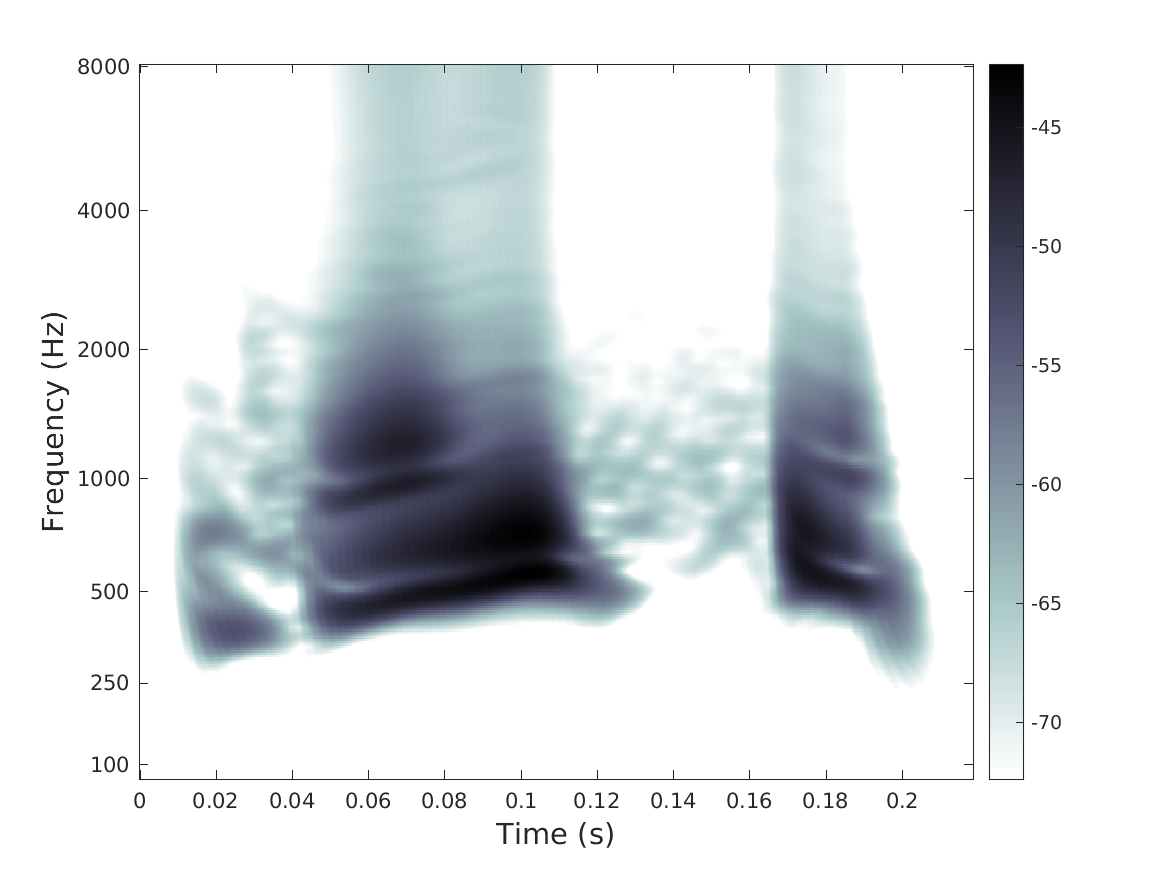

Greasy at 90 dB

This figure shows the lopezpoveda2001 of an input speech signal with a level of 50 dB SPL.

References:

E. Lopez-Poveda and R. Meddis. A human nonlinear cochlear filterbank. The Journal of the Acoustical Society of America, 110:3107--3118, 2001.
