demo_lyon2011
Excitation patterns of the CARFAC model

Description:

This script generates a tone at 30 dB SPL and feeds it to the cascade of asymmetric resonators with fast-acting compression (CARFAC) model. The excitation pattern is formed by taking the RMS of the output channels.

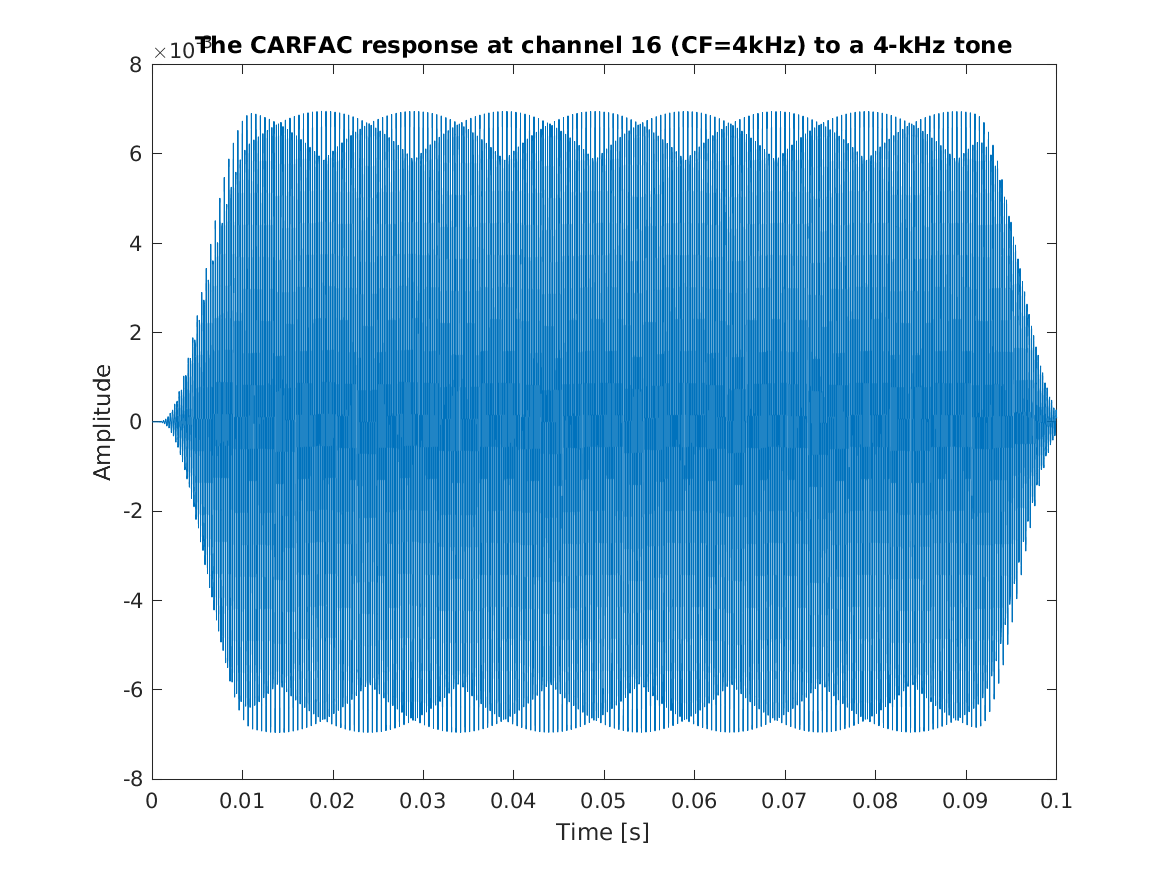

The response at channel 16 to a 4-kHz tone at 60 dB SPL

The excitation pattern in response to a 4-kHz tone at 60 dB SPL

References:

R. F. Lyon. Cascades of two-pole–two-zero asymmetric resonators are good models of peripheral auditory function. The Journal of the Acoustical Society of America, 130(6), 2011. [ http ]
