THE AUDITORY MODELING TOOLBOX
EXP_ROENNE2012
Figures from Rønne et al. (2012)
Usage:
output = exp_roenne2012(flag)
Description:
exp_roenne2012(flag) reproduces the results for the figure given by flag from the Rønne et al. (2012) paper. Outputs are the ABR wave V amplitude and latency of all datapoints in that given figure.
The following flags can be specified;
| 'plot' | Plot the specified figure from Rønne et al. (2012). This is the default. |
| 'no_plot' | Don't plot, only return data. |
| 'plot2' | Plot extra figures for all individual simulated points. Note that this creates lots of extra figures (3 for each simulated data point) |
| 'redo' | Recalculate the experiment results. |
| 'cached' | Use cached results. Default. |

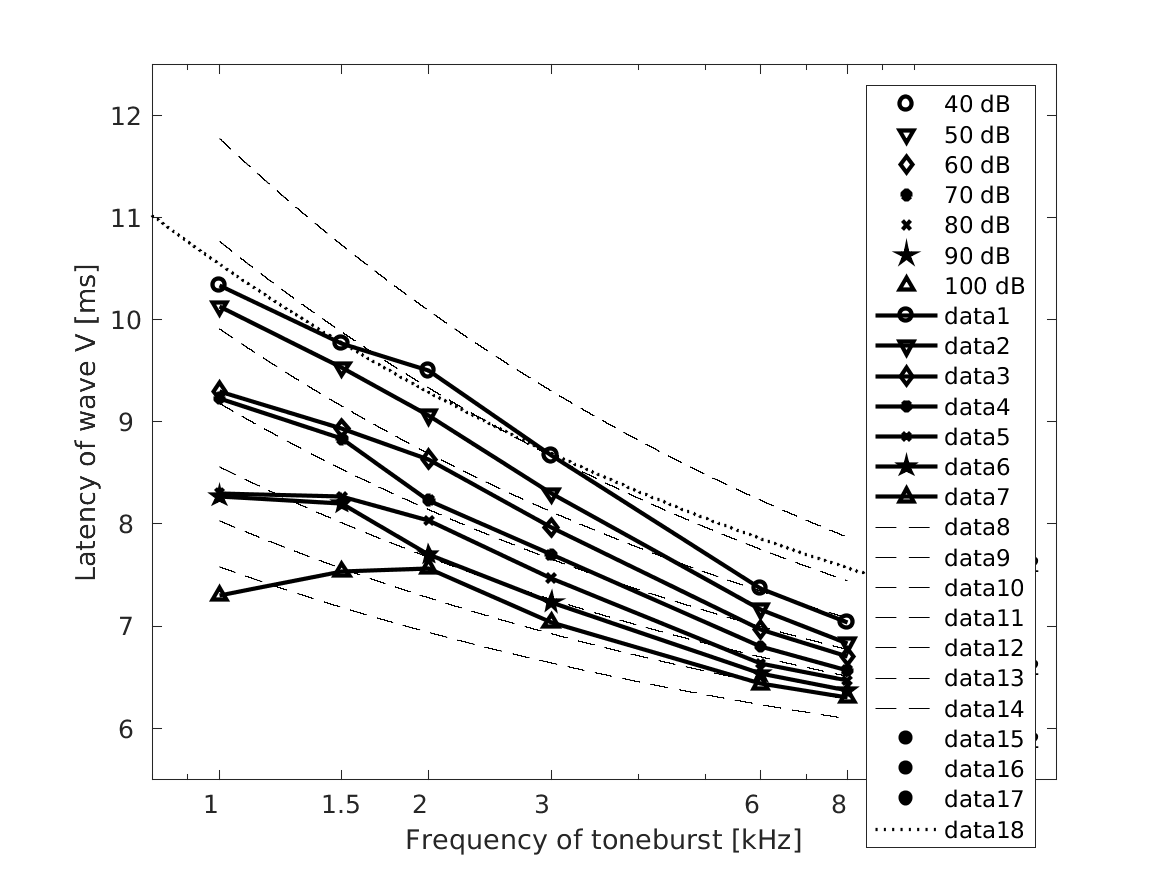

| 'fig5' | Plot Fig. 5 (Rønne et al., 2012). Latency of simulated ABR wave V's compared to Neely et al. (1988) and Harte et al. (2009) reference data. |

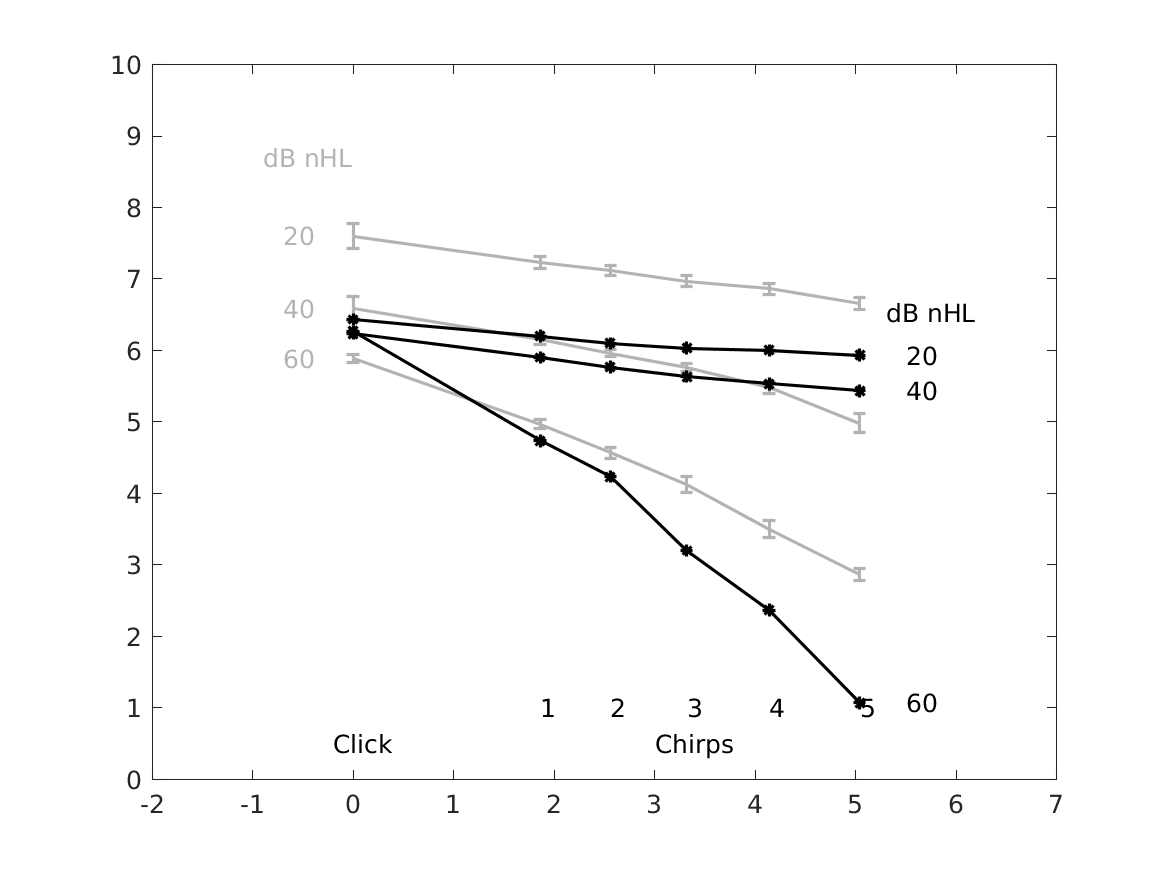

| 'fig6' | Plot Fig. 6 (Rønne et al., 2012). Amplitude of simulated wave V compared to Elberling et al. (2010) reference data. |

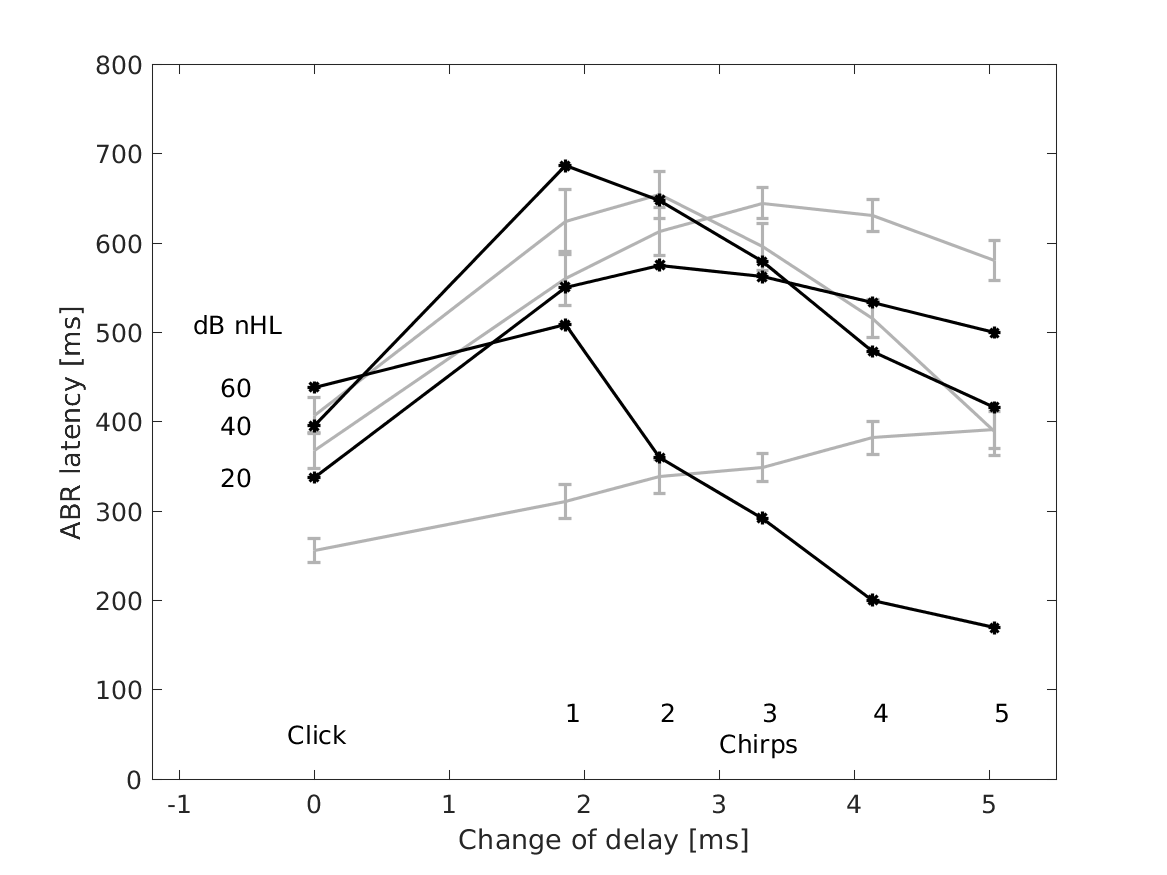

| 'fig7' | Plot Fig. 7 (Rønne et al., 2012). Latency of simulated wave V compared to Elberling et al. (2010) reference data. |
Examples:
To display Figure 5 use :
exp_roenne2012('fig5');
|
|
To display Figure 6 use :
exp_roenne2012('fig6');
|
|
To display Figure 7 use :
exp_roenne2012('fig7');
|
|
Please cite Rønne et al. (2012) and Zilany and Bruce (2007) if you use this model.
References:
C. Elberling, J. Calloe, and M. Don. Evaluating auditory brainstem responses to different chirp stimuli at three levels of stimulation. The Journal of the Acoustical Society of America, 128(1):215--223, 2010.
J. Harte, G. Pigasse, and T. Dau. Comparison of cochlear delay estimates using otoacoustic emissions and auditory brainstem responses. The Journal of the Acoustical Society of America, 126(3):1291--1301, 2009.
S. Neely, S. Norton, M. Gorga, and J. W. Latency of auditory brain-stem responses and otoacoustic emissions using tone-burst stimuli. The Journal of the Acoustical Society of America, 83(2):652--656, feb 1988.
F. M. Rønne, T. Dau, J. Harte, and C. Elberling. Modeling auditory evoked brainstem responses to transient stimuli. The Journal of the Acoustical Society of America, 131(5):3903--3913, 2012. [ DOI ]
