DATA_LOPEZPOVEDA2001
Data from Lopez-Poveda & Meddis (2001)
Usage:
data = data_lopezpoveda2001(flag)
Description:
data_lopezpoveda2001(flag) returns data points from the paper by Lopez-Poveda and Meddis (2001).
The flag may be one of:
| 'no_plot' | Don't plot, only return data. This is the default. |
| 'plot' | Plot the data. |
| 'fig2a' | Data from Fig. 2(a), outer ear filter. |
| 'fig2b' | Data from Fig. 2(b), middle ear filter. |
For Fig. 2b you can choose between:
| 'goode' | Return the data points derived from Goode et al. (1994) This is the default. |
| 'lopezpoveda' | Return the data points just read from Fig. 2b of Lopez-Poveda and Meddis (2001) |
Examples:

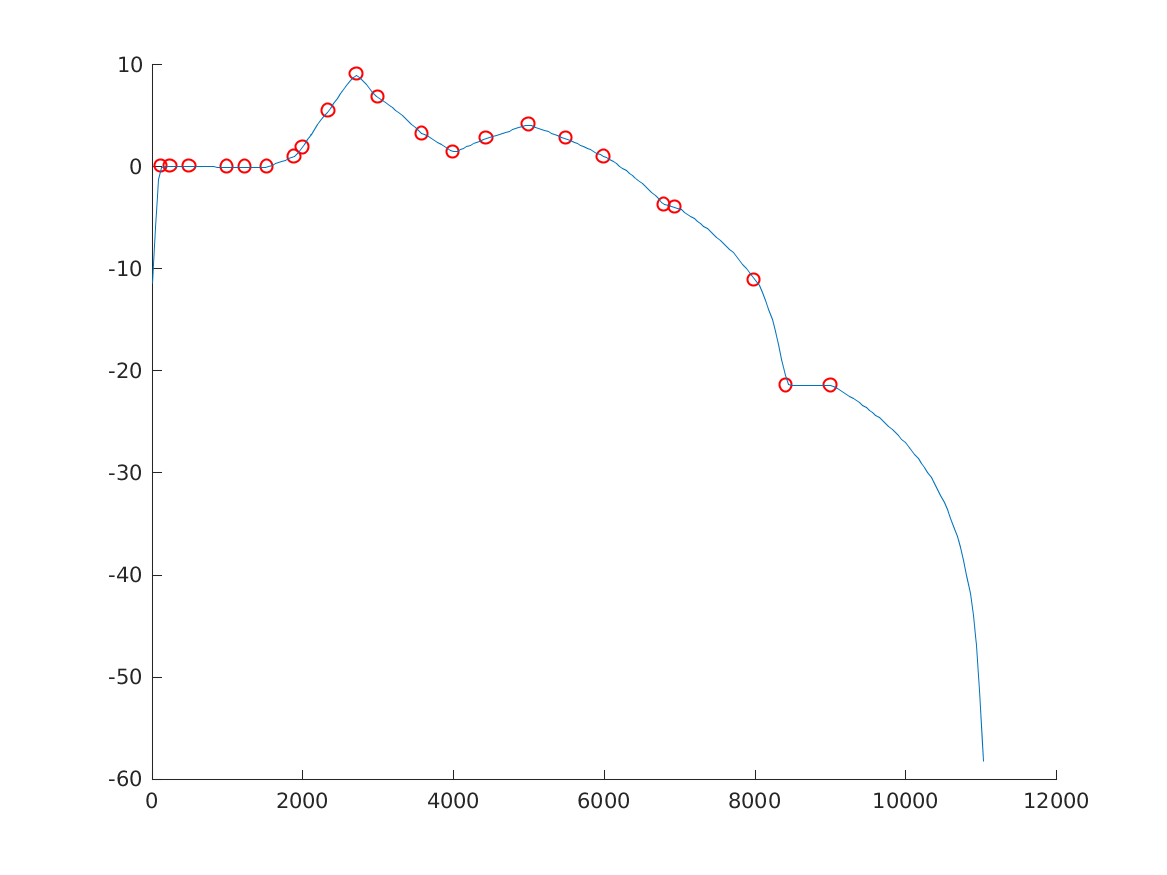

To display Figure 2a, use:
data_lopezpoveda2001('fig2a','plot');
|
|

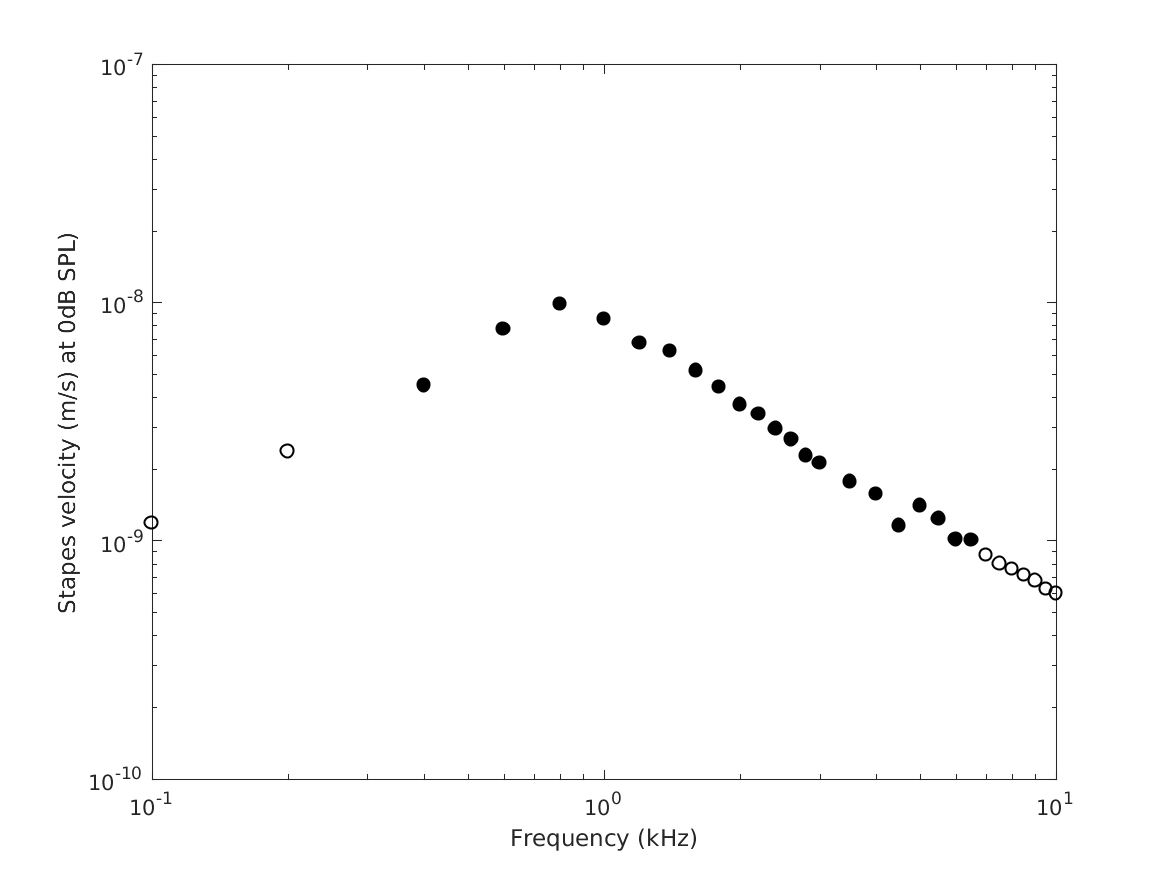

To display Figure 2b, use:
data_lopezpoveda2001('fig2b','plot');
|
|
References:
E. Lopez-Poveda and R. Meddis. A human nonlinear cochlear filterbank. The Journal of the Acoustical Society of America, 110:3107--3118, 2001.
