Usage:

data = exp_engel2022(flag)

Description:

exp_engel2022(flag) reproduces figures of the study from Engel et al. (2022). This article investigates the effects of various HRTF preprocessing methods for Ambisonics rendering. The effects are assessed by applying a model for sound localization reijniers2014, a model for sound externalization baumgartner2021, and a model for speech reception jelfs2011.

The following flags can be specified:

For the calculations, an HRTF data set will be loaded from auxdata and represented as truncated spherical-harmonics HRTFs. Then, various rendering techniques will be applied and the results will be provided as input to the models.

Warning: The processing of HRTFs does not take a long time to generate (minutes). The model results may take long time to generate (hours). Both, the processed HRTFs and model results are available as cached data.

Examples:

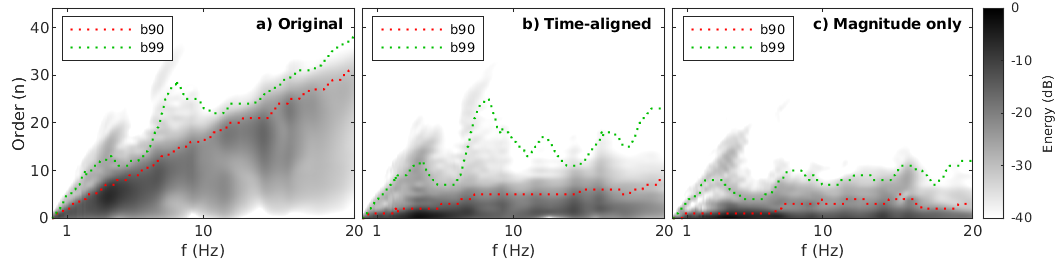

To display Fig.1 use :

exp_engel2022('fig1');

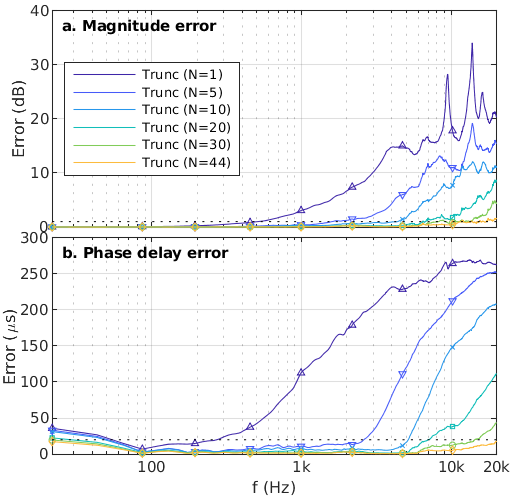

To display Fig.2 use :

exp_engel2022('fig2');

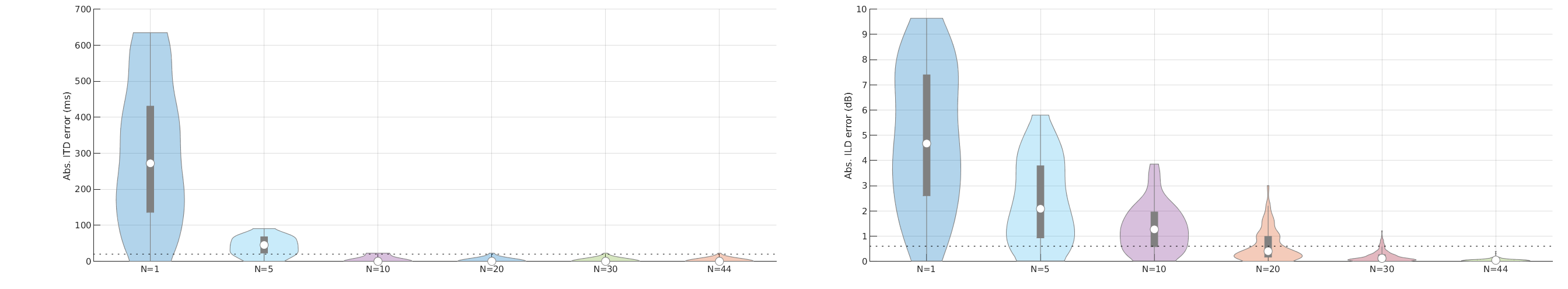

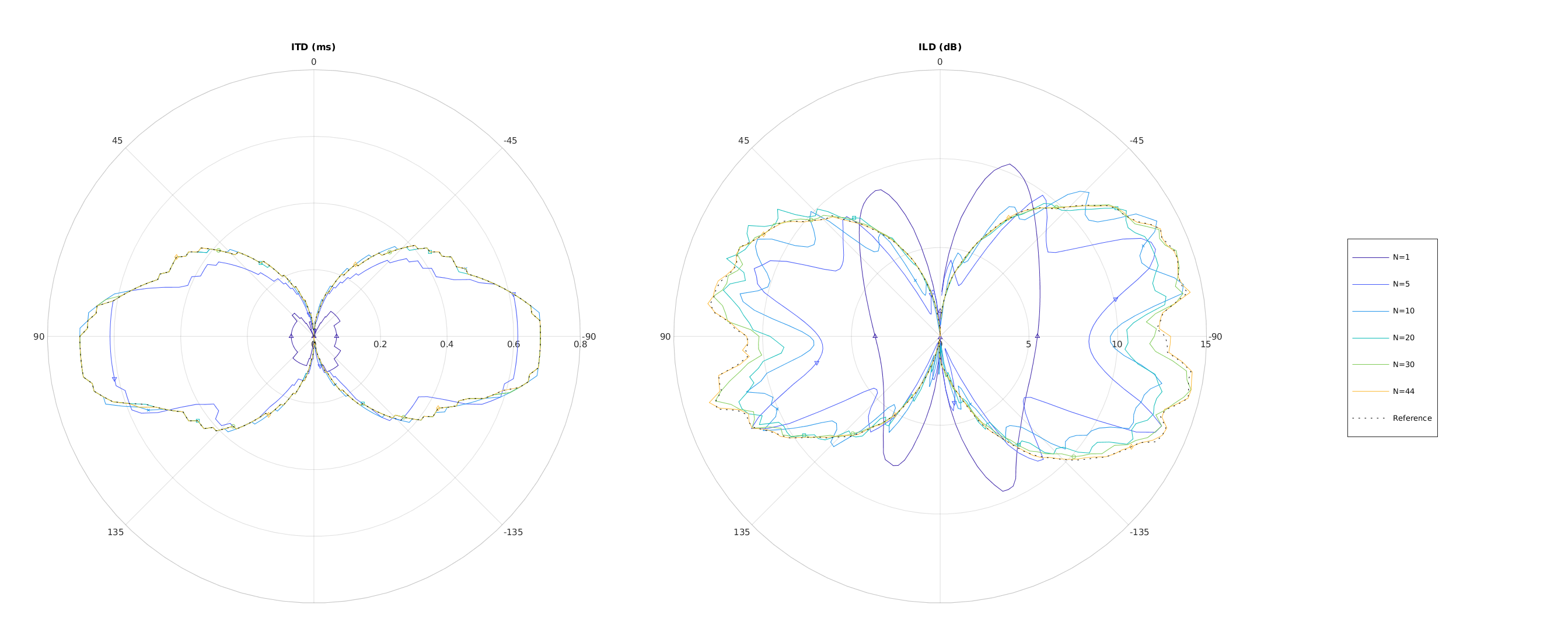

To display Fig.3 use :

exp_engel2022('fig3');

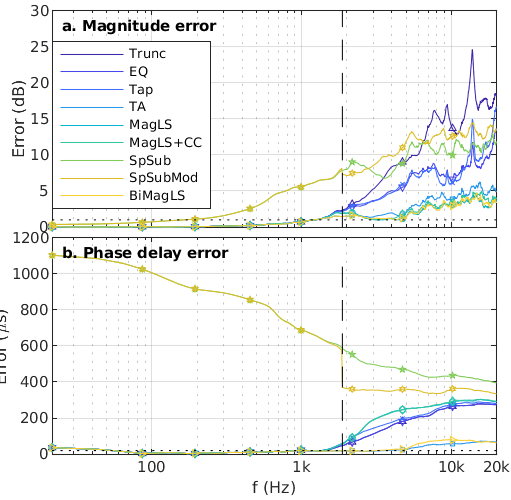

To display Fig.4 use :

exp_engel2022('fig4');

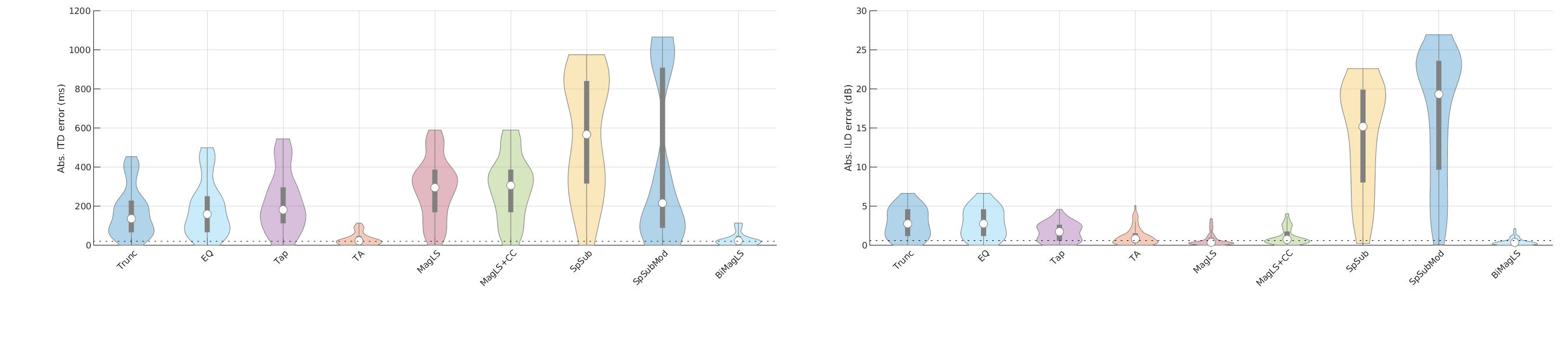

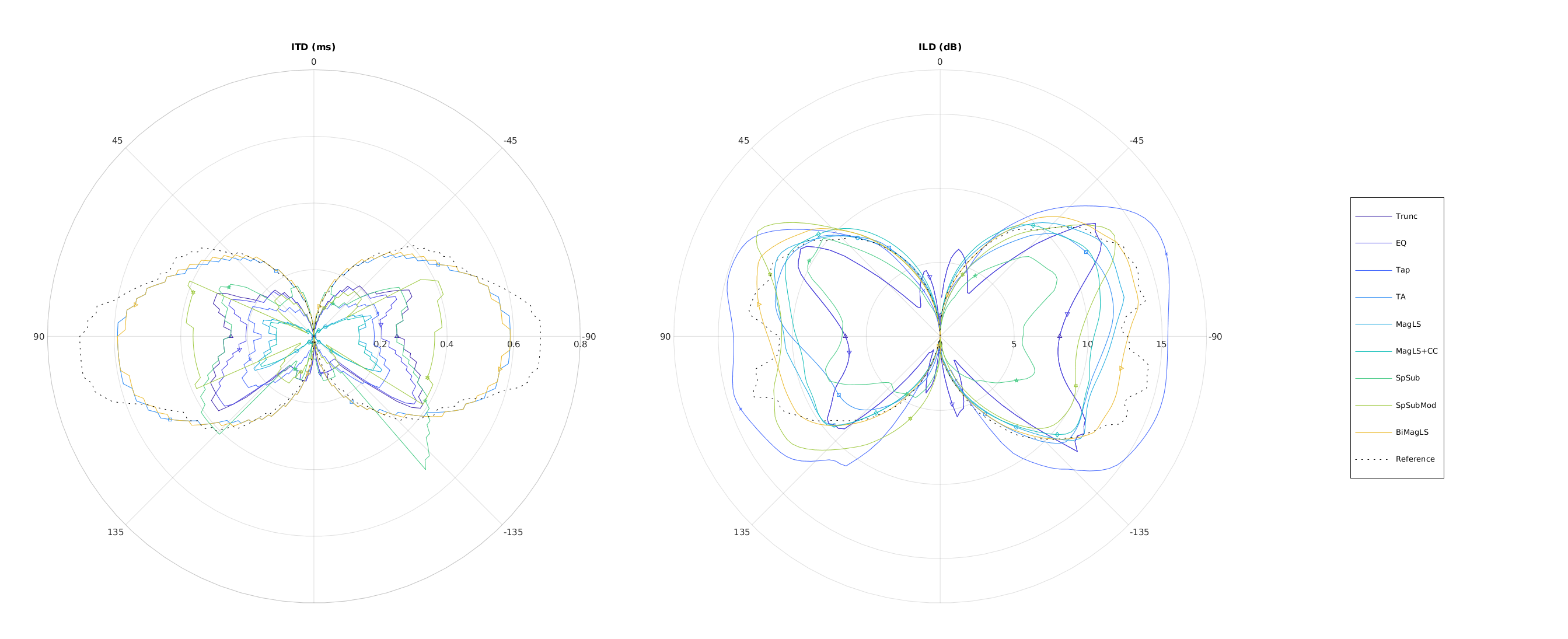

To display Fig.5 use :

exp_engel2022('fig5');

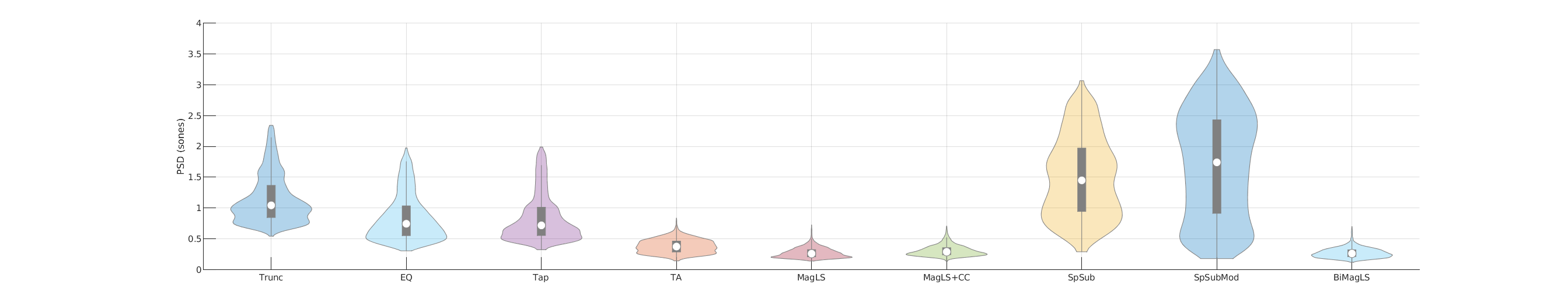

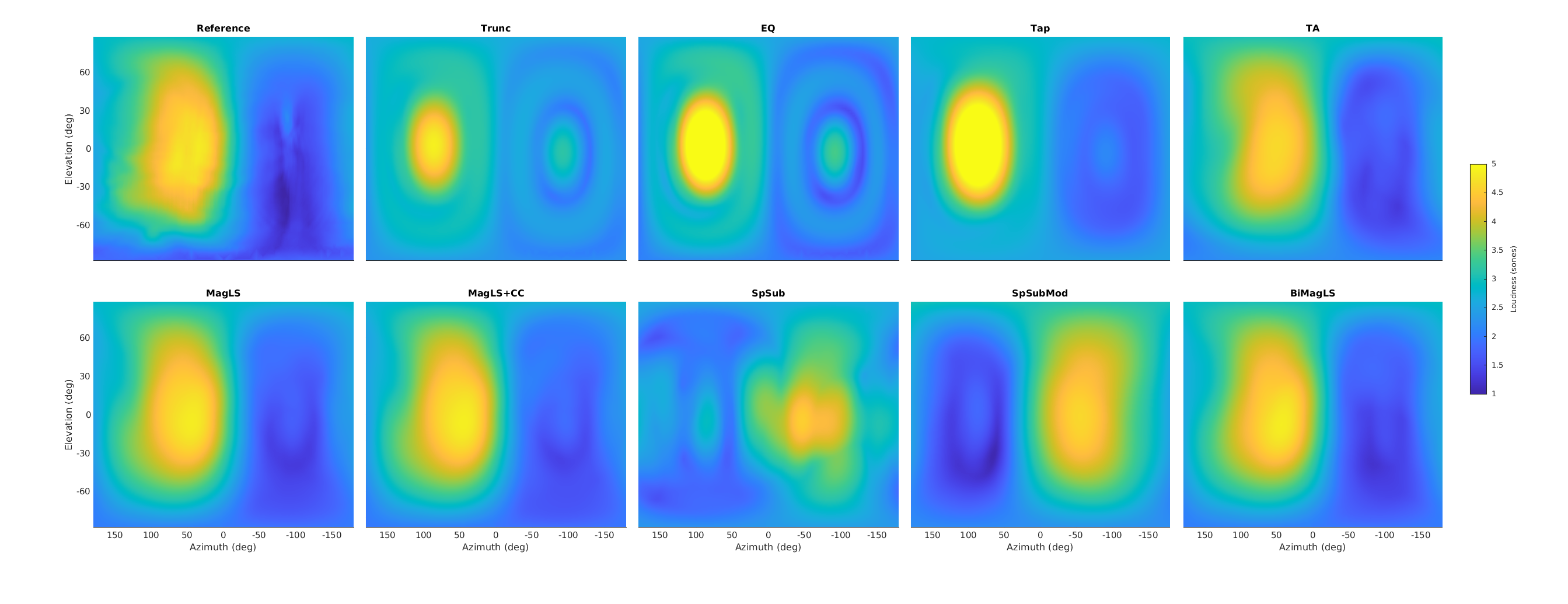

To display Fig.6 use :

exp_engel2022('fig6');

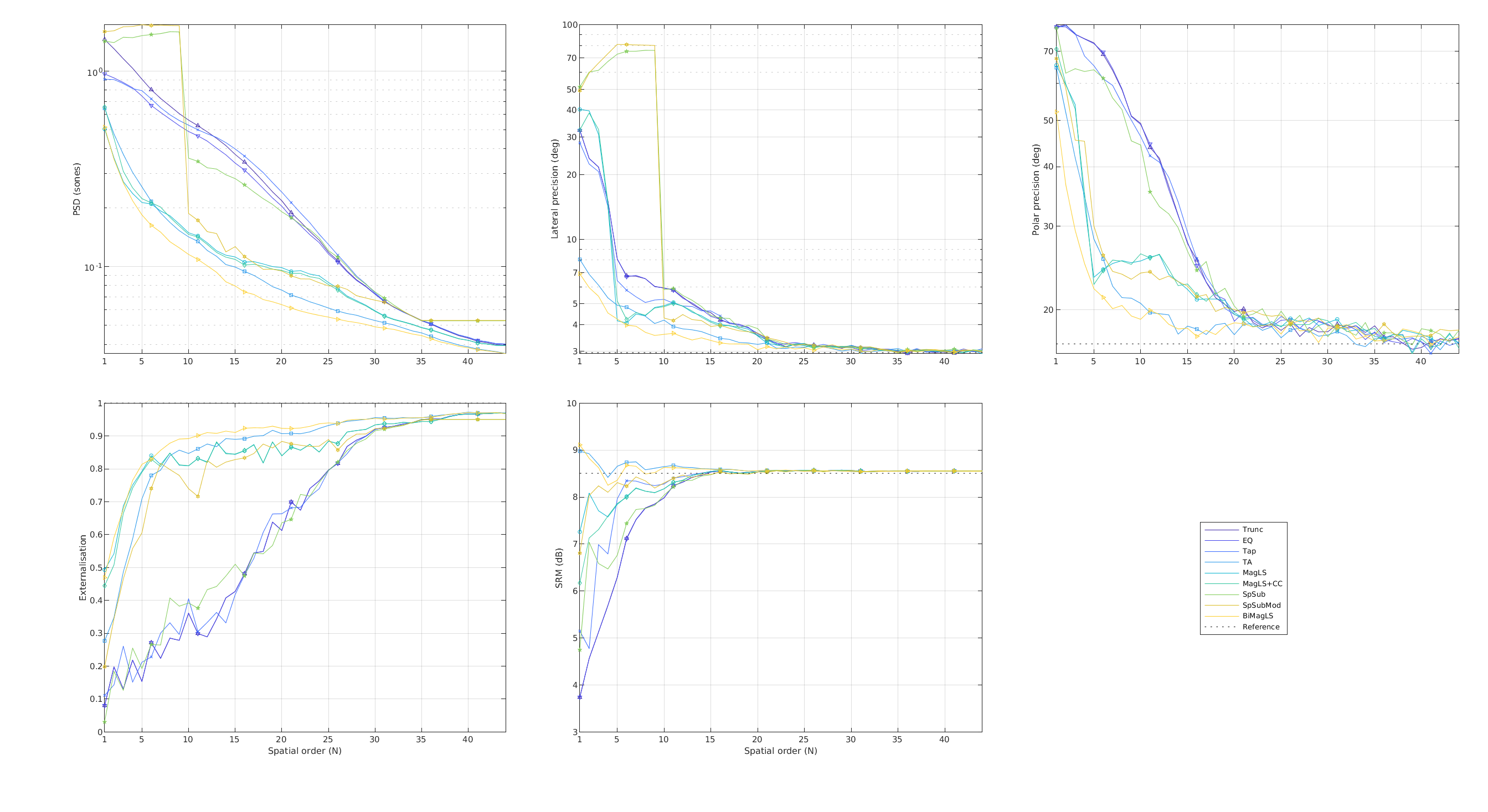

To display Fig.7 use :

exp_engel2022('fig7');
